What is Ultimate 2.0 Robot Kit?
Ultimate 2.0 is a ﬂagship robot kit based on Makeblock platform with rich features and strong compatibility. Whether you are an enthusiast of Raspberry Pi or Arduino, a mechanical or electronics engineer, a teacher, or a student, it helps you learn the knowledge of mechanical structures, electronic modules and programming skill with ease. Please visit Learn for more resourse.
• Ten building forms will meet all your need for different application scenes;
• Great for learning robotics, electronics, graphical programming, Arduino programming and Python programming;
• Anodized 6061 aluminum mechanical parts with threaded-slot design brings an easy way of building the robot;
• Three powerful encoder motors enable you to feel every step of the robot;
• Wirelessly control your robot with smart devices through Bluetooth connection.
Robotic Arm Tank
This Robot Arm Tank consists of a highly-adaptable track chassis and a ﬂexible robotic arm. This robot is designed to help you grip, lift, and deliver objects in various terrains.
Robotic Bartender is made up of a mobile chassis, a variable angle support structure and a self-adaptive bracket. It can independently pour wine into a glass (or do other similar action) and deliver the glass to you.
Camera Dolly consists of a mobile chassis and a 360-degree swivel base. Add a smart phone or a camera onto this robot and start filming from a low angle. You can also preset a path for the robot to follow in order to capture the moments of your life (motion noise may affect the sound recording).
3D Capture is a simple yet powerful 360-degree rotating platform, consisting of a cell phone holder and a rotating structure. Add a cell phone to realize 360-degree panoramic ﬁlming or let the robot ﬁlm while moving around small objects. When connected with an app, it can simulate 3D scanning beautifully.
This self-balancing robot is another building form of Ultimate 2.0 Robot Kit. It is driven by two encoder motors at its two wheels. It can move forward and backward while keeping balance.
Powerful Mainboard - MegaPi
MegaPi is small but powerful mainboard based on Arduino MEGA 2560. It has six function area, which can be connected with modules to realize wireless communication or drive various motors. MegaPi is capable of driving 10 servos or 8 DC motors simultaneously. It can be used to build various robots, such as 3D printer and other robotic projects.
Graphical Programming from PC
mBot Ranger is fully compatible with mBlock which is a graphical programming environment based on Scratch 2.0 Open Source Code. It makes programming projects and interactive applications easier through simply dragging and dropping function blocks.
In addition to PC programming, Ultimate 2.0 also supports being programmed from your iPad and tablets with an easy-to-use app – Makeblock HD. Explore with Ultimate 2.0 using the existing projects, or develop your own.

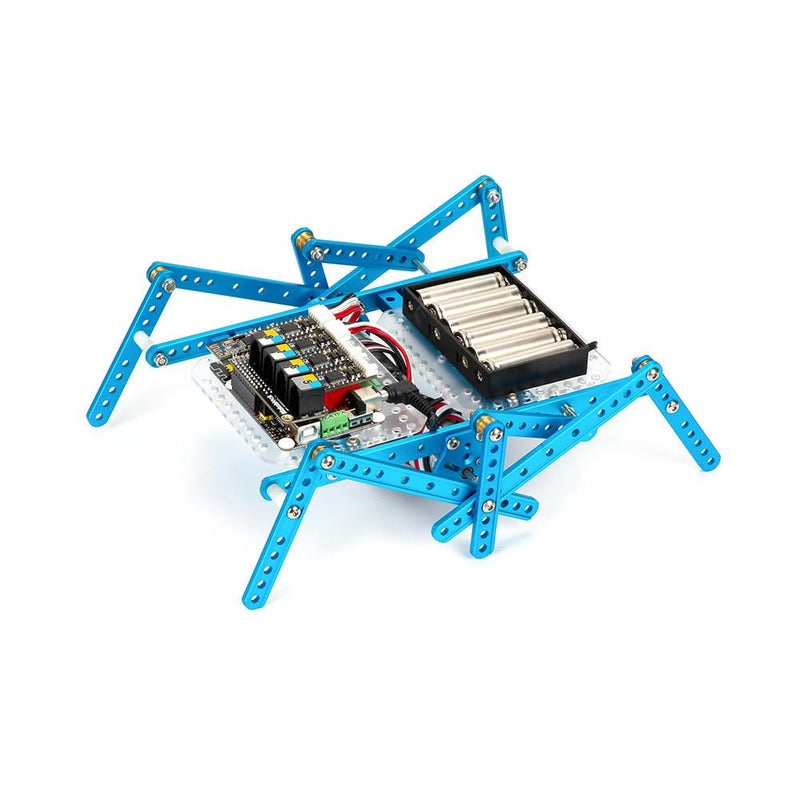

More Building Forms: Robotic Ant, Rolling Tank, 3D Capture B, Catapult Ram.
Ultimate 2.0 VS. Ultimate 1.0
If you're trying to figure out the difference between Ultimate 2.0 and Ultimate 1.0, check this comparison chart.
|Part Number||>160 PCS||>140 PCS|
|Main Control Chip||ATMEGA2560-16AU||Arduino Uno|
|Extension Ports||4×Encoder Motor Port
1×Wireless Communication Interface
2×High Power Interface
1×Raspberry Pi Serial Interface
4×Sensors Expansion Port
|DC Encoder Motor Port
8×Sensors Expansion port
|On-Board Sensor||1×Ultrasonic Sensor
1×3-Axis Accelerator and Gyro Sensor
|LED Lamplets||/||LED RGB Strip-Addressable, Sealed(0.5M)|
|iPad/Tablet Programming||Makeblock HD 2.0||Makeblock|
|Smartphone App||Under development||Makeblock|
|Power Supply||6 × AA batteries||6 × AA batteries|
1. "Tech Specs" section includes technical specifications of Ultimate 2.0 and MegaPi, pictures of electronic modules and mechnical parts in Ultimate 2.0.
2. "Part List" section includes the name and quanitity of the parts in Ultimate 2.0.
3. "Resource" section includes instructions showing you how to set and use software and how to debug Ultimate 2.0 with software.
Tech Specs of Ultimate 2.0
|Mechanical Parts||Aluminum Extrusion Parts
Plastic Timing Pulleys 90T
Tracks and Wheels
Others Hardware and Accessories
|Electronic Modules||1 x MegaPi
1 x MegaPi Shield for RJ25
1 x Bluetooth Module
4 x Motor Driver
3 x Encoder Motor
1 x Ultrasonic Sensor
1 x Line Follower Sensor
1 x 3-Axis Accelerometer and Gyro Sensor
1 x RJ25 Adapter
1 x Shutter
1 x Makeblock Gripper
|Building Forms||Ten Building forms（With paper assembling
instruction for three main forms)
Node JS Programming
Tech Specs of MegaPi
1. Microcontroller: ATMEGA2560-16AU
2. Input Voltage: DC 6V-12V
3. Operating Voltage: DC 5V
4. I/O Pins: 43
5. Serial Ports: 3
6. I2C Interface: 1
7. SPI Interface: 1
8. Analog Input Pins: 15
9. DC Current per I/O Pin: 20mA
10. Flash Memory: 256KB
11. SRAM: 8KB
12. EEPROM: 4KB
13. Flash Memory: 256KB
14. Dimension: 85*63mm
The various colors on MegaPi represents specialized functions:
• Red Pin--power output/motor output
• Yellow Pin--I/O pin
• Blue Pin--wireless communication interface
• Black Pin--power GND
• Green Interface--power output/motor output
Ultimate 2.0 Robot Kit (SKU：90040)
|4 × Beam0824-016||6 × Plastic Timing Pulley 90T||4 × Screw M4×22|
|5 × Beam0824-032||3 × Plastic Gear 8T||4 × Screw M4×30|
|3 × Beam0824-064||2 × Plastic Gear 56T||47 × Nut M4|
|2 × Beam0824-128||2 × Plastic Gear 72T||10 × Nylon Lock Nut M4|
|1 × Slide Beam0824-176||1 × 360°Mobile Phone Bracket||1 × 25mm DC Encoder Motor 9V/86RPM|
|2 × Slide Beam0824-192||2 × Track 80×139mm||2 × 25mm DC Encoder Motor 9V/185RPM|
|2 × Beam0808-024||1 × Battery Holder 6AA||1 × Makeblock Robot Gripper|
|2 × Plate0324-056||12 × Flange Copper Sleeve 4×8×4mm||3 × 25mm DC Encoder Motor Cable|
|3 × Plate0324-088||12 × Shaft Collar 4mm||1 × MegaPi|
|4 × Beam0412-076||6 × Threaded Shaft 4×39mm||4 × MegaPi Encoder/DC Motor Driver|
|4 × Beam0412-092||2 × 4mm D shaft 50mm||1× MegaPi Shield for RJ25|
|4 × Beam0412-140||2 × Shaft D4×88mm||1 × Bluetooth Modulen|
|6 × Beam0412-188||1 × 4mm D shaft 160mm||1 × Me Ultrasonic Sensor|
|2 × Beam0412-220||4 × Brass Stud M4×16||1 × Me Line Follower|
|2 × Bracket P3||4 × Plastic Ring 4×7×2||1 × Me Shutter|
|3 × 25mm DC Motor Bracket||8 × Plastic Ring 4×7×3||1 × Me 3-Axis Accelerometer and Gyro Sensor|
|4 × Bracket 3×3||2 × Plastic Ring 4×7×10||1 × Me Adapter|
|2 × Plate 3×6||20 × Plastic Rivet 4060||1 × USB Cable B-1.3m|
|1 × Plate 7×9-B||20 × Plastic Rivet 4100||2 × 6P6C RJ25 Cable-20cm|
|6 × Shaft Connector 4mm||20 × Plastic Rivet 4120||1 × 6P6C RJ25 Cable-35cm|
|4 × Stiffener1616-08-M4||12 × Headless Set Screw M3×5||10 × Rubber Bank|
|1 × Plane Bearing Turntable D34×24mm||8 × Headless Set Screw M3×8||10 × Nylon Cable Tie 1.9×100|
|1 × Quick Release Plate||6 × Countersunk Screw M3×8||1 × Cross&2.5mm HEX Screwdriver|
|2 × 25mm Motor Bracket-72T||4 × Countersunk Screw M3×10||1 × Small Four-way Socket Wrench|
|2 × MegaPi Acrylic Bracket||50 × Screw M4×8||1 × Wrench 5mm&7mm|
|4 × Rubber Blanket||46 × Screw M4×14||1 × HEX Key 1.5mm|
|4 × Tire 90T B||10 × Screw M4×16|
