- 4-Camera Vision: For pinpoint material positioning and complete safety monitoring.

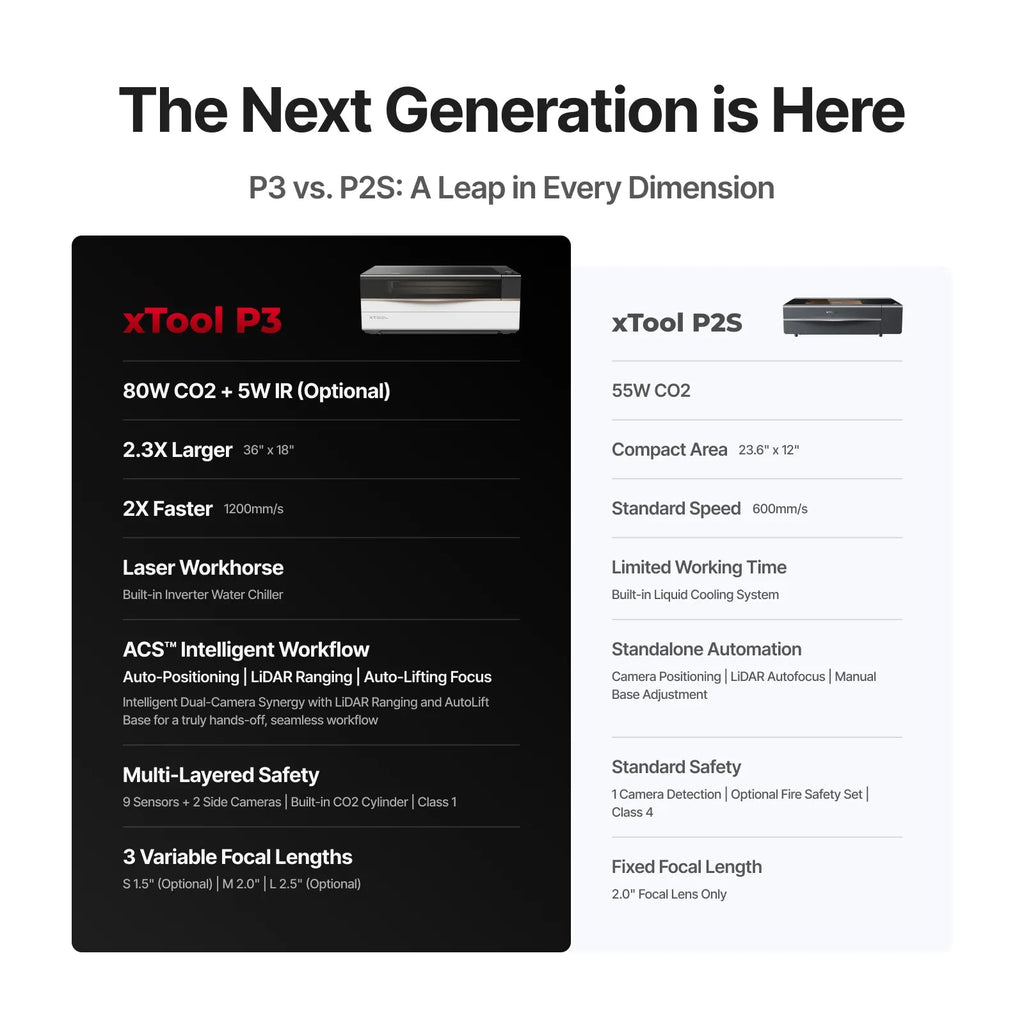

- 36" × 18" Working Area: Our largest workspace yet—2.3x larger than the P2S.
- Exclusive ACS™ Smart Workflow: Auto-Positioning, Autofocus, Auto LiDAR Ranging, and an Auto-Lifting Base.

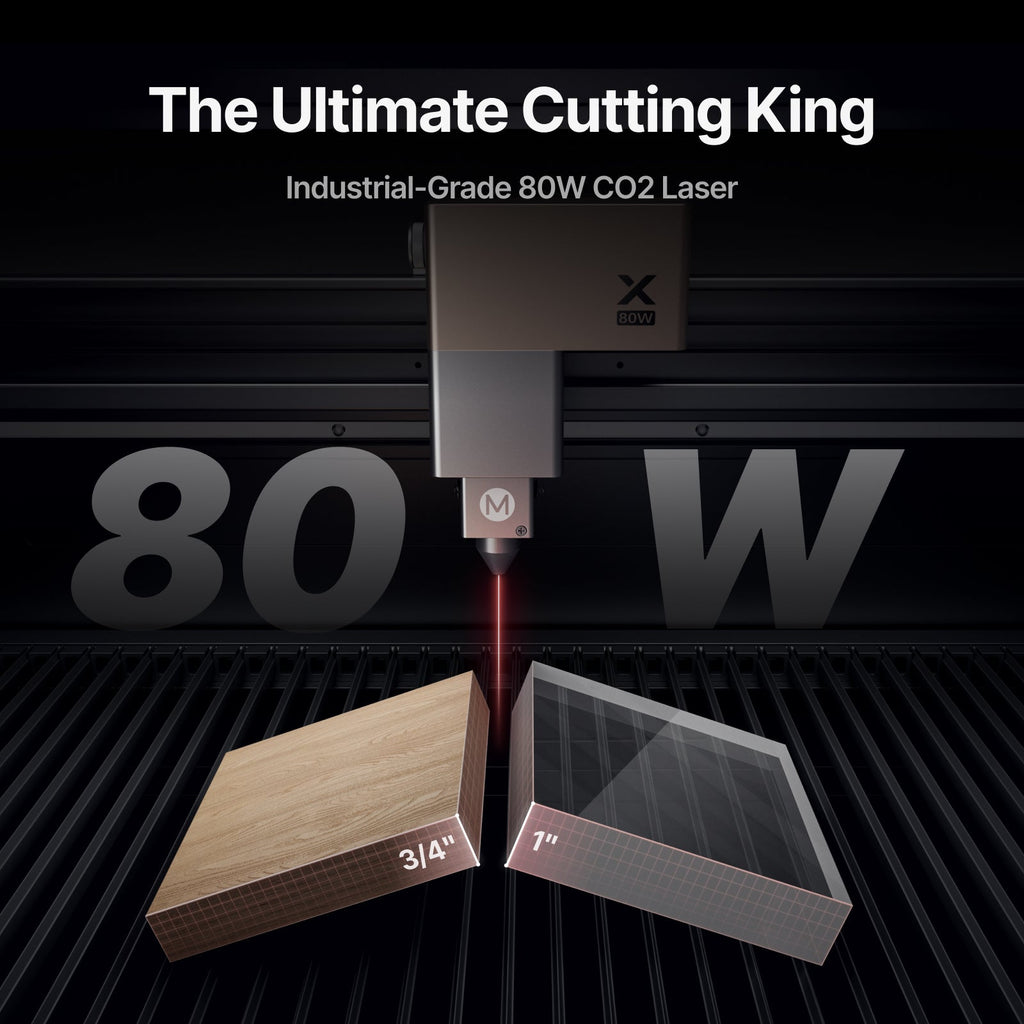

- 80W Power & 1200mm/s Speed: Double the processing efficiency of the P2S.
Features
5W IR Module, RA3 Rotary, Conveyor are sold separately.
In the Box

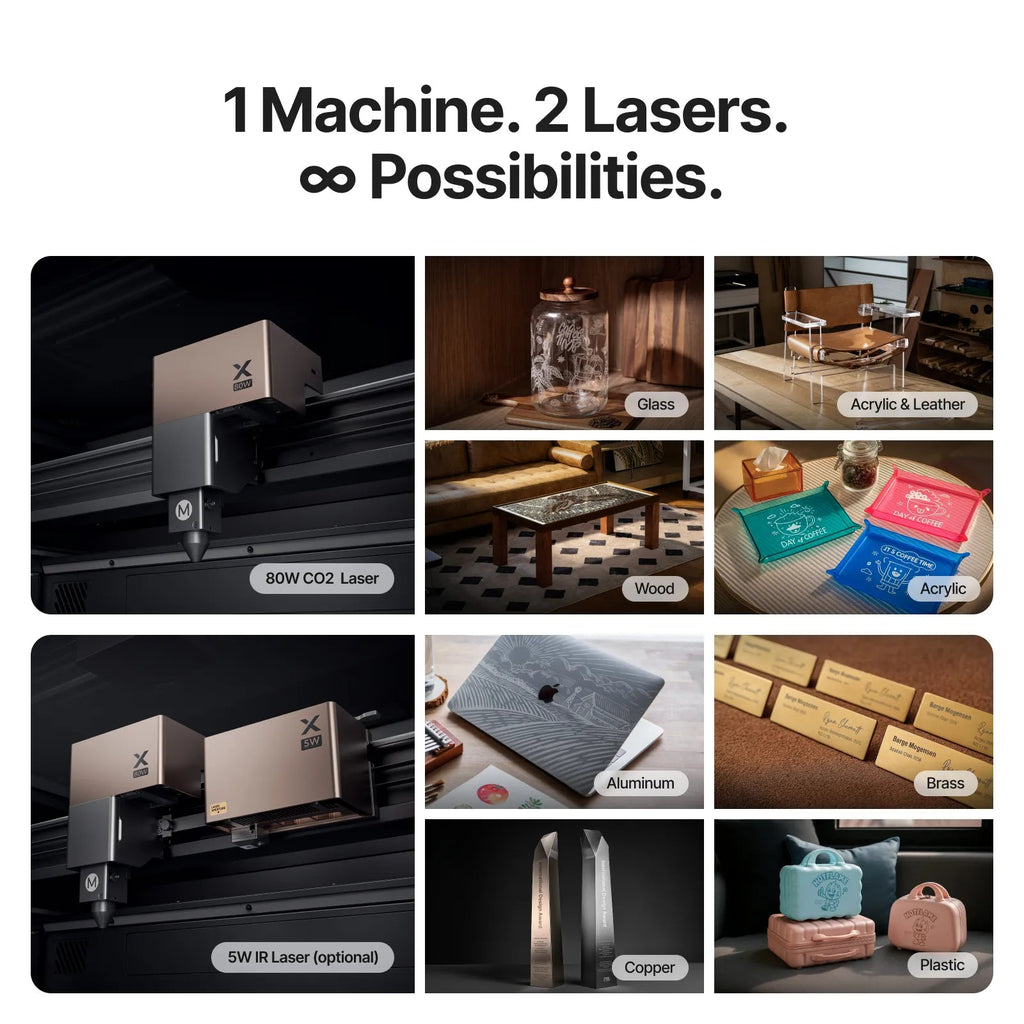

- Power Rating: 80W + Optional 5W IR Laser
- Weight: 105 kg
- Dimensions: 1250 x 750 x 496 mm
- Package Diamensions: 1350 x 920 x 700 mm
- Package Weight: 152 kg
- Engraving Speed: 1200mm/s
- Lifespan: 10,000h
- Motion Accuracy: 0.01 mm
- Positioning Precision: 0.2mm | Camera
- Laser Spot Size: 0.15 x 0.18 mm
- Processing Area: 915 x 458 mm

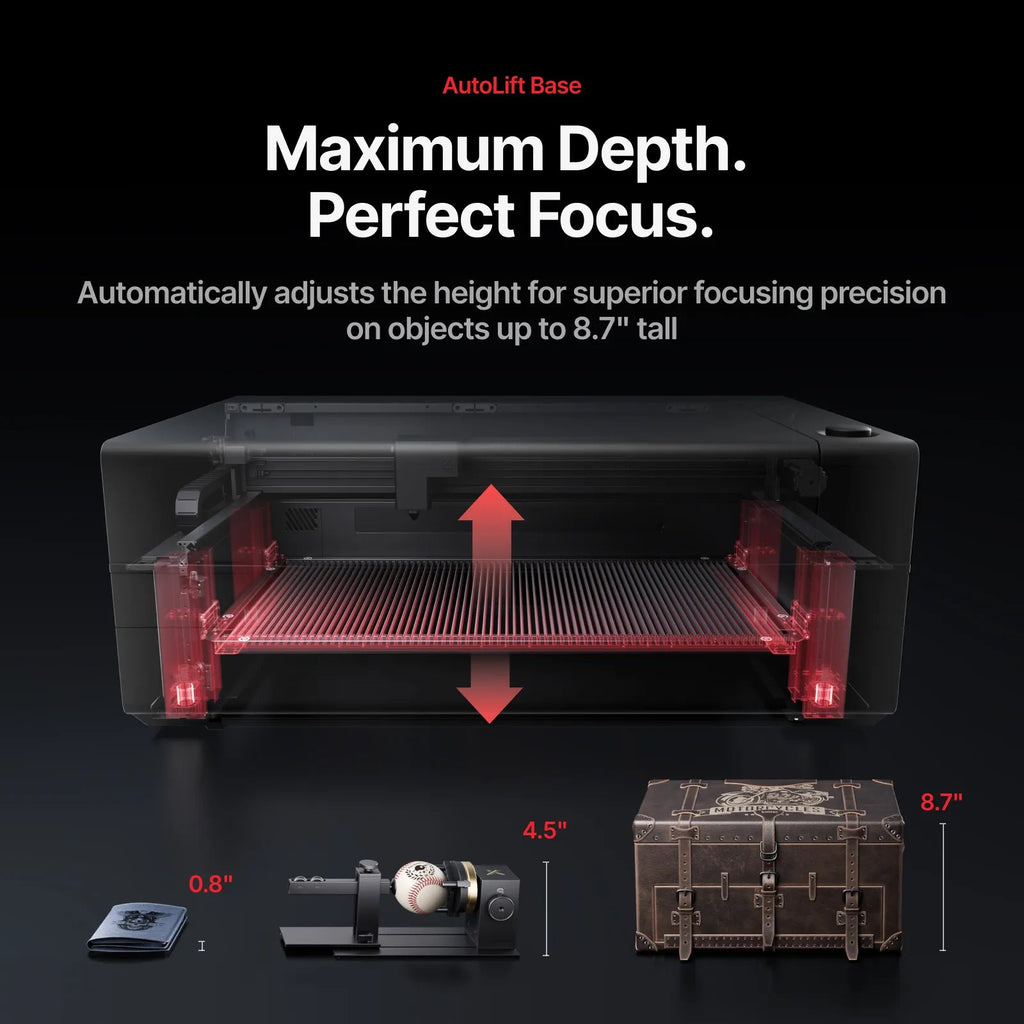

- Max Workpiece Height: 220 mm
- Max Rotary Engraving Diameter: 0 - 200 mm

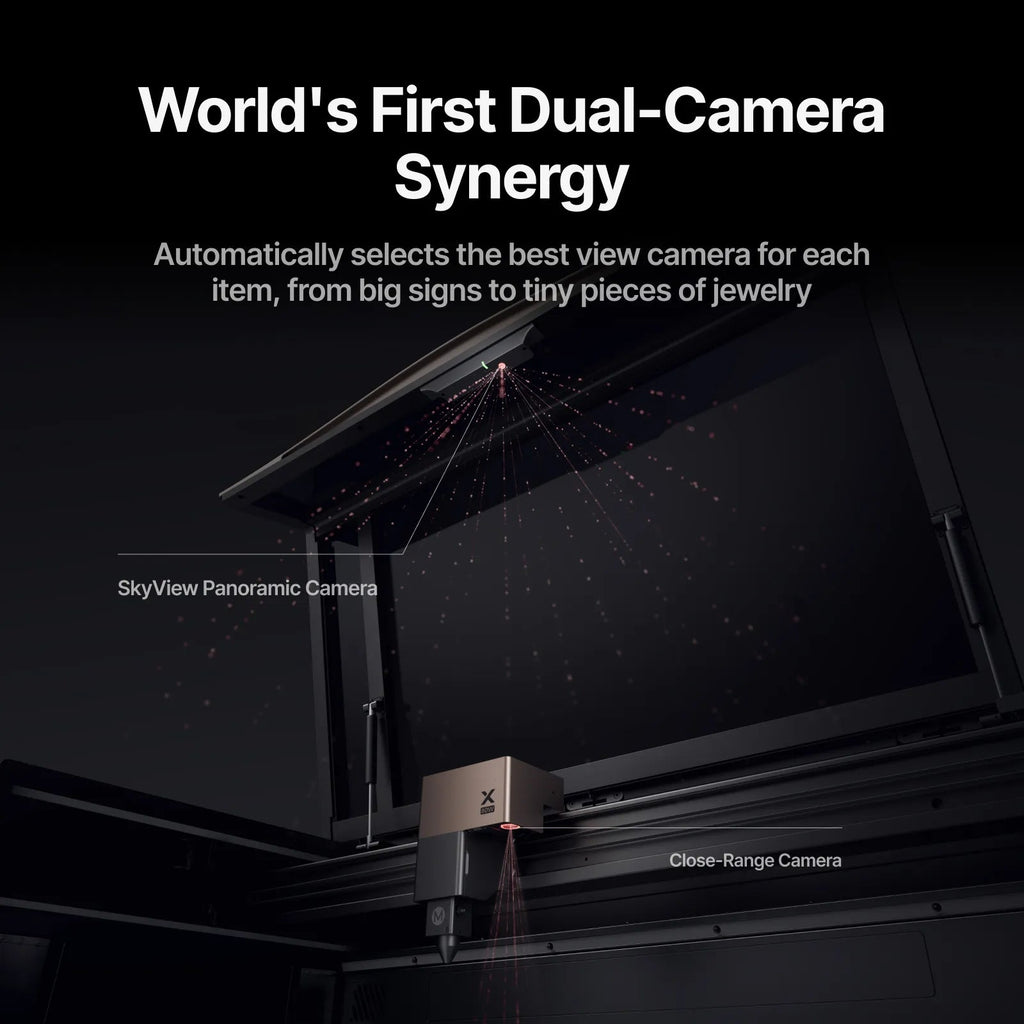

- Camera: 16 MP SkyView Panoramic Camera + Close-range Camera + Side Camera x 2
- Positioning Method: Dual-Camera Positioning
- Focus Mode: Autofocus
- Ranging System: LiDAR Ranging System
- Preview Method: Smart Camera Preview
- ACS™ (Automated Creation System™): Yes
- Safety Certification: Class 1
- Max Machine Power Input: 1400W
- Power Adapter Voltage Input: 100 V - 240 V, AC 50 Hz
- Software: xTool Studio
- Operating Systems: Windows | MacOS
- Connection Type: USB | Wi-FI
- Supported File Types: SVG | DXF | JPG | JPEG | PNG | BMP | TIF
