- High-Performance Microcontroller: Built on the XIAO ESP32S3 Plus platform, our board delivers robust processing power and efficient wireless connectivity, making it ideal for complex IoT and embedded applications.
- Integrated PoE with Isolation & Power Conversion: Featuring a robust PoE module with built-in isolation, the board safely accepts a 12V Ethernet power input. A high-efficiency TPS563201 buck converter then steps the 12V down to a stable 5V rail, providing optimal power to the XIAO ESP32S3 Plus.
- Reliable Ethernet Connectivity: Equipped with an onboard W5500 Ethernet chip and a standard RJ45 jack, the board ensures stable wired network access for seamless data transmission and remote management.
- Versatile I/O Options: With dual-sided I/O outputs, you can easily expand functionality and interface with a range of sensors and peripherals to customize your application to exact specifications.
- Compact & Ready-to-Deploy Design: Combining integrated PoE, isolation circuitry, and Ethernet connectivity in a small form factor, this board simplifies prototyping and enables efficient deployment in smart home, industrial automation, or network appliance projects.
Parameter | Description |
MCU | XIAO ESP32-S3 Plus |
Antenna | 2.4GHz Rod Antenna (2.81dBi) |
USB Type-C | Input voltage (Type-C): 5V |
PoE Chip | MQ7813T120 |
PoE Power Supply | PoE IEEE802.3af Ootput Current: 12V/1.1A High Efficiency 86% (Input 48V, Load 12V@1.1A) |
Ethernet Chip | |
Ethernet Interface | RJ45 10/100Mbps Ethernet |
TCP/IP Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
LED Indicator | Power x 1 User x 1 |
Button | Reset |
I/O Interface | XIAO ESP32-S3 Plus: D0/D2/D3/D4/D5/D6/D7/D11/D12/D13/D14/D15/D16/D17/D18/D19 |

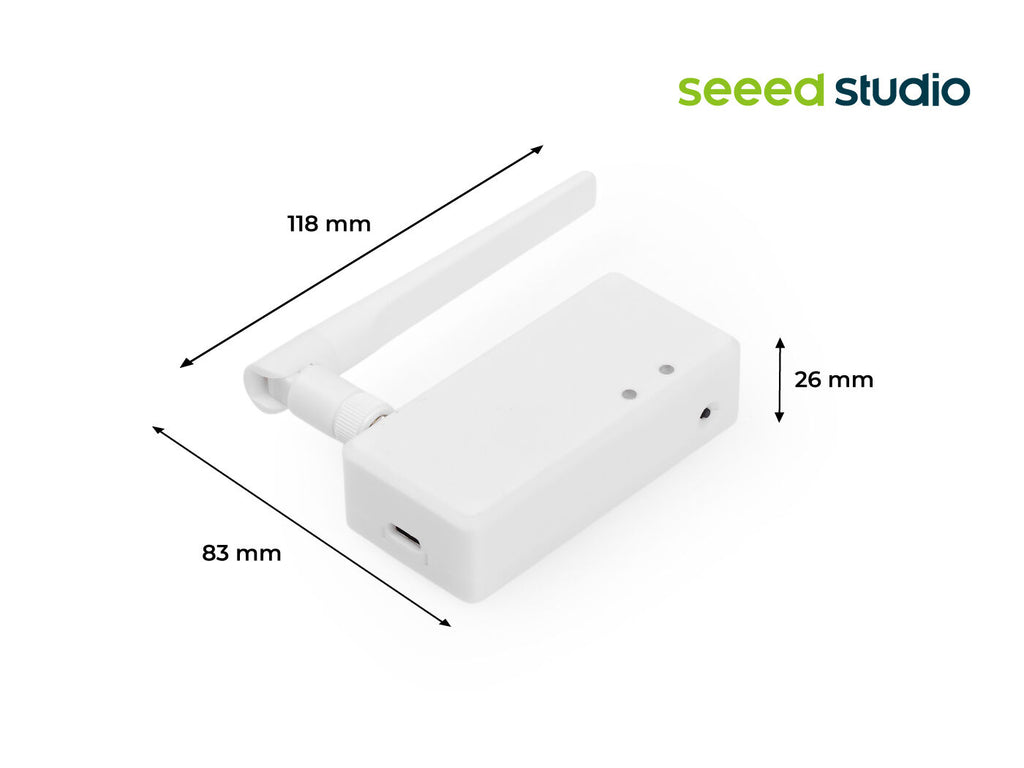

Product Size | 83 x 118 x 26 mm |
Product Weight | 75g |
Enclosure | 3D-Printed in White |
- Industrial Automation
- Network Control
- Smart Home & Building Automation
- Remote Monitoring
- Surveillance
XIAO W5500 Ethernet Adapter | ×1 |
2.4GHz Rod Antenna (2.81dBi) for Seeed Studio XIAO | x 1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
