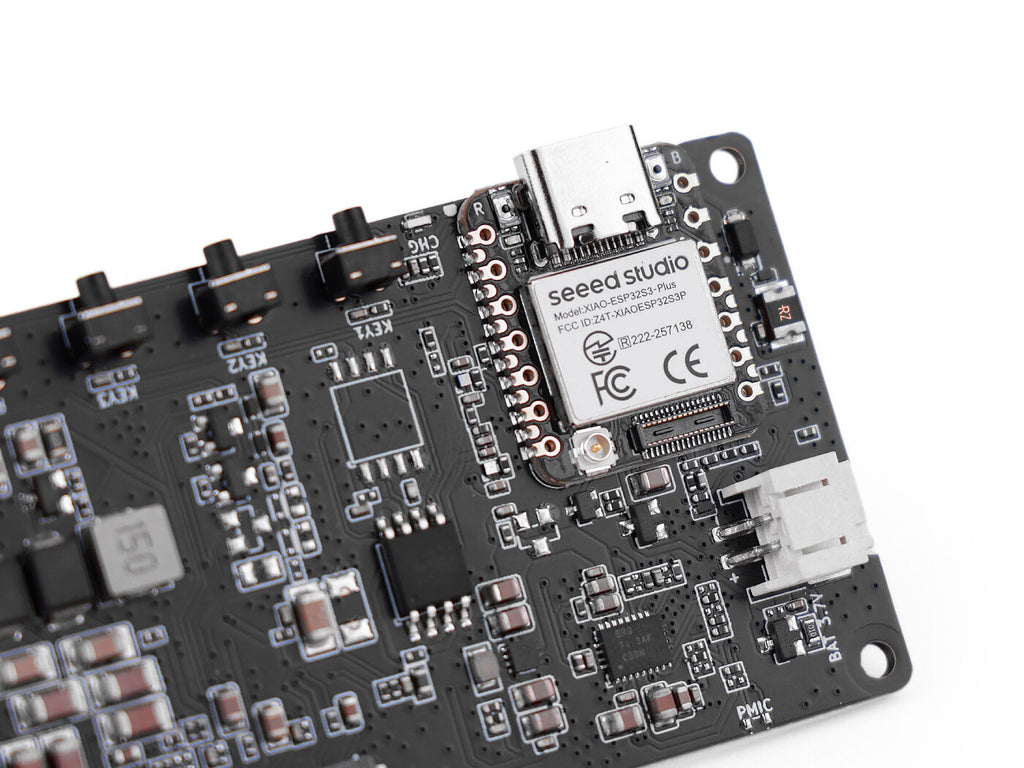

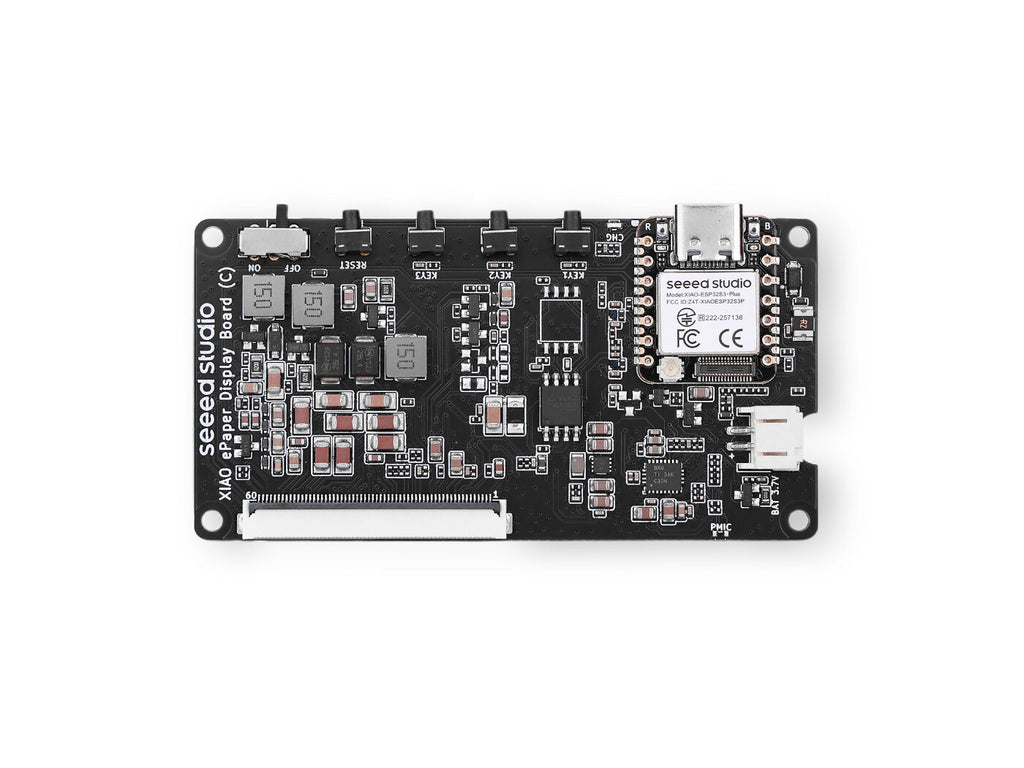

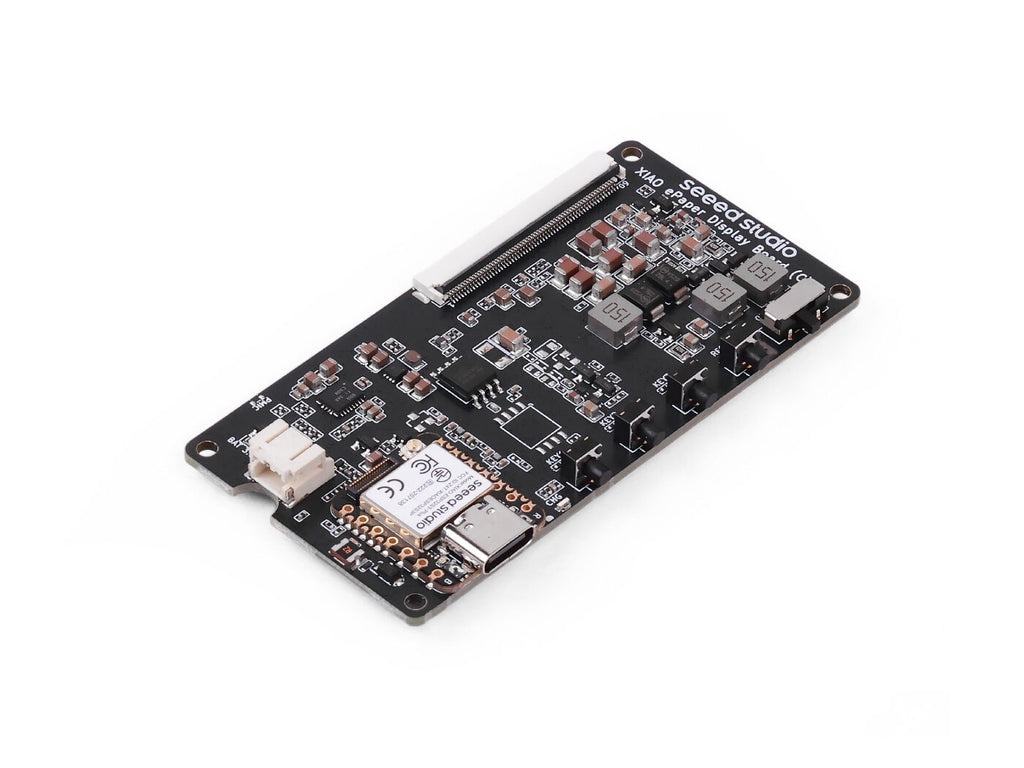

Powered by XIAO ESP32-S3 Plus, the ePaper driver board EE02 supports 13.3" spectra™ 6 E-Ink. It features a JST 2.0 mm battery connector with power switch, built-in charging IC, and comes with one reset and three user buttons. Well-suited for low-power ePaper projects such as digital photo frames and information boards.
- Built in XIAO ESP32-S3 Plus：Works immediately when connected to a compatible ePaper display.
- Dedicated 13.3" Spectra™ 6 E-Ink Support: Specifically designed for 13.3" Spectra™ 6 displays, ensuring quick setup and stable operation.
- BAT Connector with Switch: Provides simple battery connection and integrates a switch, enabling efficient power management and energy savings.

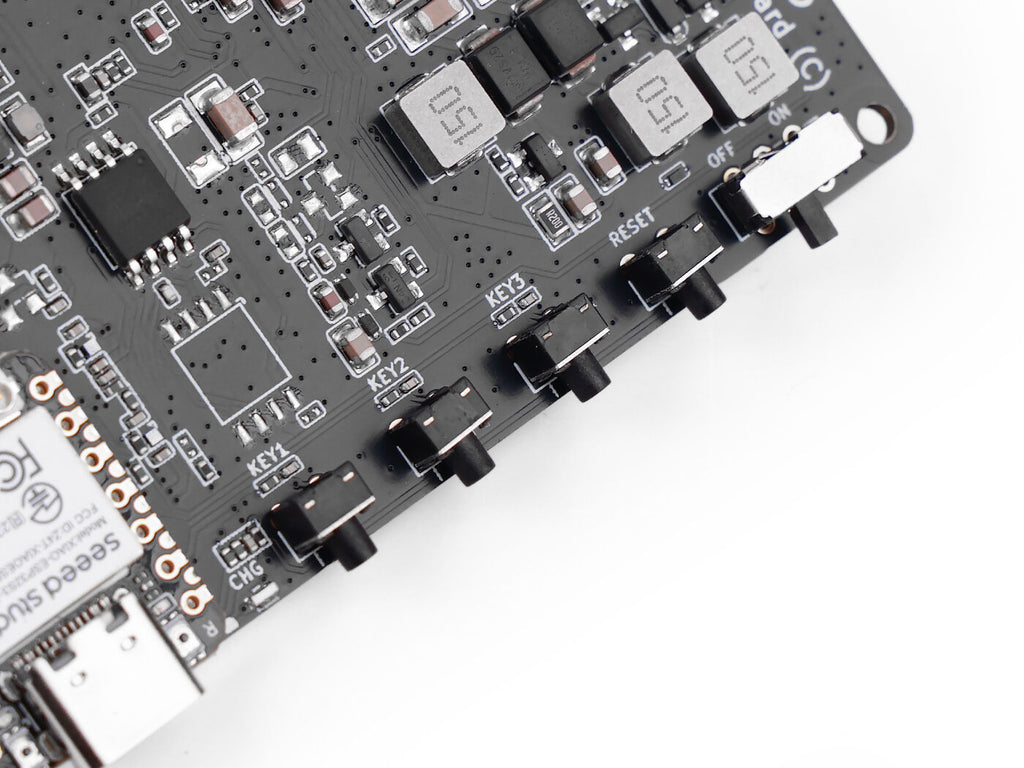

- User-Friendly Buttons: Features 1 reset button and 3 user-programmable buttons, providing flexibility for project acceleration and customizable functions.
- SenseCraft HMI Firmware Pre-Flashed: Simply plug in and start right away with SenseCraft HMI, our AI-powered no-code UI design platform. Choose from rich templates or drag-and-drop UI building (with optional AI assistance), and deploy to the ePaper display in just a few clicks.
Note:
Occasional high-frequency sound may occur during operation. This is normal due to the ePaper power circuit and does not affect performance.
Parameter | Description |
Processor | |
ePaper Connector | FPC 60 Pin 0.5mm |
Battery Connector | JST 2.0mm |
Switch | Battery Power ON/OFF |
Power Supply | - 3.7V Li-Battery - USB Type-C |
Button | -1x Reset button -3x User button |
- Real-Time Dashboard: Display live information such as weather updates, calendar schedules, key notifications, and data widgets like energy usage, sensor status, or KPIs.
- Security Alerts: Display alerts and notifications about security events, such as motion detection or door/window sensor activation.
- Digital Photo Frame: Create a WiFi-enabled digital photo frame that can display images from your local network or cloud albums.
- Public Transit Arrival Board: Show real-time bus/train arrival times, route status, and service alerts at a glance for daily commuting.
ePaper Board Selection Guide
Product | |||||
Processor | XIAO ESP32-S3 Plus | XIAO ESP32-S3 Plus | XIAO nRF52840 Plus | N/A(Compatible with XIAO Series) | |
Compatible Displays | 24 Pin ePaper 50 Pin ePaper | 24 Pin ePaper | |||
Battery Connector | JST 2.0mm | JST 2.0mm | JST 2.0mm | / | |
Battery Power ON/OFF | √ | √ | √ | / | |
Button | 1x Reset 3x User | 1x Reset, 3x User | / | ||
Extension IO Port | / | / | √ | ||
SenseCraft HMI | √ | √ | / | / | |
Wiki-XlAO ePaper Display Board EE02 Resources

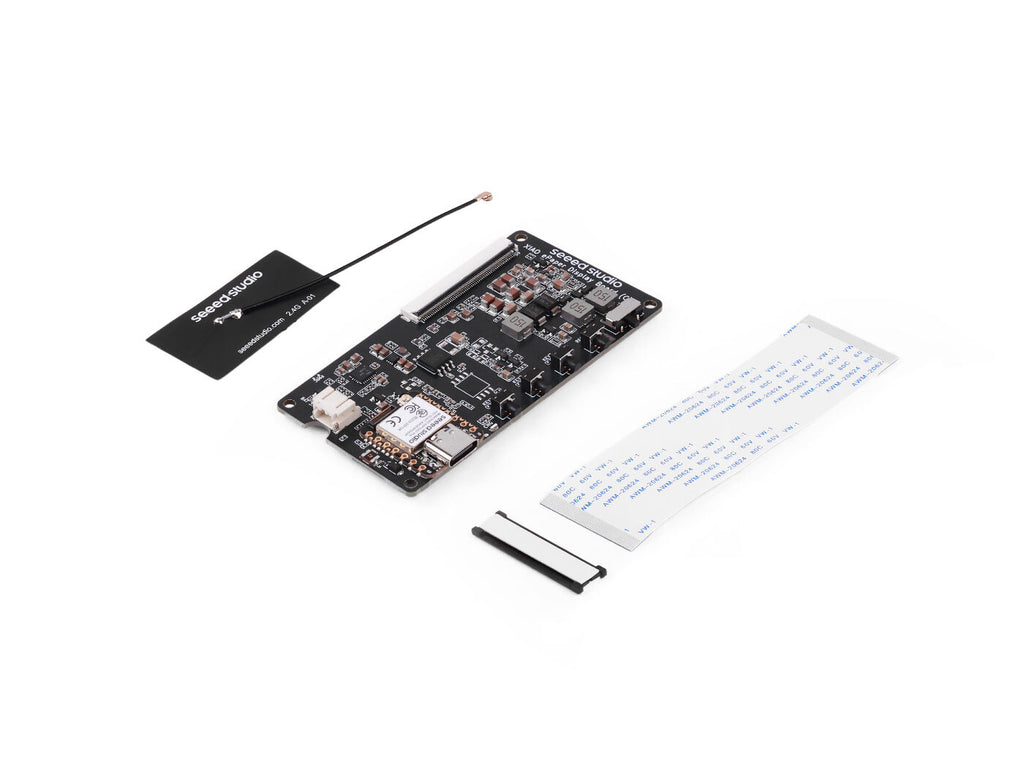

XIAO ePaper Display Board EE02 | ×1 |
60Pin Adapter | ×1 |
60Pin FFC Extension Cable | ×1 |
| HSCODE | 8543909000 |
| USHSCODE | 8543903500 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
