- ST/SC Servo Control by UART：
Powered by XIAO ESP32-C3, you can directly drives ST/SC bus servos (require sufficient power) via UART while powering them with 5–12V through a robust 2P 3.5mm screw terminal, ensuring load-synchronized operation.
- Pocket-Sized Agility & Quick-Mount：

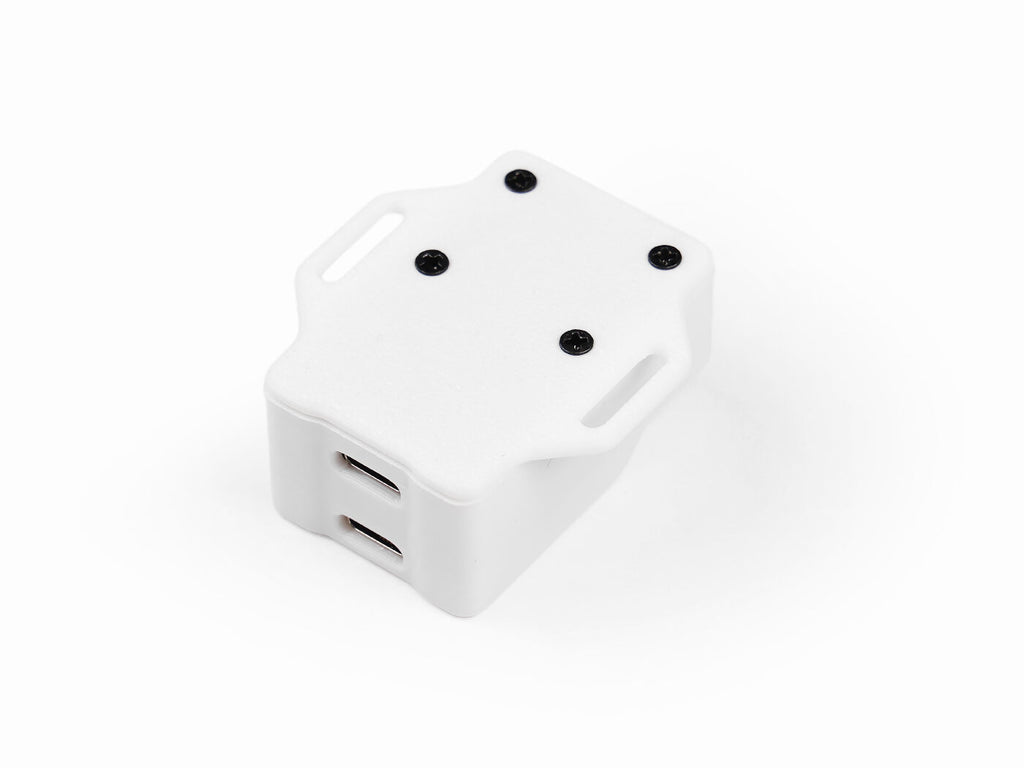

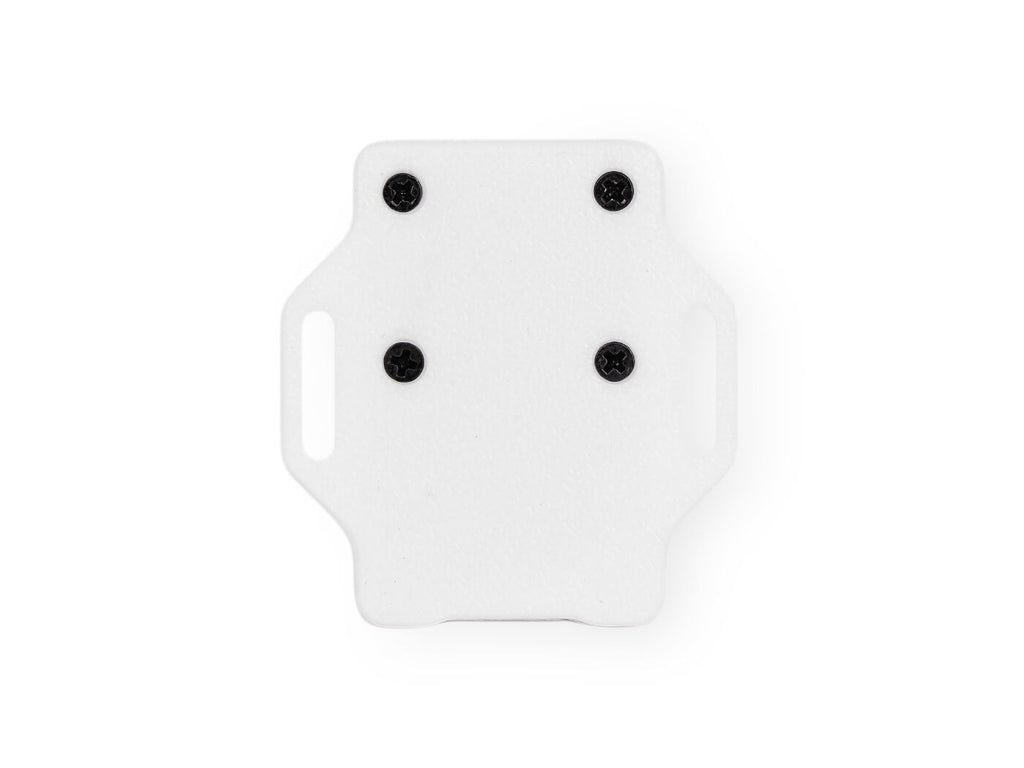

Ultra-compact 42mm × 25mm footprint with protruding side flanges featuring reinforced mounting holes, enabling rapid screw-based installation in embedded projects.
- Versatile Applications - Robotic Arm, Hexapod Robot, Humanoid Robot：
Orchestrate complex kinematics like 6-DOF robotic arms, hexapods, or bipedal robots. Offers demo-ready compatibility with popular kits like the SO-ARM101 Low-Cost AI Arm—ideal for AI vision projects and educational prototyping.
- Open-Source for Custom Development：
Full Arduino IDE support enables bespoke motion programming, while the 3D-printed enclosure is open source, providing a starting point to customize your casing design.
Parameter | Description |
MCU | XIAO ESP32-C3 |
Input Voltage Range | 5-12V DC (dependent on servo voltage) |
Communication Protocol | Serial bus protocol (compatible with ST/SC servos) |
Compatible Servo Types | ST/SC series serial bus servos |
Servo Control Quantity | Multiple |
Control Interface | UART / USB |

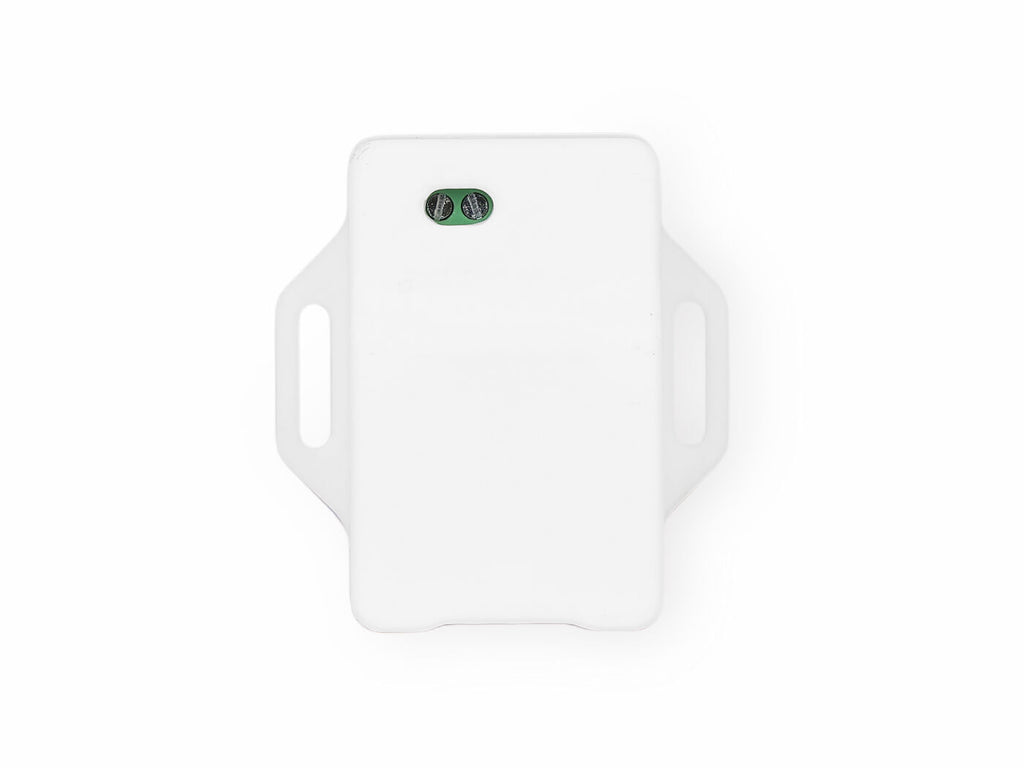

Power Supply Interface | 2P 3.5mm screw terminal |
Servo Interface | 3P 2.5mm terminal |
Dimensions | 42mm x 25mm |
Weight | 15g |
Operating Temperature | 10°C ~ 60°C |
FAQs
Q: How do I power the Bus Servo Driver Board?
A: Connect the power supply via the onboard 2P 3.5mm screw terminal. The input voltage range is 5-12V DC, which must match the rated voltage of the servos used and provide sufficient current to support all connected servos during operation.
Q: How do I connect servos and control devices to the board?
A: Servos are connected to the driver board via the 2.5mm 3P terminal, ensuring proper wiring (power, ground, signal lines). Control devices can be connected to a computer via the USB interface or to a microcontroller via the UART interface, with the specific mode determined by the jumper settings.
Q: How many servos can this driver board control?
A: It can control multiple ST/SC series serial bus servos, with the exact number depending on the power supply capacity and bus load conditions. Theoretically, it supports a large number of servos working together.
Note: If you'd like to control the bus servos via USB Type-C, you can purchase Bus Servo Driver Board for Seeed Studio XIAO!
- Supports serial bus servo driving for robotic arms
- Enables servo control in hexapod robots
- Provides servo driving for humanoid robots
- Assists wheeled robots with servo support
- Facilitates servo use in DIY and educational projects
3D printed enclosure - Thingiveres
3D printed enclosure - Portables
XIAO Bus Servo Adapter | ×1 |
| HSCODE | 8503001000 |
| USHSCODE | 8503003500 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
