XIAO 2-Channel AC Wi-Fi Energy Meter

Save 5% Regular price A$30.16
Price:
Sale price A$28.66   Inc. GST
SKU:
SS114993611
168 units Ships in 7 to 10 days

Feature 1: Dual CT Sensors for Smart Home Monitoring

Monitor two independent power circuits with precision using dual CT sensors. Seamlessly integrate with Home Assistant for comprehensive energy management and smart automation.


Feature 2: Native ESPHome & Home Assistant Integration

Pre-loaded with ESPHome firmware on XIAO ESP32-C6, enabling instant Home Assistant compatibility. Configure and control directly from your Home Assistant dashboard for streamlined smart home management.



Feature 3: Precise Measurement with Factory Calibration

Equipped with BL0939 power monitoring chip and together with factory-calibrated 100A current transformer, delivering up to 1% measurement accuracy for reliable energy monitoring.



Feature 4: Bi-directional Power Flow Monitoring

Track both solar production and energy consumption with bi-directional measurement capability. Perfect for solar installations and home energy management systems (HEMS).



Feature 5: Comprehensive Energy Analytics

Monitor real-time solar production or power usage and analyze historical production or consumption patterns through the Home Assistant dashboard. Make informed decisions to optimize your energy production or consumption and reduce costs.


Feature 6: Enhanced Wireless Connectivity

Includes a 2.81dBi 2.4GHz rod antenna for reliable wireless communication. You can also use a extension cable (not included) for installations requiring extended antenna placement.





Parameter

Description

AC Rating

100-240V~50/60Hz

Calibration-Free Metering IC

BL0939

Transformer Current Sensor

Detection Range: 0-100A

Accuracy: 1%

Turns Ratio: 1:2000

Dielectric Strength: AC 3.5KV/1min 50Hz

Current Transformer Channels

2

Wireless

2.4Ghz Wi-Fi

Dimension

58*70*38mm

Enclosure

3D-Printed in WhiteOpen sourced on Thingsverse for custimzation

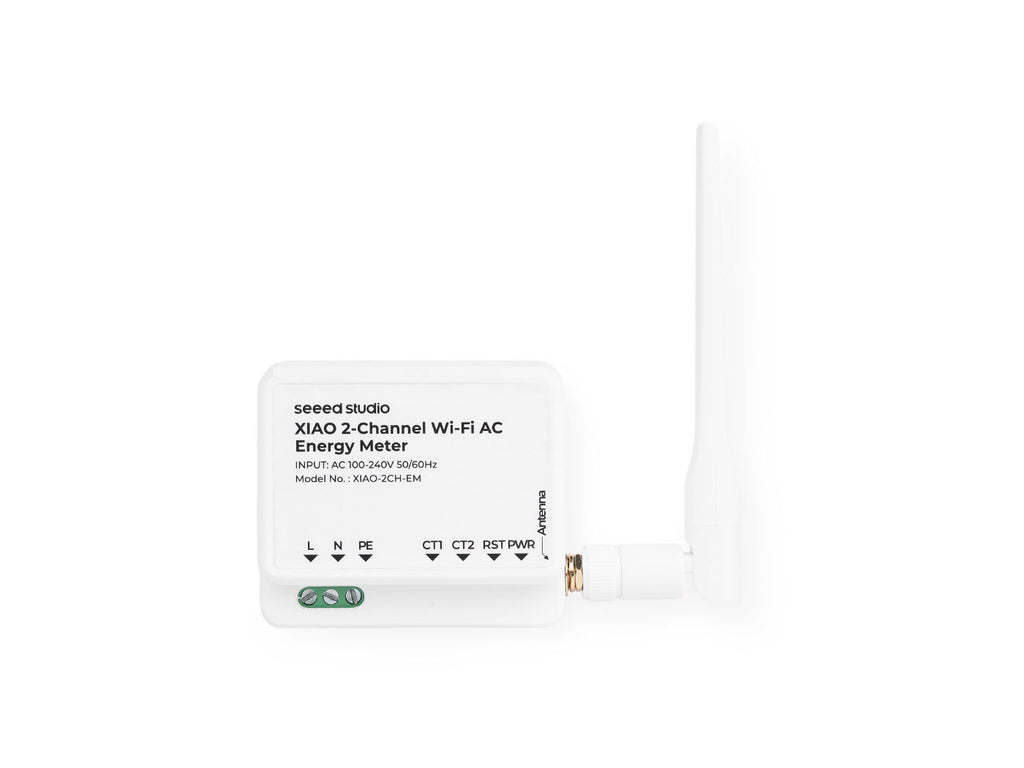

Terminals

Wires

N

Neutral Terminal

Neutral Wire

L

Live(100-240 VAC) Terminal

Live(100-240 VAC) Wire

PE

Protective Earth Terminal

Protective Earth Wire

CT1

Transformer Interface

Current Transformer Clamp

CT2

Transformer Interface

Current Transformer Clamp

Antenna

Antenna Interface

2.81dBi 2.4GHz Rod Antenna



3D-Printed Enclosure File for your unique customization:

Thingiverse

Printables



Product

Quantity

2-Channel Wi-Fi AC Energy Meter with 3D-Printed Enclosure (White)

1

2.81dBi 2.4GHz Rod Antenna (White)

1

3-Core 1.0 Sq. mm Copper Electrical Cable (30cm)

1




HSCODE9030849000
USHSCODE9030890100
UPC
EUHSCODE9405413910
COOCHINA
