- Compact Smart Device Platform with Built-In Sensors
When building a portable sensor device, you normally need a display, input controls, motion sensing, audio input, battery support, and wireless connectivity. This board brings these functions together around XIAO nRF52840 Plus, allowing you to focus on the interface, sensor data, and device behavior instead of assembling separate modules and wires.

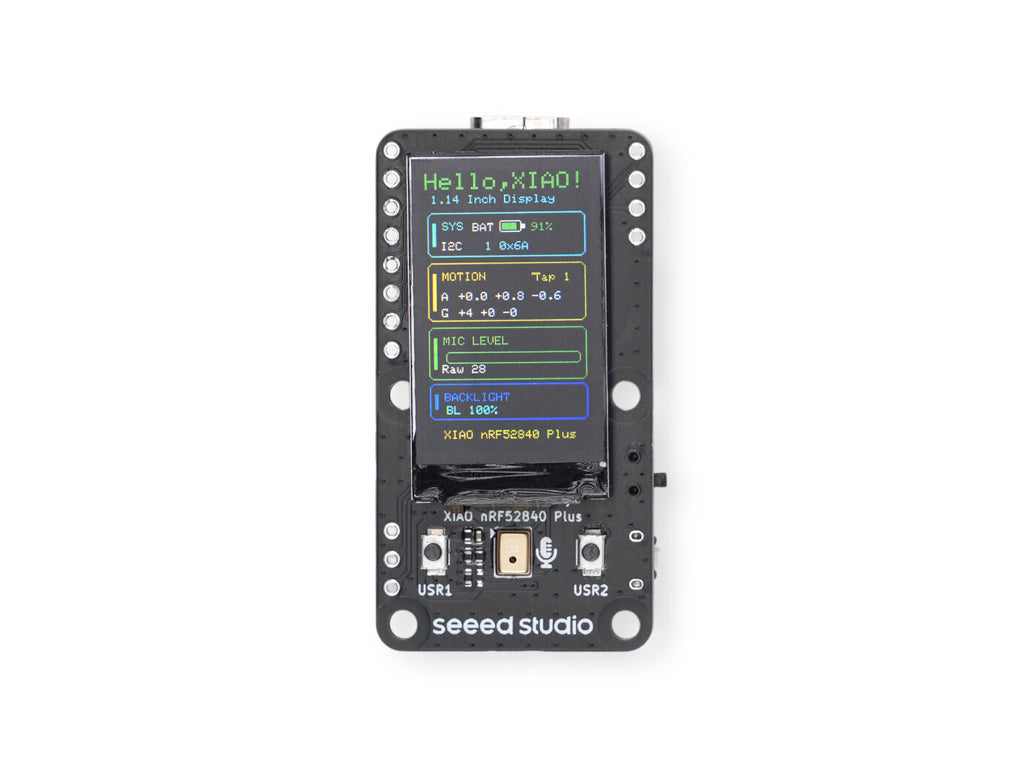

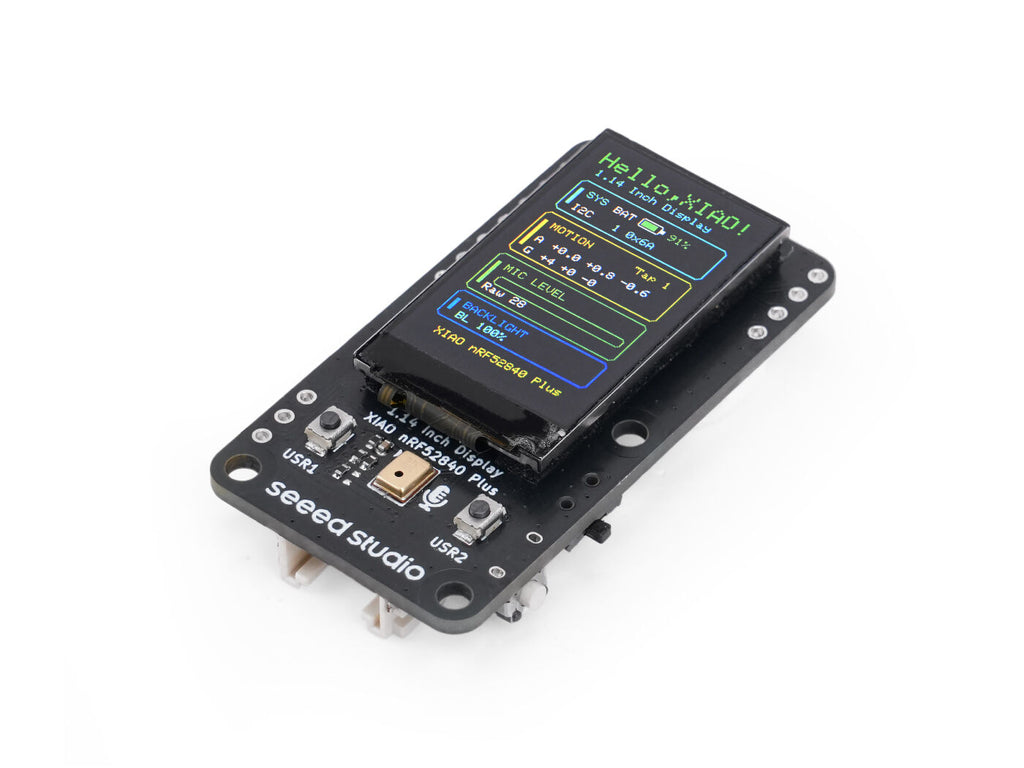

- Clear 1.14-Inch Display for Status and Simple UI
The 1.14-inch 135 × 240 IPS TFT display provides enough space for status pages, sensor readings, icons, menus, and lightweight animations. Together with three physical buttons, it allows you to build compact interfaces that remain easy and reliable to operate without requiring a touch screen.

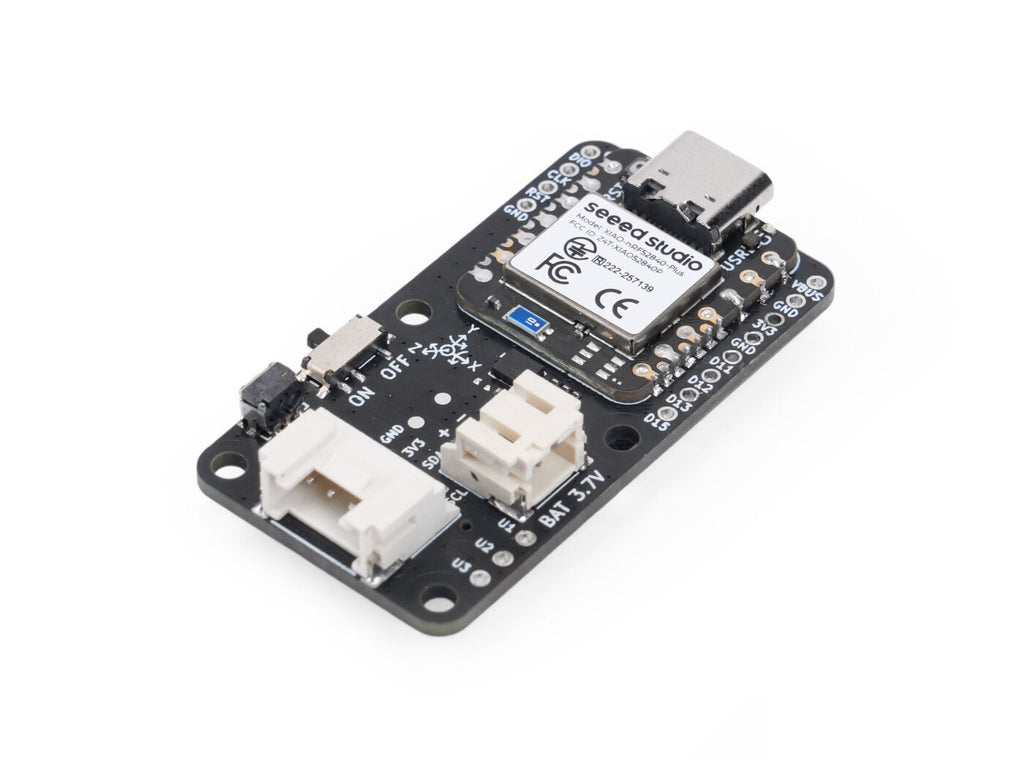

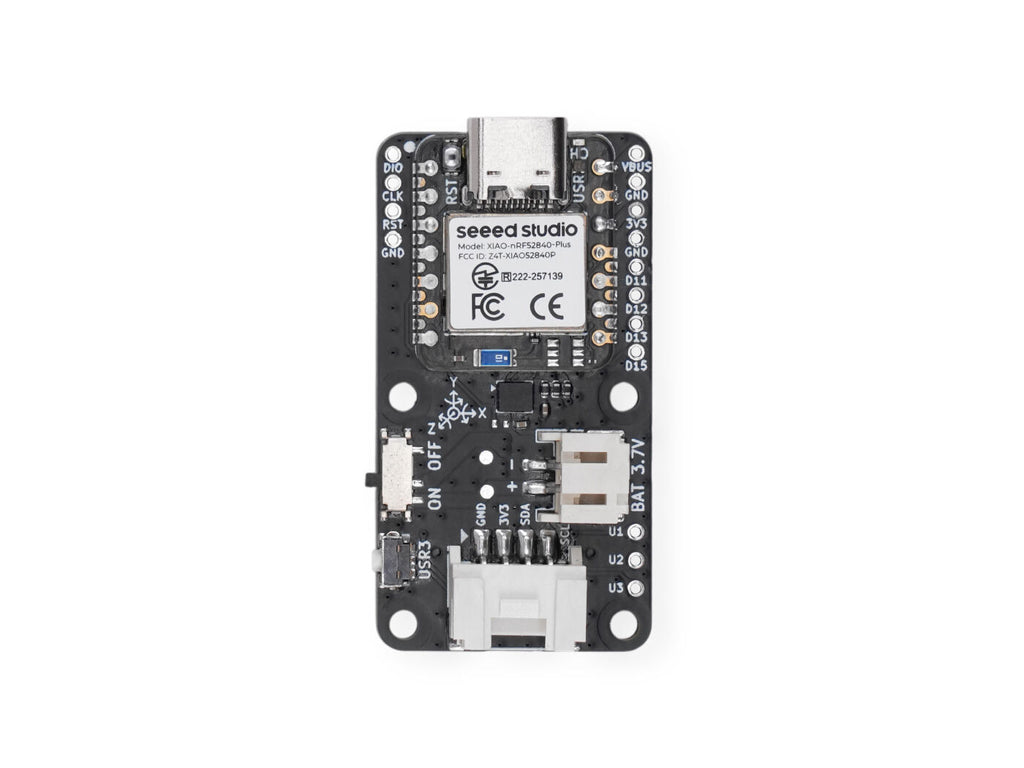

- Voice, Motion, Buttons, and Grove I2C in One Board
The onboard PDM microphone can be used for sound detection, volume monitoring, or audio capture. The 6-axis IMU detects orientation, shaking, flipping, and motion, while three user buttons provide direct physical control. A Grove I2C interface makes it easy to add environmental, distance, light, and other compatible sensors without complex wiring.
- Built for BLE and Battery-Powered Projects
Powered by XIAO nRF52840 Plus, this version is designed for Bluetooth Low Energy and portable projects. It can connect to phones, computers, and gateways, making it suitable for wearable notifiers, BLE remote controls, portable sensor terminals, desktop devices, and motion-aware products that do not require Wi-Fi.
| Specification | XIAO 1.47'' IPS Display(nRF52840) | XIAO 1.14'' IPS Display(nRF52840) | XIAO 0.96'' IPS Display(nRF52840) |
| Product Positioning | Touch & Full Interaction | Sensing & Expansion | Ultra-Compact |
| Core Controller | Seeed Studio XIAO nRF52840 Plus | ||
| Processor | Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz | ||
| Memory | 256 KB RAM + 1 MB internal Flash + 2 MB onboard Flash | ||
| Wireless Connectivity | BLE 5.4 | ||
| Display Type | 1.47" IPS TFT LCD | 1.14" IPS TFT LCD | 0.96" IPS TFT LCD |
| Resolution | 172 × 320 | 135 × 240 | 80 × 160 |
| Display Driver | JD9853A | ST7789 | ST7789 |
| Display Interface | SPI | ||
| Touch Input | Capacitive Touch | No | No |
| 6-Axis IMU | Yes | ||
| PDM Digital Microphone | Yes | ||
| MicroSD Card Slot | Yes | No | No |
| Grove I2C Connector | No | Yes | No |
| User Buttons | 2 | 3 | 2 |
| Battery Connector | 2-pin JST 2.0 Connector for 3.7 V LiPo | ||
| Battery Monitoring | Battery status detection supported; battery voltage can also be monitored for battery-level estimation. | ||
| Expansion Interfaces | 1x I2C pads 1x I2S pads 1x SWD pads 2x user-button pads | 1x Grove I2C Connector 1x I2C pads 1x I2S pads 1x SWD pads 3x user-button pads | 1x I2C pads 1x I2S pads |

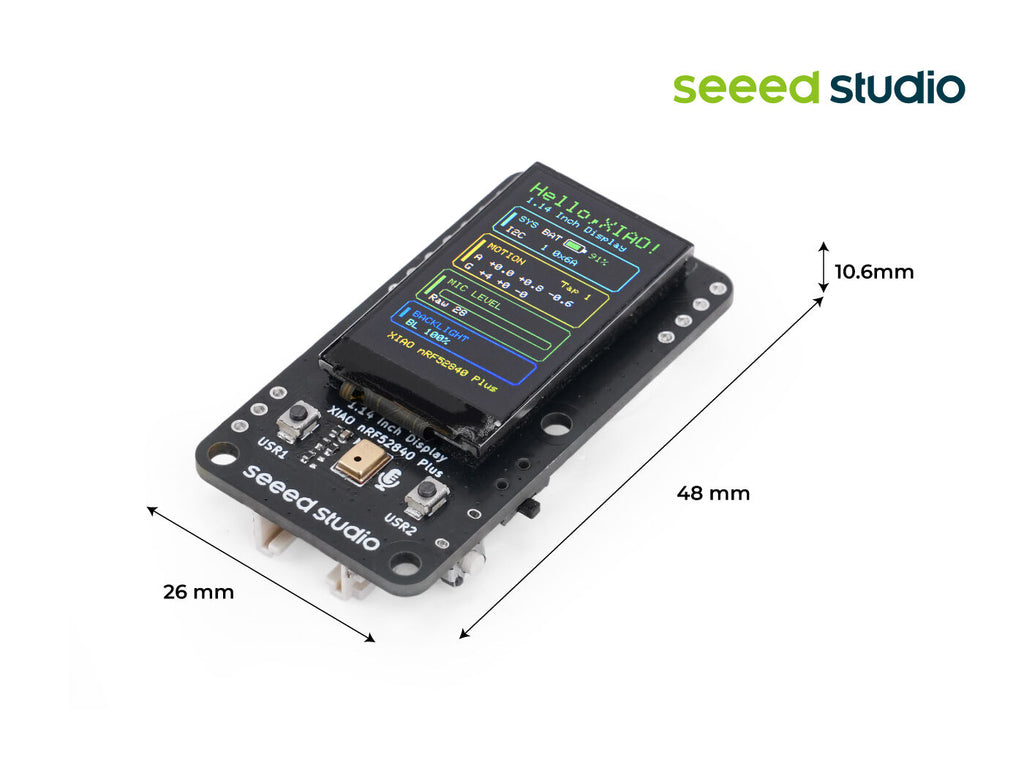

| Board Size | 26.4 × 51.4 × 12.6 mm | 26 × 48 × 10.6 mm | 18.8 × 43.6 × 10.6 mm |
| Best For | Touch UI, portable HMI, local media and data logging | Portable sensor displays, Grove devices, physical controllers | Smart badges, tiny wearables, BLE status displays |
- Onboard
- Portable Sensor Display
- Grove Environmental Monitor
- BLE Remote Controller
- Motion-Based Interaction Device
- Wearable Notifier
- Desktop Gadget and Digital Pet
| 1.14 Inch Display Powered by XIAO nRF52840 Plus | ×1 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
