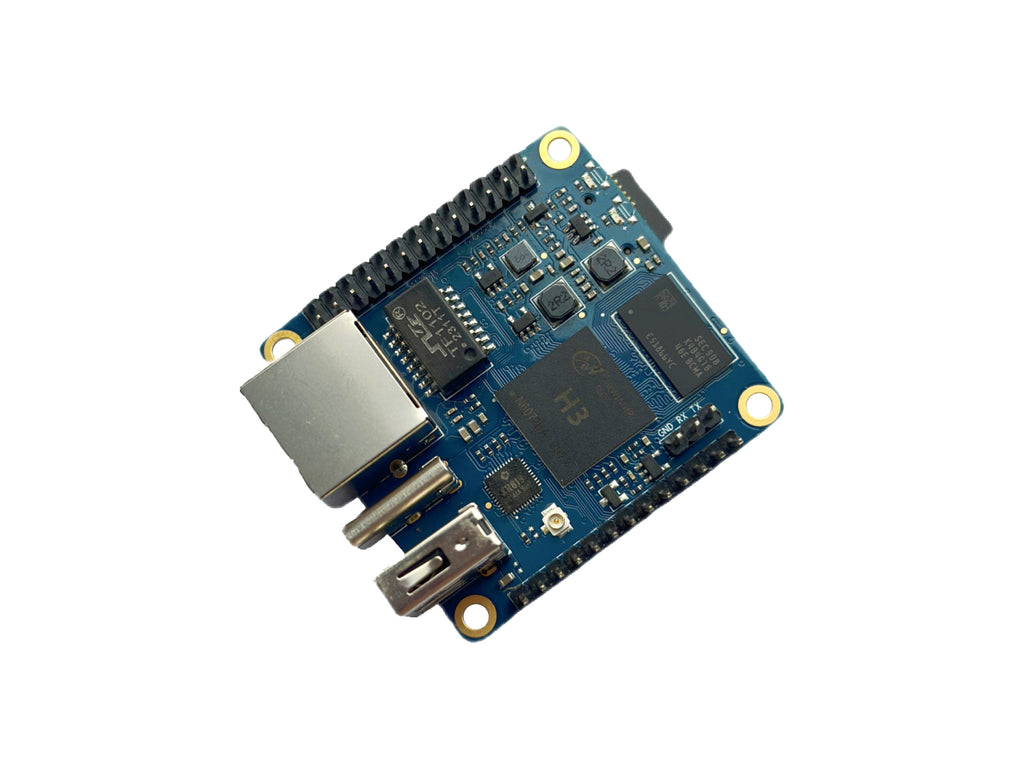

The WuKong Board H3 Zero is a small but powerful single-board computer with versatile connectivity options, flexible power options, and GPIO pins for connecting and controlling external devices. It is suitable for a variety of applications.
Features
- Powerful Processing Capabilities: Equipped with a quad-core Cortex-A7 CPU and Mali400MP2 GPU, making it capable of handling demanding tasks, also supporting multiple operating systems
- Versatile Connectivity Options: Support Ethernet, Wi-Fi, USB, and TF card interfaces, providing users with various options for connecting to networks and external devices
- GPIO Pins and Expansion Headers: Provide 26 pins wherein 13 pins headers are compatible with Raspberry Pi B+, providing users with the flexibility to connect and control external devices
- Flexible Power Options: Powered by an integrated POE power supply or USB OTG.
- Compact Size and Lightweight: Design in a small form factor, measuring only 45mm x 48mm and weighing only 30g, making it easy to carry and use in various applications
Description
The WuKong Board H3 Zero is a compact and versatile single-board computer that offers an impressive array of features. It is equipped with a quad-core Cortex-A7 CPU and Mali400MP2 GPU, while supporting multiple operating systems like Android Lubuntu, Debian, and Rasberry Pi.
This board offers versatile connectivity options, including support for 100M/10M Ethernet, Wi-Fi, USB 2.0 HOST, USB 2.0 OTG, and TF card interfaces for up to 32GB memory. It also comes equipped with GPIO pins and expansion headers, providing users with 26 pins, wherein 13 pins headers that are compatible with Raspberry Pi B+, with 2x USB, IR pin, AUDIO(MIC, AV).
The WuKong Board H3 Zero is also designed with flexible power options in mind. It can be powered by an integrated POE power supply or USB OTG, providing you with the freedom to choose the power source that best suits your needs.
Despite its impressive array of features, the WuKong Board is remarkably compact and lightweight, measuring only 45mm x 48mm and weighing only 30g. This makes it easy to carry and use in various applications, whether it be for home automation, robotics, or multimedia streaming.
Application
- Wireless Server
- Music and Sounds
- HD Video
- Scratch
- Game
- Speaker
Specification
Feature | Specification |
CPU | H2 Quad-core Cortex- A7 H 2 6 5 / HEVC 4 K |
GPU | Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0 |
Memory ( SDRAM) | 256 MB/512 MB DDR3 (shared with GPU) (256 MB is the Standard version) |
Onboard Storage | TF card (Max. 32 GB) / NOR flash(2 MB) |
Wifi | Yes |
Onboard Network | 100M/ 10M Ethernet RJ45 (Integrated POE power supply ) |
Onboard WIFI | XR819, IEEE 802. 11 b/g/n |
Audio Input | No, need to use an expansion board |
Video Outputs | Supports external board via 13 pins |
Power Source | USB OTG can supply power( Integrated POE power supply ) |
USB 2 . 0 Ports | One USB 2.0 HOST, one USB 2.0 OTG |
Buttons | Power button |
Low-level peripherals | 26 Pins Header, compatible with Raspberry Pi B+13 Pins Header, with 2 x USB, IR pin, AUDIO( MIC, AV) |
GPIO( 1 x3 ) pin | UART, ground |
LED | Power led & Status led |
Supported OS | Android, Ubuntu, Debian, Rasberry Pi Image |

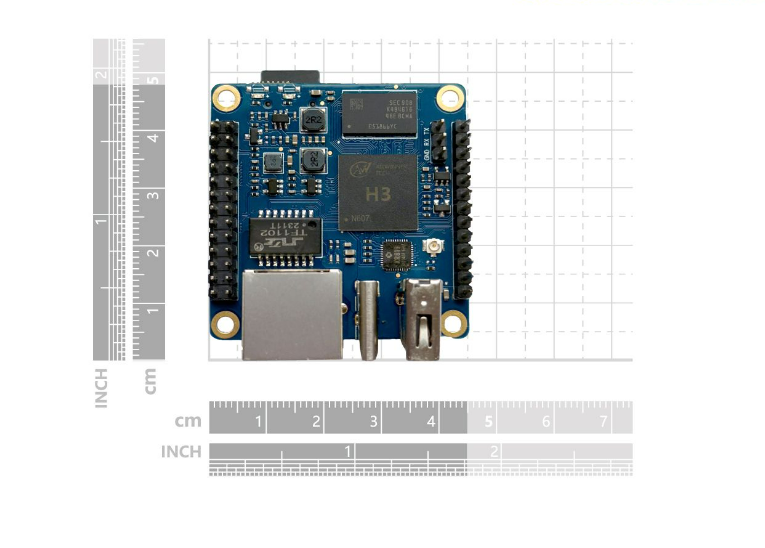

Product size | 45mm × 48mm |
Weight | 30g |

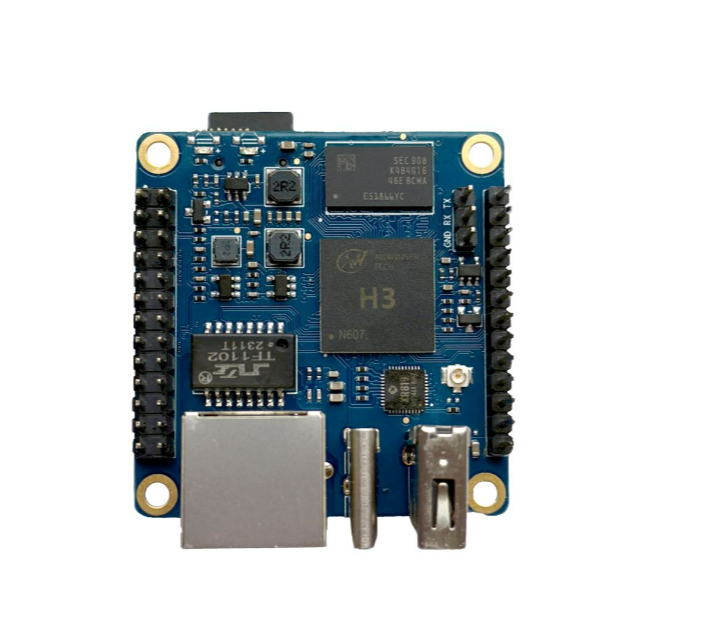

Hardware Overview
Part List
WuKong Board H3 Zero | x1 |
ECCN/HTS
| HSCODE | 8471504090 |
| USHSCODE | 8543709301 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
