Description

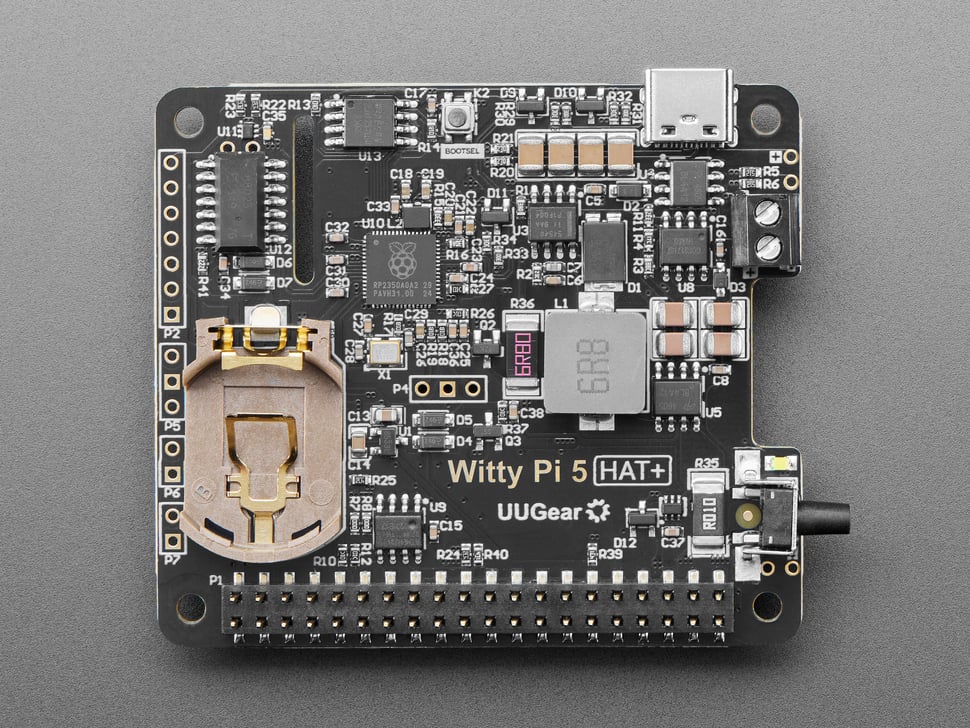

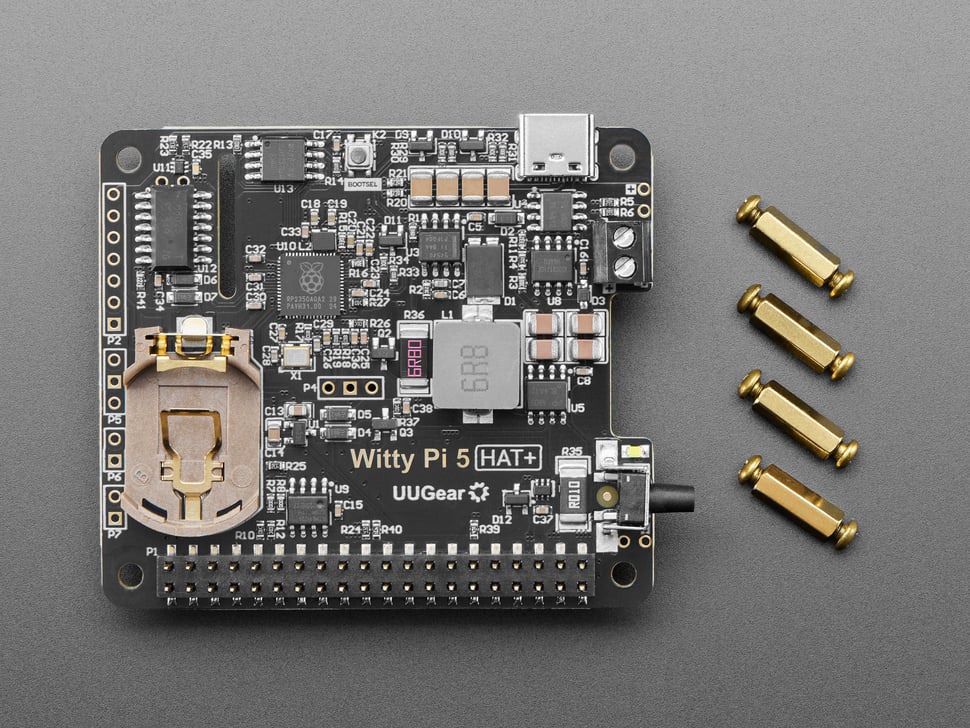

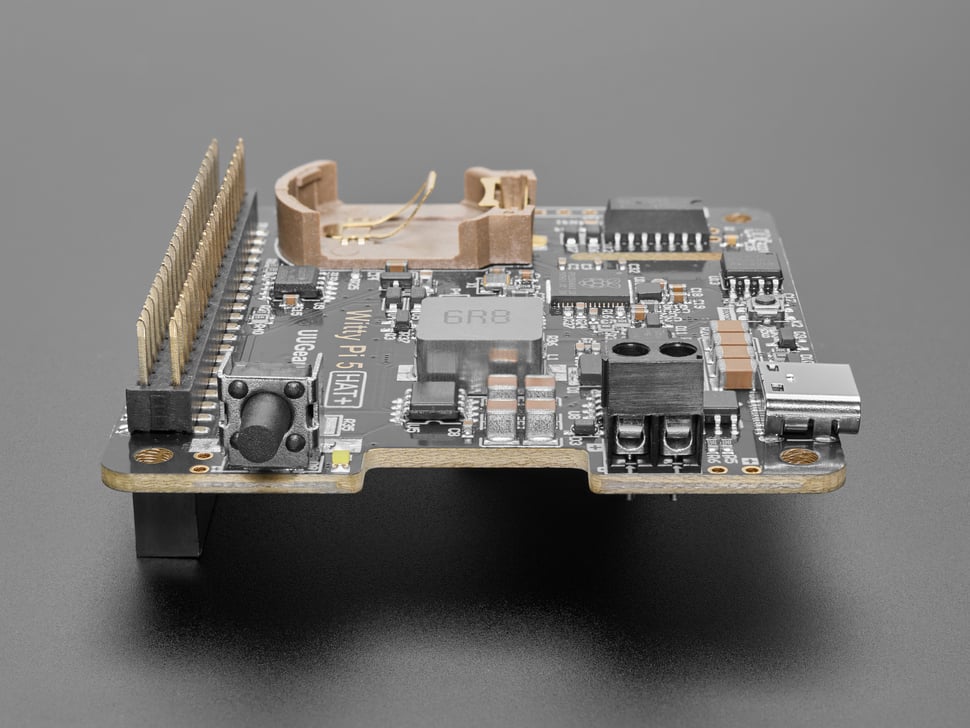

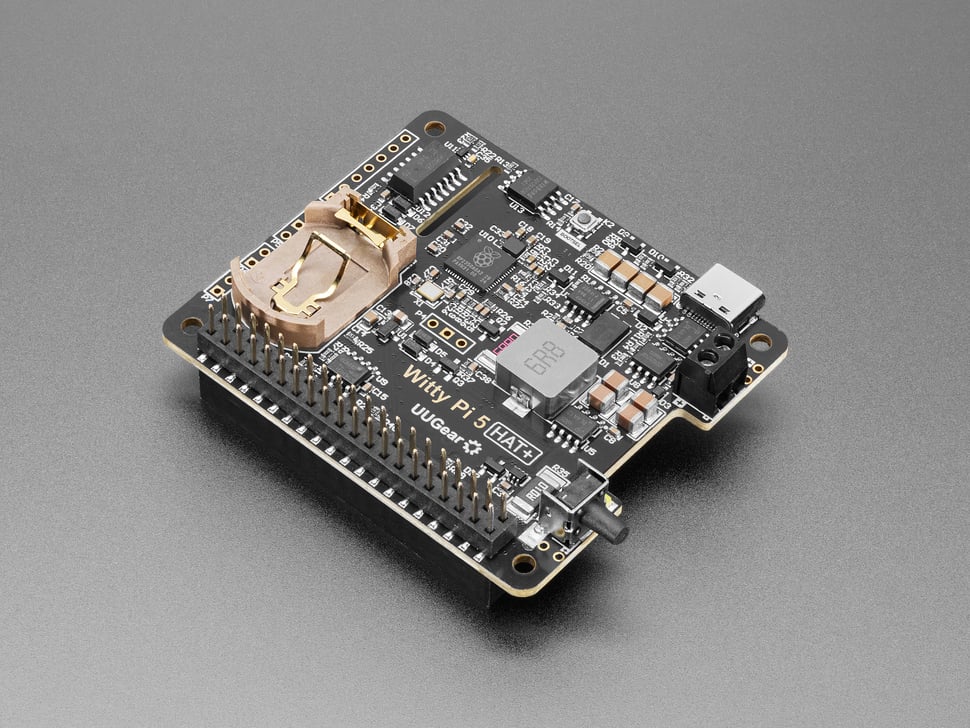

Witty Pi is an add-on board for Raspberry Pi that brings real-time clock (RTC) and power management functionalities to your Raspberry Pi. It can define the on/off sequence of your Raspberry Pi, perform power on/off actions based on temperature or voltage thresholds, and significantly reduce overall energy consumption.
Witty Pi 5 HAT+ is the fifth generation of the Witty Pi product line and the first Witty Pi board to comply with the Raspberry Pi HAT+ specification.
As a Mode 1 Power HAT+ board, Witty Pi 5 can deliver up to 5A current to Raspberry Pi and its peripherals.
Witty Pi 5 supports all Raspberry Pi models with a 40-pin GPIO header, including A+, B+, 2B, Zero, Zero W, Zero 2 W, 3B, 3B+, 3A+, 4B, and 5B. For models like Zero, Zero W, and Zero 2 W, you will need to solder a 40-pin header onto the board beforehand to ensure a reliable connection with Witty Pi.
Witty Pi 5 includes the following hardware features:
- A high-precision real-time clock, with an accuracy of ±3.8 to 5 ppm.
- A dedicated temperature sensor with 0.0625°C resolution.
- An onboard DC/DC converter that accepts up to 30V DC input.
- Two “ideal” diodes that isolate VIN and VUSB
- An RP2350 microcontroller (MCU) with an external 16MB flash memory.
- An ID EEPROM compatible with HAT+ specification.
Witty Pi 5 is also more developer-friendly for firmware and software customization. Both its firmware (written in C using the pico-sdk) and its software (written in C) are fully open-source, allowing users to modify and adapt them as needed. You may find Witty Pi 5’s Firmware Repository and Software Repository on GitHub.
Just like other RP2350-based boards, firmware updates are very easy: by holding the BOOTSEL button while connecting the USB cable, the RP2350 enters USB boot mode and presents itself as a virtual USB drive. You can then drag-and-drop the compiled .uf2 firmware file to flash it.
Witty Pi 5 also emulates both a USB flash drive and a USB serial device. This allows users to edit configuration files, view logs stored on the board, and monitor real-time logs via the serial interface—all of which lower the barrier for development and debugging.
Note: Coin cell battery is not included to make shipping a lot easier for folks abroad. You can get one locally or add one from the Adafruit shop, if you need.
Technical Details
Software Installation:
Run these two commands in your Raspberry Pi to install Witty Pi 5’s software:
pi@raspberrypi:~ $ wget https://www.uugear.com/repo/WittyPi5/wp5_latest.debpi@raspberrypi:~ $ sudo apt install ./wp5_latest.deb
The software and firmware of Witty Pi 5 are open-sourced. You can find the source code on GitHub (Firmware Repository and Software Repository).
For technical and customer support, please visit their forum.
