Wireless Charging PCB Module 5-12V

$14.81 AUD Inc. GST


SKU SS106990018

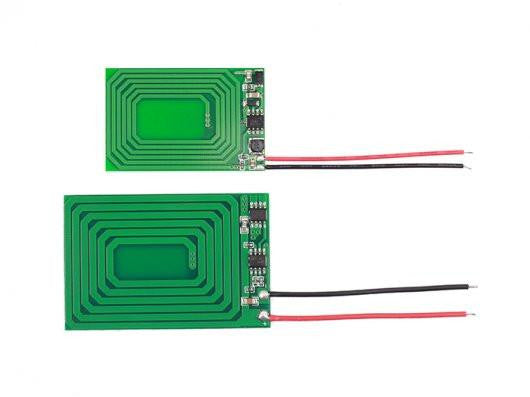

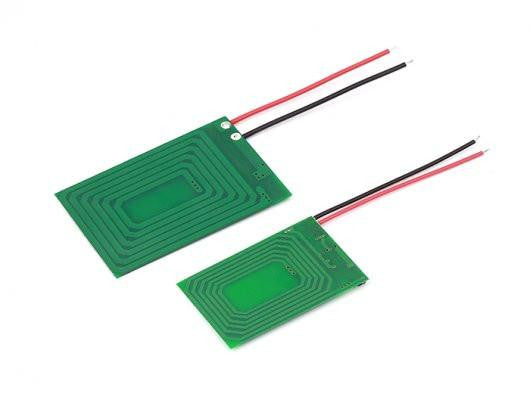

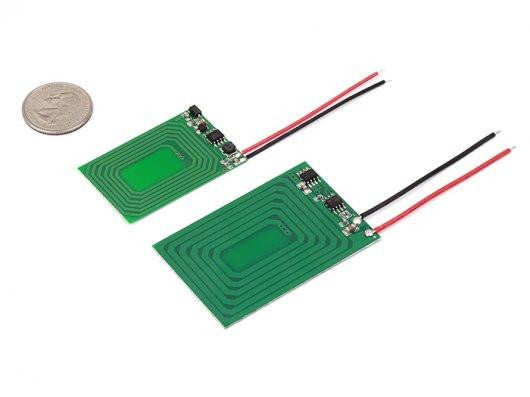

The Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisted of a transmitter and insulation coil, it could serve as a replacement for the Wireless Power Supply with stable 5V output voltage and maximum 700mA output current. Its small size and insulation coil is more suitable for using in wireless project.
Both transmitter and receiver's insulation coil are built-in the PCB.
Feature:
  • Stabilized power supply
  • PCB coil(includ)
  • Super power
  • Ultrathin and high power
Specification:
  • Input Voltage: 5~12Vdc
  • Input Voltage(limits): 13.5Vdc
  • Output Voltage: 5Vdc
  • Output Current(maximum): 700mA
  • Output Current(no-load): 30~50mA
  • Transmitter Coil Inductance: 5uH
  • Transmit-receive distance: 5mm
  • Transmitter : 61*41*1mm
  • Receiver:  41*31*0.3mm
