Wireless Charging Module

$14.69 AUD Inc. GST


SKU SS106990004
Ships in 24 hours 4 units

increment
decrement
decrement increment

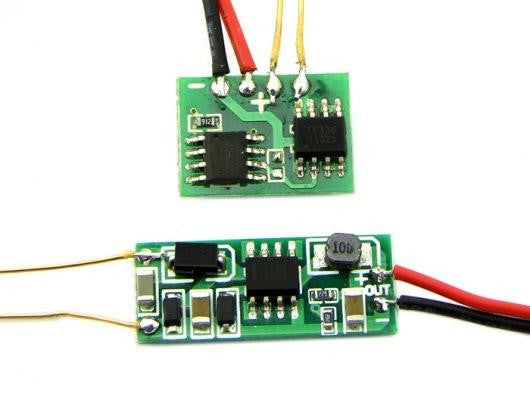

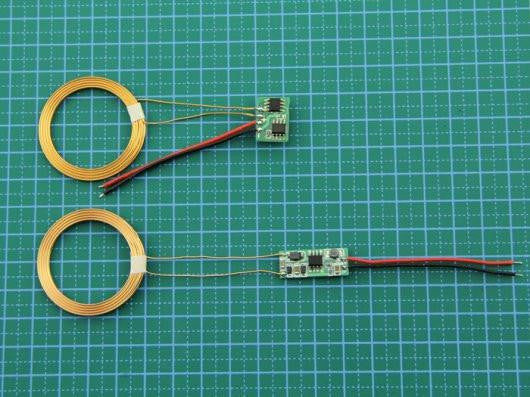

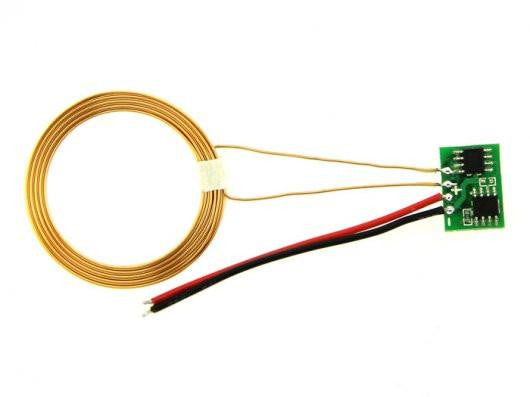

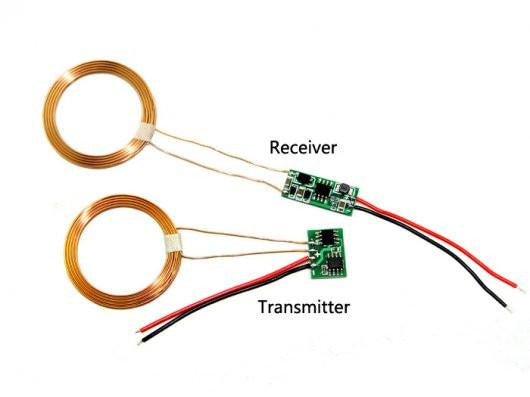

The Wireless Charging Module can be applied in electronic equipments in common use for close wireless charging or power supply. Consisted of a transmitter and insulation coil, it could serve as a replacement for the Wireless Power Supply with stable 5V output voltage and maximum 600mA output current. Its small size and insulation coil is more suitable for using in wireless project.
 Features
  • Stable power supply
  • Insulation Coil
  • Space-saving design

 Specifications

  • Input Voltage: 12Vdc
  • Input Voltage(limits): 13.5Vdc
  • Output Voltage: 5Vdc
  • Output Current(maximum): 600mA
  • Transmitter Coil Inductance: 30uH
  • Transmit-receive distance: 1-20mm
  • Transmitter : 17*12*4mm
  • Receiver:  24*10*3mm
  • Coil Diameter: 38mm
  • Coil Height: 2mm
