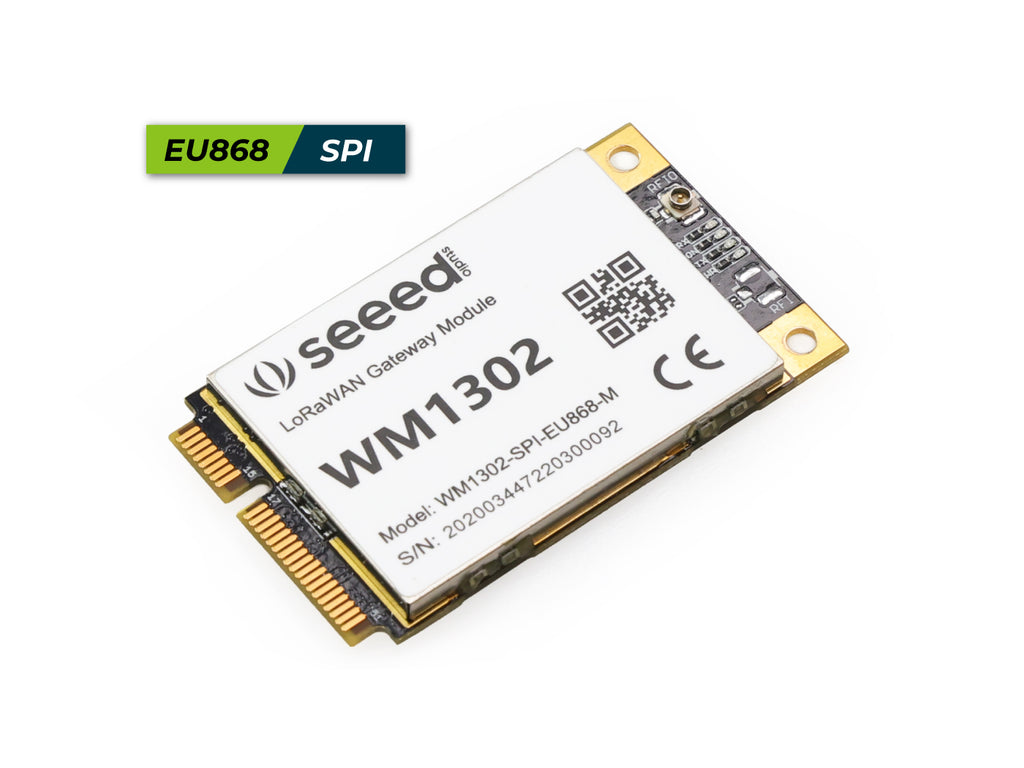

Note:
- SKU 114992549: WM1302(SPI - EU868) with SX1262.
- SKU 114993268: WM1302(SPI - EU868) without SX1262.
If your design does not necessitate Listen Before Talk (LBT), SKU 114993268 may be a suitable choice. This item is presently available, thus reducing fulfillment times and making it a more desirable alternative for purchasing.
Customers purchasing SKU 114992549 will experience a longer lead time; however, we are able to arrange a production order for this purchase.
Feature
- Powered by SX1302 baseband Wio chip, extremely low power consumption and high performance.
- Mini-PCIe form factor with the standard 52-pin golden finger, easy to integrate with various gateway devices.
- Ultra-low operating temperature, no additional heat dissipation needed, reducing the size of Long-Range gateway.
- High sensitivity down to -139 dBm @SF12 with SX1250 TX/RX front-end; TX power up to 26 dBm @3.3V.
- Certified with CE. Simplify the final product certification process.

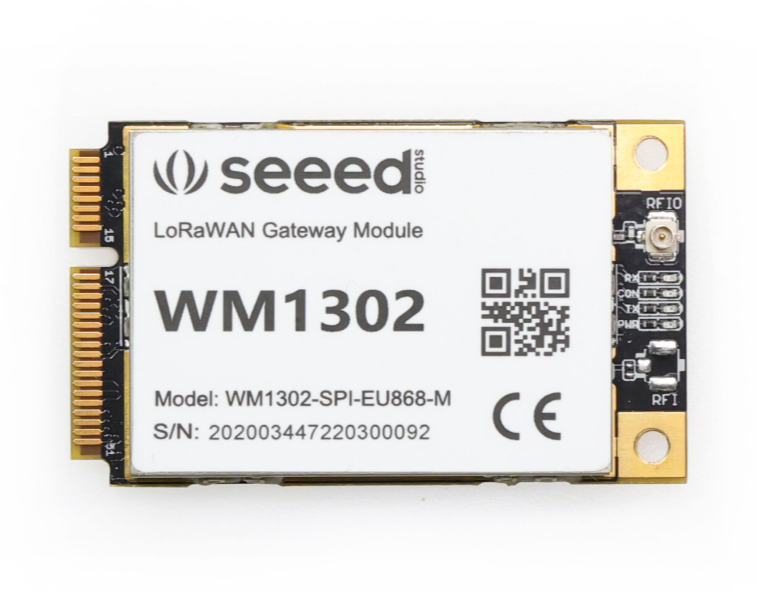

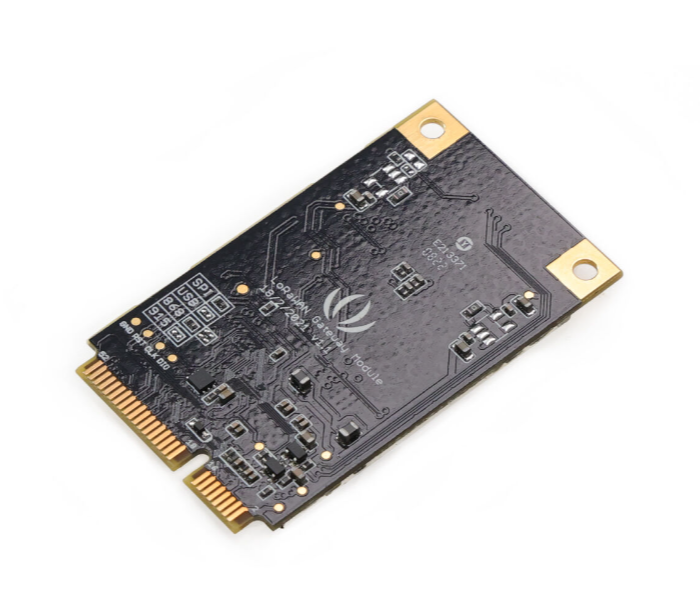

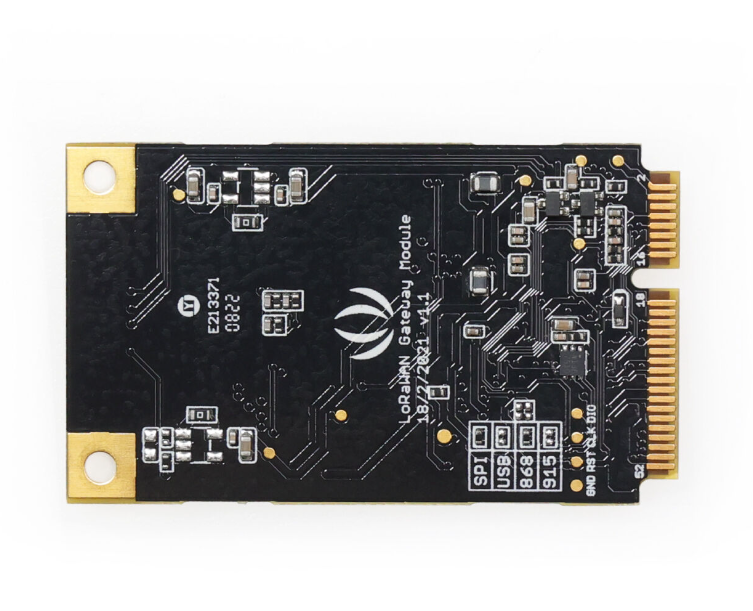

WM1302 is the latest generation of Long Range gateway modules, featuring a mini-PCIe form factor. Utilizing the SX1302 baseband Wio chip, WM1302 provides greater capacity for long-range wireless transmissions in gateway products. It boasts greater sensitivity, reduced power consumption, and lower operating temperatures compared to its predecessors, the SX1301 and SX1308 Wio chips.
WM1302 Long Range gateway module has SPI and USB versions on both US915 and EU868 frequency bands, enabling you to have a wide range of Long Range frequency plans options to choose including EU868, US915, AS923, AS920, AU915, KR920, and IN865.
WM1302 module(EU868) is CE certified, which helps simplify the development and certification process of the Long Range gateway devices.
WM1302 is designed for M2M and IoT applications and can be widely applied in LPWAN gateway-supported scenarios. It would be a perfect choice for you to significantly reduce the technical difficulties and time-consumption when developing the Long Range gateway devices, including Long Range gateway, etc.
Hardware Overview
Diagram
Pinout
Applications
- LPWAN Gateway devices development
- Any long-distance wireless communication application development
- Long Range application learn and research
Specifications
Region | EU868 | US915 |
Frequency | 863-870MHz | 902-928MHz |
Sensitivity | -125dBm @125K/SF7 -139dBm @125K/SF12 | -125dBm @125K/SF7 -139dBm @125K/SF12 |
TX Power | 26 dBm (with 3.3V power supply) | 25 dBm (with 3.3V power supply) |
LEDs | Power: Green Config: Red TX: Green RX: Blue | |
Form Factor | Mini PCIe, 52pin Golden Finger | |
Power Consumption (SPI version) | Standby: 7.5 mA TX maximum power: 415 mA RX: 40 mA | |
Power Consumption (USB version) | Standby: 20 mA TX maximum power: 425 mA RX: 53 mA | |
LBT(Listen Before Talk) | Unsupported | |
Antenna Connector | U.FL | |
Operating Temperature | -40°C to 85°C | |
Dimensions | 30 mm (width) × 50.95 mm (length) | |
Certification | CE | |

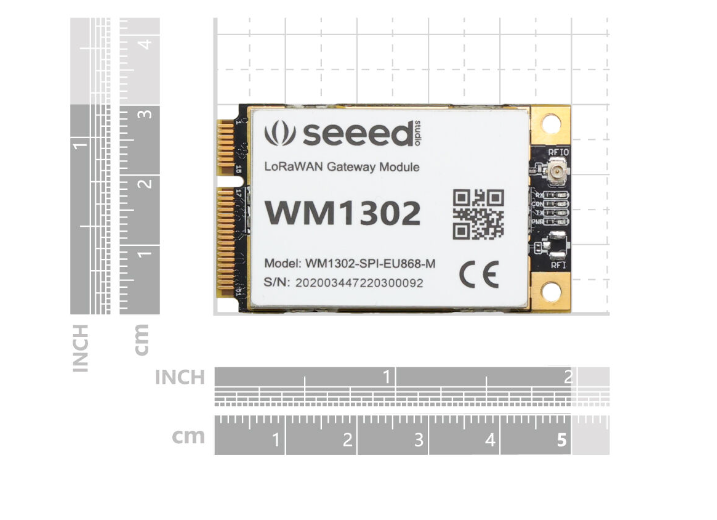

Dimension
ECCN/HTS
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
| CE | 1 |
