Your Standalone Meshtastic Device

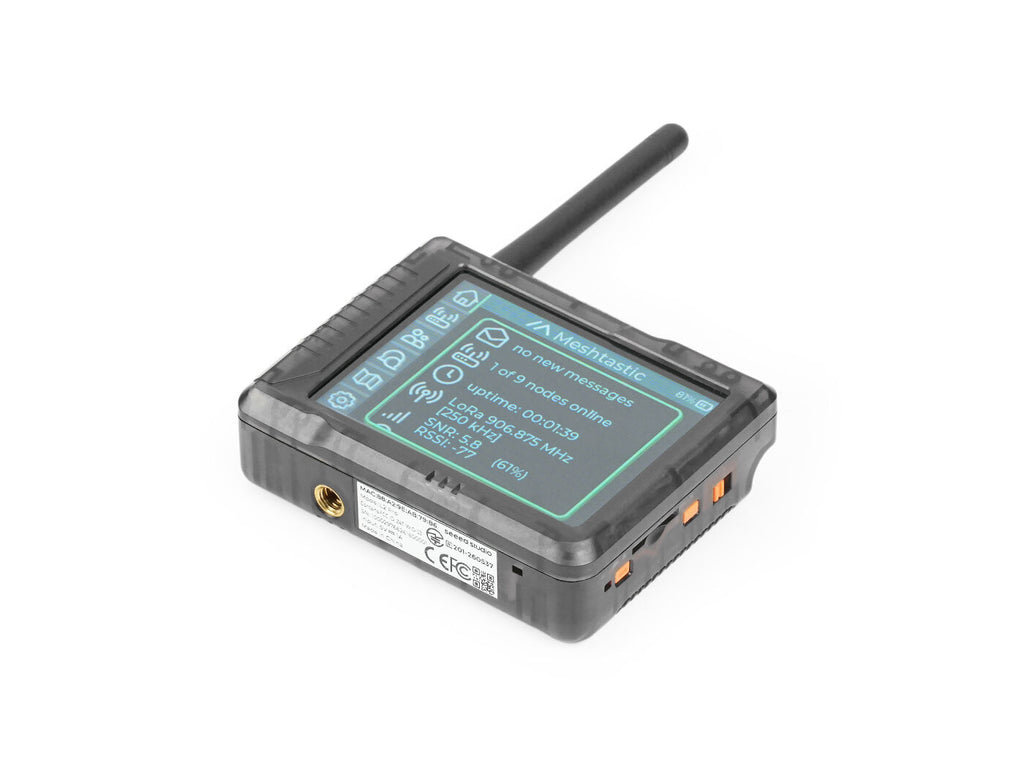

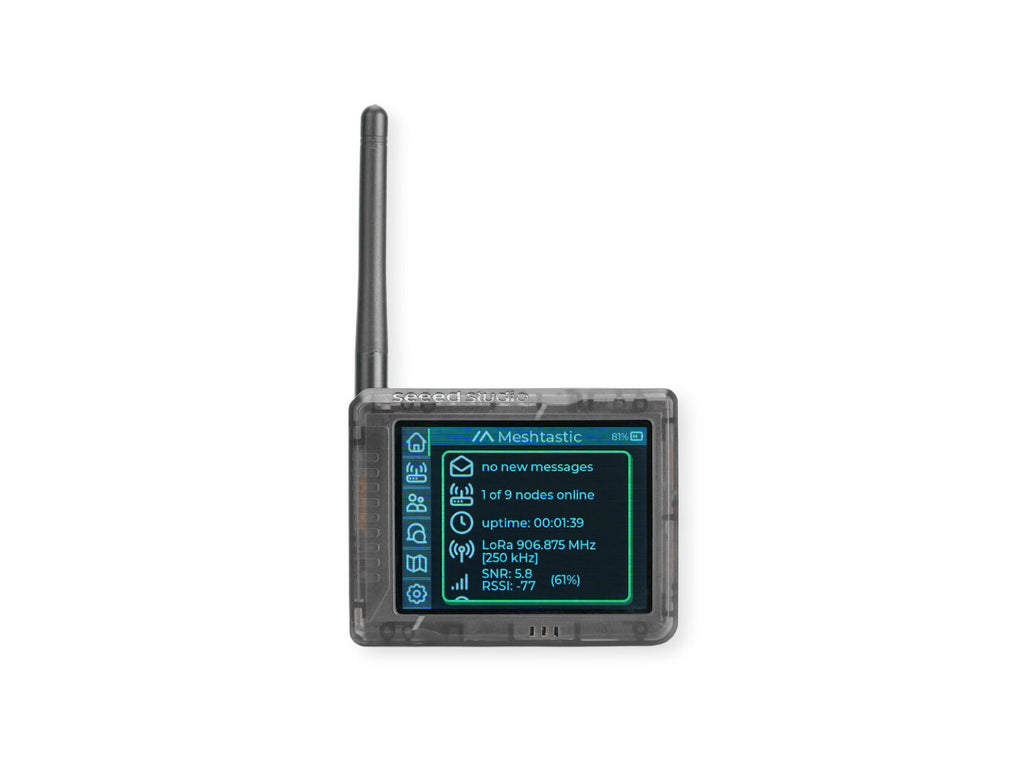

3.2" High-Quality Touchscreen
Featuring a 320×240 high-resolution display with switchable MUI and Base UI, it delivers smooth on-device interaction for messaging, mapping, and control—without a mobile phone.
Offline Maps with GNSS Positioning
Pre-download offline maps to a MicroSD card and view your real-time GNSS location directly on the device, even without cellular coverage or Internet access.
ESP32S3 Powered, Ready to Build On
Powered by the ESP32-S3 with Wi-Fi and BLE, L2 Pro provides a flexible platform for UI customization, feature development, and open-source applications.
Intuitive, Versatile Interaction
Touch, buttons, LEDs, microphone, and speaker support intuitive everyday control and richer custom interactions.
3000mAh Long-Lasting Battery
Supports extended daily use with reduced charging frequency; operates within -10°C to 55°C conditions.
Easy to Carry, Flexible Placement
A foldable antenna improves portability, and the 1/4" mounting interface supports flexible placement with compatible accessories.
One Hardware, Endless Possibilities
Build your own interface, dashboard, game, map tool, or interactive experience—L2 Pro is ready for whatever you want to make.
| Item | Parameter |
| Processor | Wio-S3 (ESP32S3 + SX1262 Module) |
| LoRa | 863-928 MHz MAX TX Power: 20dBm |
| GNSS | L76K (GPS, BeiDou, GLONASS, QZSS) |
| On-chip Memory | 16MB Flash / 8MB PSRAM |
| Antenna | Foldable LoRa Antenna |
| Wifi/BLE 5.0: FPC antenna | |
| GPS: ceramic antenna | |
| Interface | Grove * 1 |
| MicroSD Card Slot | |
| Quarter-inch threaded hole | |
| QSPI Interface | Compatible with IPS Screen & E-INK Screen |

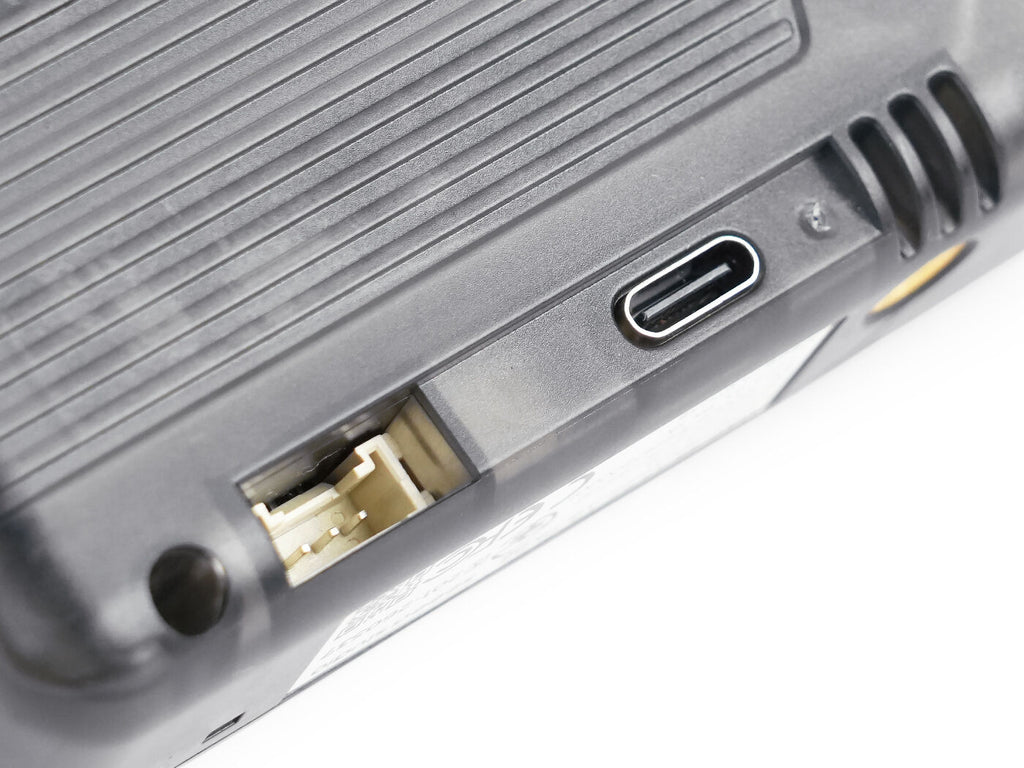

| Power Input | USB Type-C: 5V — 1A |
| Solar:JST-PH 2P-2.0mm, 5V ~ 13V | |
| Li-ion Battery (3P-1.25mm): 3.7V | |
| IPS Touch Screen | Size: 3.2 inch |
| Resolution: 240 × 320 pixels | |
| LED | Mesh LED * 1 Charging LED * 1 |

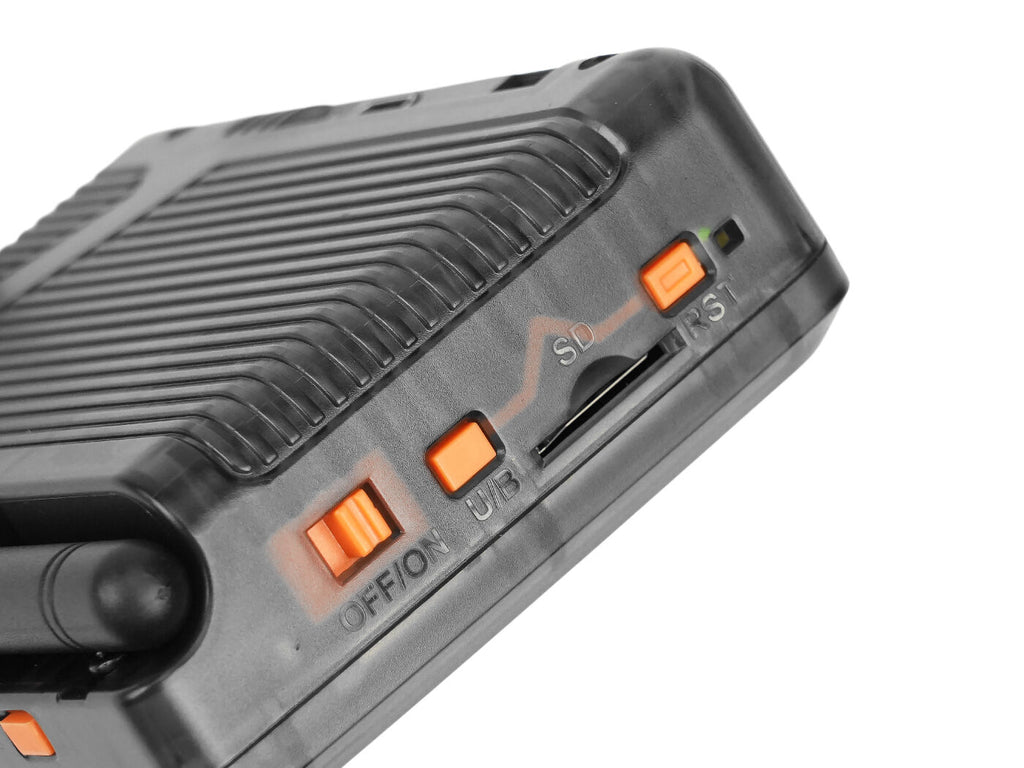

| Button | WAKE-UP * 1 User/Boot * 1 RST * 1 Power Switch * 1 |
| Audio | I2S Codec: ES8311 |
| MIC: Pin Reserved | |
| Speaker: 6Ω 0.8W | |
| Communication Distance | Up to 5.8 km |

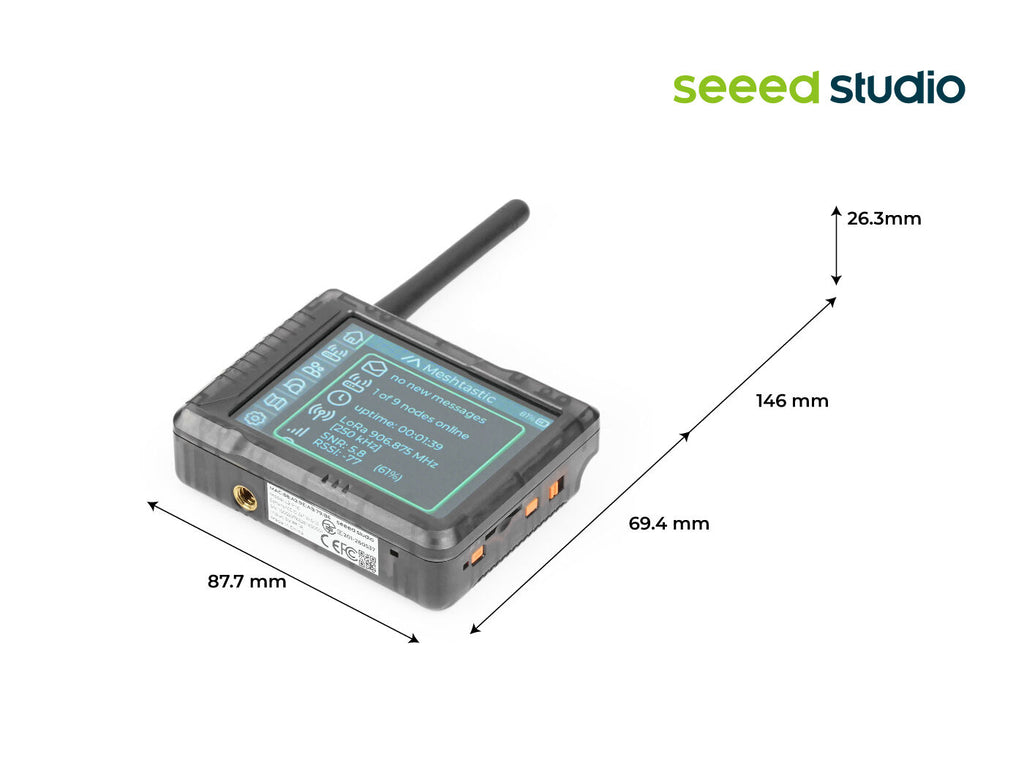

| Dimension | (Antenna folded) L: 87.5 cm, W: 69 cm, H: 26.6 cm |
| Device Weight | 171.5g |
| OperationTemperature | -10℃ to +55℃ |
| Certification | FCC,CE,RoHS,TELEC |
Battery
| Item | Parameter |
| Battery Capacity | Rechargeable Li-ion battery, 3000mAh |
| Battery Life Monitoring | Periodic uplink battery level |
| Charging Protocol | USB Type-C (Supports charging, flashing, data transfer and OTG) |
| Device Power Input | 5V, 1A |
| Fully-charged cut-off voltage | 4.2V |
| Charging Temperature Limit | 0 to +45℃ |
From outdoor adventures and crowded festivals to open-source prototyping and indoor mesh hub, L2 Pro combines standalone Mesh communication with a flexible hardware platform you can explore, customize, and build on.
- Outdoor Adventures
- Indoor Mesh Hub
- Festivals & Large Events
- Maker & Developer Projects

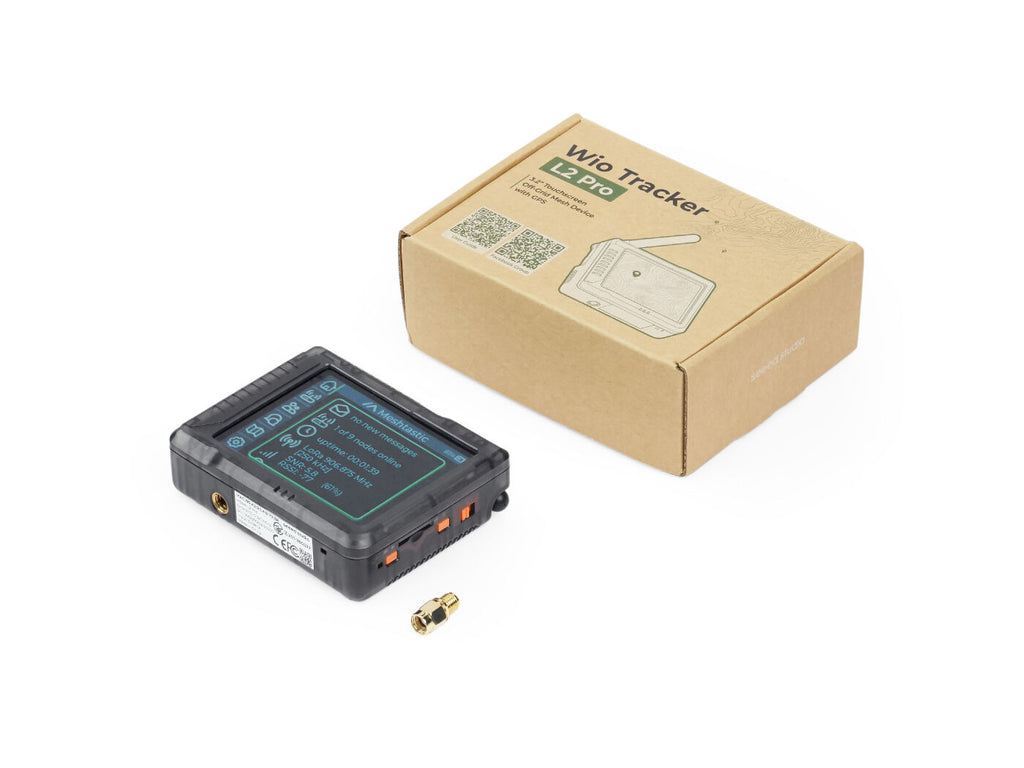

Wio Tracker L2 Pro (Built-in Battery) | x1 |
| RP‑SMA to SMA RF adapter metal | x1 |
Regional Availability
This product is not available for sale, shipment, or resale in Mainland China due to regional restrictions.
| HSCODE | 8517629990 |
| USHSCODE | 8517620010 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
