Note: The Wio-1262-N module does not include an IPEX antenna connector. If your application requires an IPEX interface for external antenna compatibility, please refer to the Wio-SX1262 Wireless Module SKU: SS114993390.
- High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW.
- Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.
- Small Size: 6mm X 11mm * 2.95mm @12 pins SMT.
- Low Power Consumption: 62uA sleep current .
- RF Interface: SMT Pin.
- FCC ID, CE, RoHS, TELEC Certified
The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU:
- If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262.
- the Wio-SX1262 series now includes the Wio-SX1262-N , which does not have an IPEX connector but instead uses SMT packaging to route the antenna from the PIN pins to an onboard antenna.
- If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.
ODM & OEM
With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization and manufacturing services for hardware products. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios.
If you want to design in our Wio-E5/Wio-SX1262 Module, we provide a one-stop ODM and OEM service for quick customization and scale-up. Please contact iot@seeed.cc if you have a large quantity customization need.
Main Chip | SX1262 |

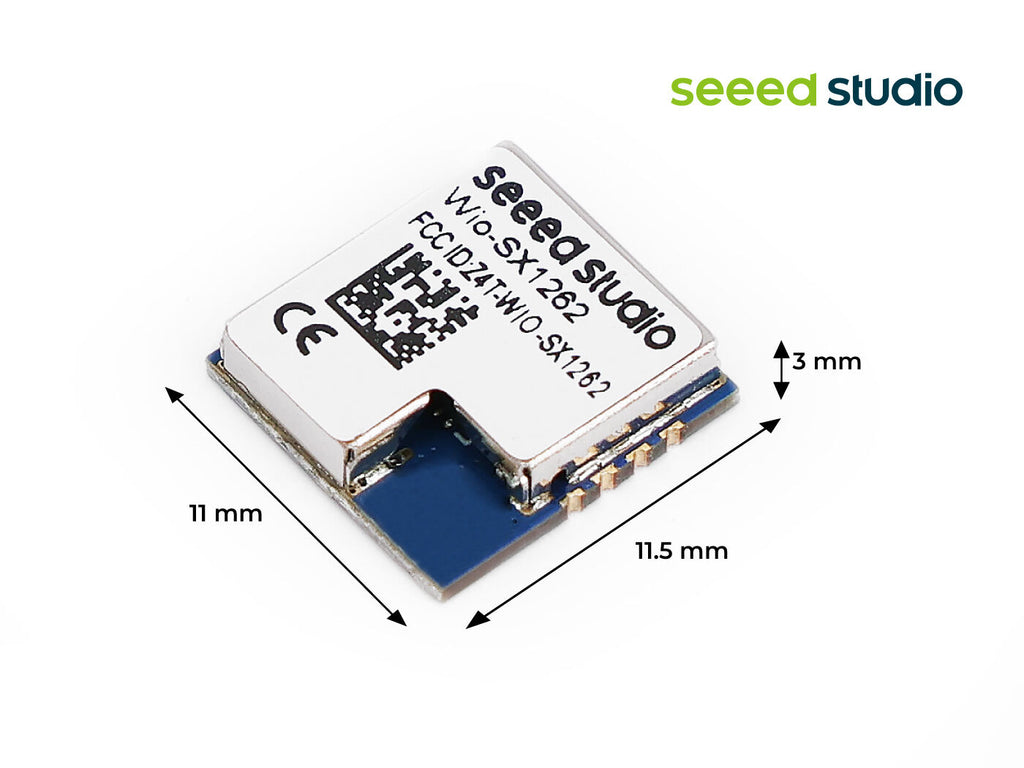

Size | 11.6(W)11(L)2.95(H) mm |
Package | 12 pins, SMT |
Frequency | supports 862-930MHz |
Power Supply | 3.3V @typical |
Sleep Current | 1.62 μA |
SX1262 Power Distribution Mode | DC-DC Mode |
TCXO Supply Mode | By SX1262 DIO3 |
TCXO Supply Voltage | 1.7~3.3 V |
Maximum Operation Current (Transmitter) | 125mA @22dBm in 862-930MHz typical |
Maximum Operation Current (Receiver) | 7.6mA @BW125kHz, 862-930MHz typical |
Output Power | 22dBm max @862-930MHz |
Receiver Sensitivity | ● 136.73dBm @SF12, BW125kHz typical |
Harmonics | ≤-45dBm above 1GHz |
Antenna | SMT pin |

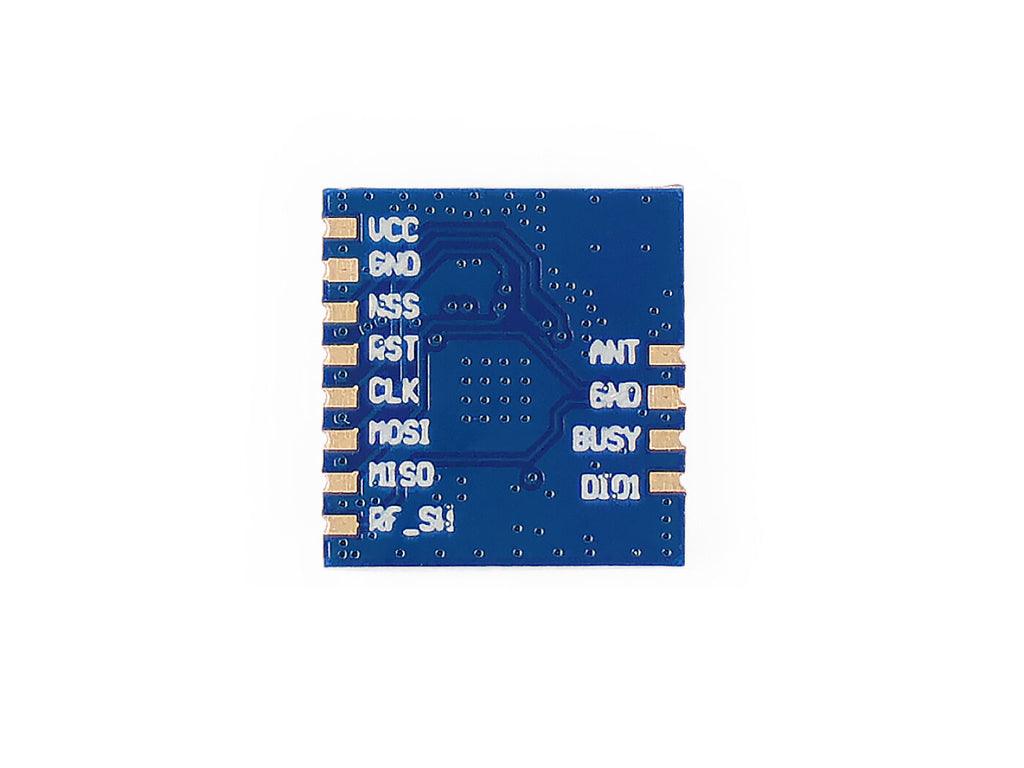

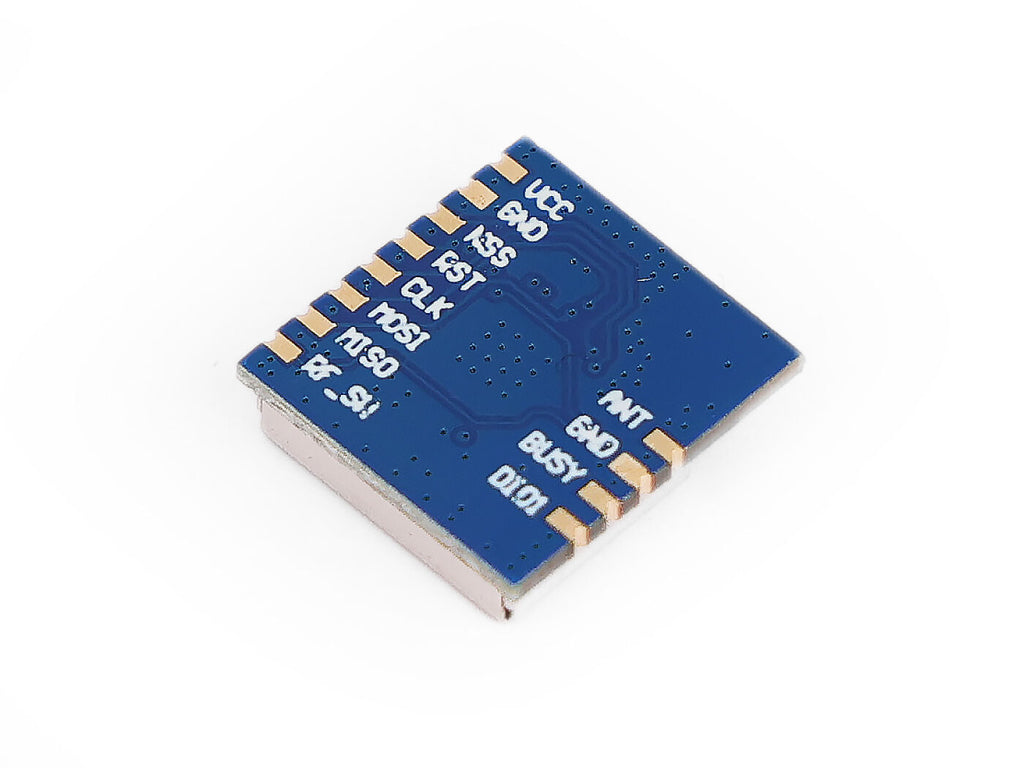

Interface | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
Working Temperature | ● 40°C ~ 85°C |
The Wio-SX1262 and Wio-E5 can be used for the same applications, with the primary differences being the device control solutions and cost options. Thus, past cases involving the Wio-E5 can serve as useful references.
- Solar-Powered Outdoor Air Quality Monitor transmits data over LoRaWAN with the help of Seeed Fusion
- Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
- Former Ph.D Researcher At OSU Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
- Monitoring Indoor Air Pollutants – The Silent Issue for Smart City IoT using Seeed Wio-E5 and Fusion PCB
- Voice Needed! Ready for a Wio-E5 &038; ESP32 Powered WiLoBlIno Device?
- Wio-SX1262 Module Datasheet
- Semtech SX1262 Chip Datasheet
- Wio-SX1262 Module Kicad Library
- Wio-SX1262 Module 3D file
Wio-SX1262-N Wireless Module (without IPEX) | x1 |
