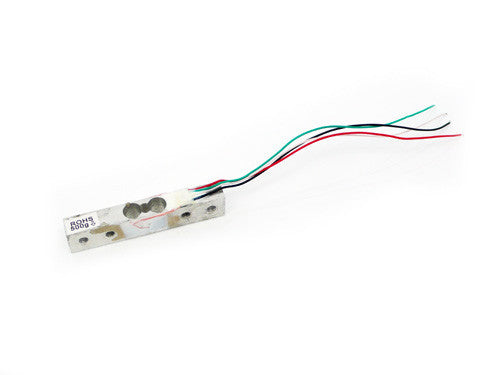

Weight Sensor (Load Cell) 0-500g

$29.04 AUD Inc. GST


SKU SS314990000



Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.
Specifications
  • Capacity g 500g
  • Output sensitivity mv/v 0.5±0.1
  • Nonlinearity %.F.S 0.05
  • Hysteresis %F.S 0.05
  • Repeatability %F.S 0.05
  • Creep(30min) %.F.S 0.05
  • Temperature effect on sensitivity %F.S/10℃ 0.05
  • Temperature effect on zero %F.S/10℃ 0.05
  • Zero balance %F.S ±0.5
  • Input resistance Ω(ohms) 1120±10
  • Output resistance Ω(ohms) 1000±10
  • Insulation resistance MΩ(ohms) ≥2000
  • Recommended excitation voltage v 5v
  • Method of connecting wire red: Exc + black: Exc –
  • green: Sig + white:Sig -
  • Dimension(mm): 45 x 9 x 6
Documents

Please visit wiki page for more info about this product.
