USB Tester - Backpack 2.0 with OLED

$105.11 AUD Inc. GST


SKU SS109990069
Ships in 24 hours 3 units

increment
decrement
decrement increment

The new USB Tester Backback 2.0 brings many new features to the already very useful tool. We have worked hard over the recent months to bring most of the many requested features.

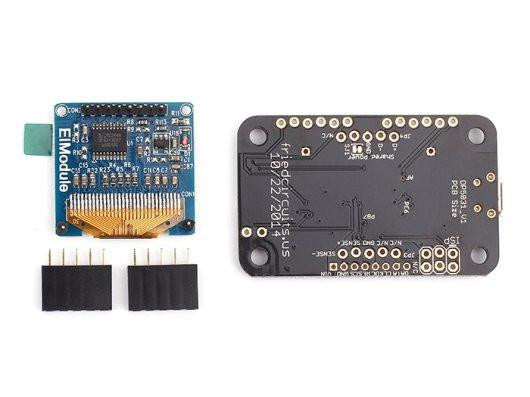

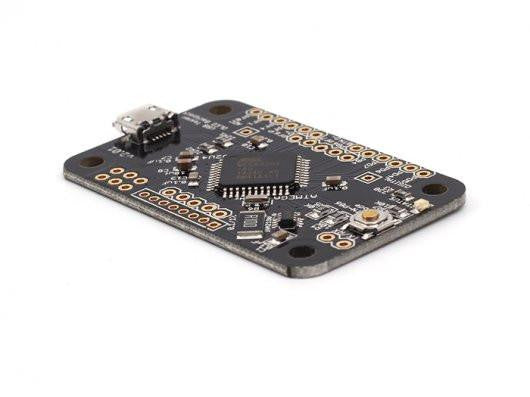

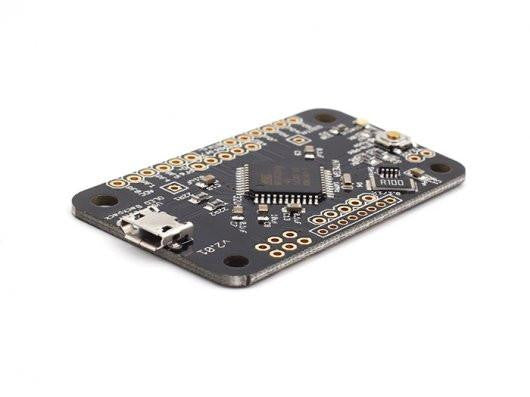

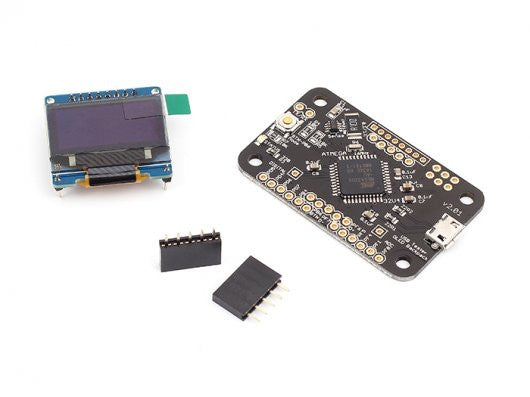

The USB Tester Backpack is an add-on for the USB Tester that makes it easy to monitor the current and voltage of any USB device. It attaches to the USB Tester and displays the readings directly on the device. The default mode shows a graph of current usage, with the button cycling through the different modes.
The OLED Backpack can also connect to a computer and using the Java app you can data log the resulting data. Which can be imported into Excel as a CSV.This OLED is small but readable in all light conditions, the display is easy to use over SPI using Adafruit’s SSD 1306 and GFX libraries.
Features:
 New on Backpack
  • Micro USB
  • Button Location on the front left
  • 128x64 OLED Display (Double height of the 1.x version, easier to source)
  • Voltage monitoring of the USB Data lines
  • Easier access to almost all the extra GPIO’s
New Firmware Features (Will be available for 1.x version)
  • Peaks
  • mWh and mAh tracking
  • Big Readout Display
  • JSON for serial communications
Updated Java App (Beta)
  • Implemented JSON over serial
  • Will save as CSV
  • Add display of new data values
  • Working on graphing some of the new data
Specification:

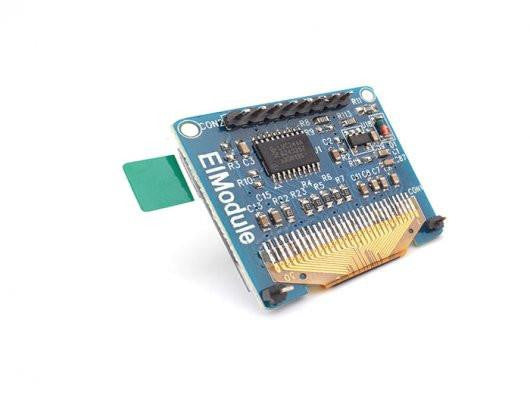

OLED
  • .96in
  • 128x64
  • SPI
  • Supply: 4.5v-5.5v
  • I/O: 3.2v-5.5
  • 8 Pin
  • PCB: 26.7mm x 25.4mm
  • Monochrome (WHITE)
  • Display Mode: Passive Matrix
  • Drive Duty: 1/64 Duty
  • Active Area: 21.744 x 10.864 (mm)
  • Pixel Size: 0.154 x 0.154 (mm)
  • Pixel Pitch: 0.17 x 0.17 (mm)
  • 2.0mm pitch (Might be breadboardable if you bend the pins out)(same pitch as Xbee)
