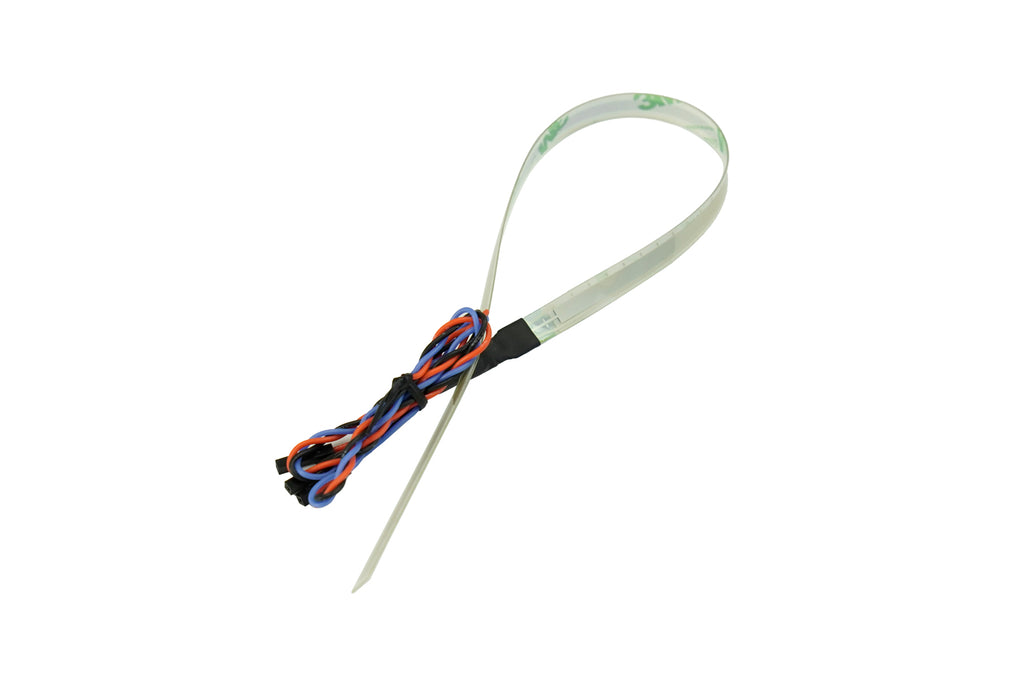

Transform Curved Surfaces into Touch Interfaces This ultra-thin (0.45mm), flexible ribbon sensor serves as a compact alternative to bulky mechanical sliders, enabling linear touch control for wearables, curved dashboards, and soft robotics. Powered by graphene technology and IP67-rated for water and dust resistance, the device is engineered for diverse operational environments and offers immediate compatibility with standard development platforms like Arduino and ESP32.
Flexible Architecture Meets Precision Detection
The graphene-based pressure-sensitive material achieves position detection accuracy of ±2mm across the entire 300mm sensing length, while the 0.45mm thickness allows the sensor to bend and conform to curved surfaces without compromising measurement integrity. The sub-1ms response time ensures that even rapid positional changes are captured with minimal latency, enabling the sensor to output continuous, linear position signals that directly translate physical displacement into actionable electrical data. This combination of flexibility and precision eliminates the trade-off typically encountered in traditional potentiometers, where mechanical rigidity is necessary for accurate readings.
Streamlined Integration with Open-Source Platforms
This flexible potentiometer requires only three pins for full operation, providing an intuitive analog output that integrates seamlessly with Arduino, ESP32, and Raspberry Pi platforms. Position data is accessed through standard analog-to-digital conversion, eliminating the need for specialized drivers or complex communication protocols. The pre-installed 300mm silicone wire with standard connector further accelerates prototyping cycles, allowing developers to move from concept to functional validation in minutes rather than hours.
Industrial-Grade Durability in Flexible Form
The IP67-rated sensor assembly withstands water immersion and dust ingress while maintaining operational integrity through over 1 million press cycles. The pre-applied double-sided adhesive backing enables secure mounting on diverse substrates without additional fasteners or adhesives, while the low actuation force range of 20-50g ensures comfortable user interaction without premature wear. This durability profile makes this flexible potentiometer suitable for deployment in moisture-prone environments and high-frequency interaction scenarios where maintenance access is limited or costly.
Figure: Dimension diagram of linear flexible potentiometer
Figure: Sensor Pressure Application Method of Linear Flexible Potentiometer
Features:
Applications:
Specification:
Basic Parameters
Physical Dimensions
Documents:
Product Includes:
