TinyG CNC Controller Board v8

Price:
Sale price A$414.85   Inc. GST
SKU:
ADA1749
22 units Ships in 7 to 10 days

The TinyG project is a high performance, USB based CNC 6-axis controller that supports XYZ linear and ABC rotary axes with 4 motor outputs. It is designed for small CNC applications and other applications that require highly controllable motion control. TinyG is meant to be a complete embedded solution for small or medium motor control.

Main Features:

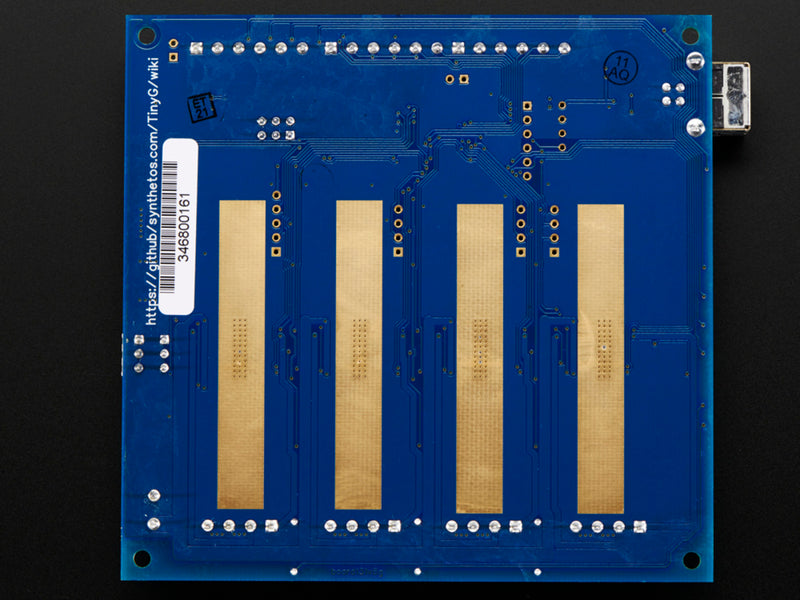

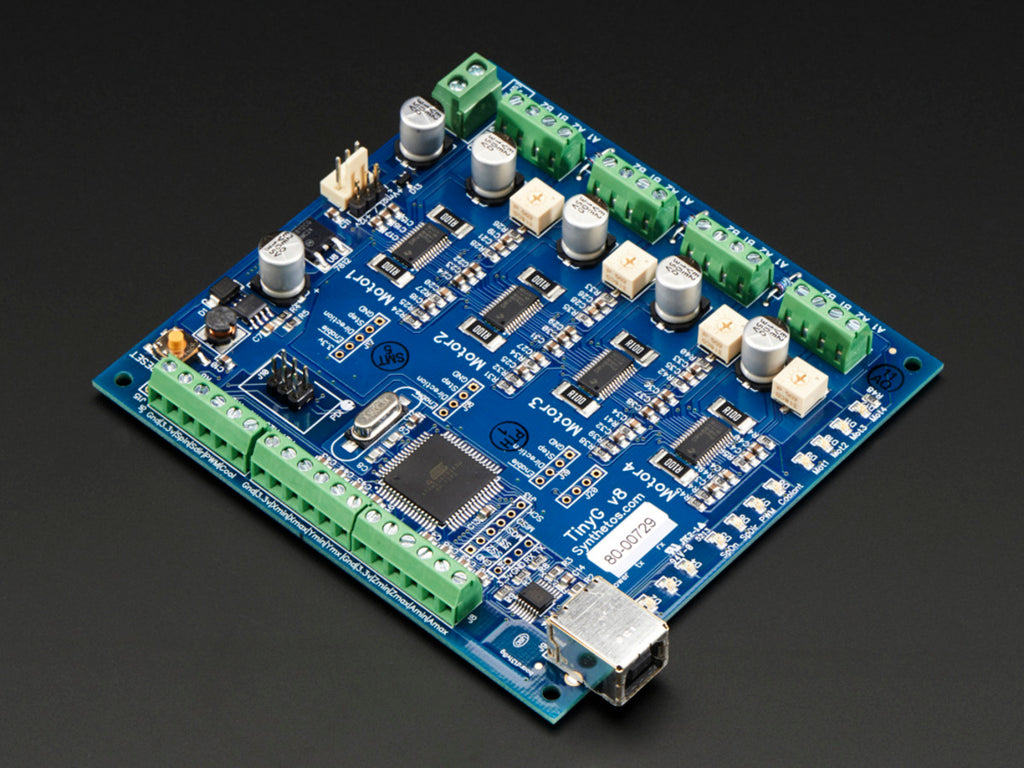

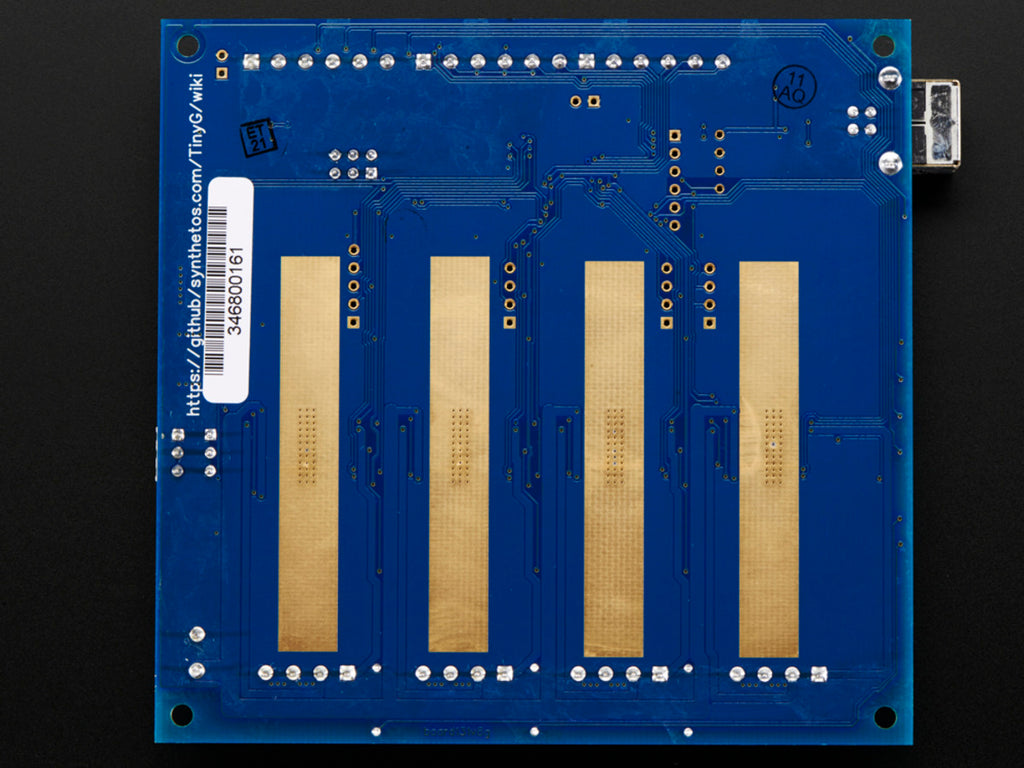

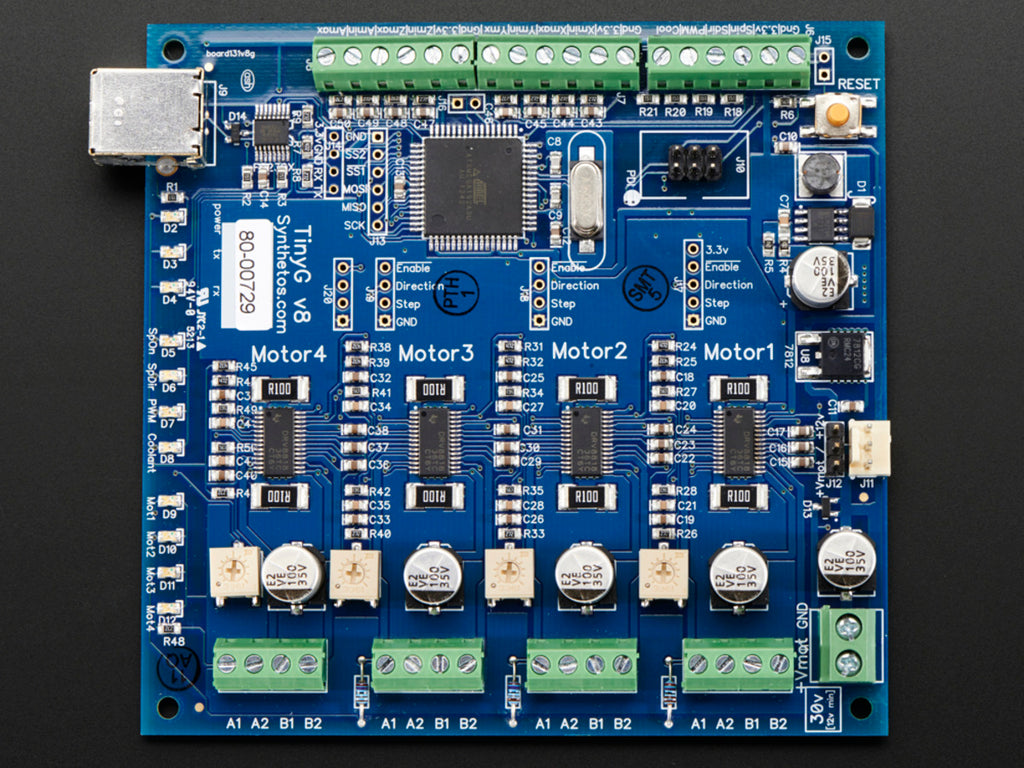

  • Full, integrated motion control system with embedded microcontroller (Atmel ATxmega192) and 4 stepper motor drivers (TI DRV8811) integrated on a ~4 inch square board
  • Four stepper motor drivers
  • Accepts G-code from USB port and interprets it locally on the board
  • Axis/motor mapping to support dual gantry and other configurations (e.g. XYYZ, XYZA, XYZC...) of a 6-axis control (XYZ + ABC rotary axes) setup
  • Acceleration planning performed using constant jerk motion equations (3rd order S curves) for very smooth and fast motion transitions for lines and arcs
  • Very smooth step pulse generation using phase-optimized, smart oversampling, fractional step DDA running at 50 Khz with very low jitter (<<1uSec)
  • Networkable via RS485 to support motion peripherals and for networking mutliple boards for multi-axis systems and for really interesting projects (up to 1000 stepper axes)
  • Stepper drivers handle 2.5 amps per winding which will handle most motors up thru NEMA23 and some NEMA34 motors.
  • Micro-stepping up to 1/8 (optimized DDA makes this smoother than many 1/16 implementations)



Technical Details

  • Dimensions: 105mm x 102mm / 4.1" x 4.0"
  • Board Thickness: 2mm / .08"
  • Weight: 76g

For more information on TinyG see the TinyG WIki.
For trouble shooting, see the TinyG section of the Synthetos Forums.

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant


    Learn

    The Adafruit guide to choosing and using stepper motors.
