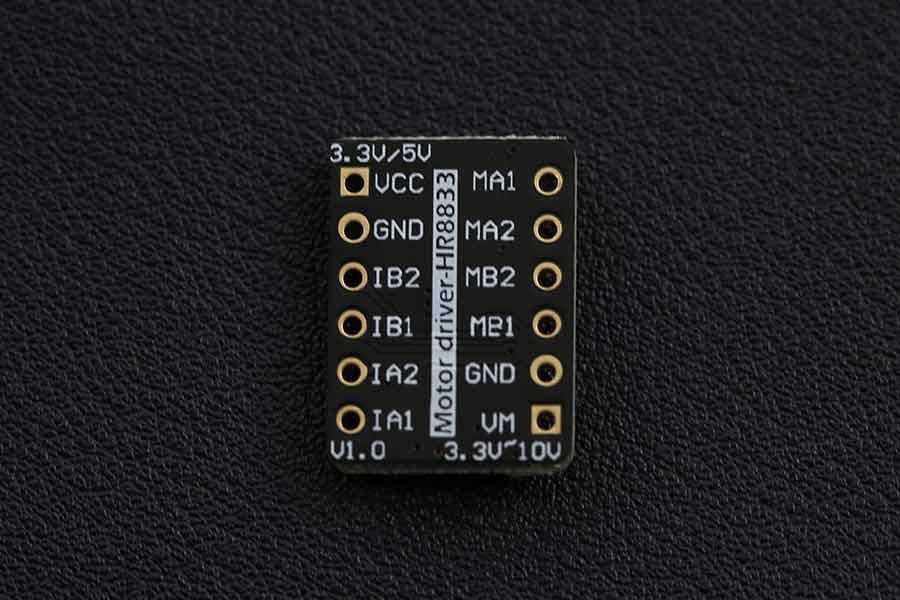

Both sides of the module are desgined with standard XH2.54 pins, which allows you to plug it on a breadboard or prototype board.
Specification:
- Logic Input Voltage (VCC): 3.3-5V
- Load Supply Voltage (VM): 3.3-10V
- Maximum Continuous Operating Current: 1500mA( Single)
- Support PWM speed control mode
- Maximum power dissipation: 25W (T = 75 degree Celsius)
- Working temperature:-20~85℃
- Module Size: 18* 13mm/0.7*0.5 inches
Documents:

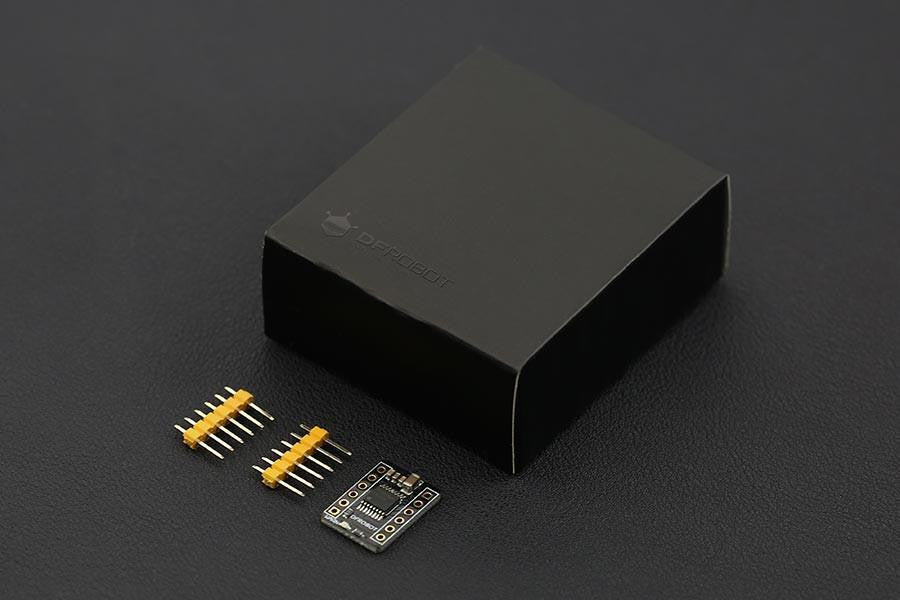

Product Includes:
- Dual 1.5A Motor Driver - HR8833 x1
- 6 Pin XH-2.54 standard pin x2
