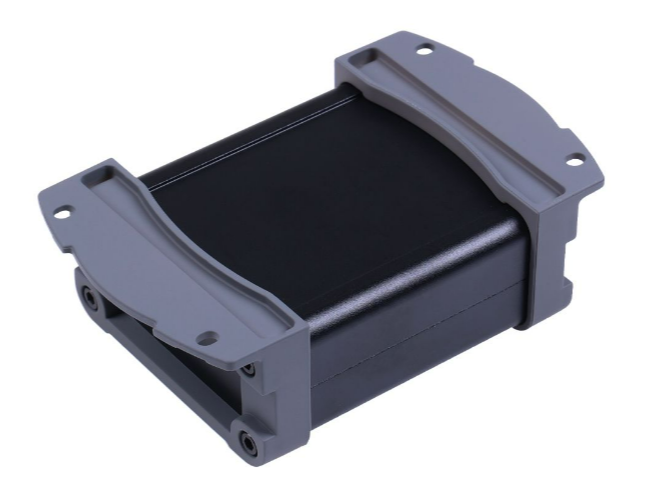

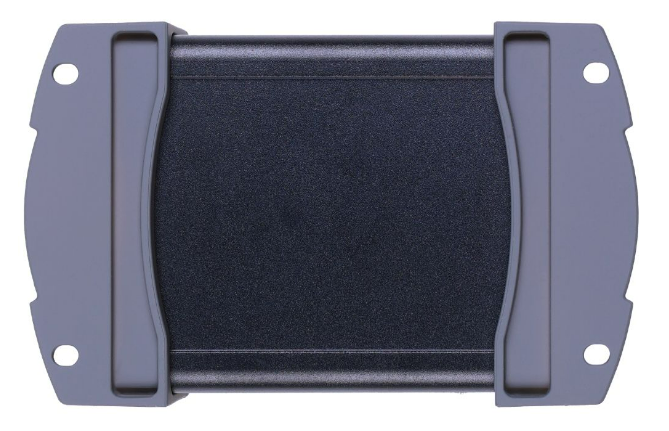

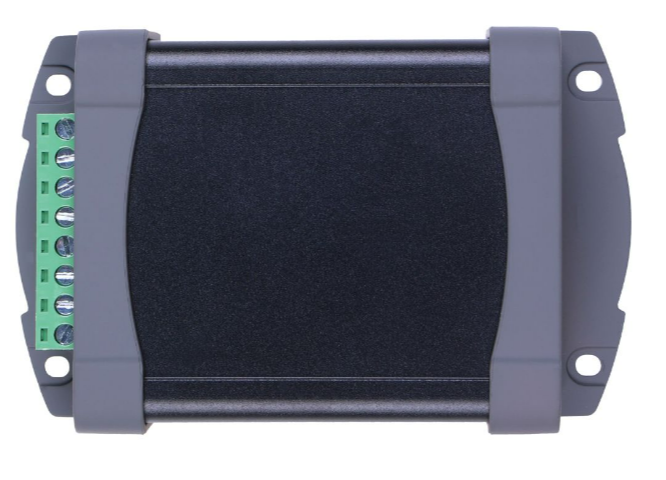

The CANBed Elite Atmega32U4 is a powerful CAN Bus development board that is based on the Atmega32U4 microcontroller. It is designed to be versatile and professional, making it an excellent choice for a wide range of projects. The board features a sleek aluminum housing and comes equipped with a Type-C connector, LED indicators, and external headers. Additionally, it is fully compatible with the Arduino IDE, making it easy to use and integrate into your existing projects. With its robust features and reliable performance, the CANBed Elite Atmega32U4 is an excellent choice for anyone looking for a high-quality development board for their CAN Bus projects.
Feature
- Atmega32U4-based Development Board: Built with Atmega32U4 microcontroller, and Arduino Leonardo bootloader, support Arduino IDE
- CAN Bus Connection: Equip MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver, indicating CAN Bus status with LED indicators
- Well Durability and Protection: Design with sleek aluminum housing
- Onboard USB Type-C connector for easy programming and power supply
- Onboard headers for connecting external devices
Description
The CANBed Elite Atmega32U4 is a CAN Bus development board based on the Atmega32U4 microcontroller, MCP2515, and MCP2551 chips. It features sleek aluminum housings, providing durability and protection for your projects, and is compatible with the Arduino IDE, designed for profession and hobbyists.

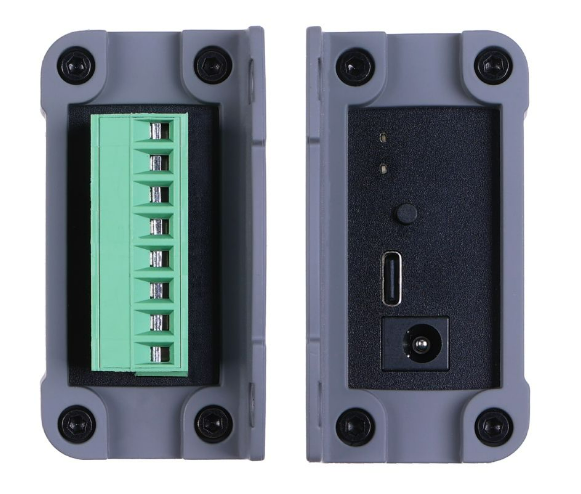

There is a USB Type-C connector, LED indicators, and headers for connecting external devices on the board and it is also compatible with the Arduino IDE, all of which make this development board easy to use and perfect for a wide range of applications, like Automotive diagnostics and monitoring.
This board is well-suitable for your CAN Bus project. With its certified CE and FCC, you can experience its durability, versatility, and advanced features.
Application
- Automotive diagnostics and monitoring
- Industrial automation
- Robotics
- Home automation
- Building automation
Specification
Paramaeters | Details |
Microcontroller | Atmega32U4 with Arduino Leonardo bootloader |
Clock speed | 16 MHz |
Flash memory | 32 KB |
SRAM | 2.5 KB |
EEPROM | 1 KB |
CAN-BUS operating voltage | 9-28V |
USB Type-C operating voltage | 5V |

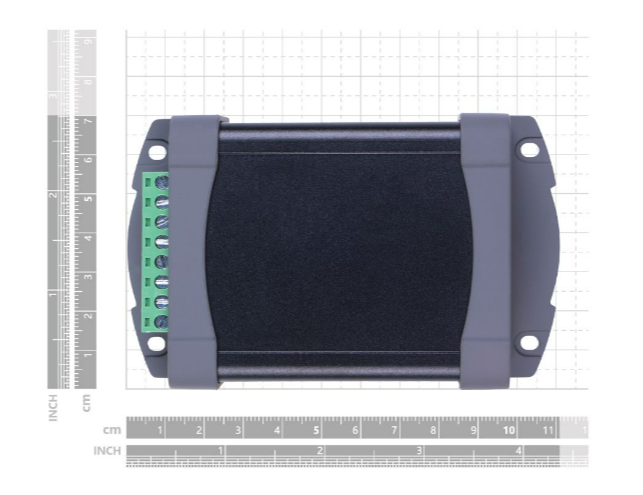

Dimensions | 70x66x30mm |
Hardware Overview
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8543709301 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
