Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

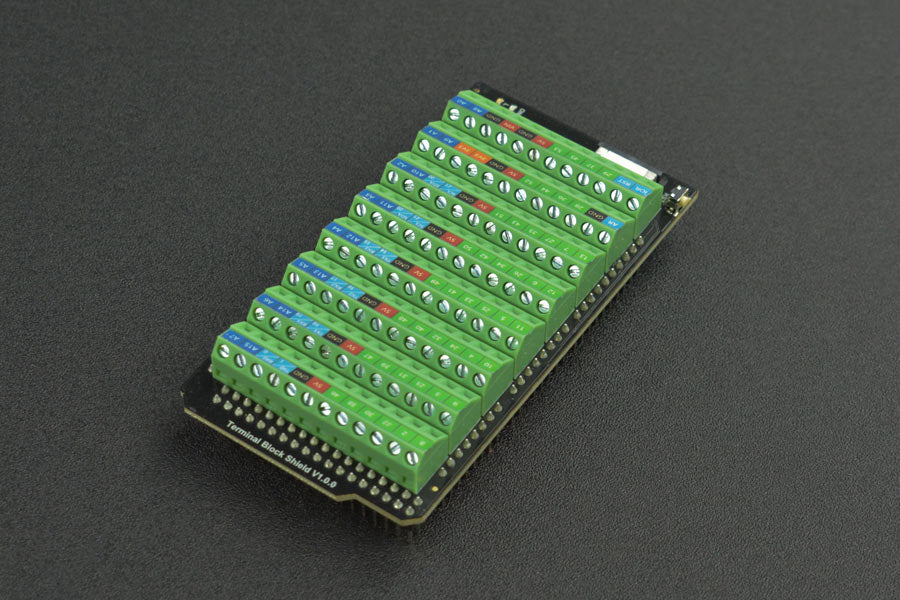

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. The onboard 18pin-FPC socket makes it convenient for connecting a screen.
.jpg)
Application
Board Overview
GDI 18pin-FPC
| FPC PINS | Mega PINS | Description |
| VCC | 5V | 5V |
| BLK | D7 | Backlight |
| GND | GND | GND |
| SCLK | D52 | SPI clock |
| MOSI | D51 | Host output, slave input |
| MISO | D50 | Host input, slave output |
| DC | D2 | Data/command |
| RES | D4 | Reset |
| CS | D3 | TFT Chip Select |
| SDCS | D6 | SD card Chip Select |
| FCS | D25 | Font library Chip Select |
| TCS | D5 | Touch Chip Select |
| SCL | SCL | I2C clock |
| SDA | SDA | I2C data |
| INT | D19 | INT |
| BUSY-TE | D24 | ripstop pins |
| X1 | D23 | custom pin 1 |
| X2 | D22 | custom pin 2 |
