Features
- Infrared Temperature Sensor GY-906 MLX90614 to sense temperature.
- 128x32 pixel OLED display.

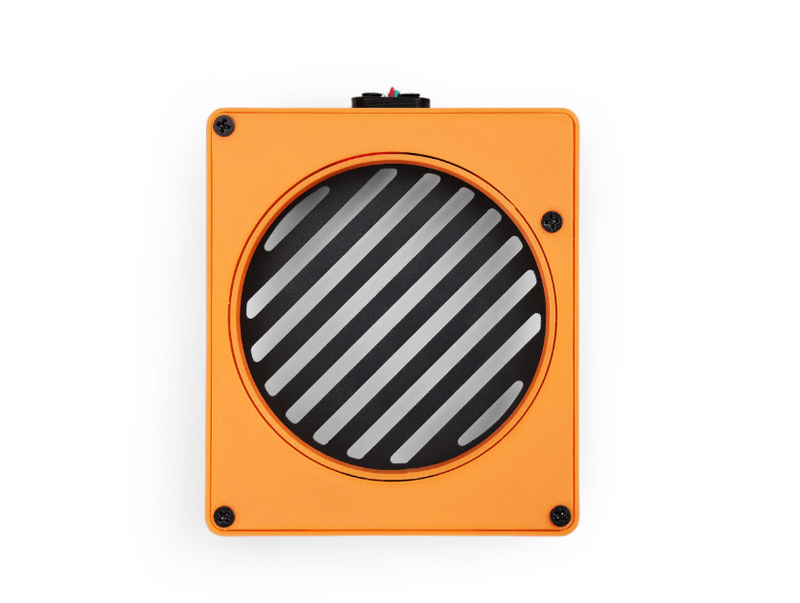

- Removable aluminium plate for easy washing.
- customisable temperature range.
Description
it's important not to make it too hot as it may burn your mouth. That's why we made a Temperature Monitoring Smart Coaster. This smart coaster can monitor the temperature of your beverage in real-time and notify you when it's at a drinkable temperature. You can easily customise the temperature range using the provided code.
The current setting in the code is
- Less than 50c = Cooled
- 50c - 70c = Drinkable
- Grater than 70c = Too hot
it is using the Infrared Temperature Sensor GY-906 MLX90614 to sense temperature. The results will be displayed on a small OLED screen. The Seeed Studio XIAO SAMD21 controls all of these components. Most parts of this project were created using 3D printing technology.
Application
- Table top devices
- Food monitoring
Specifications
- USB powered
- Sensor is capable of measuring -70C to +380c
- Fully opensorce code
Hardware Overview
Part List
Product | Quantity |
Seeed Studio XIAO SAMD21 | 1 |
0.91 Inch 128x32 OLED LCD Display | 1 |
Infrared Temperature Sensor GY-906 MLX90614 | 1 |
CSK Allen M3 x 10mm | 6 |
USB-C Cable | 1 |
