Synthetos gShield (grblShield) V5

1 review
Price:
Sale price A$158.40   Inc. GST
SKU:
ADA1750
13 units Ships in 7 to 10 days

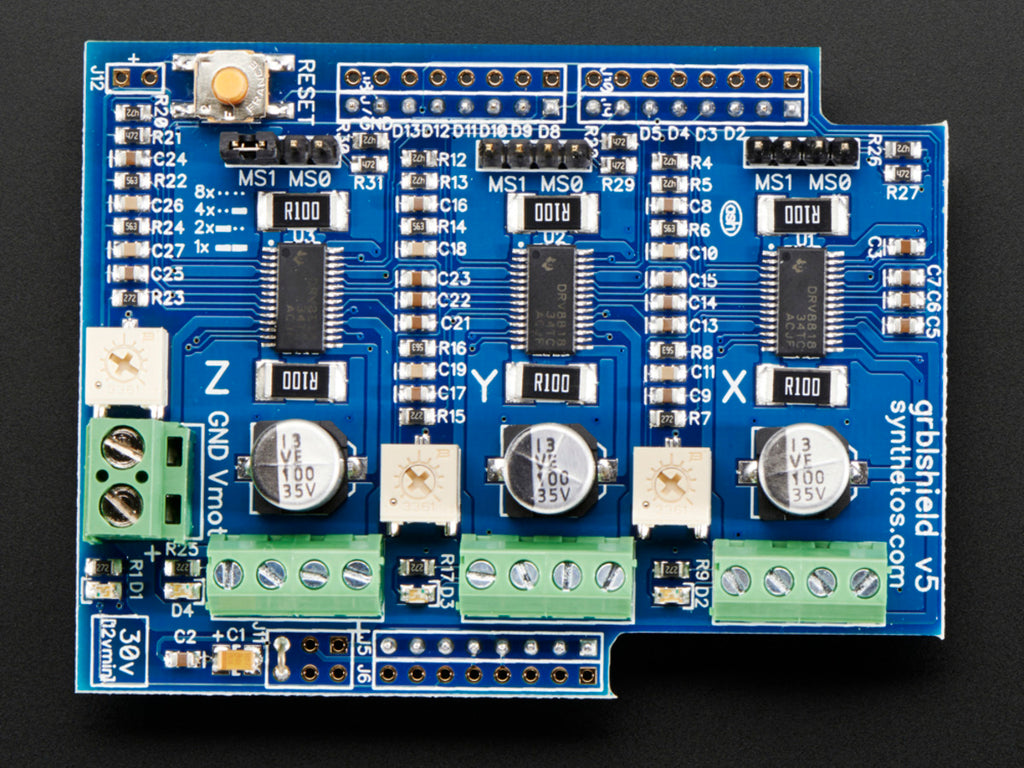

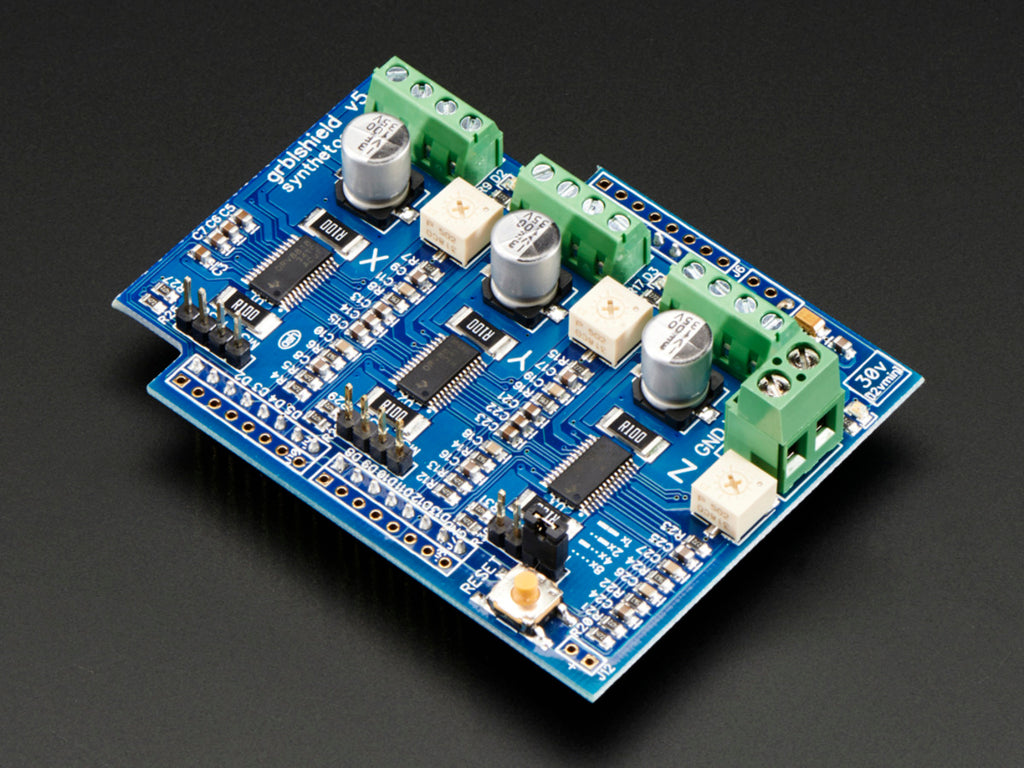

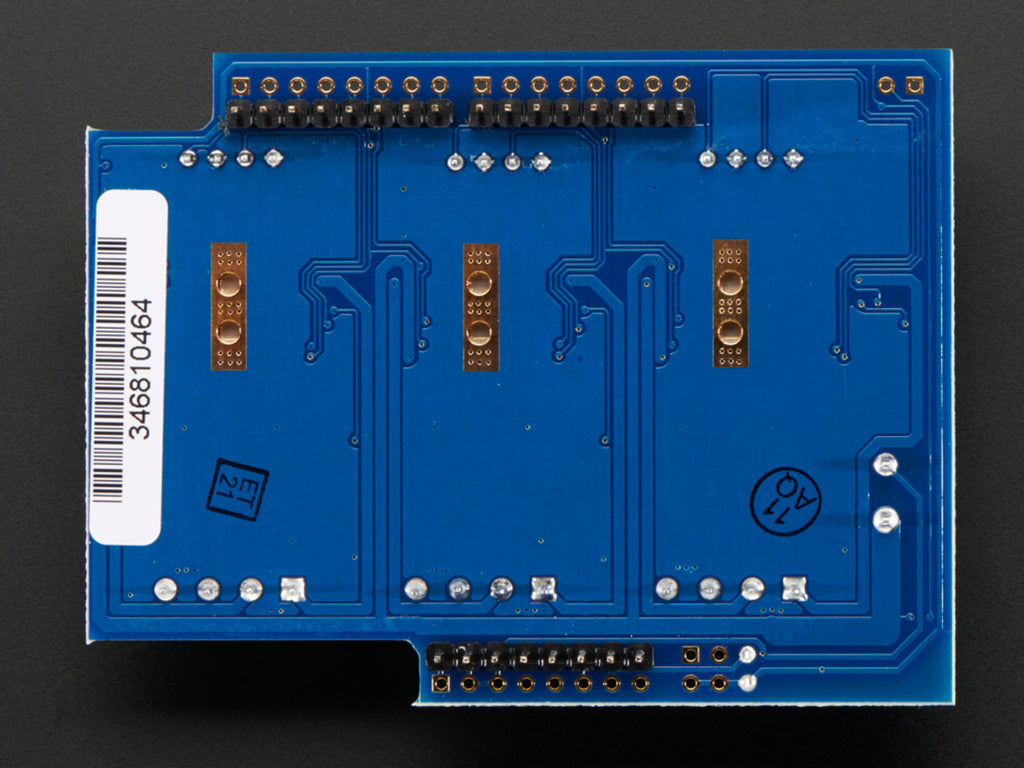

Create your very own Arduino-controlled 3-axis CNC machine with the gShield. The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for Dank’s CNC motion control system called grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform. Version 5 is now compatible with running TinyG on the Arduino Due. The v5 power jumper simply allows the gShield to be run as a native 3.3v device from the Due, instead of a 5v device.

Features:

  • 2.5 Amps per winding
  • 12-30 Input Voltage
  • Open Pin Pass Through
  • 8x Microstepping
  • Screw Down Terminal Voltage Input
  • Hardware 3x Axis (x,y,z)
  • 3x Robust TI DRV8818 Stepper Drivers


Technical Details

GShield Schematic



  • Dimensions: 58mm x 78mm / 2.3" x 3.1"
  • Board Thickness: 2mm / .08"
  • Weight: 31g

For questions and more information on the GShield, check out the Synthetos Forums!

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant


    Learn

    The Adafruit guide to choosing and using stepper motors.
