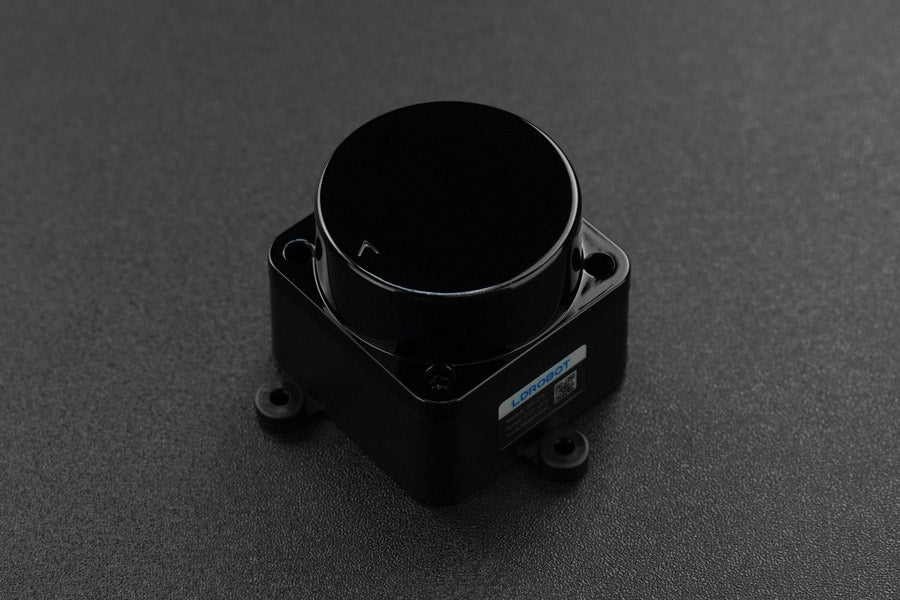

STL-27L 360 DTOF LIDAR Sensor (UART, 25m)
STL-27L 360 DTOF LIDAR Sensor (UART, 25m)

STL-27L 360 DTOF LIDAR Sensor (UART, 25m)

Price:
A$329.12   Inc. GST
SKU:
DF-SEN0589
Out Of Stock

We will notify you when this product becomes available.

STL27L 360° DTOF LIDAR
Features of STL27L 360° DTOF LIDAR

Ranging range: 0.03- 25m, can perceive farther environmental information

STL27L 360° DTOF LIDAR Ranging range


Excellent performance and high precision allow it to accurately perceive the contours of the environment

STL27L 360° DTOF LIDAR


Angular resolution: 0.16 7°, Within the effective measurement distance range of 2 meters, the average error is within 15mm

STL27L 360° DTOF LIDAR


The provided SDK works well with both ROS1 and ROS2 systems.

STL27L 360° DTOF LIDAR SDK works with both ROS1 and ROS2 systems


Anti-glare: effectively resists ambient light interference.

STL27L 360° DTOF LIDAR Anti-glare


Extremely small size Easy to integrate and stylish.

STL27L 360° DTOF LIDAR Extremely small size


Coaxial brushless motor, stable performance,lifespan up to 10,000 hours

STL27L 360° DTOF LIDAR Coaxial brushless motor


Laser Conforms to FDA Class 1 human eye safety level

STL27L 360° DTOF LIDAR FDA Classl human eye safety level

Applications:

  • Home Service Robot
  • Commercial Service Robot
  • Special Robot
  • Drone
  • Industrial Robot
    • STL27L 360° DTOF LIDAR Applications Home Service Robot, Commercial Service Robot, Special robot, Drone and Industrial Robot

    Specification:

  • Measuring range: 0.03~25m
  • Measurement accuracy:
         ±15mm at 0.03m-2m, standard deviation of 5mm;
         ±20mm at 2m-8m, standard deviation of 15mm;
         ±30mm at >8m, standard deviation of 25mm
  • Scanning angle: 360°
  • Scanning frequency: 10Hz
  • Measurement frequency: 21600 Hz
  • Angular resolution: 0.167° @10Hz
  • Operating voltage: 4.5~5.5V
  • Power consumption: 300mA @5V
  • Communication method: UART
  • Anti-ambient light: 60klux
  • Operating temperature: -10°C~ 50°C
  • Storage temperature: -30°C~ 70°C
  • Weight: 45g

    • Documents:

  • Datasheet
  • Development Manual
  • sdk_ldrobotsensorteam_stl_v3.0.5
  • LdsPointCloudViewer-tool

    Note: Please download all the files listed below and unzip them into the same folder.

          LdsPointCloudViewer tool Part1

          LdsPointCloudViewer tool Part2

          LdsPointCloudViewer tool Part3

          LdsPointCloudViewer tool Part4

          LdsPointCloudViewer tool Part5

    • Product Includes:

  • STL27L 360° LIDAR (25m) x 1
  • 4-pin DuPont cable x1
