Standard LCD 20x4 + extras

1 review
Price:
Sale price A$36.10   Inc. GST
SKU:
ADA198
50 units Ships in 7 to 10 days

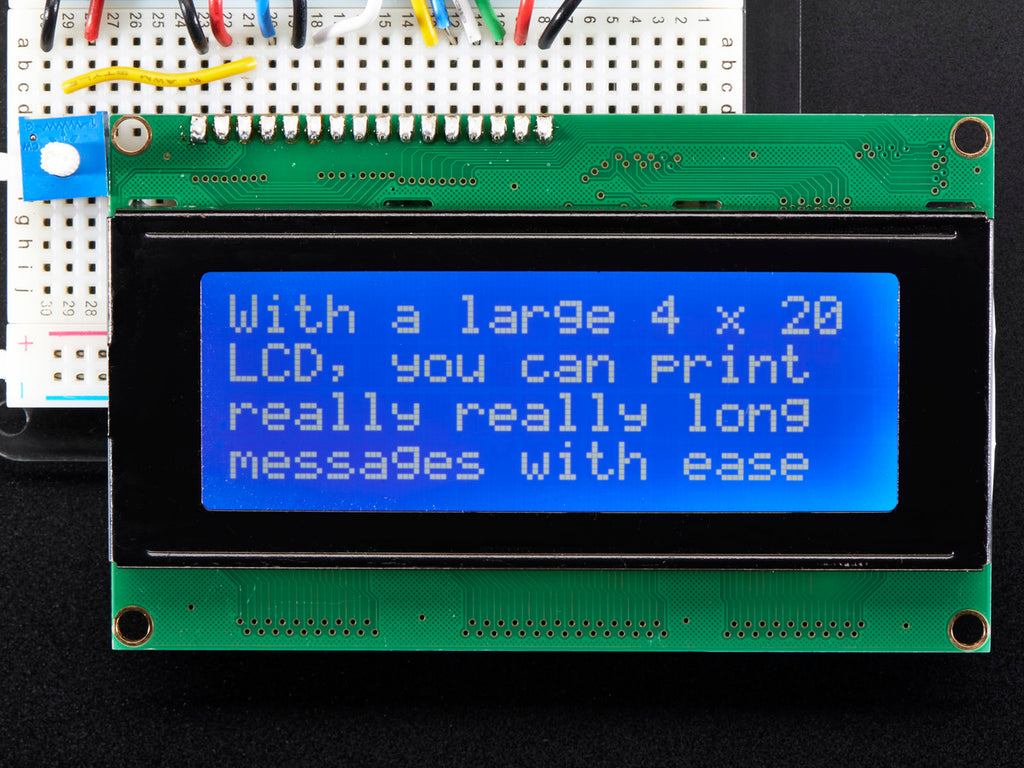

Standard HD44780 LCDs are useful for creating standalone projects.

  • 20 characters wide, 4 rows
  • White text on blue background
  • Connection port is 0.1" pitch, single row for easy breadboarding and wiring
  • Single LED backlight with a resistor included, you can power it directly from 5V. If it's too bright for you, it can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
  • Can be fully controlled with only 6 digital lines!
  • Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
  • Up to 8 extra characters can be created for custom glyphs or 'foreign' language support (like special accents)
  • Comes with necessary contrast potentiometer and strip of header

We have a datasheet that has dimensions and pin-locations and then a HD44780 datasheet with the detailed commands for control

We have a generic 20x4 datasheet that has dimensions and pin-locations (the exact model may vary but the pinout, size and protocol information is the same). We also have a HD44780 datasheet with the detailed commands for control



Technical Details

  • As of April 16, 2021 we have changed LCD suppliers - however the display is otherwise identical and generic!
    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
