Stacking Header Set for Beagle Bone Capes (2x23)

$11.52 AUD Inc. GST


SKU ADA706
Ships in 3 to 10 days 50 units

increment
decrement
decrement increment

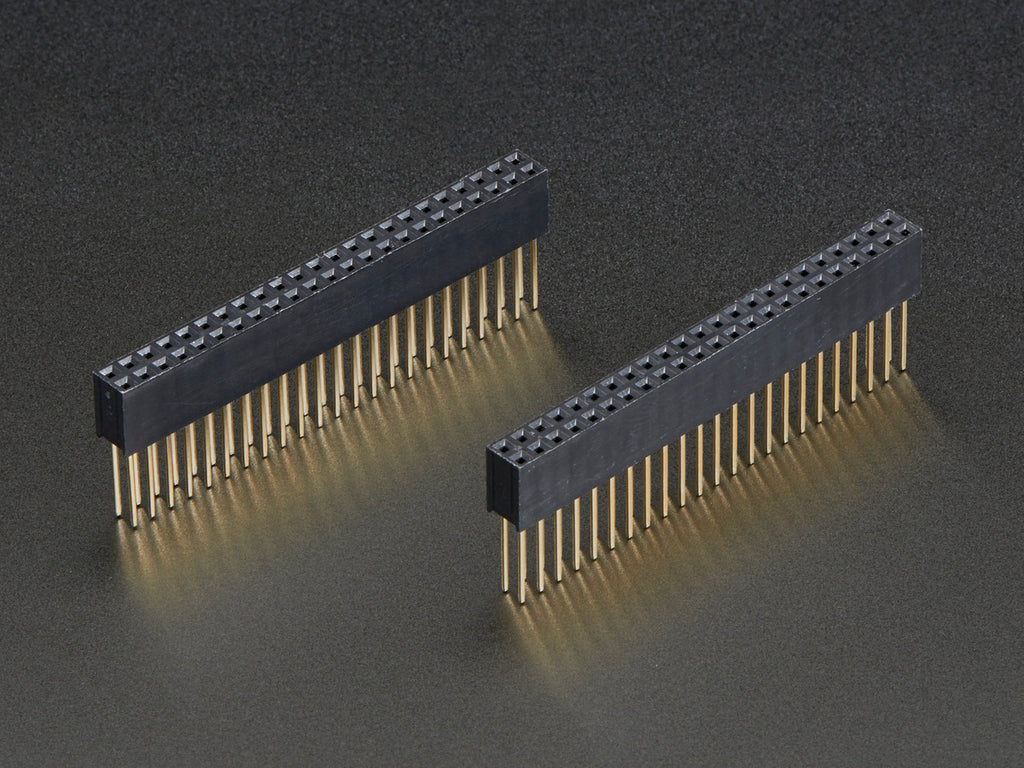

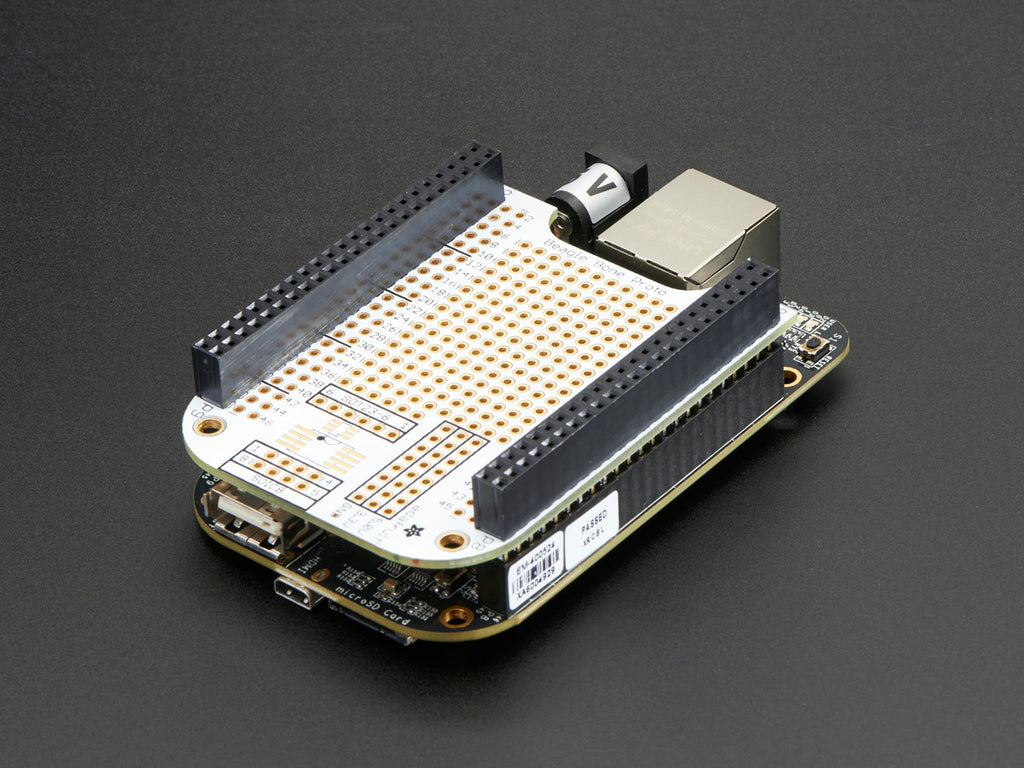

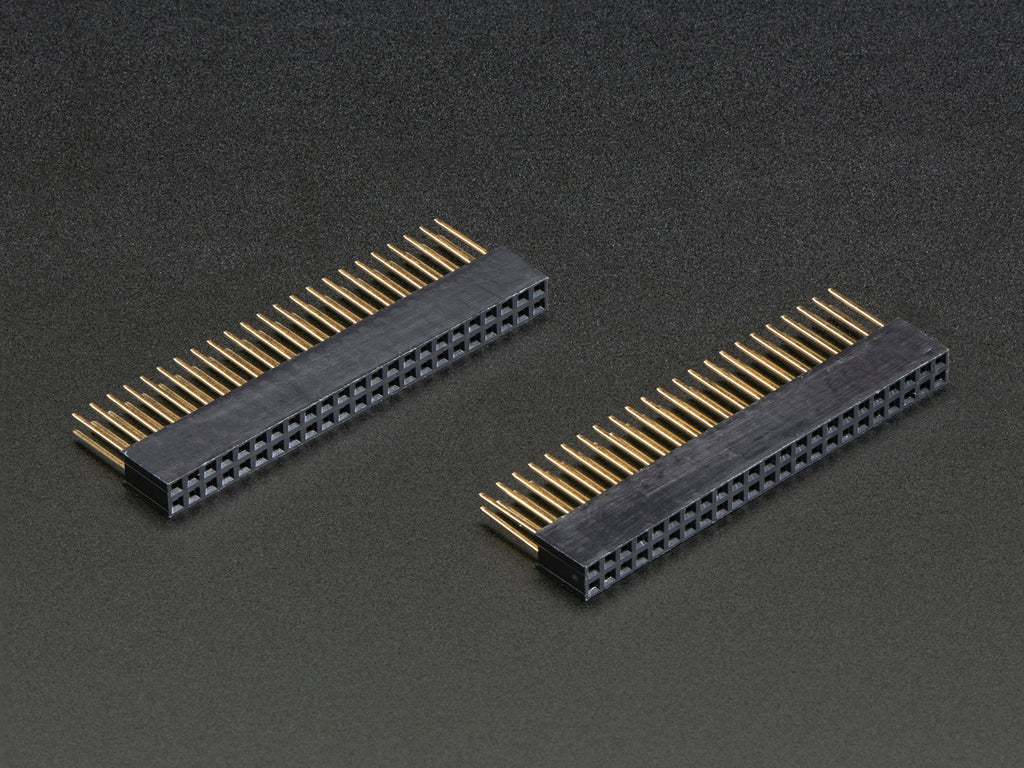

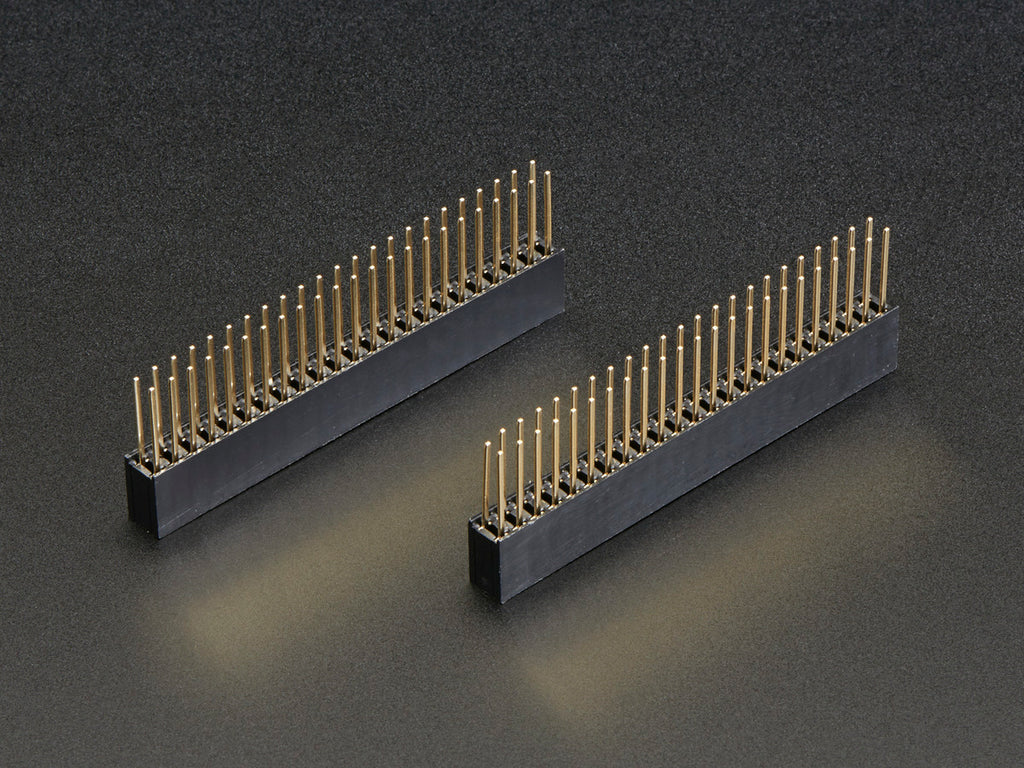

Stack to the max with our Beagle Bone Proto Cape using these ingenious stacking headers. They're just like 2x23 0.1" spaced female headers but with a twist! The 'legs' are extra-long so you can solder it -through- a PCB and plug it into the Bone. You can stack as many as you'd like, for modular design. Neat, right?

Each package comes with two pieces of 2x23 header so you only need one per Proto Cape kit. The Proto Cape is not included, so pick one of those up in the shop. Because of the huge number of connections, its easy to plug in but more difficult to pull out. When removing a stacked cape, be very slow and carefully pry each side up just a little bit to avoid bending the pins as they exit.

Technical Details

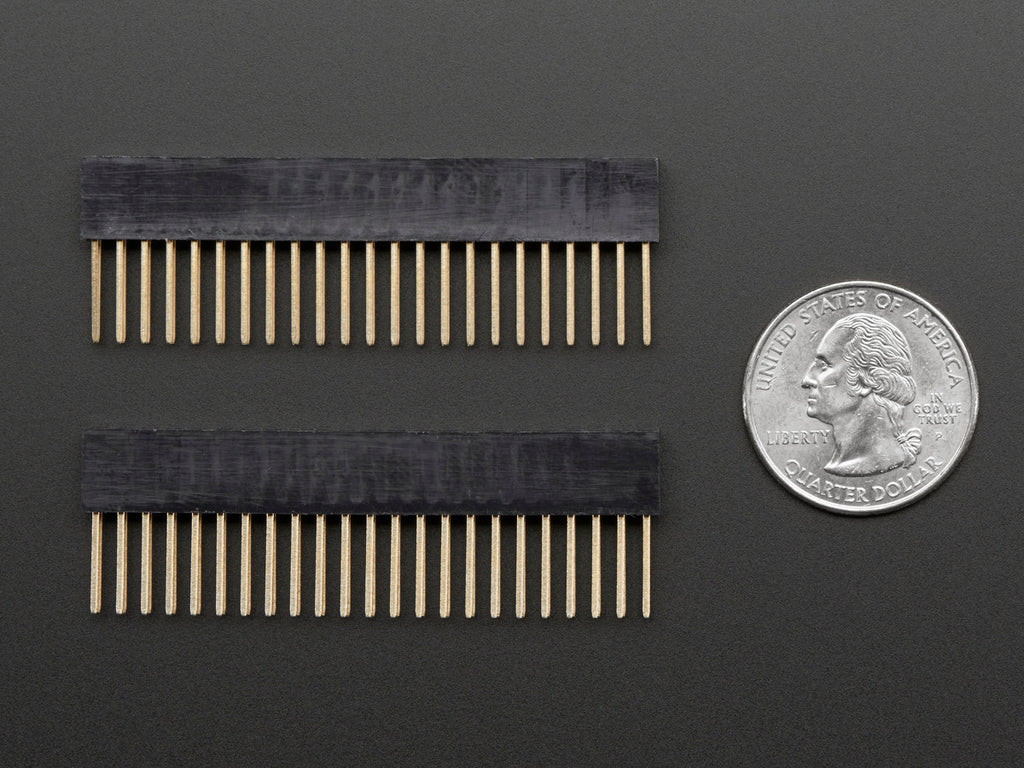

  • Two pieces of 2x23 female header
  • 0.1"x0.1" grid
  • Gold plated contacts
  • 8.5mm long body
  • 10.5mm long legs

Datasheet
