Solar Power Manager with Panel (9V)

Price:
Sale price A$82.37   Inc. GST
SKU:
DF-DFR0535-1
3 units Ships in 7 to 10 days

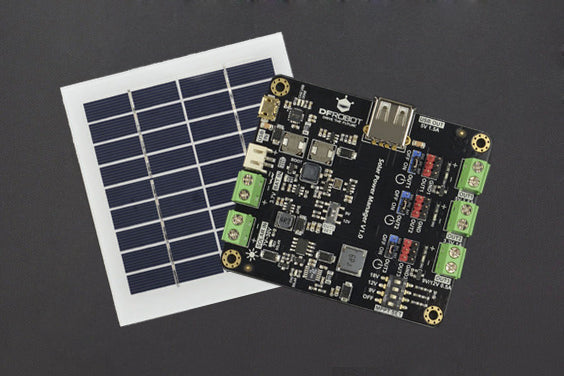

This kit includes Solar Power Manager (for 9V/12V/18V solar panel) and Solar Panel (9v 220mA).

The DFRobot Solar Power Manager series is designed for IoT projects and renewable energy projects, providing safe and high-efficiency embedded solar power management modules for makers and application engineers.

Solar Power Manager is complete small power and high-efficiency solar power management module. It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. Apart from serving as a solar charger, the module can provide up to 2A charging current to 3.7V Li battery with AC adapter (within 30V) or USB charger, three individual ON/OFF controllable DC-DC converters with 5V 1.5A, 3.3V 1A, and 9V/12V 0.5A outputs. These features satisfy the needs of various solar power projects and low-power applications. The module also employs various protect functions, such as Li-battery protection, battery/solar panel reverse connection protection, output over temperature, and over current/short circuit protection, which greatly improves the stability and safety of the system.

Check the brief specification for all Solar Power Manager Series Products.

Board Overview

DFR0535-Solar Power Manager Board Overview

Solar Power Manager

Connection Diagram

DFR0535-Build a solar powered system

Build a solar powered system

Solar Power Manager Series
Solar Power Manager (for 9V/12V/18V solar panel) Solar Power Manager 5V Solar Power Manager Micro (2V 160mA Solar Panel Included) Solar Power Manager For 12V Lead-Acid Battery
Name Solar Power Manager v1.0 Solar Power Manager 5v v1.1 Solar Power Manager Micro v1.0 Solar Power Manager v1.0
SKU DFR0535 DFR0559 DFR0579 DFR0580
Solar PowerManagement IC LTC3652 CN3065 SPV1050 CN3767
Solar Input Voltage 7V-30V 4.4V-6V 0.5V-4V 15V-25V
Maximum ChargeCurrent 2A(Solar/USB) 900mA(Solar/USB) 70mA(Solar)/100mA(USB) 4A(Solar)
Topology DC-DC Buck Linear Regulator DC-DC Boost DC-DC Buck
Battery 3.7V Lithium Battery 3.7V Lithium Battery 3.7V Lithium Battery 12V Lead-Acid Battery
MPPT 9V/12V/18V Optional 5V Fixed 75% Open Voltage Fixed 18V
Battery Protections Over Charge/Over-Discharge/OverCurrent/Reverse Connection Protections Over Charge/Over-Discharge/OverCurrent/Reverse Connection Protections Over Charge/Over-Discharge/ReverseConnection Protections Over Charge/Over-Discharge/ReverseConnection Protections
Output Protections Short Circuit/Over Current/Over HeatProtections Short Circuit/Over Current Protections Short Circuit/Over Current Protections Short Circuit/Over Current/Over HeatProtections
USB Charge IN Yes Yes Yes No
USB OUT 5V 1.5A 5V 1A No 5V 2.5A x2
Regulated OUT Three Regulated Outputs3.3V 1A5V 1.5A9V/12V 0.5A One Regulated Output5V 1A One Regulated Output3.3V 90mA Two Outputs5V 5A; 12V 8A
Dimension 78.0mm×68.0mm 33.0mm×63.0mm 30.0mm×30.0mm 68.0mm×68.0mm
Features

A complete multifunction solar powermanagement module.

Applications: Small Solar Street Lamp, Solar Powered Robots

For 9V/12V/18V Solar Panels within20w

A small and easy-to-use 5V solarpower management module.

Applications: Solar Power Bank, SolarEnvironment Monitors

For 5V Solar Panels within 10W

A micro power solar powermanagement module for low-powersensors and controllers.

Applications: Wireless Sensor Network, BLE iBecon

For 1V/2V/3V Solar Panels within0.5W

A medium power solar managementmodule for 12V lead-acid batteries.

Applications: Street lighting, intelligentagriculture, environmental monitoringstation, UPS

For 18V Solar Panels within 100W

Features:

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • 7V~30V wide solar panel input voltage
  • Various charging mode: solar/AC adapter/USB charger (2A max charge current)
  • Three individual ON/OFF controllable regulated power supply for low-power applications
  • All multi-layer ceramic capacitors (MLCC), safe, stable and high-efficiency
  • Various protection functions
  • USB connector with ESD shell

Applications:

  • Smart solar environment monitor system
  • Solar-powered robot
  • Small solar street lamp
  • Solar power bank
  • Specification:

  • Solar power management IC: LTC3652
  • Solar input voltage (SOLAR IN): 7V~30V
  • Battery input (BAT IN): 3.7V single-cell Li-polymer/Li-ion battery
  • Charge current(USB/SOLAR IN): 2A Max
  • Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%
  • MPPT setting voltages: OFF/9V/12V/18V
  • USB IN voltage: 5V
  • Regulated power supply: OUT1=5V 1.5A; OUT2=3.3V 1A; OUT3=9V/12V 0.5A
  • Regulated power supply efficiency (3.7V battery IN)
    OUT1: 86%@50%Load
    OUT2: 92%@50%Load
    OUT3 (9V OUT): 89%@50%Load
  • USB charge efficiency: 84%@1A
  • Solar charge efficiency (18V SOLAR IN)78%@1A
  • Maximum quiescent current: <3 mA
  • Protections
    BAT IN: over charge /over-discharge /over current /reverse connection protection
    OUT1-OUT3/USB OUT: short circuit/over current/overheat protection
    SOLAR IN: reverse connection protection
  • Operation temperature-4085
  • Dimension78.0mm*68.0mm
  • Documents:

  • Product wiki
  • More Documents
  • Product Includes:

  • Solar Power Manager x1
  • Black Jumperbsp x3
  • M3 nylon pillar x4
  • M3 stainless steel screw x4
  • 14mm*14mm Aluminum cooling fin x1
  • 14mm*14mm Thermal conductive silicone pad x1
  • Female DC power jack adapter x1
  • Solar Panel (9v 220mA) x1
