The module employs constant voltage ratio MPPT (Maximum Power Point Tracking) algorithm to maximize output power of the solar panel under various sunlight. It can charge a 3.7V lipo battery through solar or USB, providing charge current up to 70mA or 100mA respectively. A 3.3V 90mA regulated output can handle burst current of most low-power wireless devices during transmitting or receiving. In low-power solar projects, lipo battery may suffer from over-discharge problem when it is cloudy for days, or the capacity of battery can not meet the device’s need. The battery over-charge and over-discharge protections are designed to prevent such problems to extend battery life.

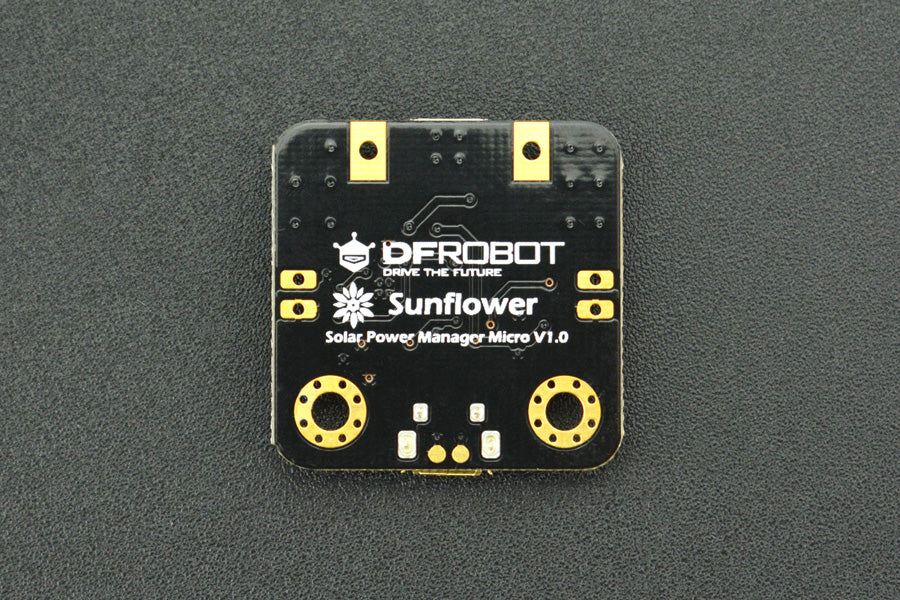

Board Overview

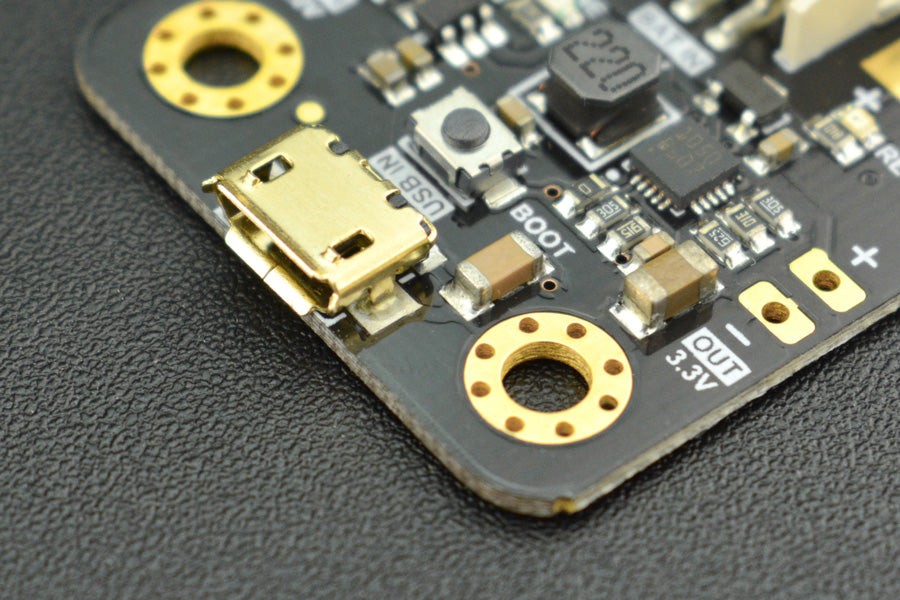

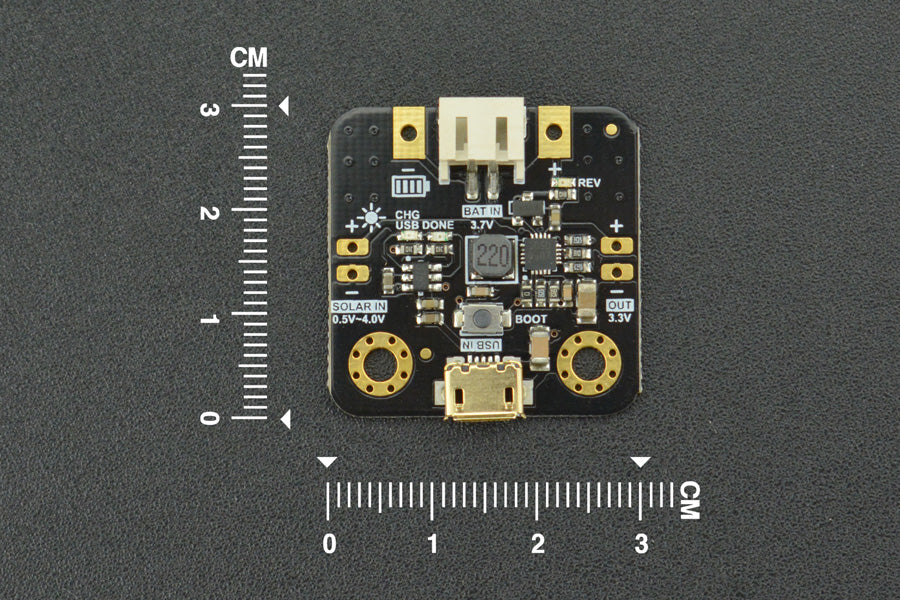

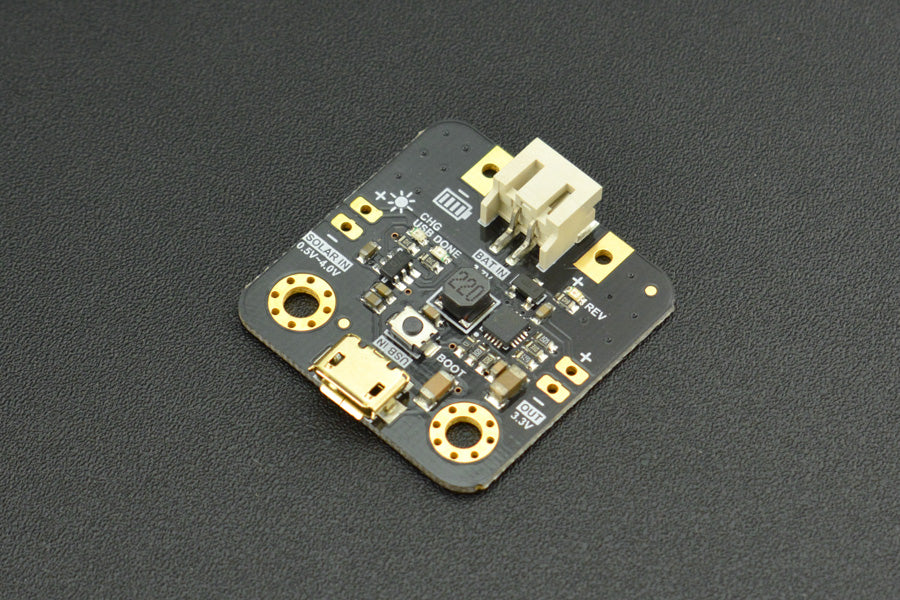

Solar Power Manager Micro Board Overview
Connection Diagram
Power micro:bit with Small Solar Panel
Power Firebeetle Series with Small Solar Panel
Features:
- Constant voltage ratio MPPT algorithm, maximizing solar power conversion
- Designed for 1V ~ 3V small solar panels, ultra low power design
- Solar/USB two charging methods
- Multiple protections extending battery life
Applications:
- Wireless Sensor Network
- Bluetooth iBeacon
- Solar Powered Toys
Specification:
- Micro Solar Power Management Module
- Solar Power Management IC: SPV1050
- Solar Input Voltage (SOLAR IN): 0.5V~4V
- Battery Input (BAT IN): 3.7V Lithium Battery
- Maximum Charge Current: 100mA@USB IN；70mA@SOLAR IN
- Over-charge Protection Threshold: 4.2V
- Over-discharge Protection Threshold: 3.1V
- Regulated Power Supply: 3.3V 90mA@BAT IN 3.7V
- Quiescent Current: <3 uA
- Protection Functions
- BAT IN: Over-discharge/Over-charge/Reverse Connection Protections
- OUT: Short Circuit/Over Current Protections
- Operation Temperature: -40℃～85℃
- Dimension: 30.0mm*30.0mm
- Nominal Voltage (VMP): 2V
- Nominal Current (IMP): 160mA
- Open Circuit Voltage (IOC): 2.4V
- Short Circuit Current (ISC): 190mA
- Solar Cell Material: Monocrystalline Silicon
- Other Features: Waterproof, Oil Resistant and Corrosion Resistant
- Dimension: 50mm*50mm

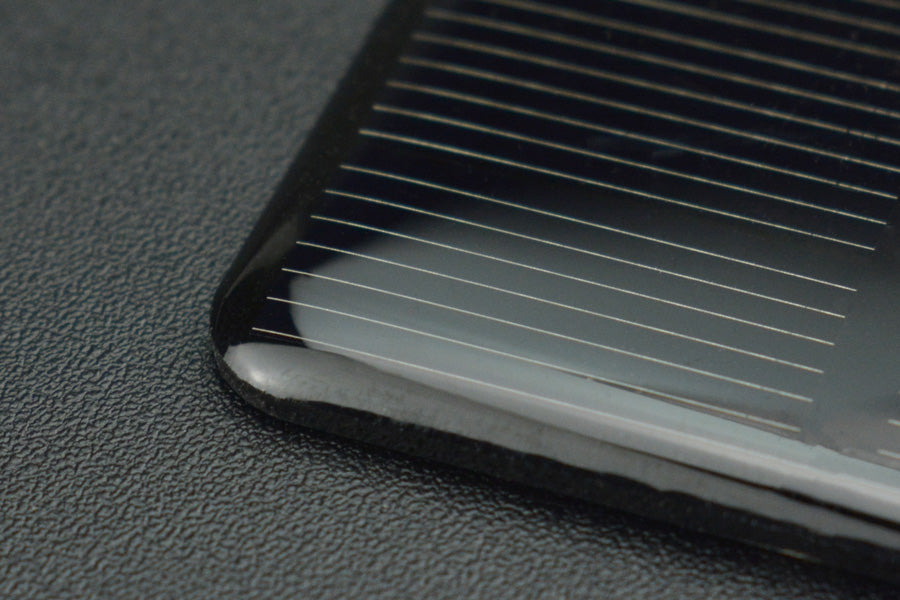

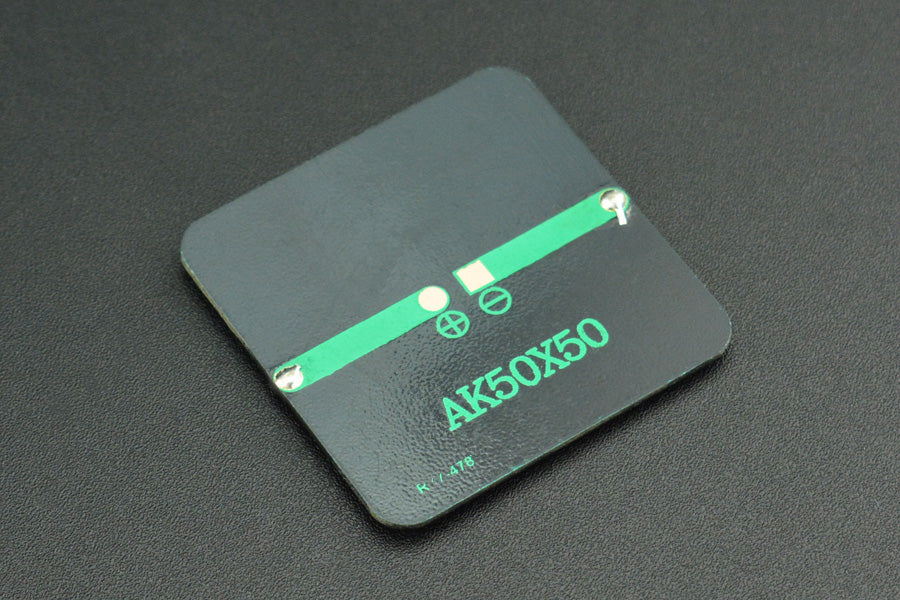

Solar Panel 2V 160mA
Documents:
Product Includes:
- Solar Power Manager Micro x1
- Monocrystalline Silicon Solar Panel 2V 160mA 50*50mm x1
- Red Single Conductor Wire 15cm 24AWG x2
- Black Single Conductor Wire 15cm 24AWG x2
- PH2.0-2P Male Power Wire 15cm x1
- XH2.54-2P Header x2
