Snap-action 3-Wire Block Connector (12-28 AWG) - Pack of 3

$8.50 AUD Inc. GST


SKU ADA866
Ships in 24 hours 1 units
Ships in 20 to 30 days 50 units

increment
decrement
decrement increment

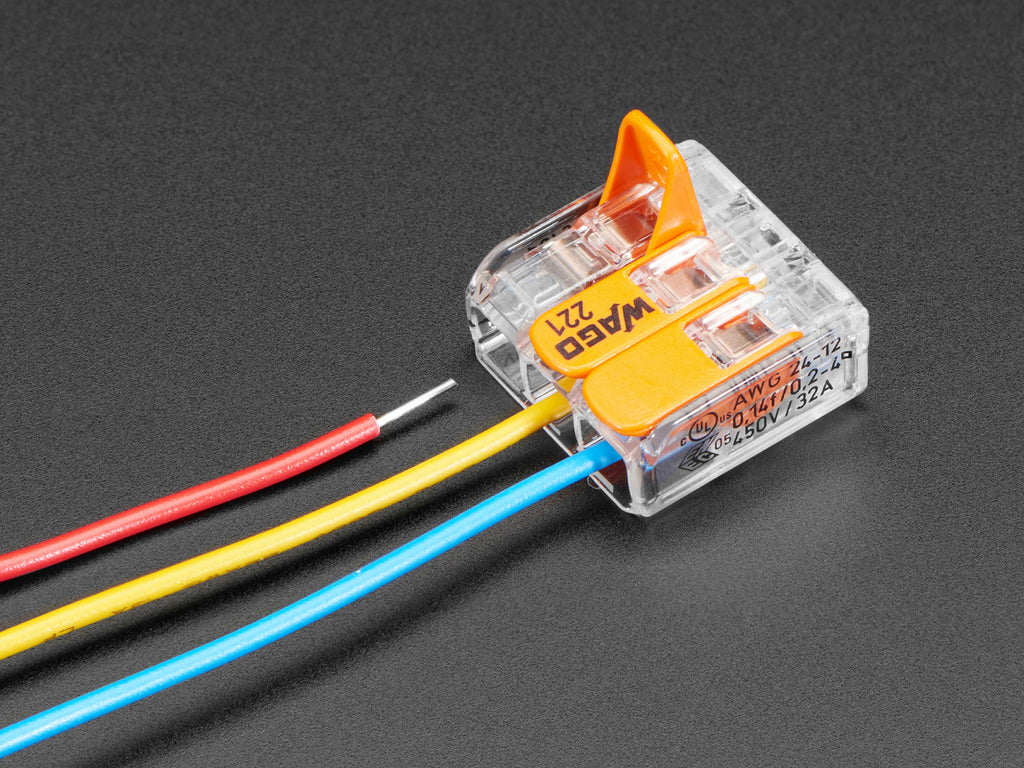

These are like the fancy electronics equivalent of the wire nuts electricians use to bind wires together. They are a lot easier to use as well! Each block connector has a metal block inside and three levers that snap open and close to bind stranded/solid-core wire. No screwdrivers required! They're super handy for free wiring and can handle up to 20A at 300V with UL listing so you can also use them for mains wiring. Use any wires from 12 AWG down to 28 AWG.

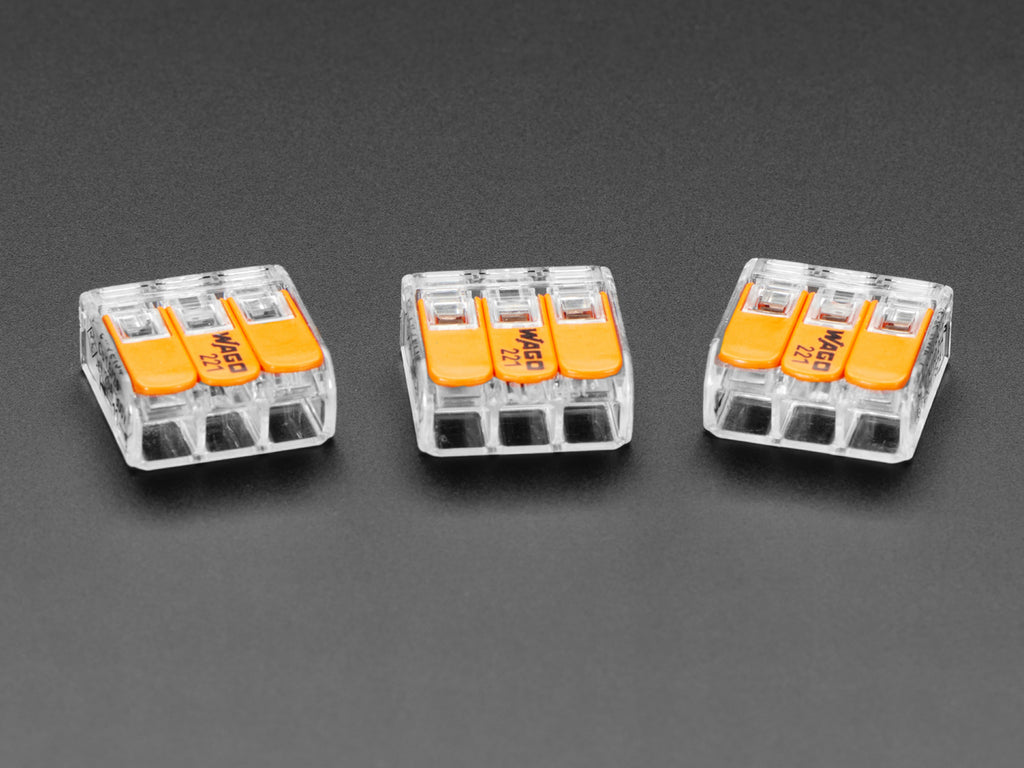

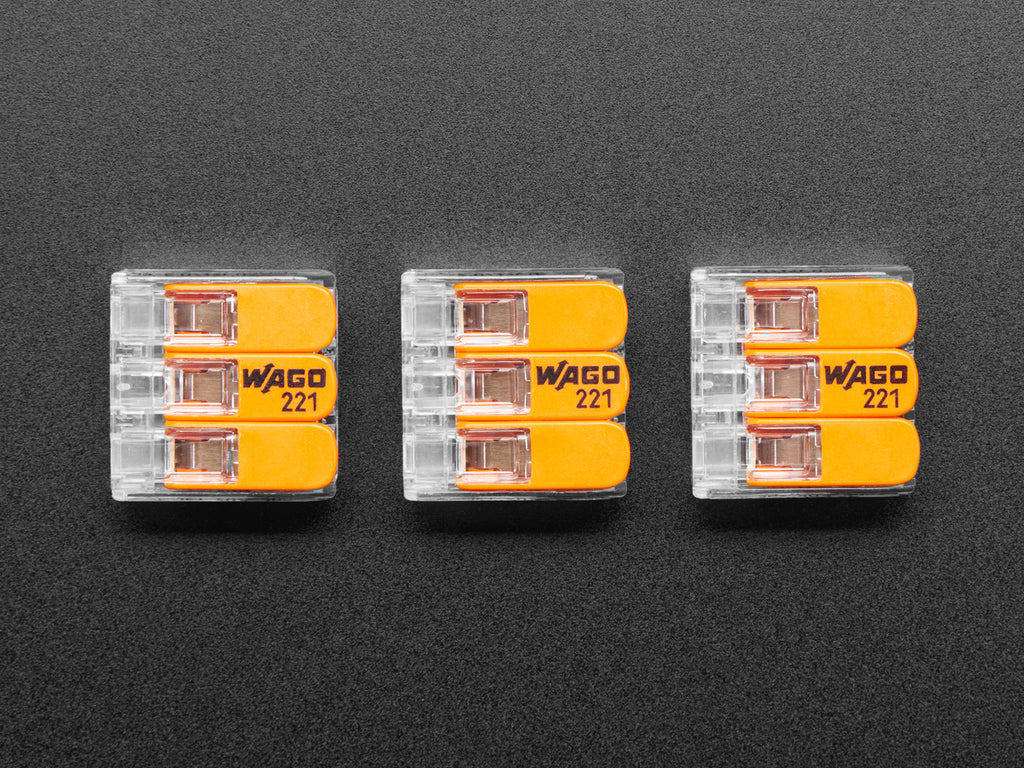

Each package comes with 3 pieces of 3-wire blocks.

Technical Details

Datasheet
  • Connection method - CAGE CLAMP® CONNECTION
  • Cross section [mm²] - 0.08 - 4 mm²
  • Cross section [AWG] - 28 - 12 AWG
  • Measured voltage EN - 400 V
  • Measured shock voltage - 4 kV
  • Pollution degree - 2
  • Current intensity EN - 32 A
  • Weight - 4.153 g
  • Color - gray
  • Wiring type - Side-entry
  • No. of connection Points - 3
  • No. of potentials - 1
  • Height - 14.5 mm
  • Height - 0.571 in
  • Width - 17 mm
  • Width - 0.669 in
  • Depth - 20.5 mm
  • Depth - 0.807 in
  • Strip length from - 9 mm
  • Strip length to - 10 mm
  • Strip length - 0.37 in
