SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252
SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252
SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252
SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252
SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252
SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252

SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252

Price:
A$11.73   Inc. GST
SKU:
ADA1230
2 units Ships in 24 hours
50 units Ships in 7 to 10 days

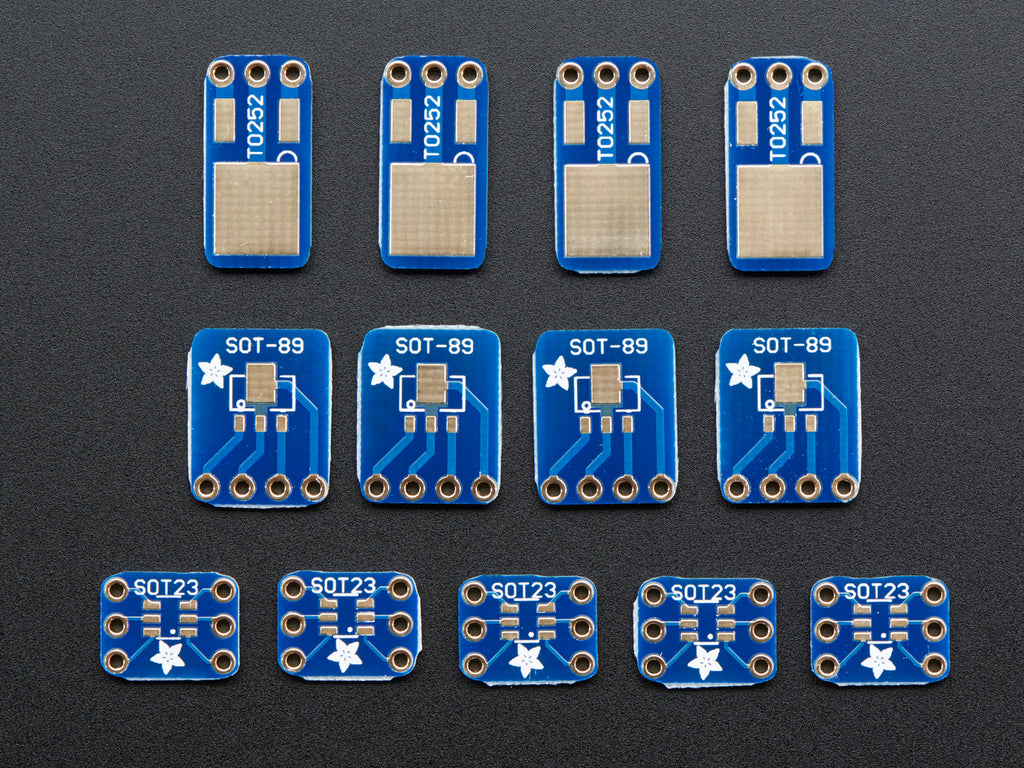

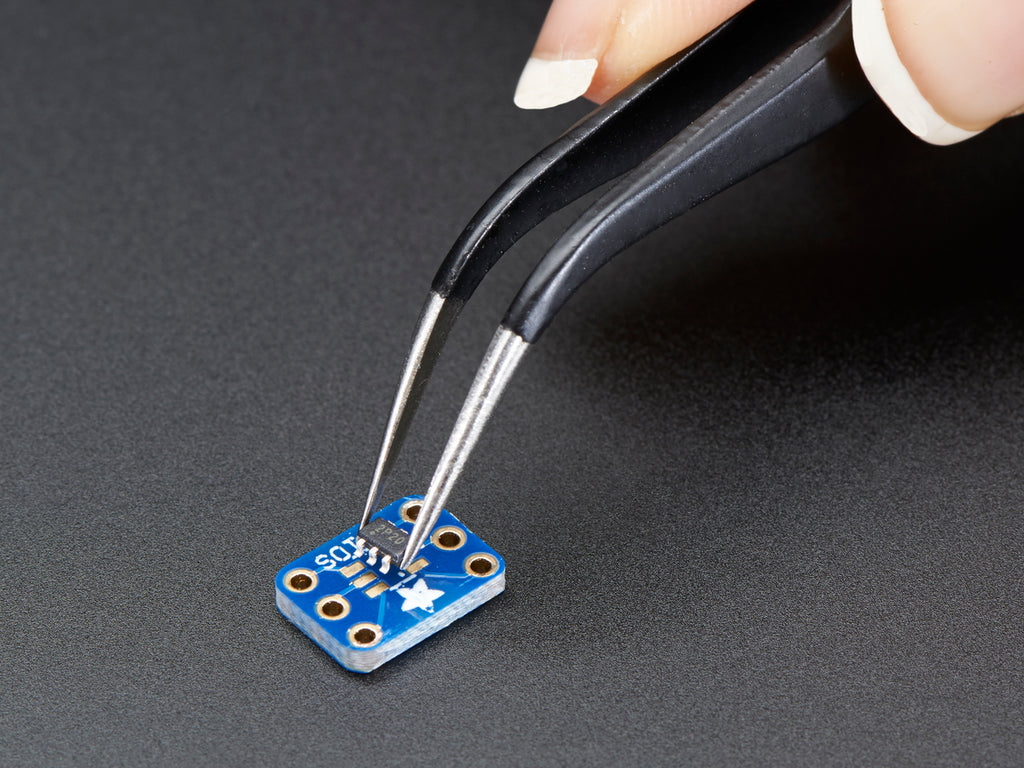

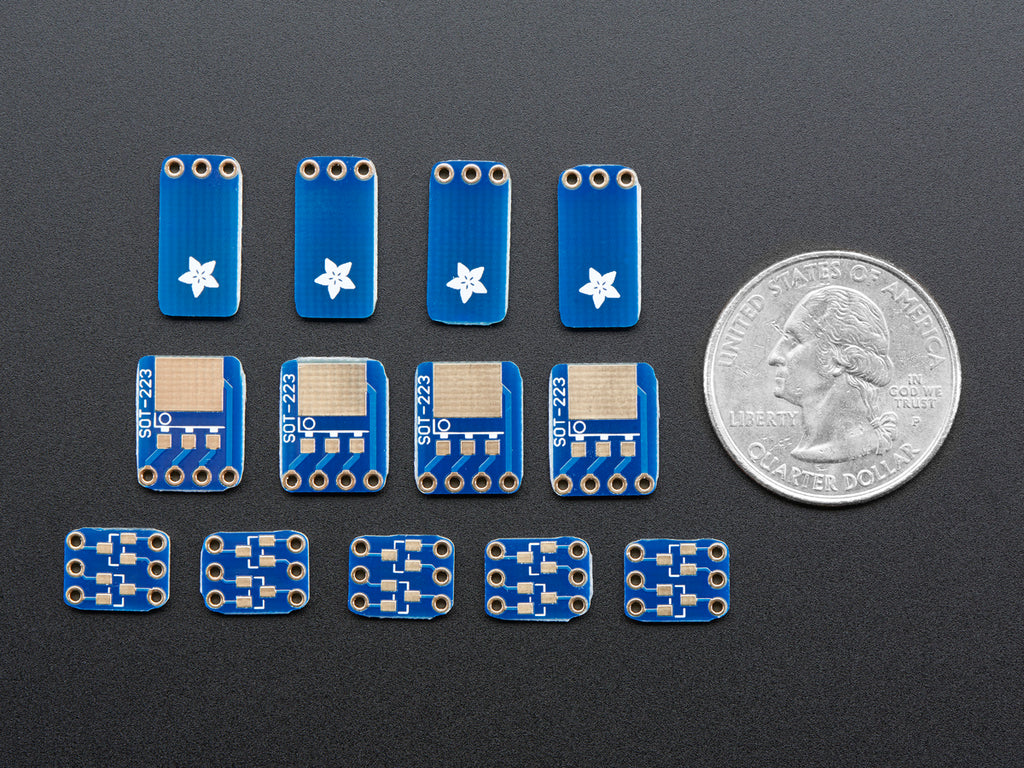

Beguiled by a fancy new chip, regulator or transistor that is only available in a SOT23-3, SOT23-5, SOT23-6, SOT-223, SOT-89, or TO-252 pinout? This set of breakout PCBs will make your life much much easier and get you prototyping faster than ever. This set comes with 3 different boards which fit 5 different packages and comes with five SOT-23 (fits 2 x SOT-23 on the back, and a single SOT-23-5 or SOT-23-6 on the front), four SOT-89 or SOT-223, and four TO-252. Each board has 0.1" spaced holes. Solder your chip to either side and you're ready to rock on any solderless breadboard.

Each item comes with 13 standard thickness PCBs.

SMT Breakout PCB Set For SOT-23, SOT-89, SOT-223 and TO252 (12:30)



Technical Details

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
