Small Plastic Project Enclosure - Weatherproof with Clear Top

Price:
Sale price A$20.01   Inc. GST
SKU:
ADA903
71 units Ships in 7 to 10 days

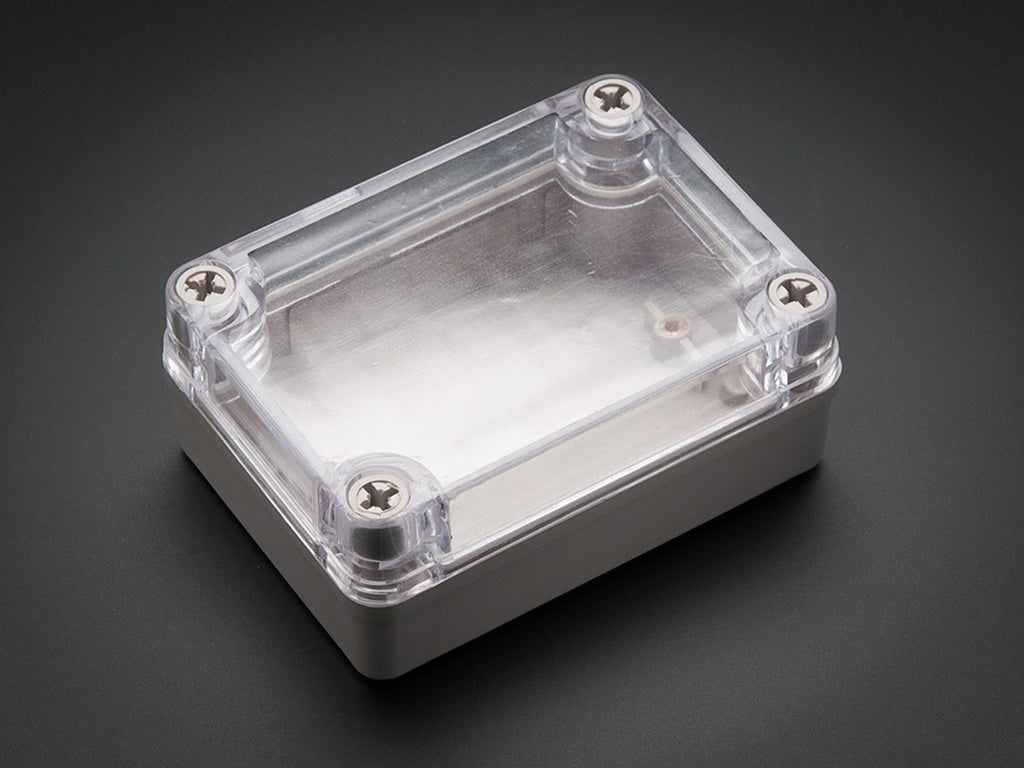

Store your project safe and sound in this nice weatherproof box with a clear top. We picked up this box because we like the machinable ABS plastic body and tough clear polycarbonate cover, the built in weatherproof gasket seal, and the easy-open screws that can be taken apart as many times as you wish without worrying about cracking or stripping.

This box measures 80mm x 110mm x 45mm externally. You can fit an Adafruit Metro, Raspberry Pi Zero, Feather, or a half-size Perma-Proto (if you clip or sand down a corner a few mm), but it won't fit the bigger Raspberry Pi's with the USB and Ethernet jacks.  It will not fit an Arduino Mega, Beaglebone, Menta or Minty Perma-proto.

We also have a version with mounting flanges and two PG-7 cable glands.



Technical Details

Download a diagram with dimensions!

  • Note: The two (2) threaded inserts at the interior base of the enclosure are about 8mm high. If the base of your board/project does not rest between the threaded inserts, the adjusted height of the enclosure as a whole is 30mm.

Datasheet for DS-AT-0811-S

  • Exact weight: 134.41g
  • 80mm x 110mm x 45mm / 3.2" x 4.4" x 1.8" external size
  • IP66 weatherproof rating
  • The internal mounting bosses are M4 thread
    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
