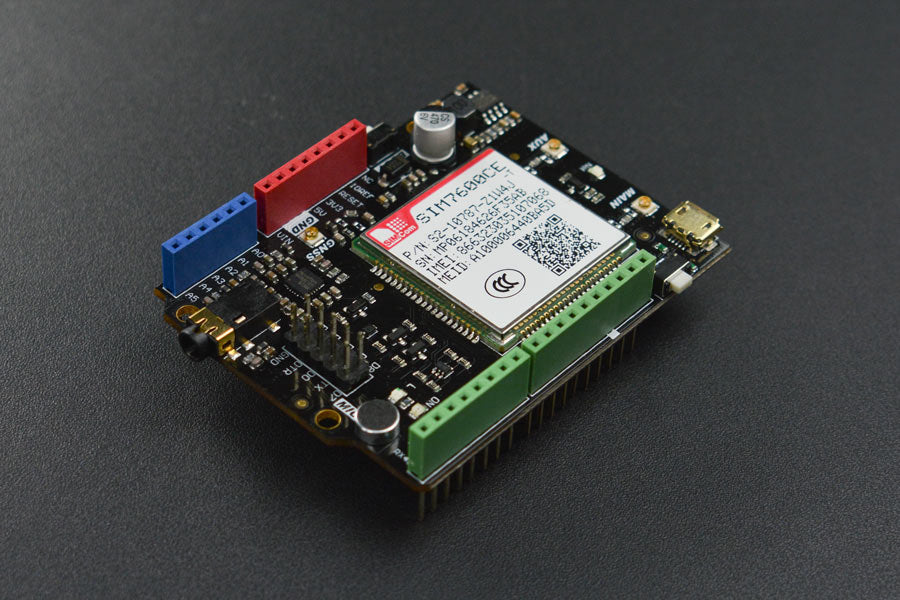

SIM7600CE-T 4G(LTE) Shield for Arduino

5 reviews
Price:
Sale price A$121.44   Inc. GST
SKU:
DF-TEL0124
1 unit Ships in 24 hours
SIM7600CE-T 4G(LTE) Shield is a 4G/3G/2G communication and GNSS positioning module.

This shield is as small as a credit card and compatible with controller boards like Arduino UNO, arduino Leonardo, arduino Mega etc. The frequency bands that SIM7600CE-T 4G(LTE) Shield supports are LTE-TDD/ LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE. It also supports LTE-CAT4(with uplink rate 50 Mbps and downlink rate 150 Mbps). With stable performance, this small cost-effective expansion shield can realize SMS and data transmission in a pretty low power consumption. Besides, it adopts the latest SIM7600CE module. Compared with other GSM/GPRS/GPS modules on the market, this module is well advanced in stable performance and powerful function such as 4G communication and accurate GNSS positioning.

Features:

  • Support Multi-frequency Communication
  • GNSS Positioning
  • Standard Arduino Interface

Specification:

  • USB Voltage: 5V
  • Operating Voltage: 5V
  • Input Voltage: VIN(7-23V)/USB(5V)
  • Support Network:
  • TDD-LTE B38/B39/B40/B41
  • FDD-LTE B1/B3/B8
  • TD-SCDMA B34/B39
  • WCDMA/HSDPA/HSPA+ B1/B8
  • CDMA 1X/EVDO BC0
  • GSM/GPRS/EDGE 900/1800 MHz
  • 4G Communication Rate: uplink rate 50 Mbps, downlink rate 150 Mbps
  • Support AT Command Control:
  • 3GPP TS 27.007,27.005 and SIM7500_SIM7600 Series_AT Command
  • Support GNSS Positioning
  • Support Low Power Consumption: 20mA@7V-Flight Mode
  • Support LED Status Display: display the power supply status, network connection and operating mode
  • Operating Temperature: -40 ~85
  • Size: 69*54mm/2.72*2.13inch

Documents:

  • Product wiki
  • Product Includes:

    • SIM7600CE-T 4G(LTE) Shield(V1.0)            x1
    • GPS Antenna                                          x1
    • 4G LTF Antenna                                       x1
