Sharp GP2Y0D810Z0F Digital Distance Sensor with Pololu Carrier

Save 17% Regular price A$20.26
Price:
Sale price A$16.82   Inc. GST
SKU:
ADA1927
6 units Ships in 24 hours

If you're like me, you've always wanted a smaller and faster way to sense an object between 2 and 10 centimeters away. If you're really like me, you've wanted the sensor to come with a low current draw and on a tiny carrier board with all of the external components required to make it work.

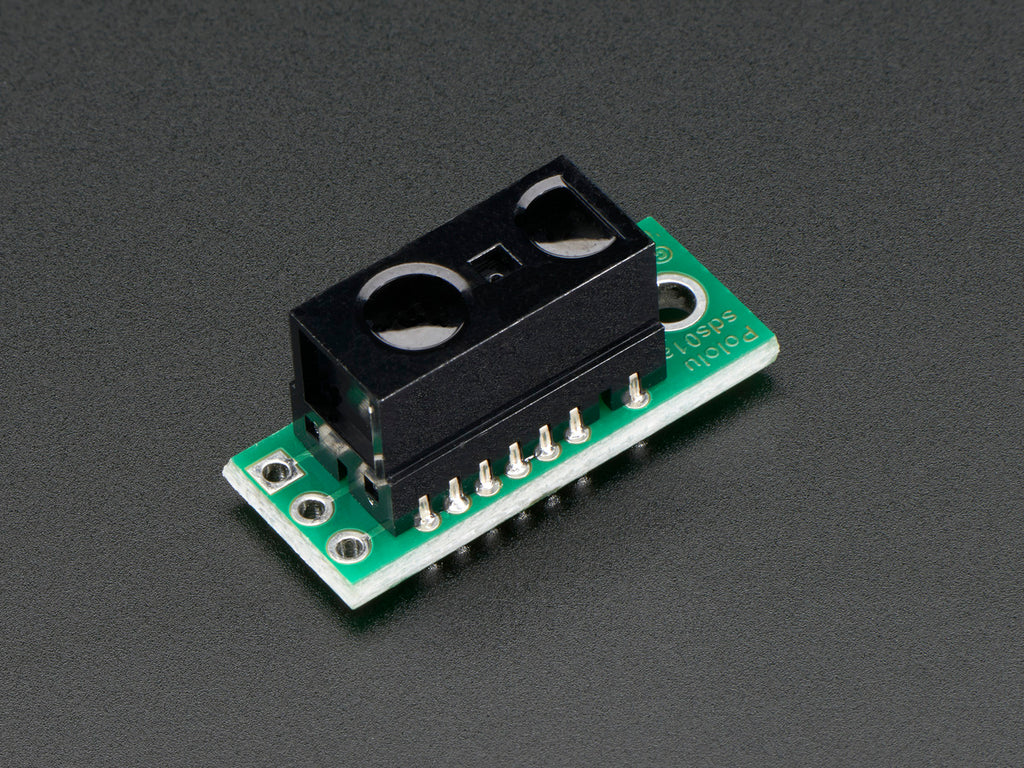

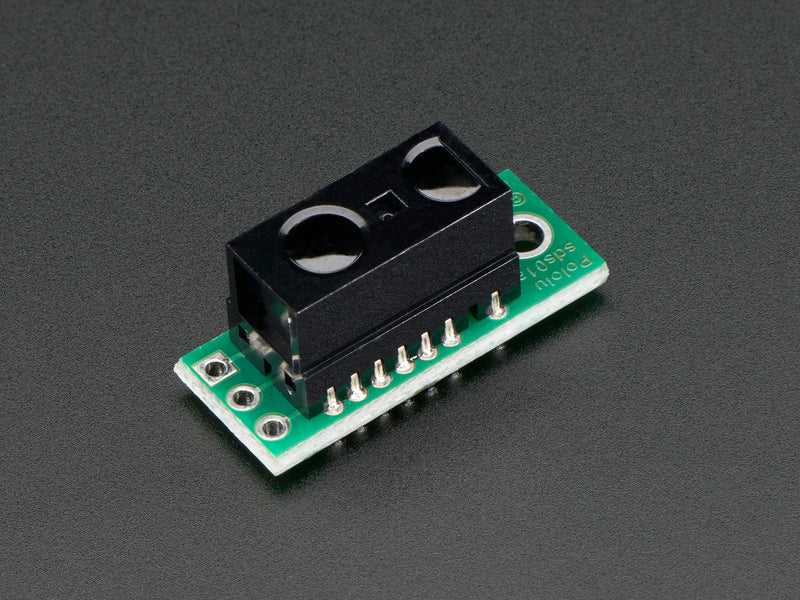

The Pololu Carrier with Sharp GP2Y0D810Z0F Digital Distance Sensor fits those both needs and more. it's one of Sharp's fastest distance sensors - with a sample rate of almost 400 Hz and is an attractive alternative to short range phototransistors and longer range analog distance sensors.

Output is high normally and low when the sensor detects an object. This sensor only tells if the object's nearby - not how near or far the sensor is - so they're great for break-beam, obstacle detection, and object counting.

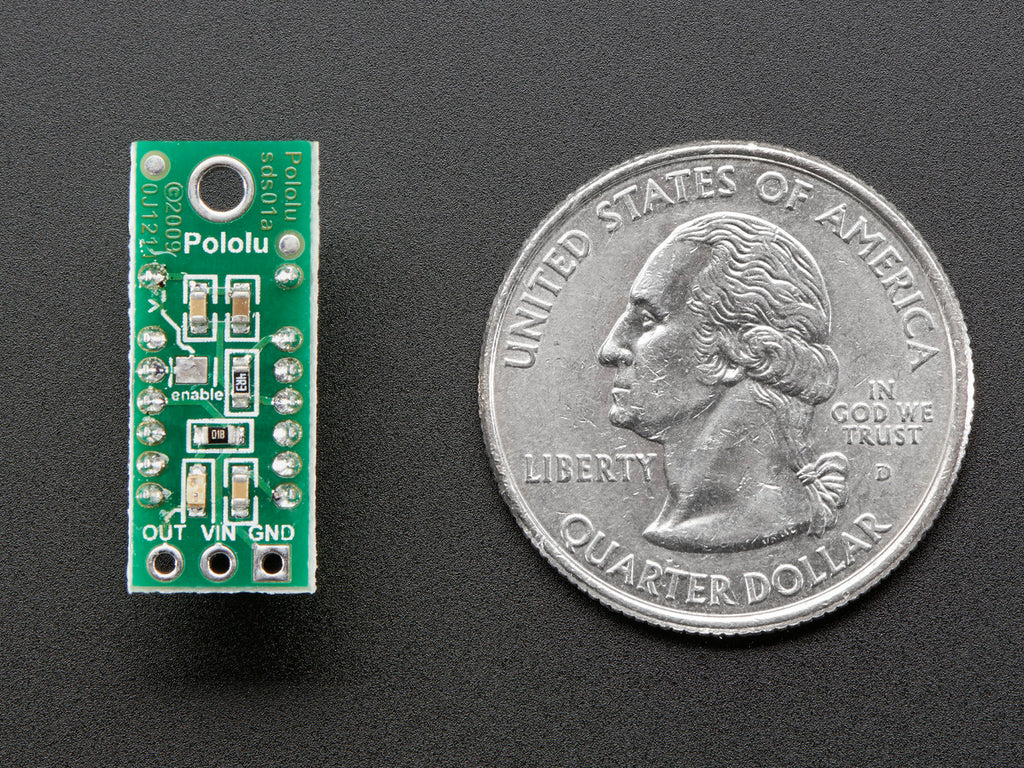

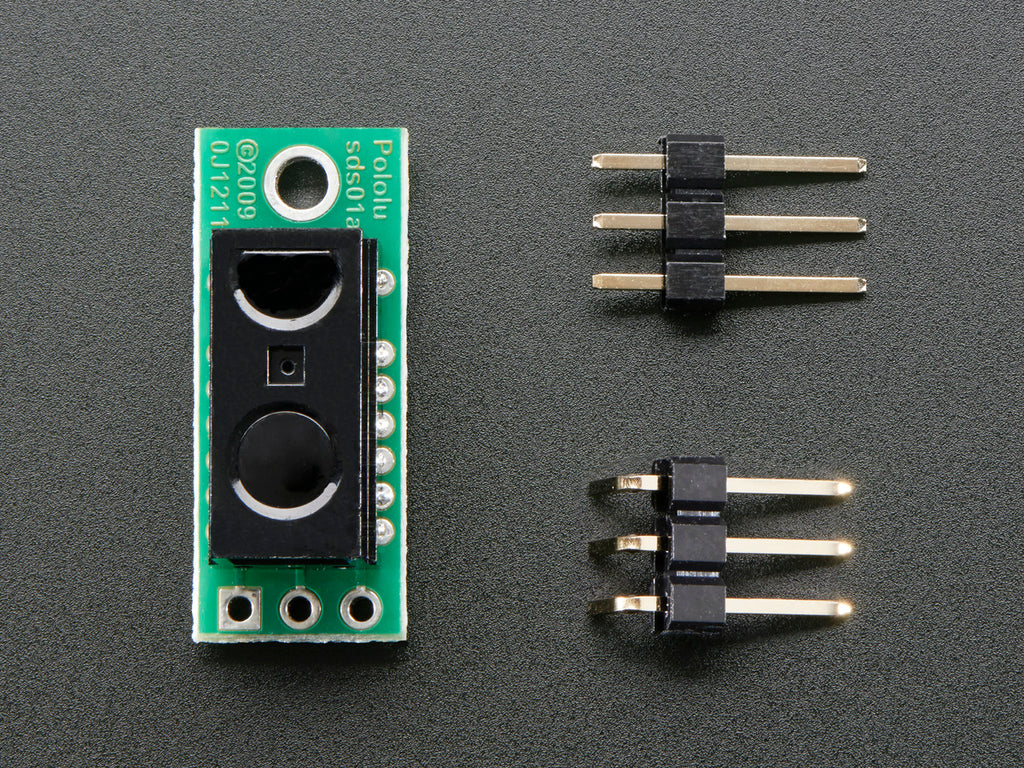

This sensor comes with a 3-pin male header and a 3-pin right-angle male header. You can connect these pins with a servo cable. The square pad is ground, middle is VIN, and the remaining pad is output. If you place a large capacitor (more than 10uF) between power and ground you should see an increase in performance.

We carry a large variety of Sharp Distance sensors here if this fellow isn't what you're looking for.



Technical Details

  • Dimensions: 22mm x 9mm x 10mm / 0.9" x 0.4" x 0.4"
  • Weight: 1.3g
  • Operating Voltage: 2.7 V to 6.2 V
  • Average Current Consumption: 5 mA
  • Distance Measuring Range: 20mm to 100mm / 0.8" to 3.9"
  • Steady State Update Period: 2.56ms
  • Sample Rate: ~400 Hz






    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
