Note: Please go to sensecraft.seeed.cc/ai/ to bind your Watcher for XiaoZhi.
The SenseCAP Watcher combined with XiaoZhi AI creates a powerful AI device that enhances smart spaces with voice control, emotional communication, and multilingual support. Featuring visual recognition and MCP protocol, it enables seamless device integration and automation. Powered by the open-source XiaoZhi project, it offers continuous customization and development for smarter, interactive environments.
- Voice Control and Multilingual Support: Users can control devices by using voice commands. The system also supports spoken dialogue in multiple languages, allowing users from different regions to interact in their preferred language.
- Multimodal Experience: Combining voice and visual recognition, the system can identify objects, surroundings, and even solve tasks like math problems. Additionally, leveraging the multimodal model, Watcher detects emotional cues in voice tone and context, providing responses that are emotionally tuned to enhance user interaction. AI offers emotional engagement by recognizing the tone of voice or context, delivering responses that are emotionally tuned to the user’s needs.
- MCP Protocol: The MCP protocol ensures smooth communication between the SenseCAP Watcher and external devices. It enables efficient control and data exchange, supporting custom peripherals and third-party services, and expanding the system's functionality.
- Open Source Support: Compatible with the XiaoZhi open-source project, the SenseCAP Watcher benefits from continuous improvements driven by a strong community. It also offers a development interface, allowing users to connect sensors, motors, and other hardware, enabling tailored applications for smart homes and automation.
MCU | ESP32-S3 @240MHz 8MB PSRAM |
Built-in AI Processor | Himax HX6538 (Cortex M55 + Ethos-U55) |
Camera | OV5647 120° FOV Fixed Focal 3 meters |
Wi-Fi | IEEE 802.11b/g/n-compliant 2.4GHz Band Wireless Range: Up to 100 meters (open space test) |
Bluetooth LE | Bluetooth 5 |
Antenna | Built-in Wi-Fi and BLE antenna |
Display | Touchscreen with 1.45-inch, 412×412 resolution |
Microphone | Single microphone |
Speaker | 1W speaker output |
Wheel | Supports scrolling up&down and button |
LED | 1xRGB light for indication |
microSD Card Slot | Supports up to 32GB FAT32 microSD card |
Flash | 32MB Flash for ESP32-S3 16MB Flash for Himax HX6538 |

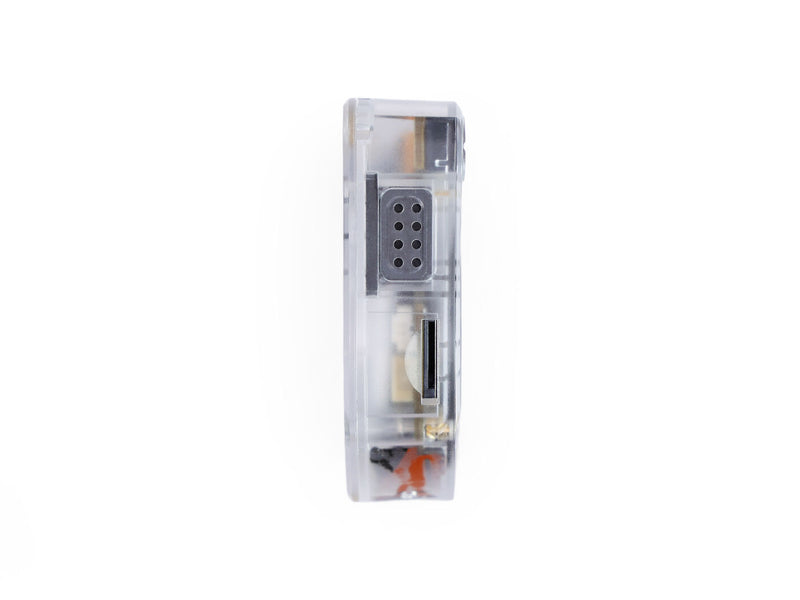

Extension Interface | 1xGrove IIC interface 2x4 Female header(1xIIC, 2xGPIO, 2xGND, 1x3.3V_OUT, 1x5V_IN) |
USB-C | 1x USB-C on the back(power supply only) 1x USB-C on the bottom(power supply and programming) |
Reset Button | 1xRST button in the bottom hole |
Power Supply | 5V DC power |
Battery | 3.7V 400mAh Li-ion battery as backup power |
Operating Temperature | 0 ~ 45°C |

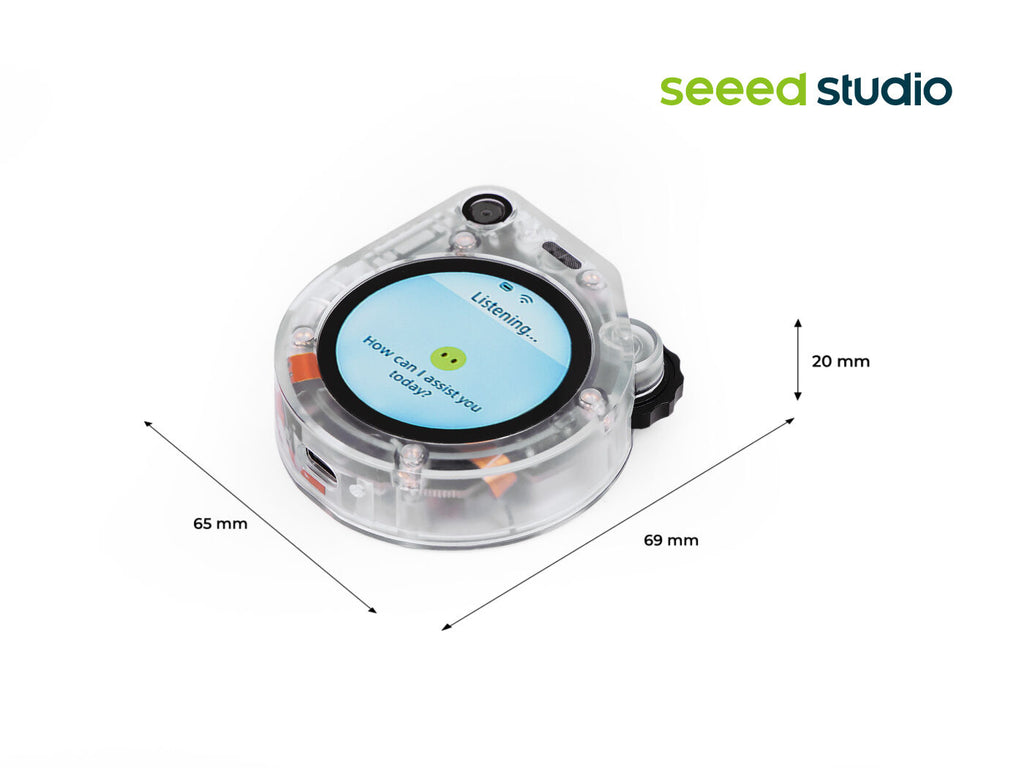

Dimensions | 69 x 65 x 20 mm |
Mounting Bracket | Supports wall, desktop and bracket installation 1 x Universal wheel and base plate with adhesive 1 x 1/4" Female adapter set |

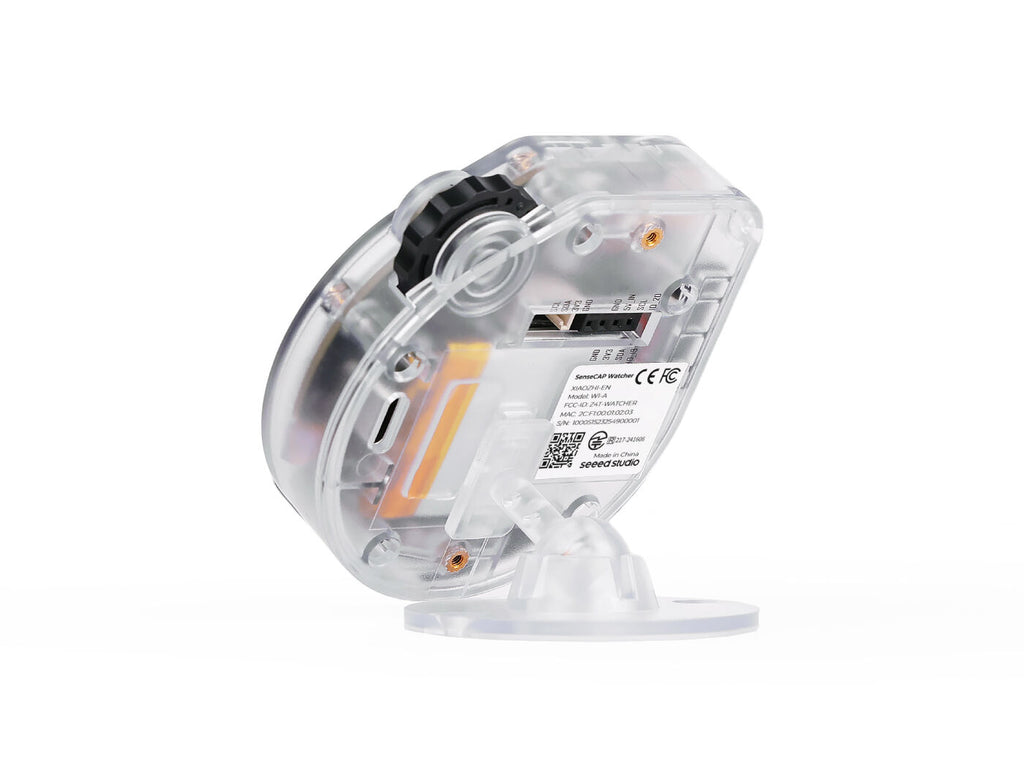

The shell is transparent, and the exploded view is for illustrative purposes only.

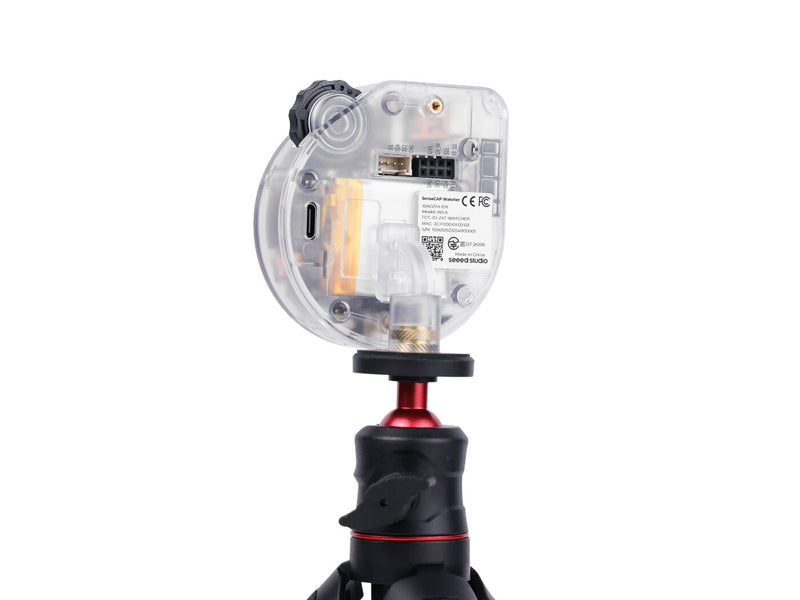

Support Various Mounting Methods
It can be placed on a desktop or mounted on walls as a smart expansion. Or it can also be transformed into the head of a robot.
SenseCAP Watcher for XiaoZhi combines advanced AI capabilities with seamless device integration. It supports voice control, multimodal recognition, and emotional communication, enabling smarter, more interactive spaces. With its MCP protocol and open-source XiaoZhi project, the system allows for easy customization and development across various environments
Recommended Use Cases：
- Smart Home Automation: Use MCP from Home Assistant to control devices, automate routines, and monitor environments, offering seamless voice and visual interaction for smarter home management.
- Education & Tutoring: Provide personalized learning, knowledge explanations, and emotional support, helping students stay motivated and maintain a positive learning mindset while enabling teachers to customize tools and sensors.
- Business & Customer Interaction: Integrate with retail or customer service environments, where XiaoZhi AI can assist customers with product information, recommendations, and emotional engagement to enhance the customer experience.
- Daily Chatbot Companion: As a conversational assistant for daily chats. It provides friendly interactions, helps users stay engaged with casual conversations, and offers emotional support, making it a comforting and reliable companion for everyday use.

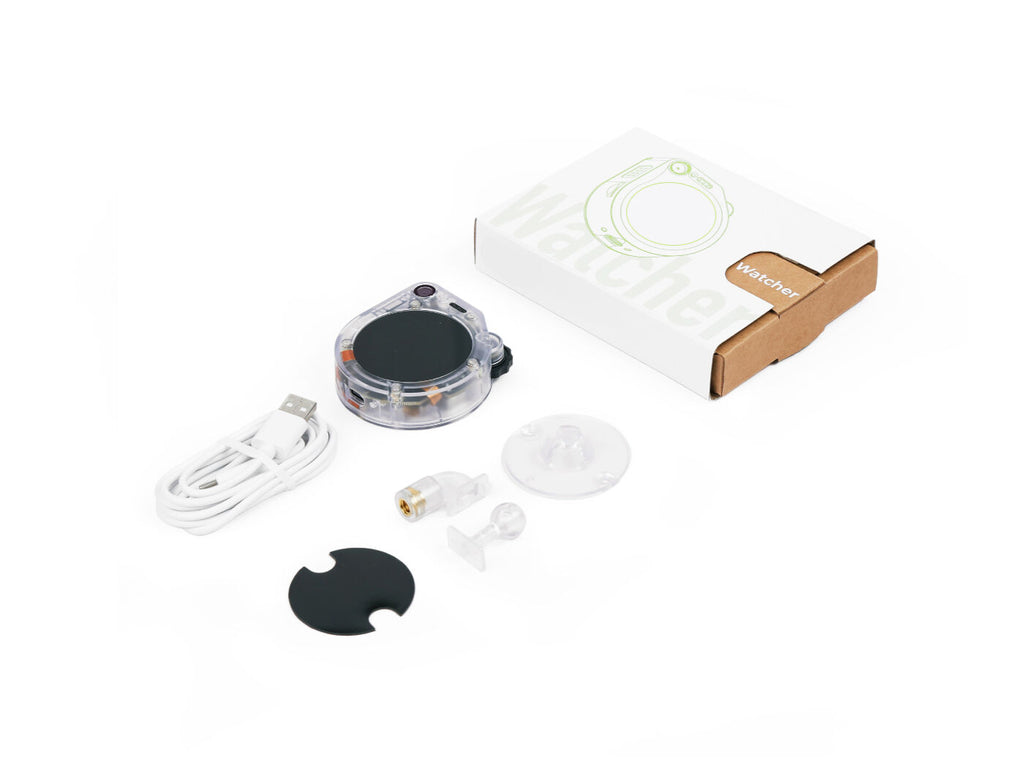

Watcher | x1 |
Universal wheel and base plate with adhesive | x1 |
1/4" Female adapter set | x1 |
USB Type-C cable | x1 |
3*10mm screw | x2 |
| HSCODE | 9031809090 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
