- Magnetic Connection Design: Precision magnetic alignment ensures proper polarity and secure contact, eliminating reversed connections or unstable charging.

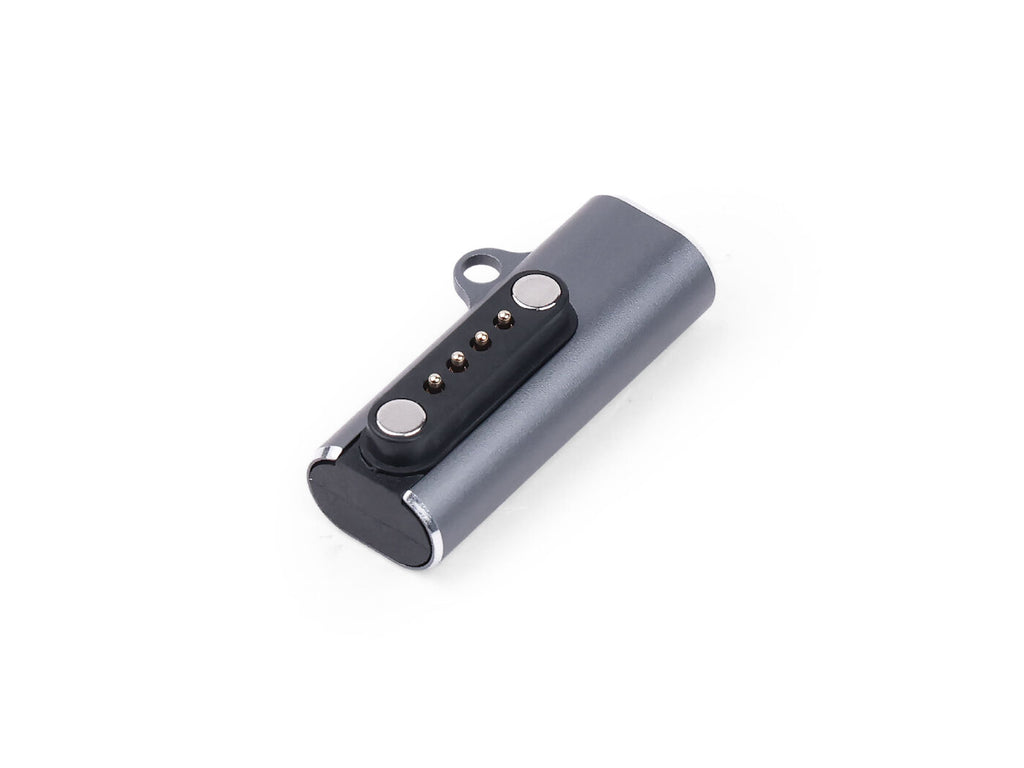

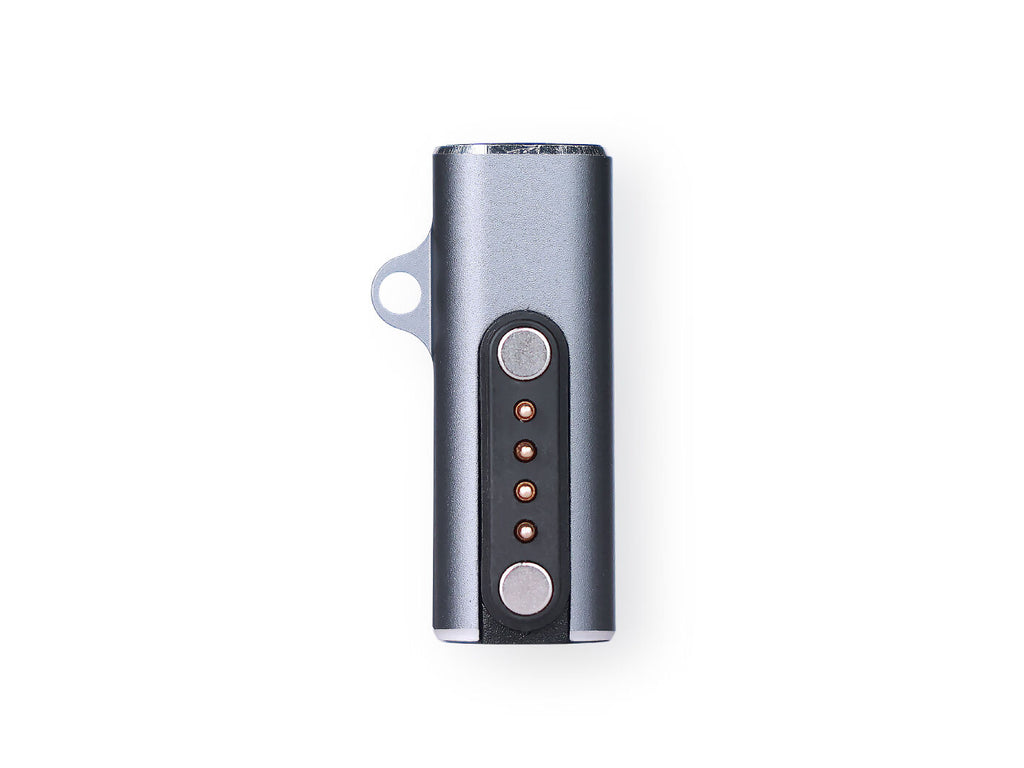

- 7.62mm 4-Pin Pogo Pin Connector: Matches the SenseCAP T1000-E charging port specifications with standardized pin spacing for reliable power and data transfer.

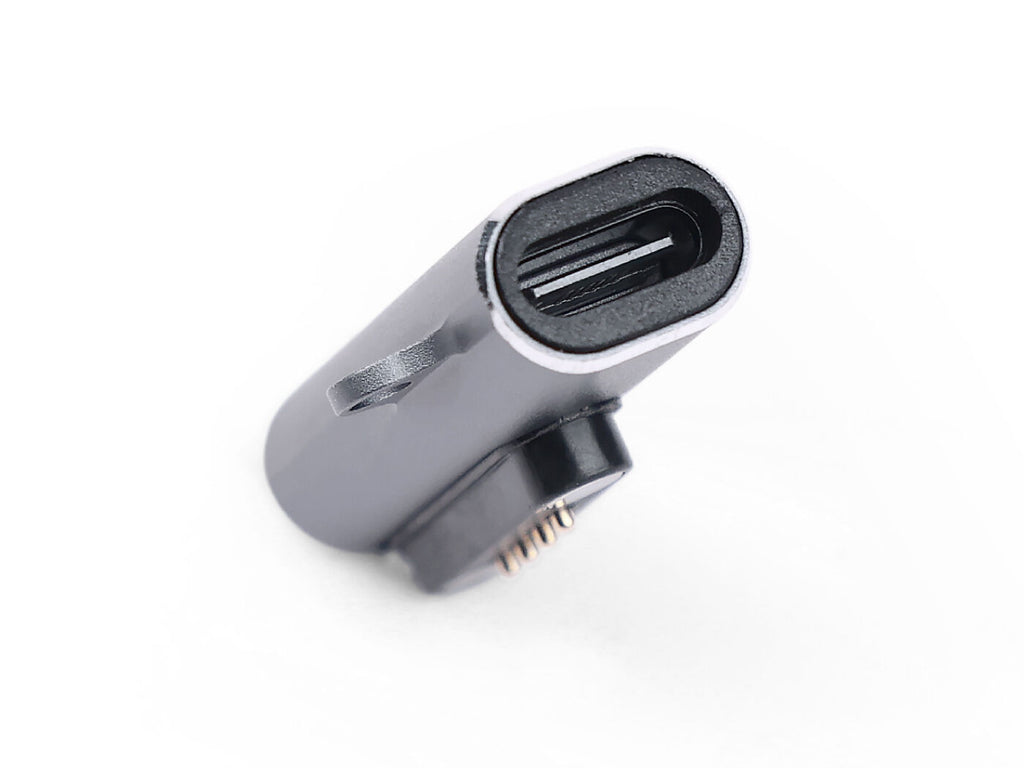

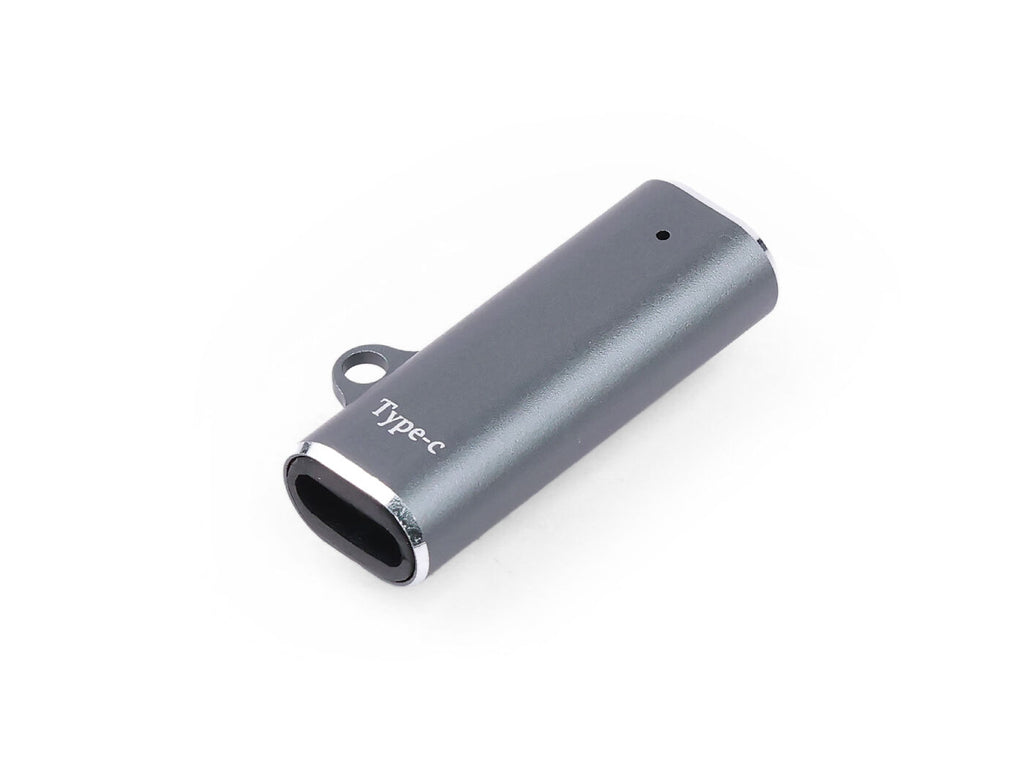

- USB Type-C Interface: Universal compatibility with any USB-C power source including computers, wall adapters, and battery banks.

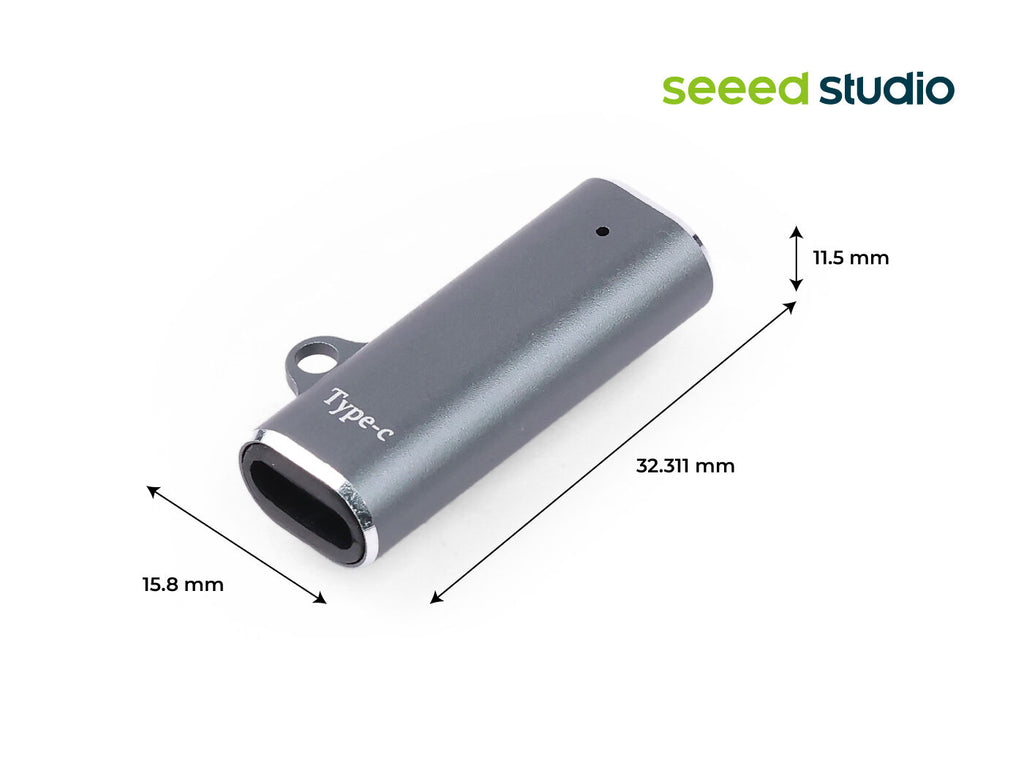

- Compact Form Factor: Measures 32.31mm × 15.8mm × 11.5mm, ideal for backpacks, vehicles, and field operations.
- Stable Data Transfer: Supports simultaneous charging and data synchronization for firmware updates and real-time uploads.
Specification | Details |
Connector Type | 7.62mm 4-Pin Pogo Pin |
Interface Standard | USB Type-C |
Input Voltage | 5V DC |
Output Current | 1A |
Output Voltage | 5V |
Charging Technology | Magnetic |
Connector Design | Magnetic alignment with reversible polarity detection |

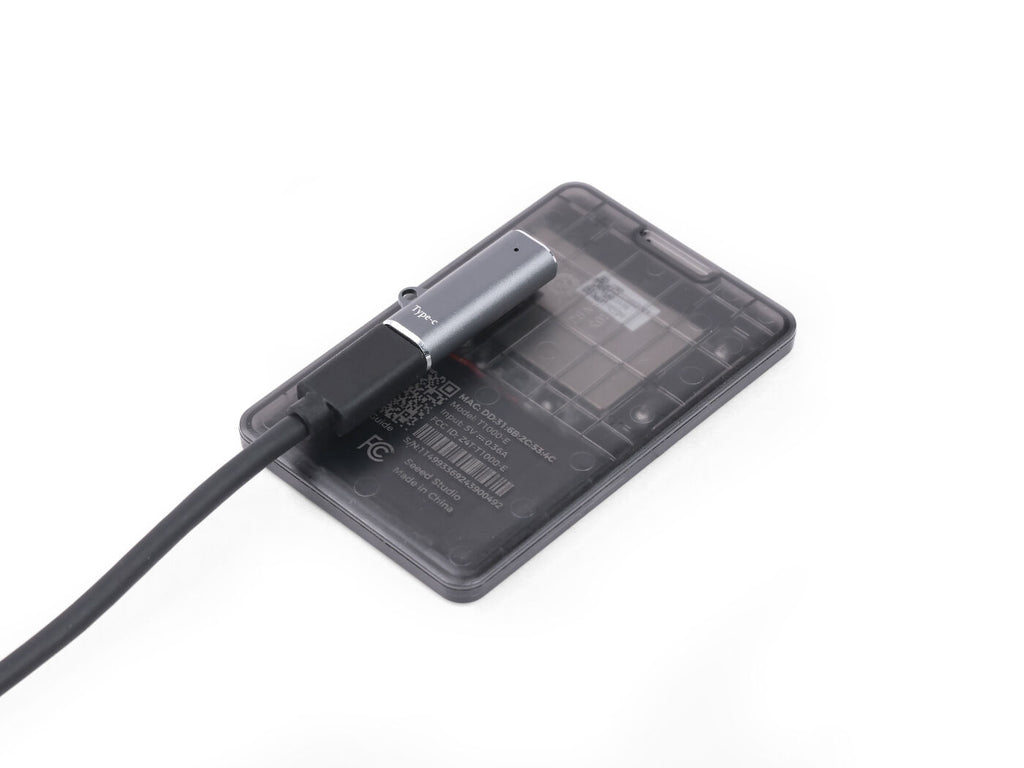

Compatible Device | SenseCAP Tracker T1000-E |
Dimension | 32 mm*11.5 mm*15.8 mm |
① | VCC_IN - Positive terminal of power supply (+5V) |
② | USB_D- - Negative line of USB data |
③ | USB_D+ - Positive line of USB data |
④ | GND - Ground (power ground) |
SenseCAP T1000-E adapter | x1 |
| HSCODE | 8536901100 |
| USHSCODE | 8536904000 |
| UPC | |
| EUHSCODE | 8544492000 |
| COO | CHINA |
