Note:
What's the difference between S700-B and S700 V2 ?
There is a total solar radiation on S700-B replaced the light intensity sensor on S700 V2,
other functions are the same as the S700 V2.

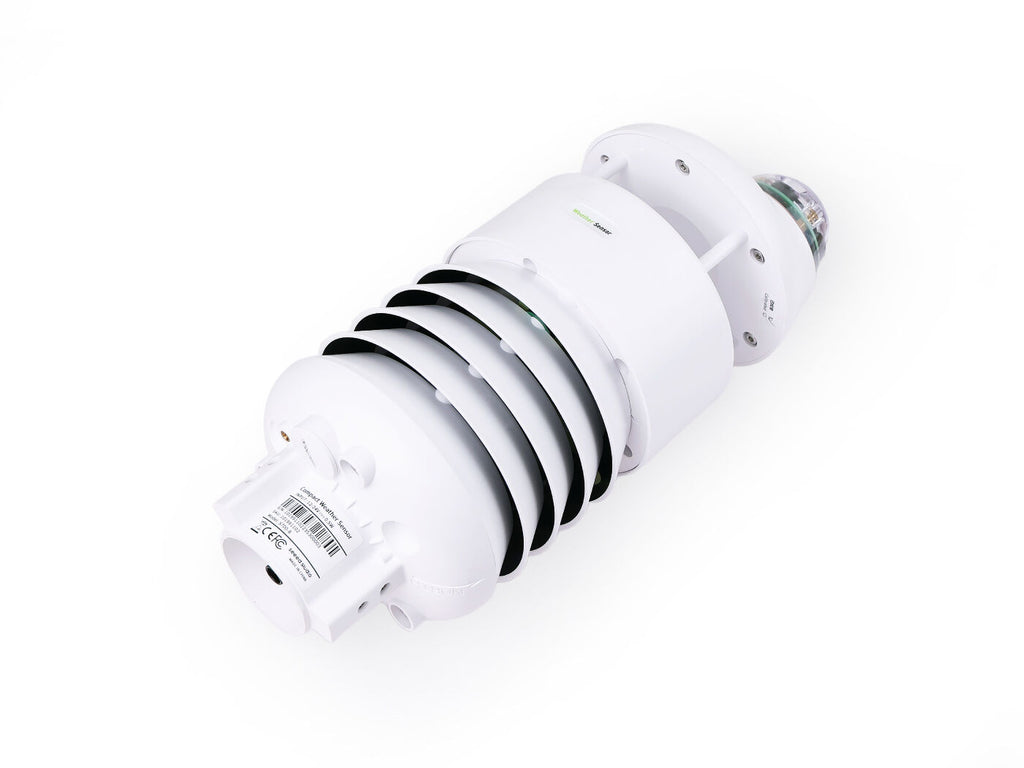

Comprehensive 7-parameter Measurement
The S700-B is equipped with multiple sensors measuring crucial parameters for gathering a wealth of enviromental data, including air temperature, relative humidity, barometric pressure, total solar radiation, sunshine duration, percipitation intensity, wind speed and wind direction.
Industrial-level Design
Wide operating temperature range from -40°C to +85°C and High Protection Rating of IP66
Versitile Output Interface
The S700-B offers 2 common and reliable output interfaces, namely RS485(supports MODBUS-RTU protocol) and SDI-12.
Thermostatically-controlled Heating System
This heating system is thermostatically controlled, ensuring that the device can maintain its normal working state and accurate measurement capabilities at extremely cold temperature.
Powerful Components
- Long Cable for Mounting: A 3-meter cable is provided for pole mounting,
- Accuracy-enhancing Shields: Radiation shields are equipped which minimized the impact of external factors on the sensor's readings.

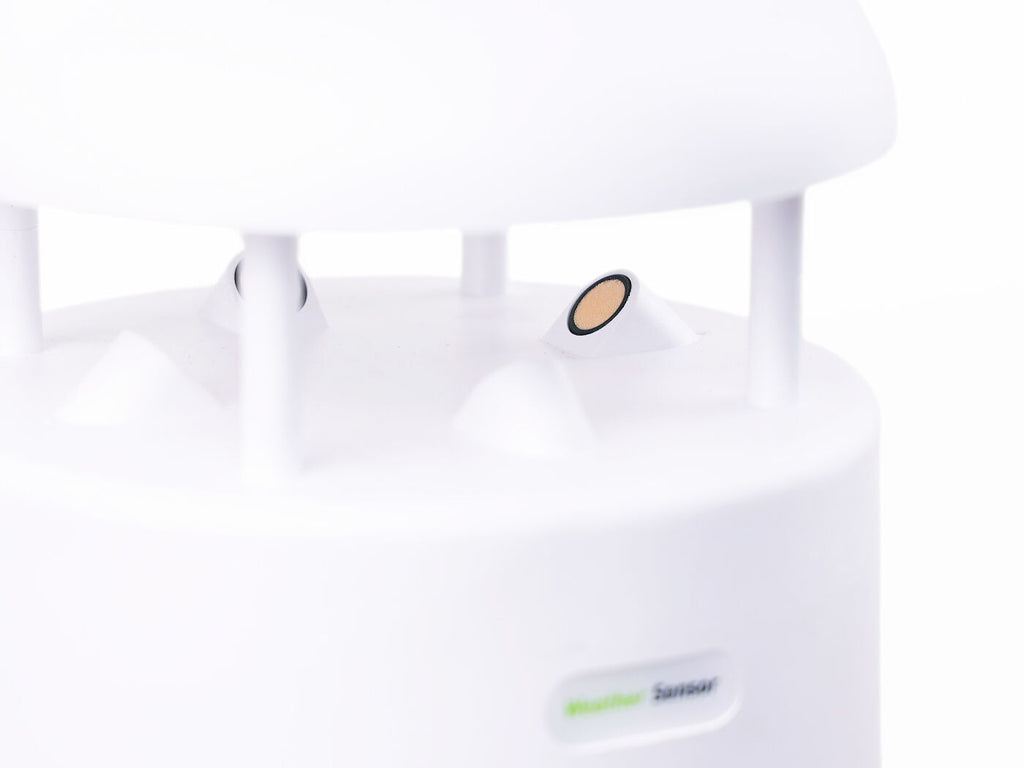

- Advanced Wind Sensors: It uses ultrasonic wind speed and direction sensors without movable component. This design with bird-proof structure not only reduces the risk of mechanical wear and tear but also improves the durability and accuracy of wind measurement.
Reliable and High Standard Test Performance
General Specification
Specification | Parameter |
Measurement parameters | Air temperature(℃) Relative humidity(%) Barometric pressure(Pa) Global solar radiation(W/m²) Sunshine duration(h) Percipitation intensity(mm/h) Wind speed(m/s） Wind direction(°) |
Interface | M12 connector |
Communication Protocol | RS485(Modbus-RTU)/SDI-12/ASCII |
Power Supply | 12V~24V 24V(Heating power supply) |
Power Consumption | 0.6W(heating 21W) |
Cable Length | 3m |
Ambient Condition | |
IP Rating | IP66 |
Operation Temperature | -40 °C ~ + 85 °C |
Humidity | 0 ~ 100%RH(no condensation) |
Mechanical | |
Dimension | 140x140x350mm |
Weight | 1580g |
Technical Parameters
Measurement parameter | Principle | Range | Respond Time | Resolution | Response spectrum | Accuracy | Annual Drift | Stability Time |
Air temperature(℃) | - | - 40 °C ~ + 85 °C | - | 0.01 ℃ | - | ± 0.1℃ | - | - |
Relative humidity(%) | - | 0 ~ 100% RH | - | 0.01% RH | - | ± 1.5% RH | - | - |
Barometric pressure(Pa) | - | 300 ~ 1250 hPa | - | 10 Pa | - | ± 50 Pa | - | - |

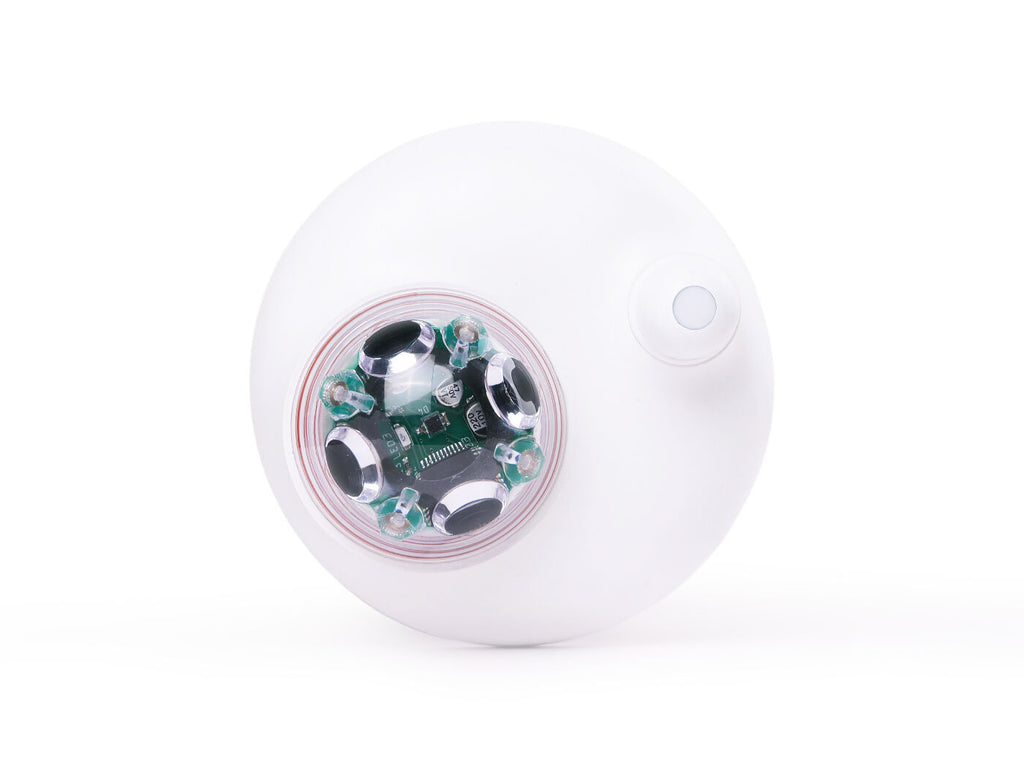

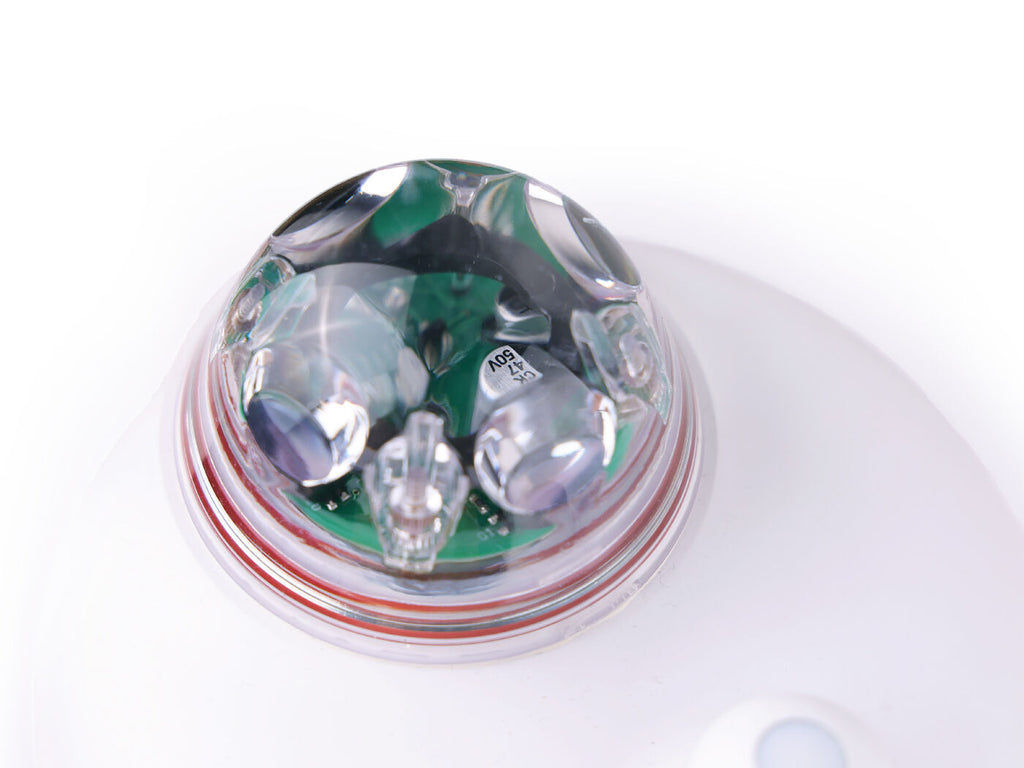

Percipitation intensity(mm/h) | Optical | 0 ~ 200 mm/h | - | 0.2 mm/h | - | ± 10% | - | - |
Wind speed(m/s） | Ultrosonic | 0~60 m/s standard range 0~75m/s extended range Up to 80m/s withstand range | - | 0.1 m/s | - | ±0.3m/s(≤10m/s); ±3% (10m/s ~ 50m/s) ±5% (>50m/s) | - | - |
Wind direction(°) | Ultrosonic | 0 ~ 360 ° | - | 0.1° | - | ± 3.0° | - | - |

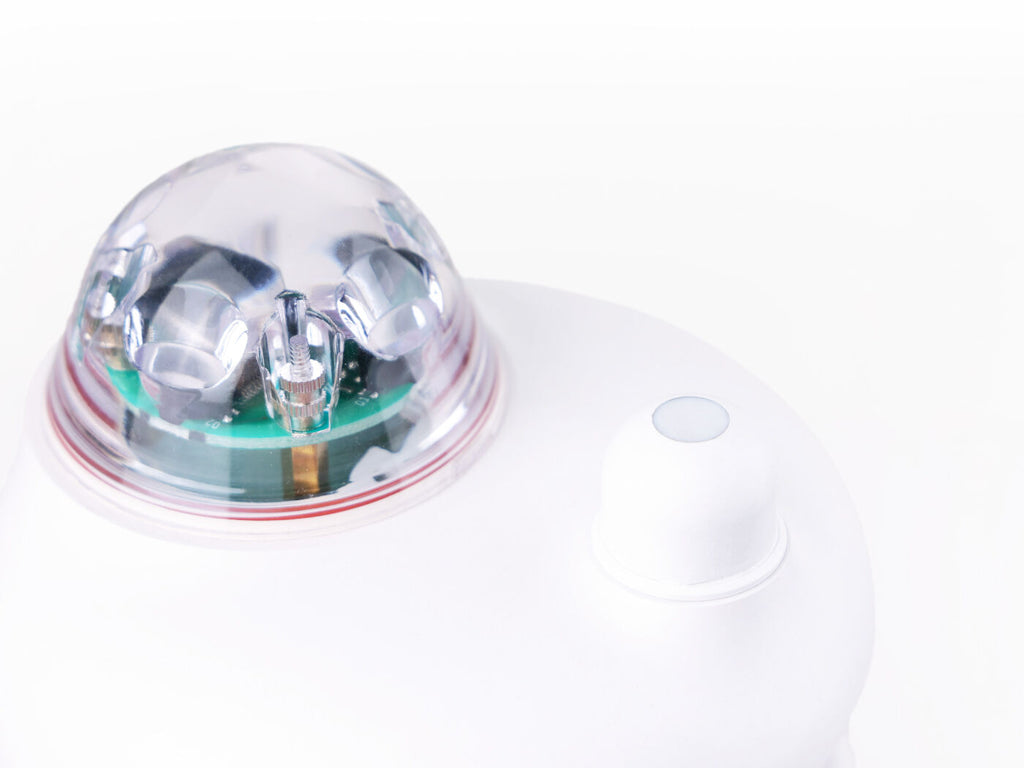

Global solar radiation(W/m²) | photoelectric | 0~2000 W/m² | <=1S | 1 W/m² | 300~1100nm | ±3% | less than 3% | <=1S |
Sunshine duration(h) | photoelectric | 0~6553.5 h | <=100ms | 0.1 h | 300~1100nm | ±3% | less than 3% | <=1S |
Wire Connection

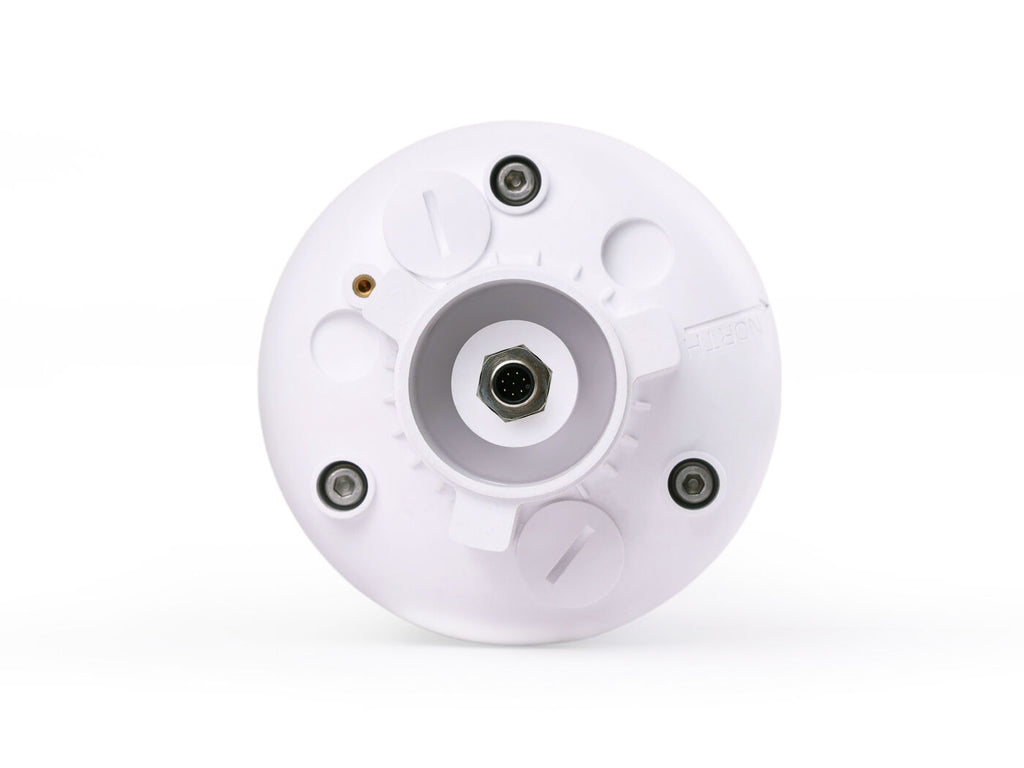

The equipment uses M12 connectors with an 8-core specification. Cables in 8 different colors are used to supply power to the equipment and for data communication.
The bottom wire outlet is 3m. There is a six-core wire cable, including wires in colors of white, brown, green, yellow, gray, pink, blue and red.
The SenseCAP ONE series supports connection to various data acquisition devices, Programmable Logic Controllers (PLCs) or Host Computers via RS485, ASCII and SDI-12 protocols.
SenseCAP ONE Series Comparison
Smart Agriculture
Smart City
Power Transmission
Renewable Energy
Transportation and Traffic
LoRaWAN Application
user manual-EN
SenseCAP ONE/SenseCAP ONE V2 Compact Weather Station User Guide
user manual-CN
SenseCAP S700B 7-in-1 Compact Weather Station | x 1 |
M12 8-pin communication cable | x 1 |
USB Type-C cable | x 1 |
Screw | x 6 |
Flat washer | x 1 |
| HSCODE | 9031809090 |
| USHSCODE | 9026104004 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
