Are you eager to find a solution that could increase your gateway coverage?
Are you wondering how to keep your gateways safe when putting them outdoors?
Are you struggling to find a case that could perfectly meet your gateway size and extended interfaces requirements?
Here you have SenseCAP Outdoor Enclosure Kit!
Being specially designed to meet all your needs to put the gateways outdoors, SenseCAP Outdoor Enclosure has a decent size that is able to allocate most of the mainstream hotspots, such as BobCat miner 300, RAK hotspot, Cal-Chip, Nebra, Helium hotspot, etc.
With multiple types of extended interfaces provided on the bottom, including the ethernet cable gland, PG9 power cable connector, three N-type female fiberglass antenna connectors, and the ground connector, SenseCAP Outdoor Enclosure helps you easily connect your gateway with ethernet, fiberglass antenna, 4G antenna, GPS antenna, solar panel power station, lightning arrestor, etc. IP66 waterproof rate keeps it safe from dust and water when placed outdoors.
Rich accessories are provided for you to assemble. More possibilities are waiting for you to discover with your gateways! Bring your IoT applications into the wild with SenseCAP Outdoor Enclosure Kit now.

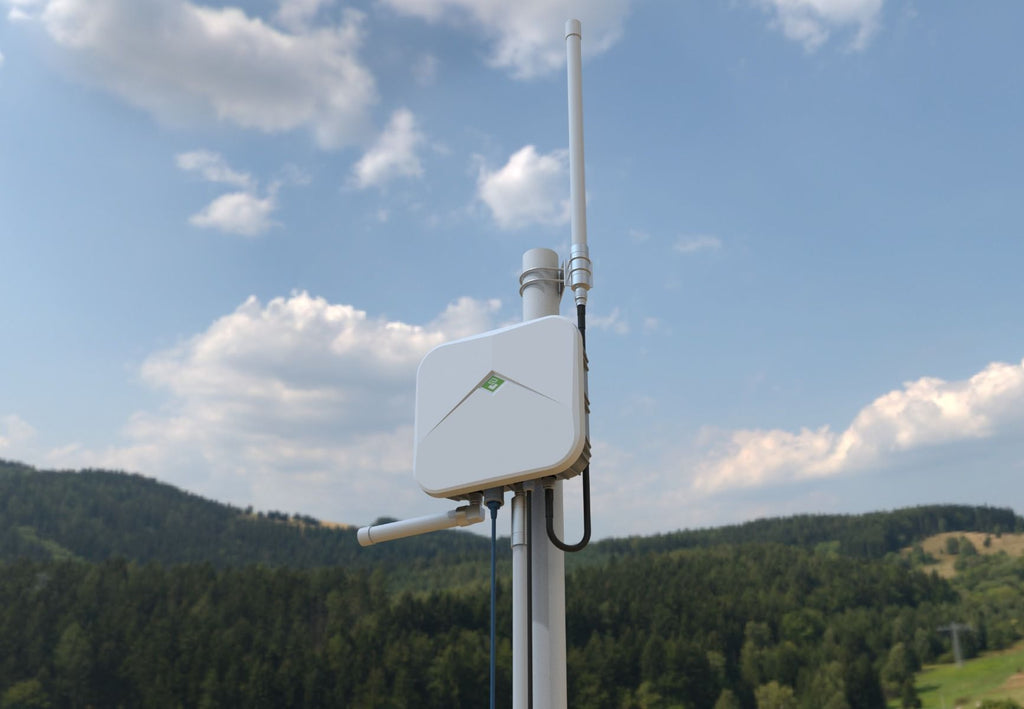

Usage Scenario
Features
IP66 Waterproof Outdoor Enclosure that is suitable for most of the Helium hotspots (E.g.: SenseCAP M1, SenseCAP M2, BobCat, RAK, Helium hotspot, etc.)
Simple steps to upgrade your indoor gateways to the outdoor ones
Easy to get wider range coverage of your LoRaWAN application
Flexibility to assemble to the wall or a pole with the mounting kit
Multiple useful interfaces reserved, including N-type female interface for LoRa Antenna, Ethernet cable gland, PG9 hole, and lightning arrestor gound hole
Specification
Waterproof Rate: IP66
Maximum ambient temperature -40~85°C
Enclosure Size (connector excluded): 255*275*92mm
Gross Weight: 3 kg
Net weight: 2 kg (Accessorised excluded)
Port: N-type antenna connector x3, Ethernet x1, PG9-hole*1, Ground hole*1
Part List:
Outdoor Enclosure *1
Mounting sheet plane *1
Pole mounting kit *1
N-type Female to RP-SMA male cable gland *1
Ethernet cable gland *1
PG9 Connector *1
PG9 Plug *1
Waterproof Silicone Plug *2
Hook-and-loop fastener *1m
Zip ties, PVC tape, and waterproof tape *1
Optional Accessories:
PoE splitter Type-C USB
PoE injector
Fiberglass Antenna
Fiberglass Antenna Extended Cable
Lightning Arrestor
ECCN/HTS
| HSCODE | 8517799000 |
| UPC |
