- Gen-4 LoRa Performance, Sub-GHz Focused:
Powered by the same fourth-generation LoRa® IP core as the flagship LR2021, the LR2012 delivers best-in-class sub-GHz radio performance: receiving sensitivity down to -141.5 dBm (LoRa SF12 @ 125 kHz) and transmit output up to +22 dBm, maximizing link budget for deep-indoor and long-range deployments.
- Cost-Optimized for LPWAN at Scale:
By concentrating solely on sub-GHz operation, the LR2012 removes the 2.4 GHz and satellite RF chains you don't need — you pay only for the capabilities you use. Sharing the same Gen-4 IP and Unified Software Platform (USP) as the LR2021/LR2022, it lets design teams build sub-GHz and multi-band products on one architecture, simplifying supply chains and qualification.
- Best-in-Class Energy Efficiency:
Maintains Semtech's industry-leading low-power standards: 5.7 mA receiving current, 470 nA sleep current, and 105 mA @ +22 dBm transmit — ideal for battery-powered, long-lifecycle metering and sensing devices.
- Enhanced Channel Activity Detection (CAD):
Fast CAD employs an intelligent adaptive threshold and early termination mechanism, significantly reducing the power consumption and time required for idle channel detection.
- Ready-to-Go for Prototyping:

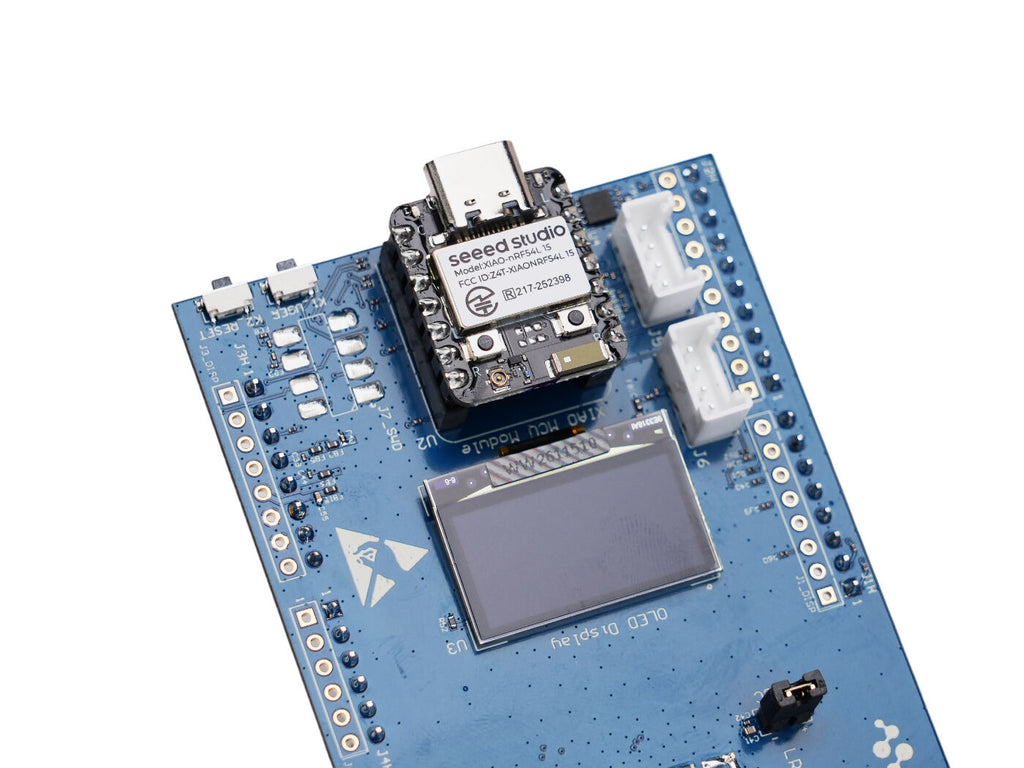

This integrated kit featuring the XIAO nRF54L15 combines real-time OLED feedback and plug-and-play Grove connectors for rapid sensor integration. Its hardware is also pin-compatible Arduino Uno, STM32 Nucleo, and Nordic DK platforms.
RF Chip Specifications
| Main Chipset | Semtech LR2012 (LoRa Plus™, Gen-4 LoRa IP) |
| Package Type | QFN-48 (5 × 5 × 0.9 mm) |
| Frequency Range | 150 – 960 MHz (Sub-GHz) |
| Supply Voltage | 1.8 V – 3.7 V (3.3 V typical) |
| Sleep Current | 470 nA |
| Max TX Current | Sub-GHz: 105 mA @ +22 dBm |
| Output Power | -10 dBm to +22 dBm (Sub-GHz) |
| RX Sensitivity | LoRa SF12 @ 125 kHz: -141.5 dBm |
| Data Rate | LoRa: up to 125 Kbps; FSK: up to 2 Mbps |
| Modulation | LoRa, BPSK, FSK, OOK |
| Communication Interface | SPI |
General Hardware Specifications

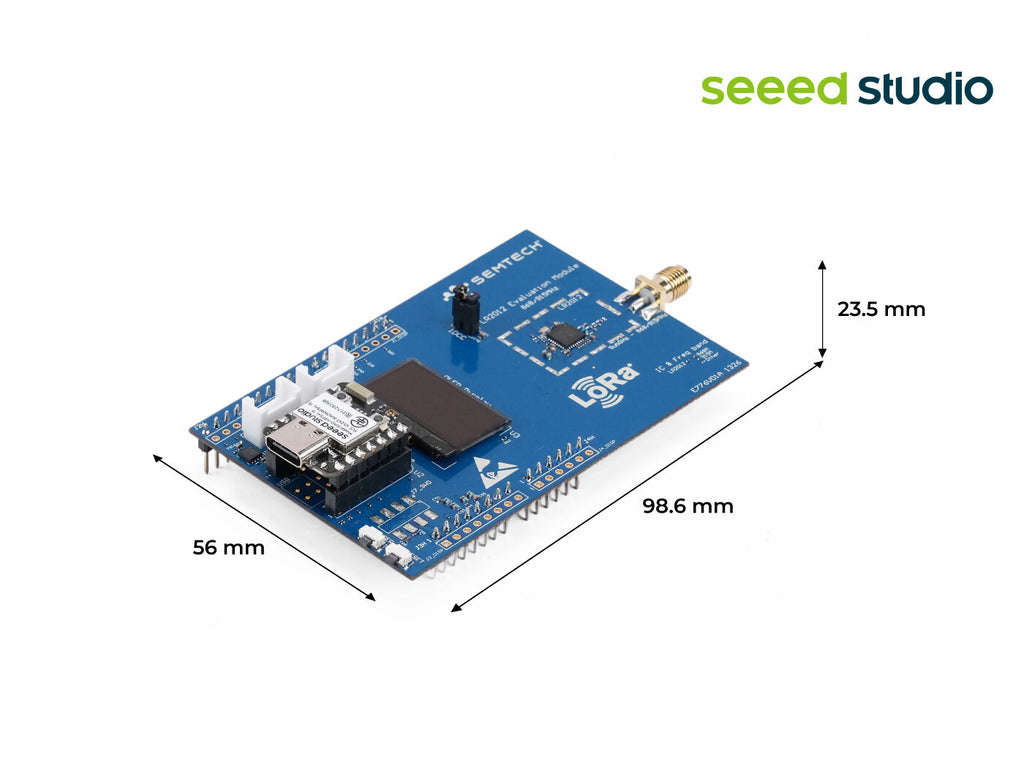

| Dimensions | 56 (W) × 98.6 (L) × 23.5 (H) mm |
| Integrated Display | 0.96" OLED (128 × 64 px) |
| Expansion Interface | 2 × Grove I2C |
| Antenna Interface | 1 × SMA-K (Sub-GHz LF port) |
| Debug Options | SWD |
| Voltage – Supply | 5 V (USB Type-C) |
| Voltage – Output | 3.3 V / 5 V |
| Frequency Plan | EU868 / US915 / CN490 |
| Working Temperature | -40 °C ~ +85 °C |
- Smart Metering:
Industry customers have already selected the LR2012 for next-generation meter interface units — superior LoRaWAN performance, backward compatibility with legacy OOK meter infrastructure, and LR-FHSS support for scalable network capacity make it ideal for electricity, water, and gas metering roadmaps.
- Smart Agriculture:
Ultra-long-range sub-GHz links connect soil moisture, irrigation, and environmental sensors across vast farmland, with multi-year battery life.
- Industrial Sensing & Predictive Maintenance:
High link budget and improved interference resilience support battery-powered sensors in harsh industrial environments and extended outdoor deployments.
- Smart City & Building:
Deep-indoor penetration for parking, lighting, and environmental monitoring nodes on LoRaWAN networks.

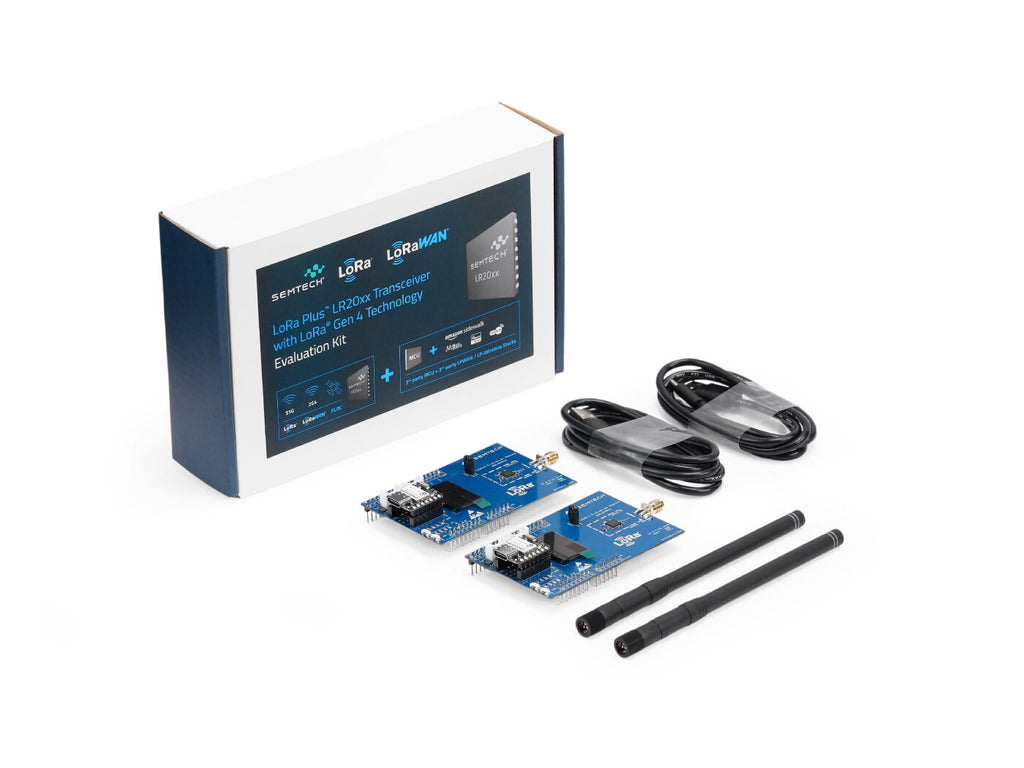

| Seeed Studio XIAO nRF54L15 Module | ×2 |

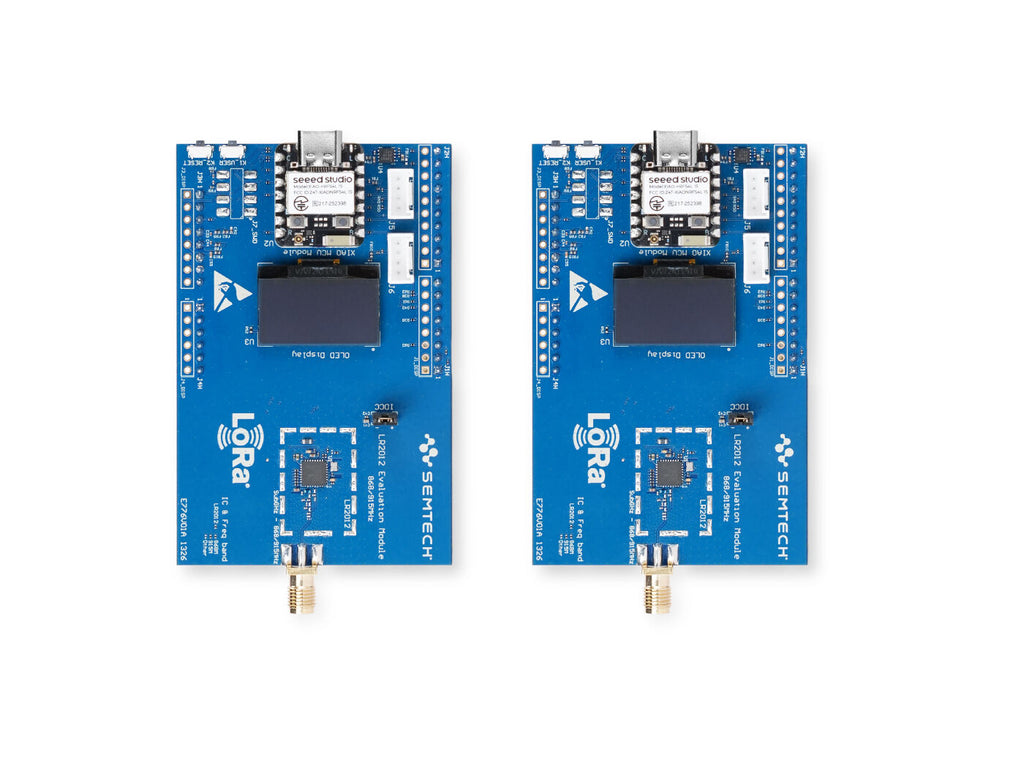

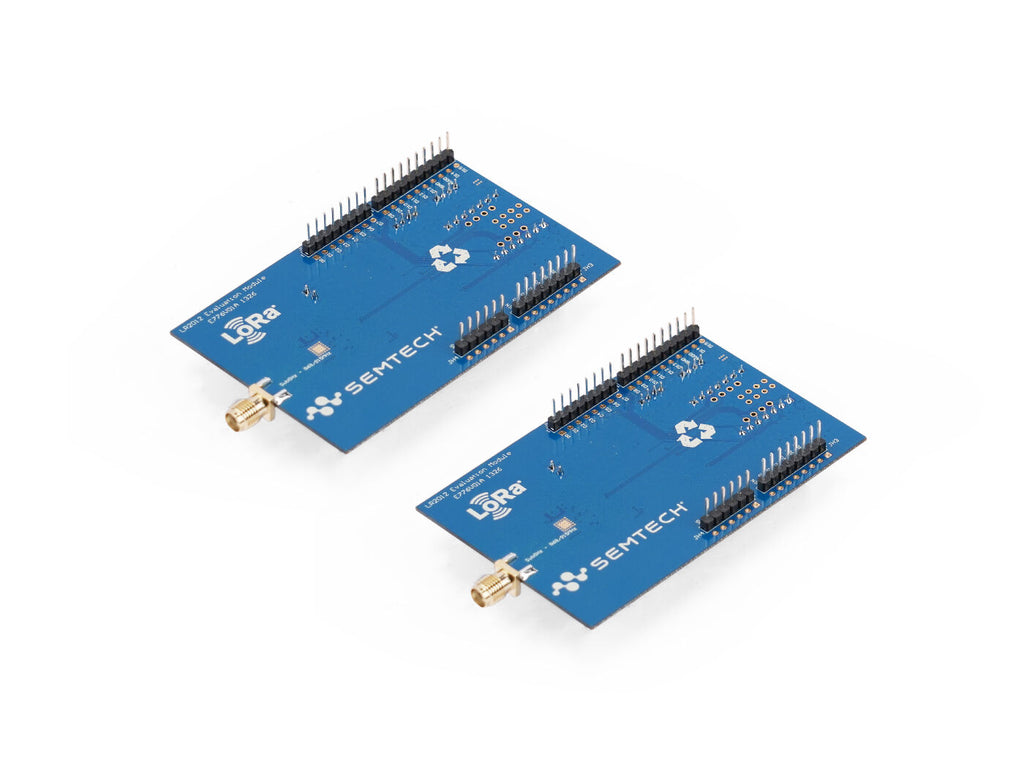

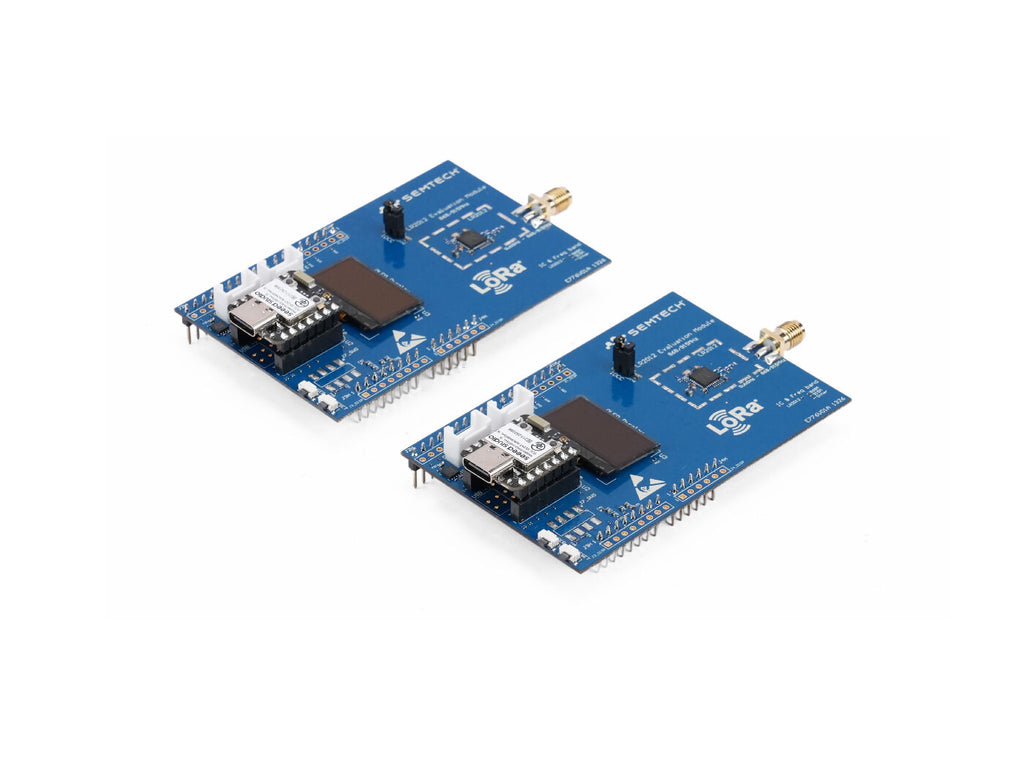

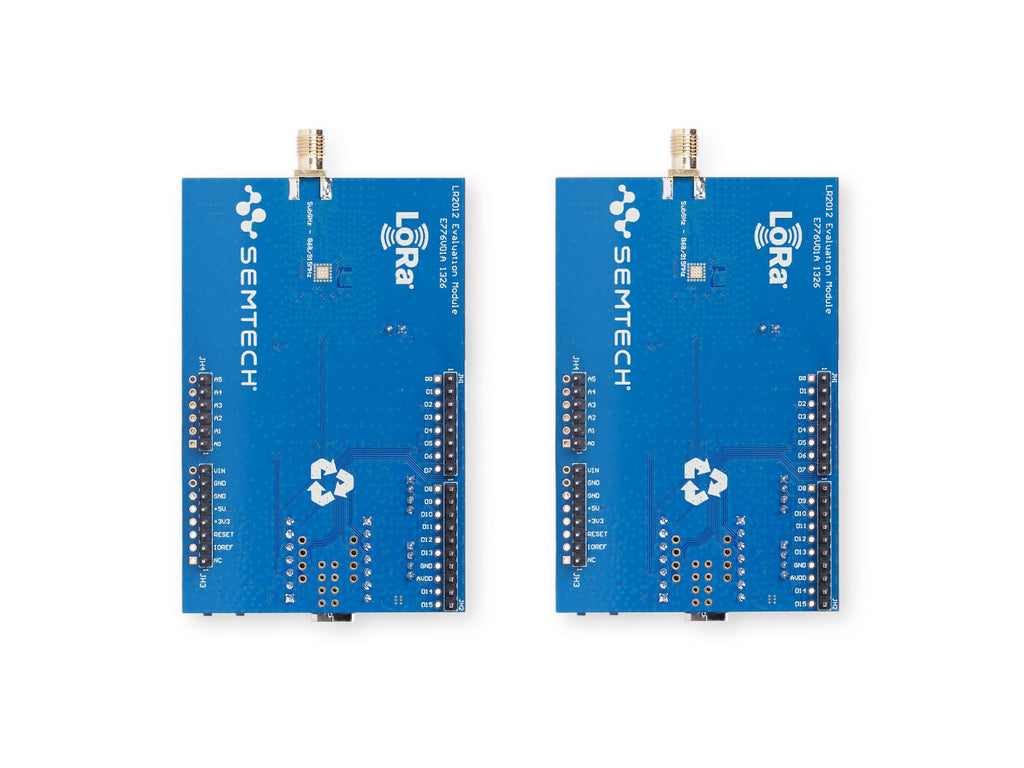

| LoRa Plus Expansion Board | ×2 |
| Antenna (863-870 MHz) | ×2 |
| USB Cable Type-A Male to Type-C Male (1 m) | ×2 |
| Read Me Note | ×1 |
| HSCODE | 8517629990 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 8517180000 |
