Seeeduino Lotus Cortex-M0+

$21.98 AUD Inc. GST


SKU SS102010228

Out Of Stock

We will notify you when this product becomes available.



Seeeduino Lotus Cortex-M0+ is an ATMEGA SAM D21 Microcontroller development board. The Atmel® | SMART™ SAM D21 is a series of low-power microcontrollers using the 32-bit ARM® Cortex®-M0+ processor with 256KB Flash and 32KB of SRAM. you can consider the Seeeduino Lotus Cortex-M0+ as a combination of Seeeduino and Base Shield.

Seeeduino Lotus Cortex-M0+ has 14 digital input/outputs (10 of which support PWM) and 6 analog input/outputs, 3 Serial Communication Interface, a micro USB connector, a JST2.0 Li-Po connector, an ICSP header, 12 Grove connectors, a reset button.

Seeeduino Lotus Cortex-M0+ is an upgraded version of Seeeduino Lotus V1.1, it replaces a more powerful chip, optimizes the circuit layout, and the power supply is more stable. Because this chip supports direct USB level output, there is no need to use a serial port to USB chip, like CP2102N. Therefore, one more hardware serial port is available to the user.





Features

      • Compatible with Arduino UNO
      • ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21)
      • 12 on-board Grove connectors
      • 14 Digital I/O Pins (10 PWM outputs)
      •  6 Analog Inputs
      • Support Power Path Management
      • Support micro-usb or Li-Po battery powered
      • 2A maximum charging current
      • Suitable for low power design





attention icon

Attention

All the I/O pins are 3.3V, please do not input more than 3.3V, otherwise the CPU may be damaged.

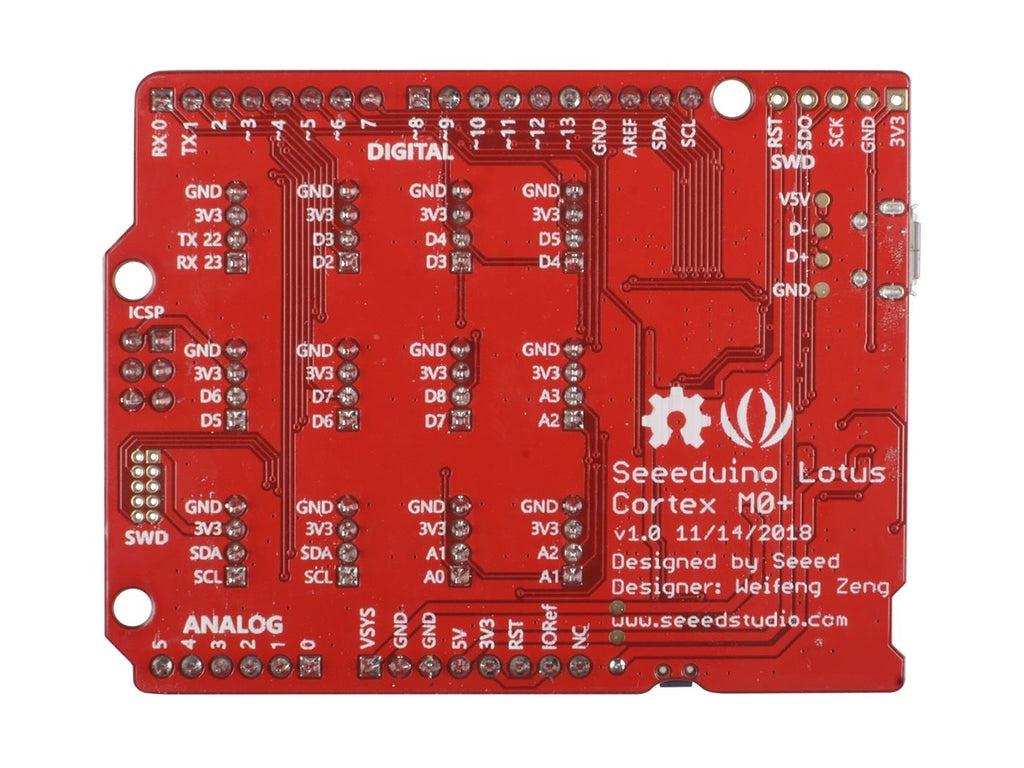

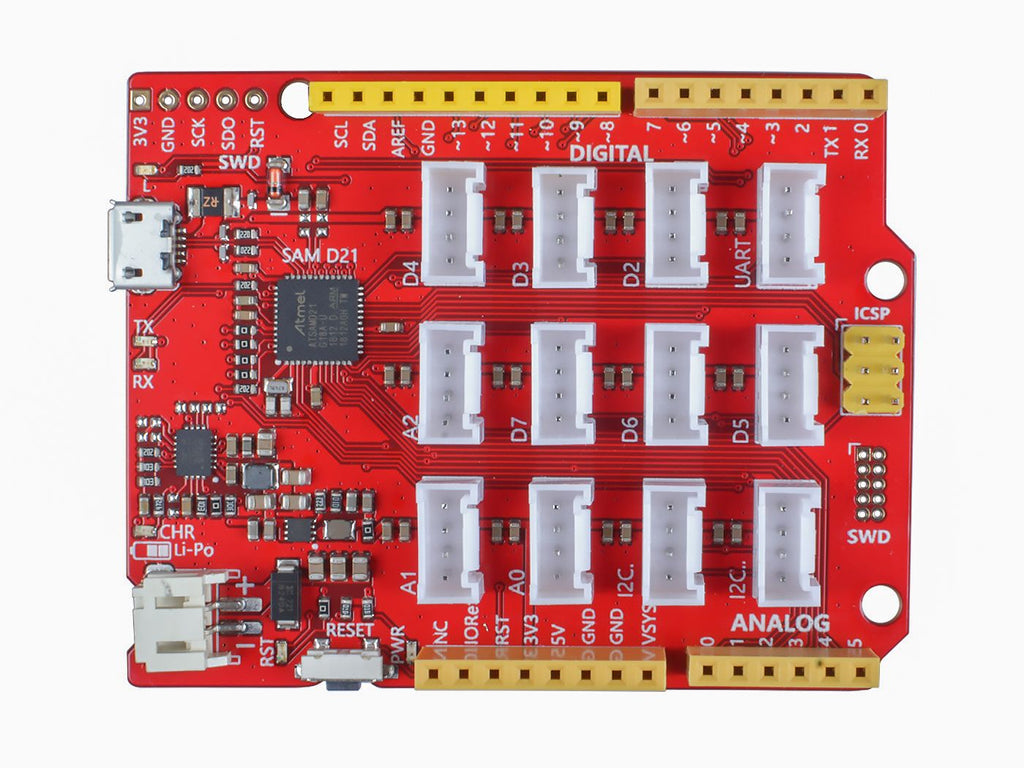

Hardware Overview




Pinout



ECCN/HTS

ECCN EAR99
HSCODE 8543709990
USHSCODE 8517700000
UPC
