XIAO nRF54L15 Sense is a powerful yet compact development board built around Nordic's nRF54L15 SoC, featuring a 128 MHz Arm Cortex-M33 core with 1.5 MB NVM. This thumb-sized board excels in modern IoT applications with comprehensive wireless connectivity including BLE 6.0, Matter, Thread, Zigbee, and Amazon Sidewalk protocols. With ultra-low power consumption, it's ideal for battery-powered IoT devices. The tiny board offers 14 GPIOs, USB Type-C interface, and onboard battery charging capabilities. This version integrates an onboard digital microphone and a 6-axis IMU for audio and motion sensing. Enhanced security features ensure robust protection for IoT deployments. Developers can leverage the Nordic nRF Connect SDK and PlatformIO with Zephyr RTOS support for efficient development workflows.
- Powerful SoC with Advanced Connectivity & Security
XIAO nRF54L15 Sense is built on Nordic's nRF54L15 SoC with a 128 MHz Arm Cortex-M33 core (1.5 MB NVM) and dedicated RISC-V security coprocessor. This dev board supports multiple wireless protocols including BLE 6.0, Matter, Thread, and Zigbee (IEEE 802.15.4-2020). It also features new 4 Mbps mode for proprietary 2.4 GHz protocols. And it's compatible with major ecosystems like Amazon Sidewalk, Apple Find My, and Google Find My Device through nRF Connect SDK. Comprehensive security features include secure boot, secure firmware updates, secure storage, TrustZone-enabled trusted execution environment, cryptographic acceleration with side-channel protection, and tamper detection, ensuring robust protection for IoT deployments.
- Ultra-Low Power Efficiency
XIAO nRF54L15 Sense is optimized for long-life battery-powered applications, leveraging the Nordic nRF54L15 SoC's industry-leading efficiency (0.6uA in the chip's System OFF mode) and an integrated battery charging circuit. Final board-level power consumption data is currently being verified for accuracy and will be announced soon.
- Audio and Motion Sensing
XIAO nRF54L15 Sense integrates a high-quality digital microphone and a 6-axis IMU, making it ready for voice and motion-based projects out of the box.
- Streamlined Development Experience
Full support for Nordic nRF Connect SDK and PlatformIO (Zephyr) enables efficient embedded development workflows. (Note: Arduino IDE is not currently supported)
- Production-Ready Design with PCBA Support
XIAO nRF54L15 Sense features a production-optimized SMD (Surface Mount Device) design with standardized stamp holes, making it perfect for commercial PCBA (Printed Circuit Board Assembly) integration. Through our Fusion PCBA Sponsorship Program, you can not only enjoy the lowest unit prices for all XIAO modules from our Fusion Open Parts Library, but also fabricate and scale your XIAO-based PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production.
Note:
XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here more info.
Product Name | Seeed Studio XIAO nRF54L15 (Pre-Soldered) | Seeed Studio XIAO nRF54L15 Sense (Pre-Soldered) | ||
Chipset | ||||
Processor | Arm® Cortex®-M33, 128 MHz | ARM®Cortex®-M4 32-bit processor with FPU, 64 MHz | ||
RISC-V,128 MHz （Coprocessor） | ||||
RAM | 256 KB | 256KB | ||
Flash | 1.5 MB Non-volatile Memory (NVM) | 1MB internal Flash + 2MB external Flash | ||
Interface | GPIO（PWM） Pin x16Digital Pin x16Analog Pin x6I2C x2UART x1SPI x2 | GPIO（PWM） Pin x14Digital Pin x14Analog Pin x6I2C x1 UART x1SPI x2 | GPIO （PWM）Pin x11Digital Pin x11Analog Pin x6I2C x1 UART x1SPI x1
| |
Onboard | User LED (1 Color) x1 Charge LED (Battery Charging Indicator) x1 Reset Button x1 Boot Button x1 Onboard Ceramic Antenna x1 IPEX4 Connector (for external antenna) x1 | User LED (3 Colors) x1 Charge LED (Battery Charging Indicator) x1 BlueTooth Antenna x1 Reset Button x1 | ||
/ | 6-Axis IMU x1 PDM Microphone x1 | / | 6-axis IMU x1 PDM Microphone x1 | |
Wireless Connectivity | Bluetooth LE 6.0（include Channel Sounding） Bluetooth Mesh NFC Thread Zigbee Matter Amazon Sidewalk proprietary 2.4 GHz protocols | Bluetooth LE 5.4 Bluetooth MeshNFC Thread Zigbee Matter proprietary 2.4 GHz protocols | ||
Power | Input Voltage (Type-C): 5V Operating Voltage: 3.3V | Input Voltage (Type-C): 5V Operating Voltage: 3.3V | ||
Low Power Mode | The test results will be finalized soon. Please stay tuned. | 5μA | ||
Software Compatibility | Nordic nRF Connect SDK，PlatformIO (Zeph +yr) | Arduino IDE, PlatformIO, MicroPython, CircuitPython, Zephyr | ||
Working Temperature | -40°C ~ 105°C | -40 to 85°C | ||
Dimensions | 21 x 17.8mm | |||
Varients | The 3PCS Pack and Pre-Soldered Varients will be available soon. Stay tuned. | |||

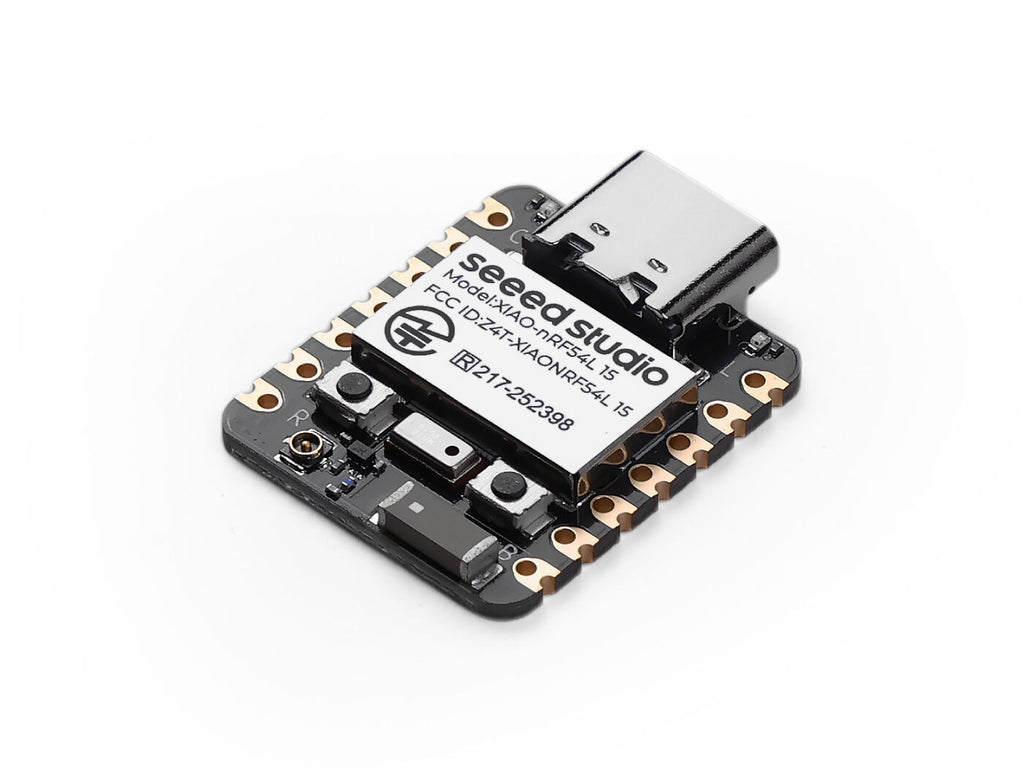

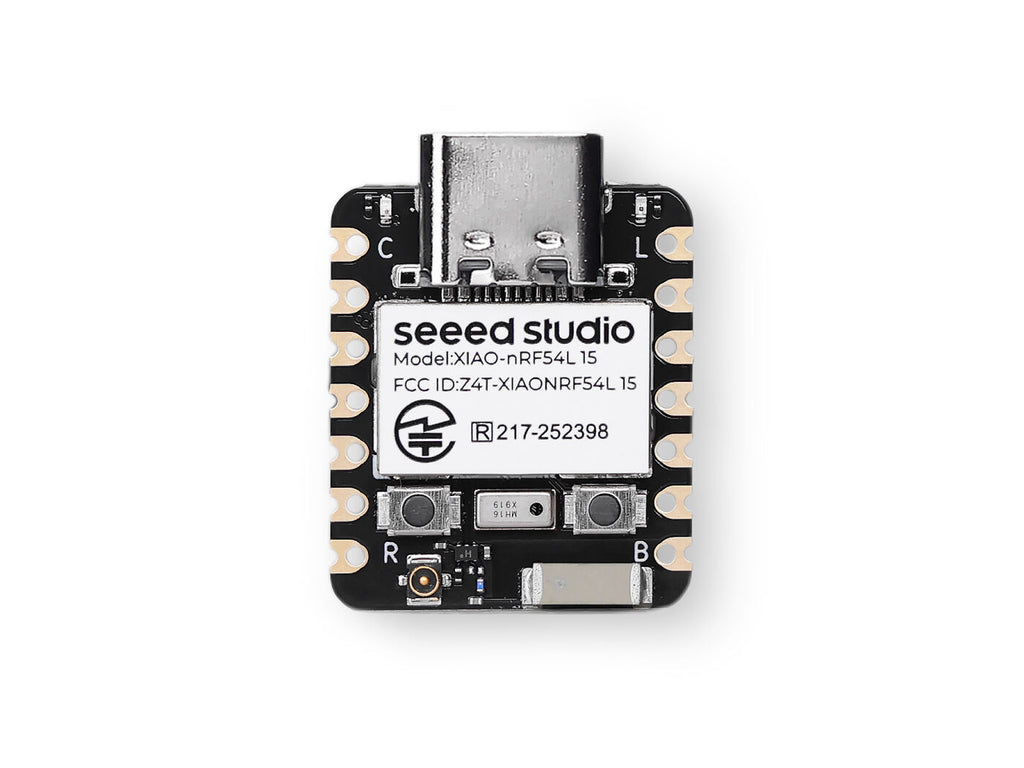

- FRONT

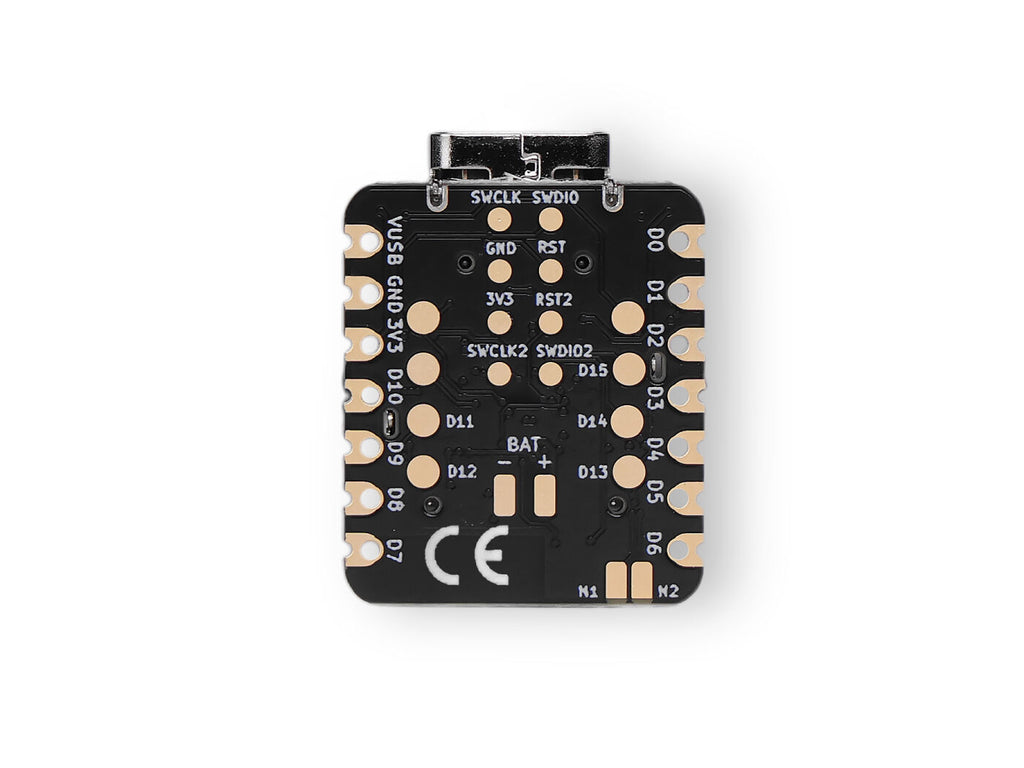

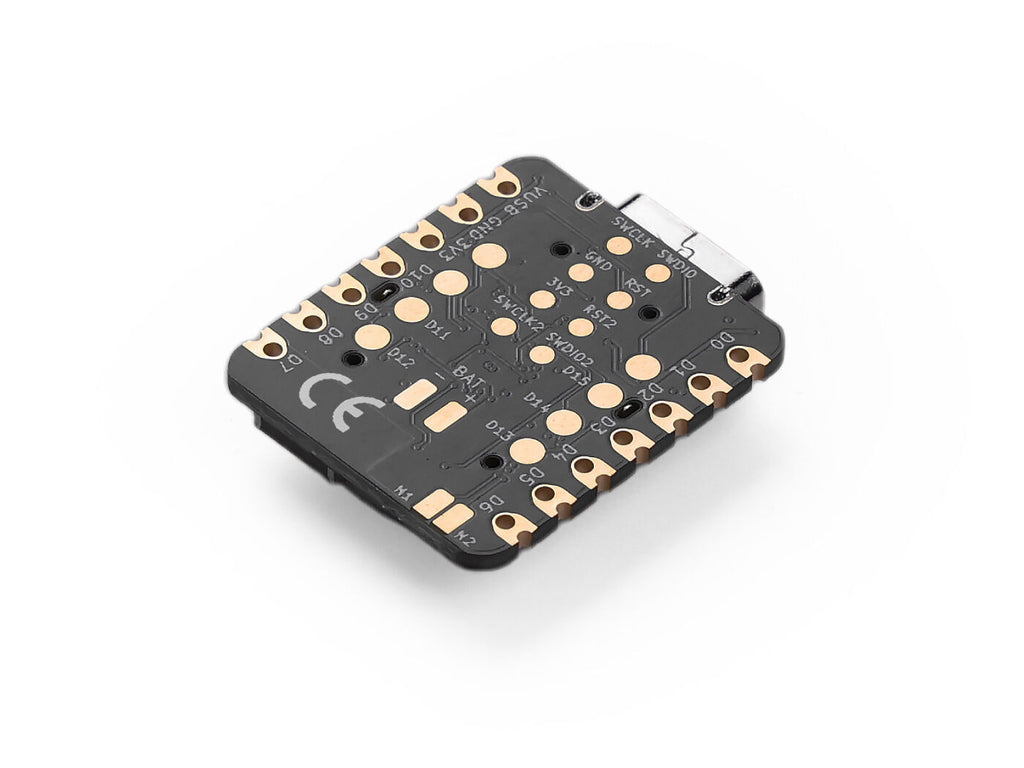

- BACK
- PinOut
- Wearable Devices
Create intelligent wearables for all-day use, from fitness trackers that perform complex sensor fusion to secure smart rings that support gesture control and NFC payments.
- Smart Home & IoT Hubs
Build a secure Matter-Thread border router or a central hub that bridges multiple wireless protocols, with the capability to handle voice commands via wake-word detection.
- Industrial IoT (IIoT) Sensors
Develop intelligent industrial sensors that perform on-device TinyML for predictive maintenance, while ensuring data integrity and device security with hardware-level protection.
- Advanced Prototyping
Function as a versatile developer tool for debugging multi-protocol networks or rapidly creating proof-of-concept designs for secure, low-power wireless products.
- Seeed Studio XIAO nRF54L15 Sense Schematic
- Seeed Studio XIAO nRF54L15 Sense KiCAD Libraries
- Seeed Studio XIAO nRF54L15 Sense Dimension in DXF
- Seeed Studio XIAO nRF54L15 Sense pinout sheet

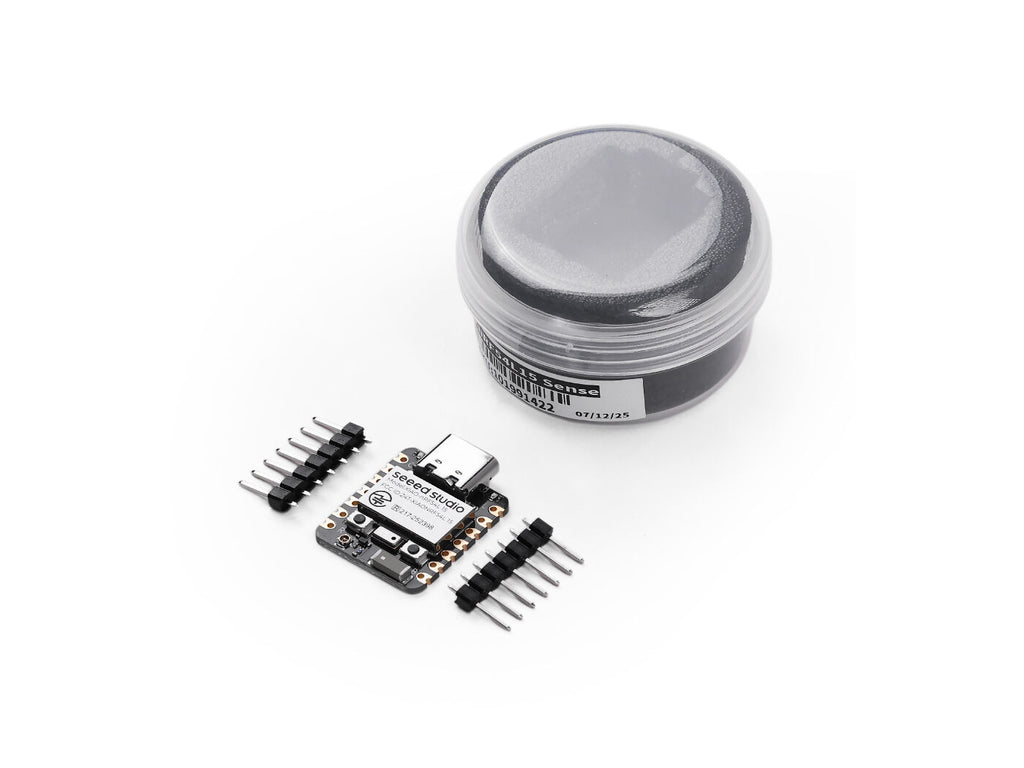

Seeed Studio XIAO nRF54L15 Sense | X1 |
7-Pin Header (2.54mm) | X2 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
