Inspired by the unique SMD pins design of the RICK TNY, we're now introducing the Seeed Studio XIAO Plus boards (available in XIAO nRF52840 Plus, XIAO nRF52840 Sense Plus, and XIAO ESP32S3 Plus) to include an updated design of more castellations and a new pad layout on the back.

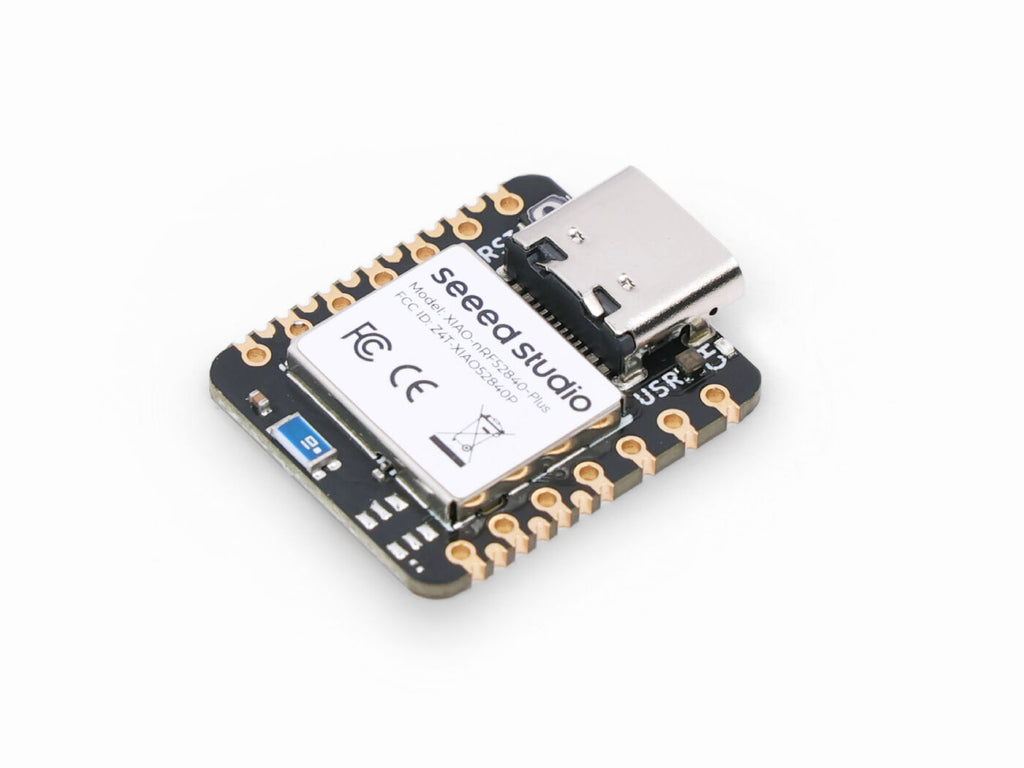

Seeed Studio XIAO nRF52840 Plus, powered by Nordic chipset with FPU, brings more SMD pins to our popular Bluetooth-enabled board. While maintaining all the capabilities of the standard version including Bluetooth 5.0, NFC, and low power consumption, this Plus variant features redesigned castellations and pad layout on the back, offering 9 additional GPIOs specifically for advanced Bluetooth projects requiring expanded I/Os via SMD board-to-board soldering.
- High-Performance MCU: Nordic Semiconductor‘s nRF52840 chip with FPU at 64 MHz, multiple development ports, compatible with Arduino/CircuitPython/MicroPython
- Advanced Wireless Connectivity: Bluetooth 5.0 with built-in antenna and NFC support
- Efficient Power Management: 5 μA deep sleep consumption with integrated Li-ion battery charging
- Expanded 20 GPIOs: 9 extra 1.27mm pitch SMD castellation pins beyond standard XIAO nRF52840
- Universal Compatibility: Standard backside layout (with aligned battery pads, and debugger pads) for more to-be-released XIAO expansion boards

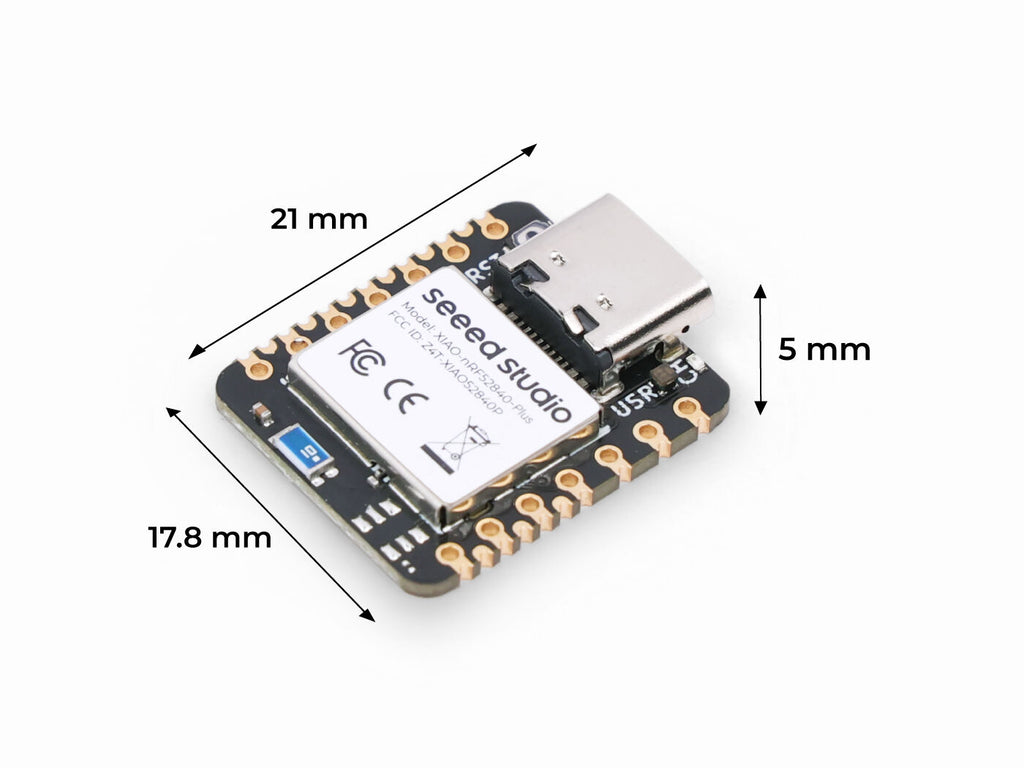

- Classic XIAO Form Factor: 21 x 17.8mm design with 2.54mm pin headers, single-sided mounting for wearables and space-constrained projects
- XIAO Accessory Add-ons Compatibility: Natively compatible with all the XIAO accessory add-ons of expansion, connectivity modules (LoRa, CAN_Bus, RS-485), sensors (2-Mic Array, Vision AI, mmWave Motion, Environmental sensing), and actuators (ePaper display, LED Matrix, relay and more).
As a new addition to the Seeed Studio XIAO family, the XIAO nRF52840 Plus remains the classic XIAO design (thumb-size, SMD, stamp holes). All these features make it a perfect fit for either space-limited applications, or a production-ready System on Module (SoM) for your PCBA designs. (check out our Fusion Co-Create one-stop prototyping, producing and promoting services to explore how to scale up your XIAO-based designs).
Note: XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here to see more info.
Item | Seeed Studio XIAO nRF52840 | Seeed Studio XIAO nRF52840 Plus | Seeed Studio XIAO nRF52840 Sense Plus |
Processor | Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz | ||
Wireless Connectivity | Bluetooth 5.0/BLE/NFC | ||
Memory | 256KB RAM,1MB Flash 2MB onboard Flash | ||
Built-in Sensors | N/A | 6 DOF IMU (LSM6DS3TR-C), PDM Microphone | |
Interfaces | 1xI2C, 1xUART, 1xSPI | 1xI2C, 2xUART, 2xSPI, 1xI2S | |
PWM/Analog Pins | 11/6 | 20/6 | |
Onboard Buttons | Reset Button | ||
Onboard LEDs | 3-in-one LED/ Charge LED | ||
Battery Charge Chip | BQ25101 | ||
Programming Languages | Arduino/MicroPython/CircuitPython | ||

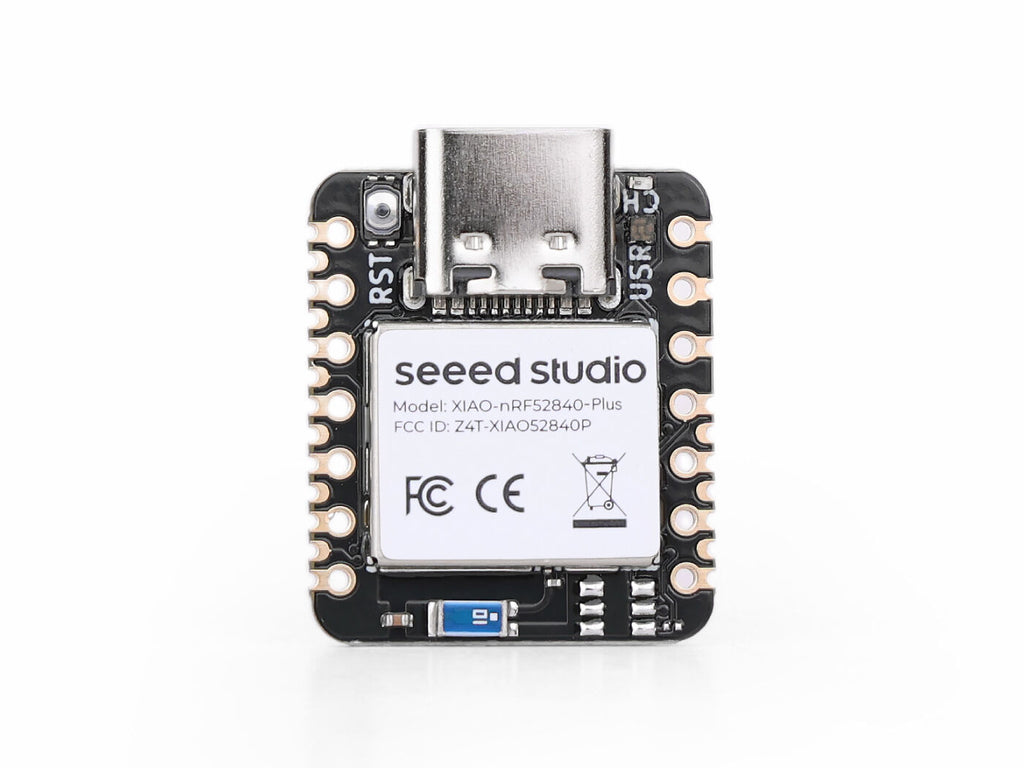

- Onboard
- PinOut

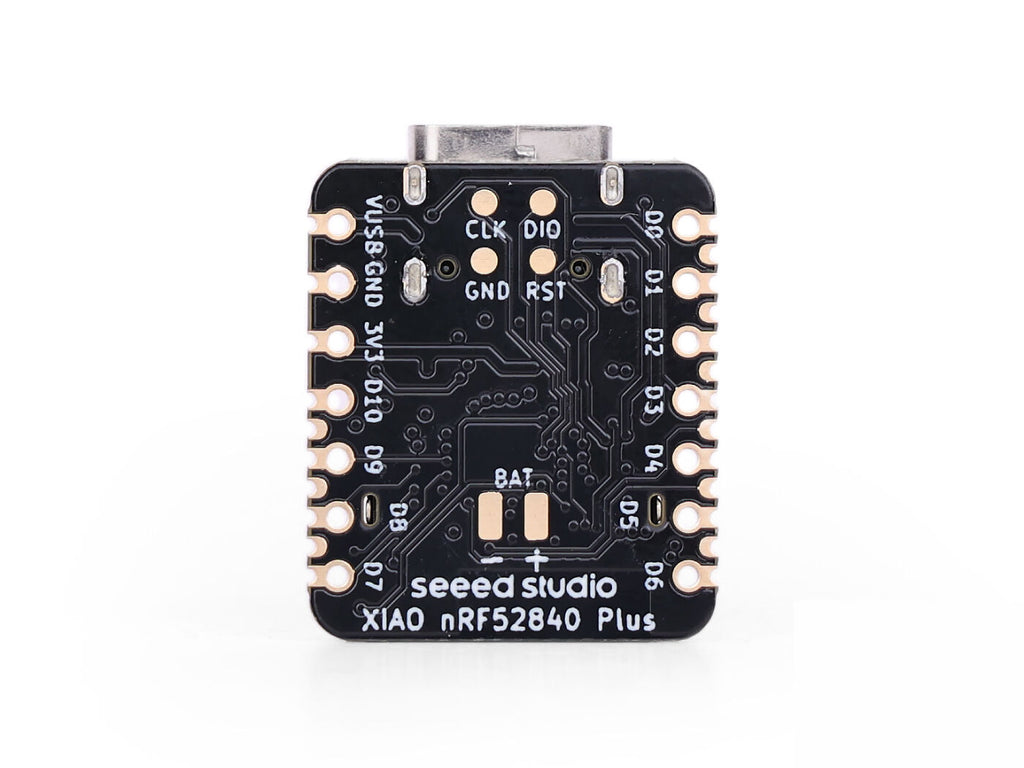

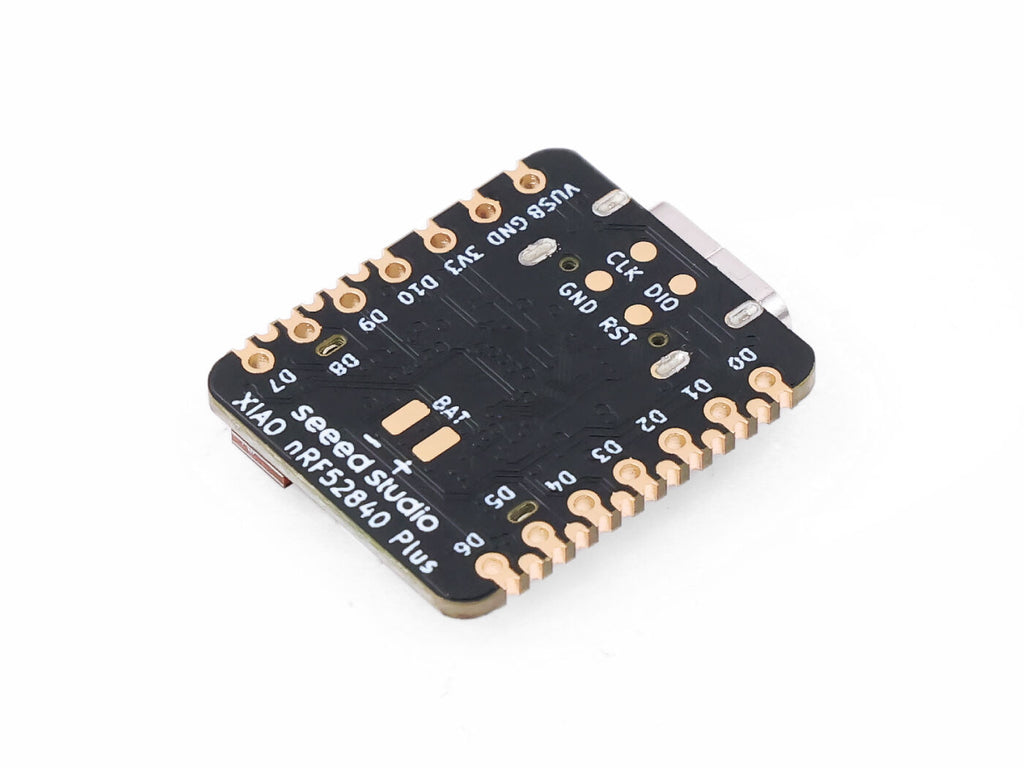

- XIAO nRF52840 back vs XIAO nRF52840 Plus back
- Wearable devices
- IoT Wireless devices
- Embedded machine learning projects
- Mini Arduino projects
- Getting Started with Seeed Studio XIAO nRF52840 Series | Seeed Studio Wiki
- Schematic
- Nordic nRF52840 Data Sheet
Seeed Studio XIAO nRF52840 Plus | x1 |
Please note Seeed Studio XIAO Plus doesn‘t come with 7-pin headers as it's designed for SMD board-to-board soldering. If you'd love to have the 7-pin headers, make sure to add them to the cart.
| HSCODE | 8543709990 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
