Notify me by email when SD Card Shield V4 becomes available.

Buy Australia SD Card Shield V4 , Memory Storage - Seeed Studio, Pakronics Melbourne  in Australia - 1

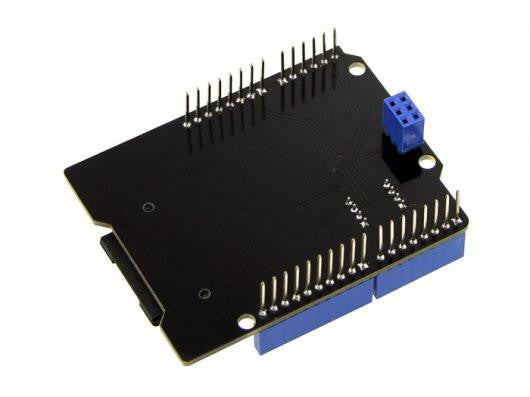

SD Card Shield V4

$22.94 AUD Inc. GST


SKU SS103030005
Ships in 24 hours 1 units
Ships in 3 to 10 days 14 units

increment
decrement
decrement increment

This is the new-released SD card V4.0 shield. It provides a storage space for your Arduino. Users can read/write SD card via Arduino’s built-in SD library. It supports SD, SDHC and Micro SD cards. It will only occupy the SPI port of your Arduino. Comparing to previous versions, it combines the standard SD slot and the Micro SD slot into a standard one, the included adaptor enables using of Micro SD cards . You can stack on other shields that work with the unused pins. Additionally, the preformed I2C and UART port facilitate your connection with Grove modules.
Note: Headers of this product is shipped unsoldered.
Features
  • Stand SD card、SDHC card and TF card compatible
  • UART Grove & I2C connection compatible
  • Fully supported SD Library
  • Minimal number of SPI port
  • Truly stackable
Specification
Item Min Typical Max Unit
Voltage 3.5 5 5.5 V
Current 0.159 100 200 mA
Supported Card Type SD card(<=32G); Micro SD card(<=32G); SDHC card(<=32G)     /
Dimension 68.7x53.5x19.00     mm
Net Weight 14.8


Documents
Please visit our wiki page for more info about this product.
