Description

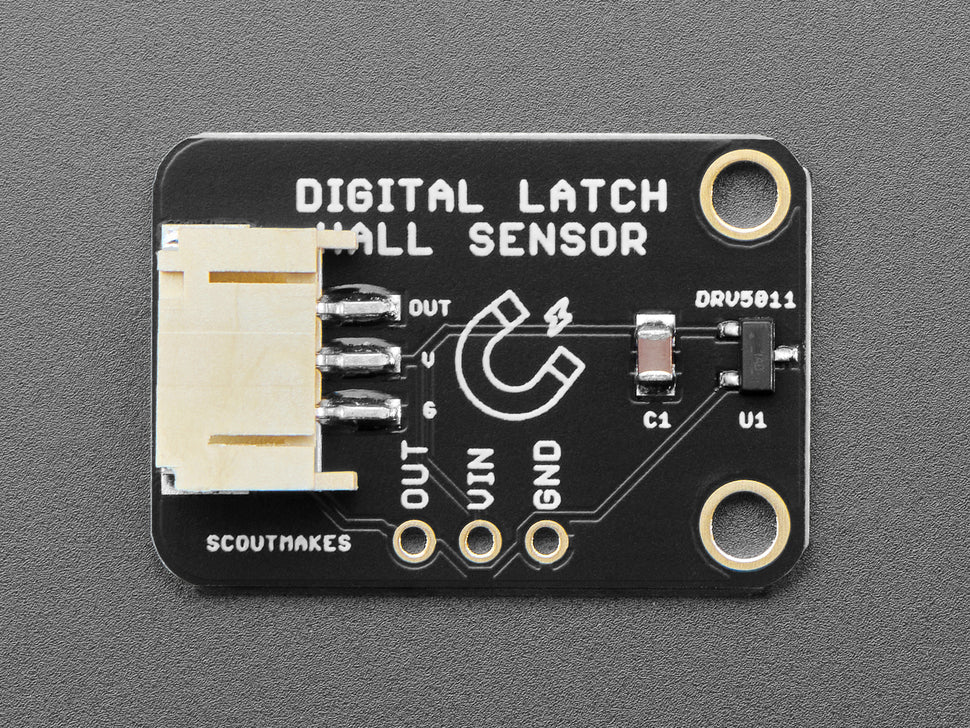

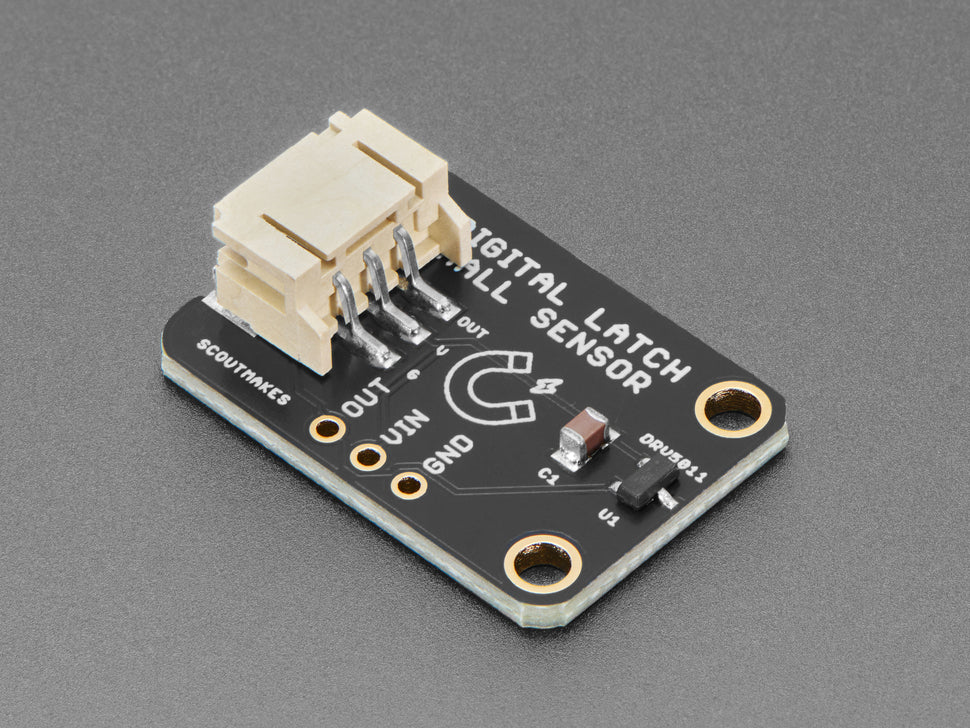

This is a breakout for the Texas Instruments DRV5011 Digital Magnetic Latch Hall Effect Sensor. It is the perfect way to add magnetic sensing to your project. It looks and sounds a lot like the DRV5032 but this version has a latching output.
The sensor has a digital output that goes LOW when a south-side magnetic field is detected, and will stay low until a north-side field is detected, then it goes back HIGH. This makes it great for detecting a rotating magnet since you'll get nice clean pulses on the transition from N to S and S to N. However, it's not great for detecting when there's no magnetic field. For that, pick up the DRV5032

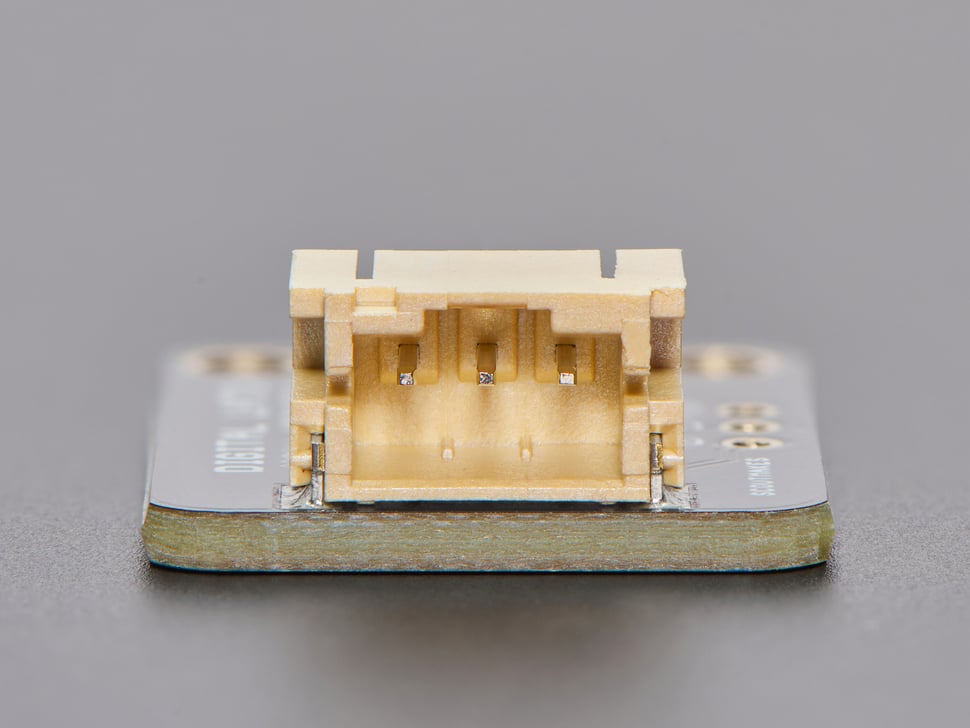

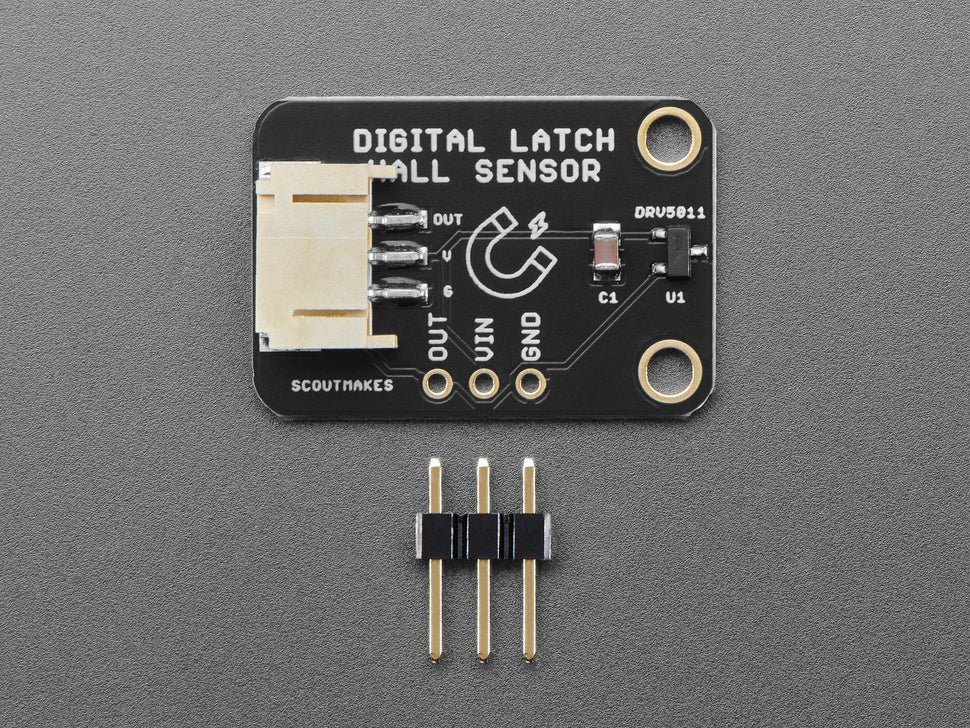

The breakout comes with a 3-pin header for breadboard use. This board has a simple plug-and-play JST PH (2mm pitch) 3-pin input connector for solderless use. This cable is sold separately but is not needed to use the board.
Note: this breakout board may come with either a black or tan JST-PH connector.
Technical Details
Specifications:

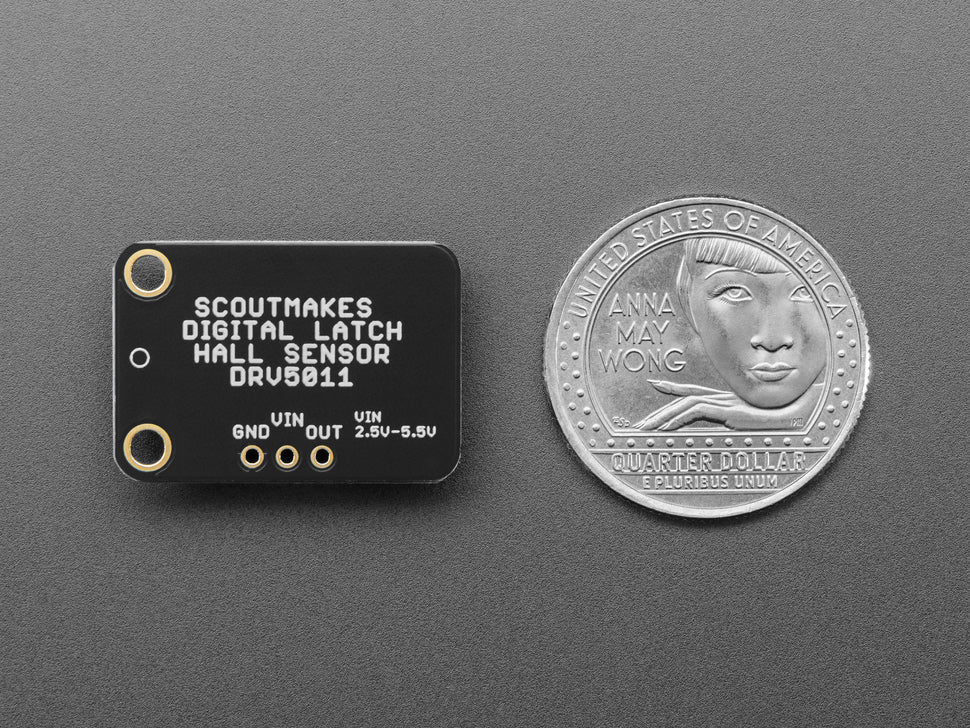

Product Dimensions: 25.4mm x 17.7mm x 5.0mm / 1.0" x 0.7" x 0.2"
Product Weight: 2.6g / 0.1oz
