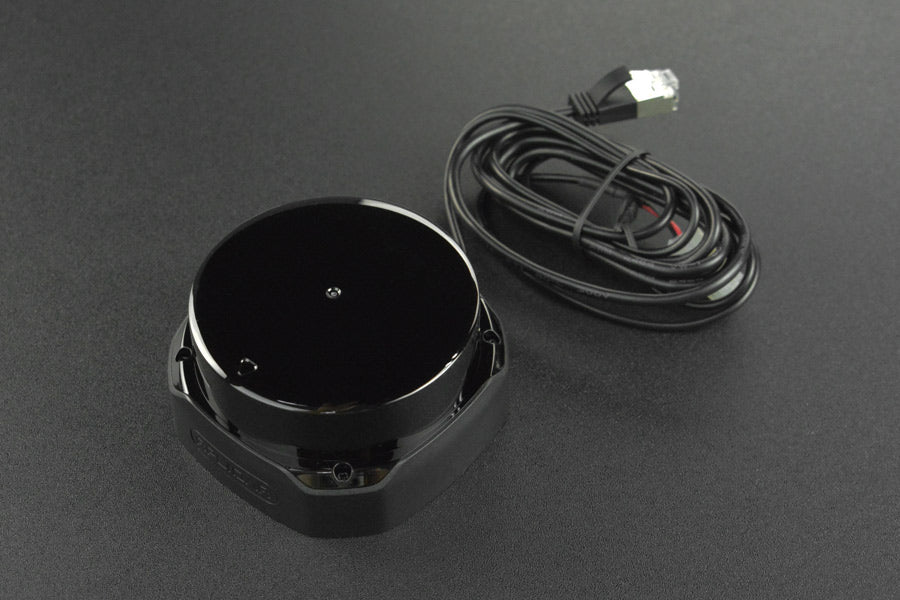

RPLiDAR S2E 360 Laser Range Scanner-30m (12V)

Sale price A$1,120.42   Inc. GST
14 units Ships in 7 to 10 days

RPLiDAR S2E 360° Laser Range Scanner-30m

DTOF Ranging Method

Thanks to the DTOF (Direct Time-of-Flight) technology developed by SLAMTEC, RPLIDAR S2E guarantees consistent ranging resolution. Even in longer distance, the resolution always keeps the same. Also, DTOF allows RPLIDAR S2E to detect almost ANY thing with different material types, no matter a darker object, a high reflective mirror, or even transparent glass.

RPLiDAR S2E 360° Laser Range Scanner-30m

30 Meters Range Radius

The ranging distance radius of RPLIDAR S2E is up to 30 meters, which meets the high demand requirements of robotic navigation applications in commercial scenarios, such as hotels, restaurants, shopping malls, office buildings, etc.

RPLiDAR S2E 360° Laser Range Scanner-30m

32000 Times per Second sample rate

RPLIDAR S2E improves the internal optical design and measurements system to achieve the sample rate up to 32000 times, that makes more environmental details to be retrieved during the mapping and navigation process.

RPLiDAR S2E 360° Laser Range Scanner-30m

Resistance to Strong Sunlight, Workable in both Indoor and Outdoor

RPLIDAR S2E has a stable ranging and high-resolution mapping performance in indoor and outdoor environments, even in 80Klux strong sunlight interference.

RPLiDAR S2E 360° Laser Range Scanner-30m

Excellent ranging accuracy

For objects with different reflectivities, such as lenses and mirrors with high reverse surfaces, consistent and accurate distance measurements can be obtained.

RPLiDAR S2E 360° Laser Range Scanner-30m

Small & Compact size, fits the overall appearance requirements of robots

The height of the scanning optical area of RPLIDAR S2E is only 18mm, which makes it easy to be embedded.

RPLiDAR S2E 360° Laser Range Scanner-30m

High compatibility

RPLIDAR S2E shares the same interface port with A series RPLIDARs. Existing products can upgrade to RPLIDAR S2E seamlessly without the need of changing hardware or software design.

RPLiDAR S2E 360° Laser Range Scanner-30m

Support serial ports and network ports communication modes.

The S2E provides serial ports and network ports communication modes. It is convenient for users to use in various environments.

RPLiDAR S2E 360° Laser Range Scanner-30m

IP65 proof level

IP65 proof level, combined with a cover to protect its interior mechanism from external interference, which provides a stable working environment and meets the industrial application.

RPLiDAR S2E 360° Laser Range Scanner-30m
RPLiDAR S2E 360° Laser Range Scanner-30m
RPLiDAR S2E 360° Laser Range Scanner-30m
RPLiDAR S2E 360° Laser Range Scanner-30m
RPLiDAR S2E 360° Laser Range Scanner-30m


RPLiDAR S2 360° Laser Range Scanner-30m

Selection Guide


  • 32000 times/second sampling speed
  • 30m measuring radius
  • 80000lux strong light anti-interference
  • IP65 proof level
  • IEC-60825 Class 1 laser safety standard


  • Robot navigation and obstacle avoidance
  • Obstacle detecting and avoiding AGV
  • Parking lot monitoring
  • Environment perception and autonomous movement of low-speed unmanned vehicles
  • Multi-point touching and man-machine interaction
  • Specification:

  • Power Supply: 9~28V(standard 12V, POE power supply)
  • Operating Current: 200mA(12V power supply, working)
  • Measuring Radius: 0.05-30m for white objects; 0.05-10m for black objects
  • Sampling Frequency: 32KHz
  • Scanning Frequency: 10Hz
  • Angular Resolution: 0.12°
  • Ranging Accuracy: ±30mm
  • Ranging Resolution: 13mm
  • Protection Class: IP65
  • Anti-ambient Light: 80000Lux
  • Scanning Range: 360°
  • Interface: ETHERNET UDP RJ45
  • Communication Rate: 1Mbps
  • Size: 77*77*38.5mm/3.03*3.03*1.52”
  • Weight: 190g
  • Operating Temperature Range: -10°C-50°C
  • Documents:

  • SDK and User Manual
  • Product Includes:

  • RPLIDAR S2E x1
  • Adapter Cable x1
  • Instruction Card x1
