RF Explorer LCD screen

$48.68 AUD Inc. GST

SKU SS308010000
Ships in 20 to 30 days 25 units

decrement increment

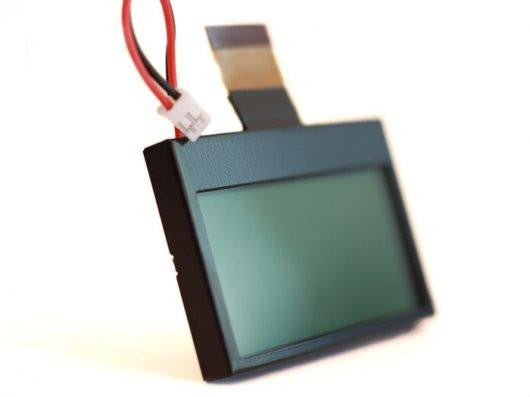

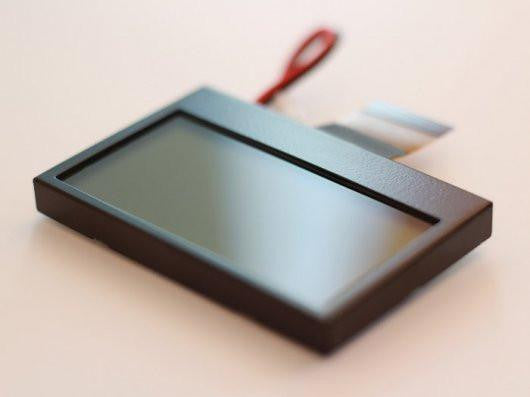

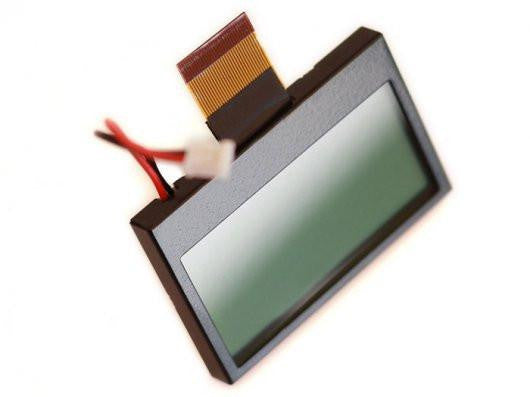

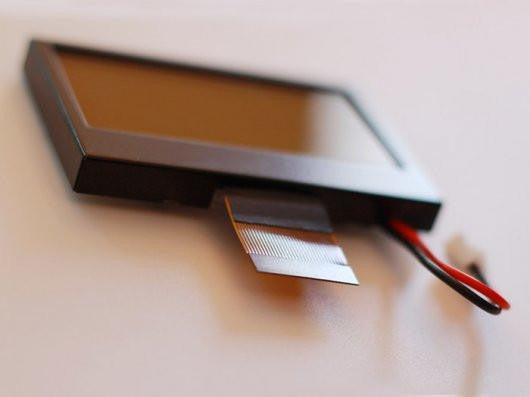

This LCD is a screen replacement for RF Explorer, the same custom designed COG LCD model included in all RF Explorer handheld devices, guarantees same great visibility experience both indoors and outdoors.
You can use this replacement in case your LCD got any damage. The package includes sticker foam to properly fit the LCD into RF Explorer PCB.
Please make sure to use anti-static ESD measures when manipulating RF Explorer PCB and this LCD module.
  • Replacement LCD for RF Explorer devices
  • Custom model designed specifically for RF Explorer
  • Included sticker foam for PCB assembly
  • 128x64 FSTN COG LCD – positive transflective
  • Dot pitch: 0.35x0.36mm
  • Viewing area: 51x26mm
  • External dimensions: 57x56x7mm
  • Supply voltage DC 3V
  • Backlight: LED white
  • Connector: FPC 0.5mm 30pin
  • Driver: ST7565P
  • Storage Temperature: -10 to 60°C
  • Operating Temperature: 0 to 50°C
  • Max humidity: 90%RH
Part List:
  • RF Explorer LCD X 1
For technical support and suggestions, please visit the forum.
