RF Explorer - 915M V2.0

Price:
Sale price A$176.00   Inc. GST
SKU:
SS109990035
Out Of Stock

We will notify you when this product becomes available.

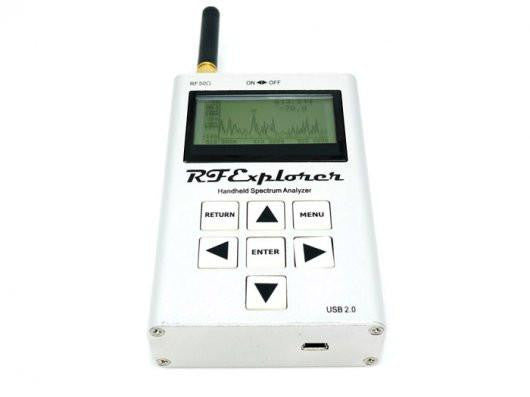

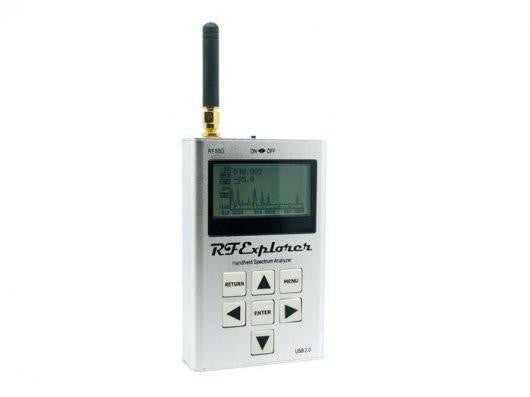

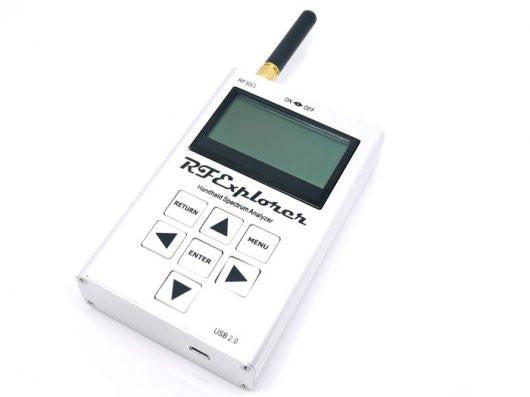

RF Explorer is a pocket-sized digital spectrum analyzer that offers an affordable solution for any ISM frequency band. It is powered by a highly integrated frequency synthesizer for superior performance, compact size, low energy consumption, and cost-effectiveness. It can be used both indoors and outside, and its mini USB 2.0 connector supports expanded functionality when connected to a PC. The accompanying EVA case provides additional convenience and protection.


MODEL: 915M
Feature
  • Pocket size and light weight
  • Solid aluminum metal case
  • Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
  • Integrated RF Signal Generator
  • Lifetime free firmware upgrades available, open to community requested features
  • High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
  • Windows PC client Open Source
  • Can be extended with internal Expansion Modules for additional band and functionality

Specification

  • Frequency band: 910-920 MHz (enhanced to 900-930 MHz if an Expansion Module is connected)
  • Frequency span: 112 KHz-10 MHz(enhanced to 30 MHz if an Expansion Module is connected)
  • Graphics LCD 128x64 pixels, great visibility outdoors
  • PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
  • Backlight for great indoor visibility
  • Standard SMA 50 ohms connector, a matching antenna is included
  • Amplitude resolution: 0.5dBm
  • Dynamic range: -115dBm to 0dBm
  • Absolute Max input power: +5dBm
  • Average noise level (typical): -110dBm
  • RF Generator amplitude: 0dBm to 20dBm
  • Frequency stability and accuracy (typical): +-10ppm
  • Amplitude stability and accuracy (typical): +-3dBm
  • Frequency resolution: 1Khz
  • Resolution bandwidth (RBW): automatic 2.6Khz to 80Khz
  • Weight: 185g
  • Size: 113x70x25 mm

RF Explorer Models Table

Documentation can be found here
RF Explorer handling care suggested link: http://www.rf-explorer.com/care
For more information, please visit here.
If you encounter any problems when using this product, please contact rfexplorer(at)arocholl.com for the technical support.
 Firmware and functionality is the same as in original 915M model, minor changes required in production to accommodate to internal RF module 3rd party vendor changes.
 As for the software for RF Explorer series, please click the following logo for more information:
