Features
- Robust construction for outdoor usage, easy to install through doors and windows
- Perfect connector match with RF Explorer high-performance antennas and Helium hotspots
- Very low insertion loss

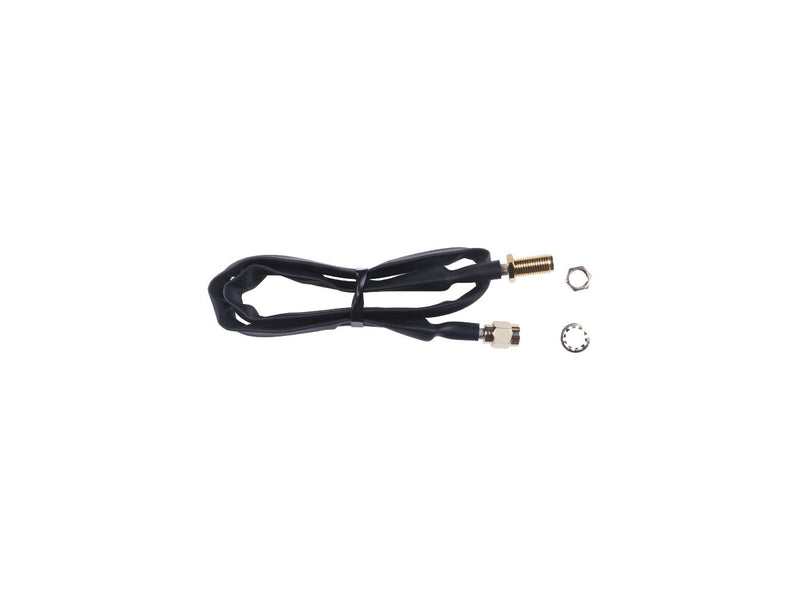

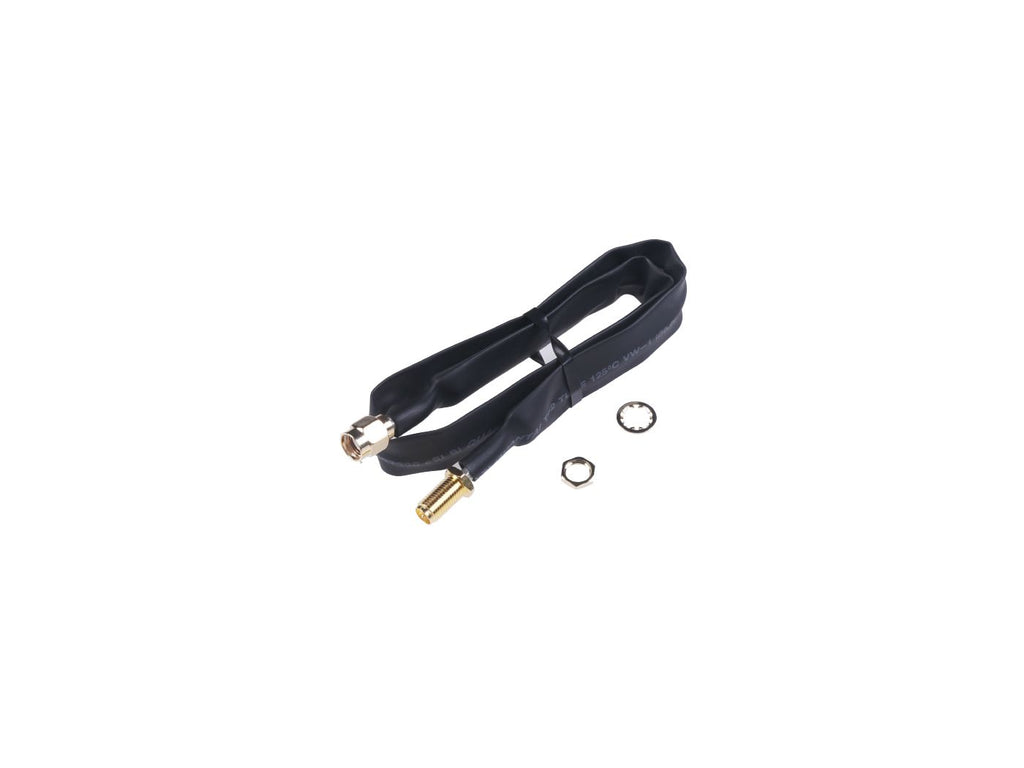

High-quality low loss RG174 flat cable suitable for indoor and outdoor installation. Length 40cm (16'') with connectors RPSMA Female to RPSMA Male.
Fully compatible with technologies, products and services by
Specification
| Frequency Range | 0-3000MHz |
| Length | 400 mm |
| Impedance | 50Ω |
| VSWR | Typical 1.4 @ 900MHz ≤1.5 max @3GHz |
| Insertion Loss | Typical 0.45db @ 900MHz |
| Capacitance | 101pF/m |
| Velocity of Propagation | 66% |

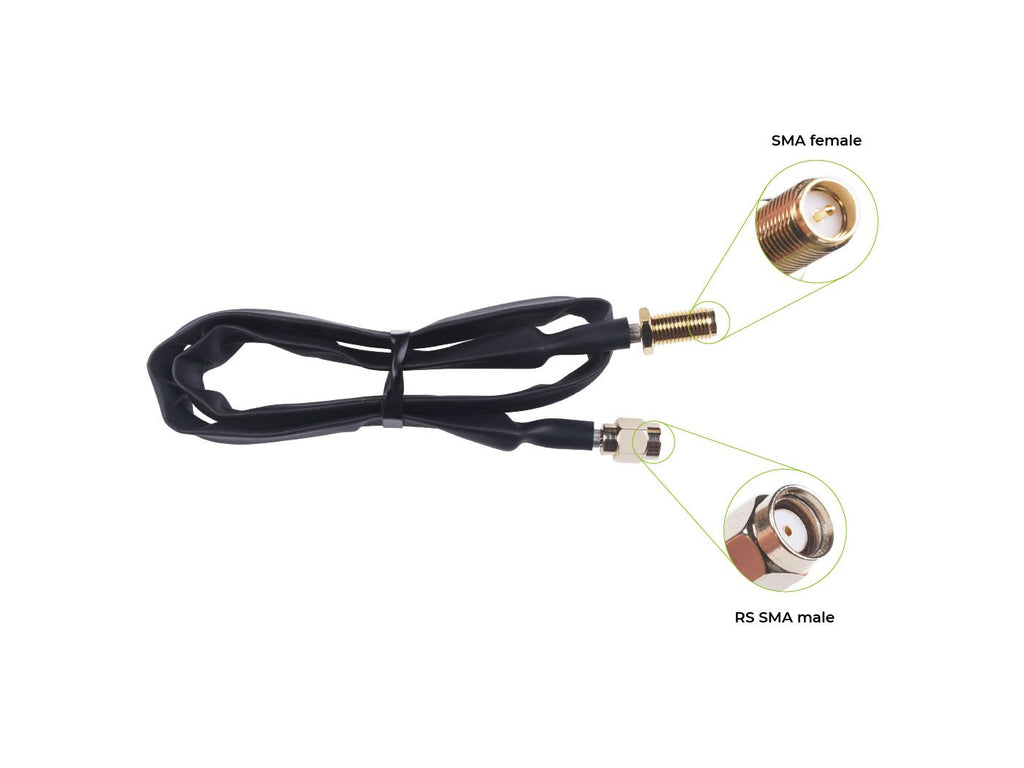

| Connectors | RP SMA Male/Jack RP SMA Female/Plug |
| Insulation Resistance | >1000MΩ |
| Pull Test | 3Kgf |
| Bend Radius | Min 8mm |
| Voltage Breakdown | 1KV |
| External Cable Diameter | 2.8mm |
| Mating Cycles | >300 |
| Jacket Material | PE |
| Conductor Material | Copper |
| Shield Material | Tinned copper |
| Operation Temperature | -30℃ to + 65℃ |
| Environmental | RoHS |
VSWR
Insertion Loss
Dimension
ECCN/HTS
| HSCODE | 8544200000 |
| USHSCODE | 8517180050 |
| UPC |
