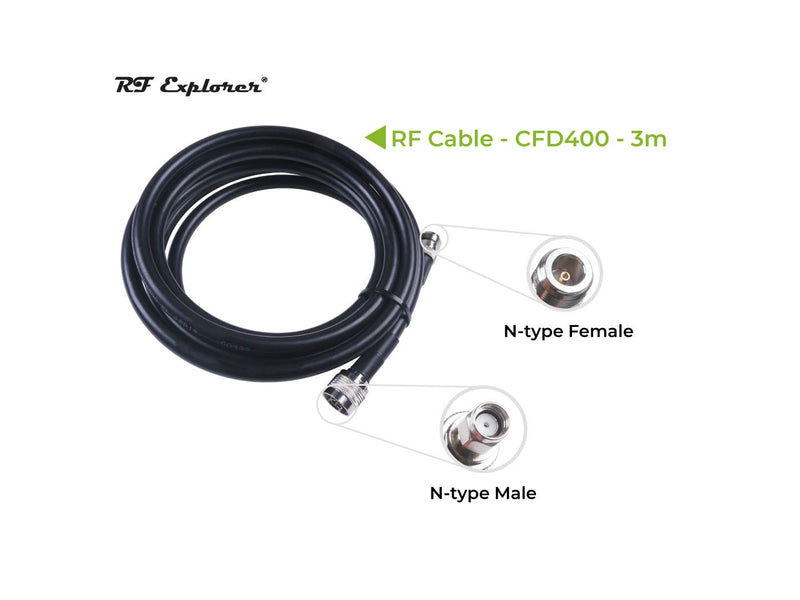

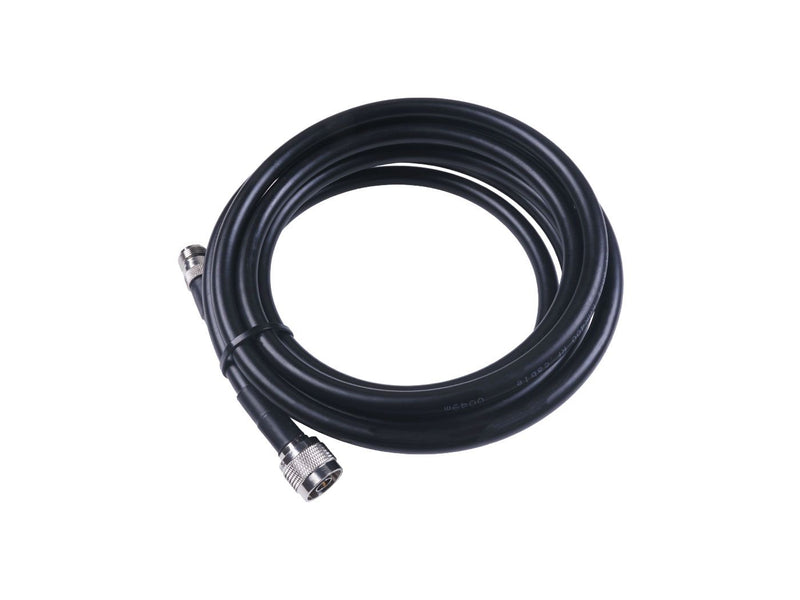

RF Cable; N Female to N Male - CFD400-Black-3m

Sale price A$24.88   Inc. GST
Out Of Stock

We will notify you when this product becomes available.


  • Robust construction for outdoor usage
  • Perfect connector match with RF Explorer high-performance antennas and Helium hotspots
  • Very low insertion loss

High-quality low loss CFD400 cable suitable for outdoor installation and weather extreme conditions. Length 3 meters with connectors N-Female to N-Male.

Fully compatible with technologies, products and services by


Frequency Range0-6000MHz
Length3 meter ±50mm

Typical 1.1 @ 900MHz

≤1.5 max @ 6GHz

Insertion Loss

Typical 0.9db @ 900MHz

≤2.5db max @ 6GHz

Velocity of Propagation85%

Type N Male/Jack

Type N Female/Plug

Insulation Resistance>1000MΩ
Bend RadiusMin 25.4mm
Voltage Breakdown2.5KV
External Cable Diameter10.3mm

Type N Female

Type RP-SMA Male

Mating Cycles>500
Jacket MaterialPE
Conductor MaterialCopper
Binder MaterialAluminum/PE Tape
Braid Material Tinned copper wire
Operation Temperature-30℃ to +65℃
Environmental RoHS


Insertion Loss
