Description:
The reTerminal D1001 is an 8-inch LCD touch display HMI device designed for smart interfaces, IoT, and embedded applications. Featuring a 1280×800 resolution, it delivers sharp visuals and responsive touchscreen interaction. Powered by ESP32-P4 and ESP32-C6 processors, it supports Wi-Fi 6, BLE 5, and high-performance edge computing, enabling fast, low-latency connectivity for modern IoT and HMI projects.
Equipped with a built-in camera and dual microphones, the D1001 supports advanced voice and video applications, including AI voice recognition, conferencing, and smart device control. A 2500mAh battery provides reliable portable operation, while its compact and robust design allows seamless integration into industrial, educational, and consumer electronics environments.
- Powerful Processing for Rich Interfaces: Powered by ESP32-P4, a 32-bit RISC-V dual-core processor with 32 MB PSRAM, this device delivers the performance needed for graphics-rich interfaces, smooth real-time interaction, and more edge applications.
- Integrated Wireless Connectivity: Wireless communication is enabled by an onboard ESP32-C6 supporting Wi-Fi 6 (2.4 GHz) and Bluetooth 5 LE. The main processor communicates with the connectivity subsystem via an SDIO interface, enabling reliable wireless networking for connected devices and IoT applications.

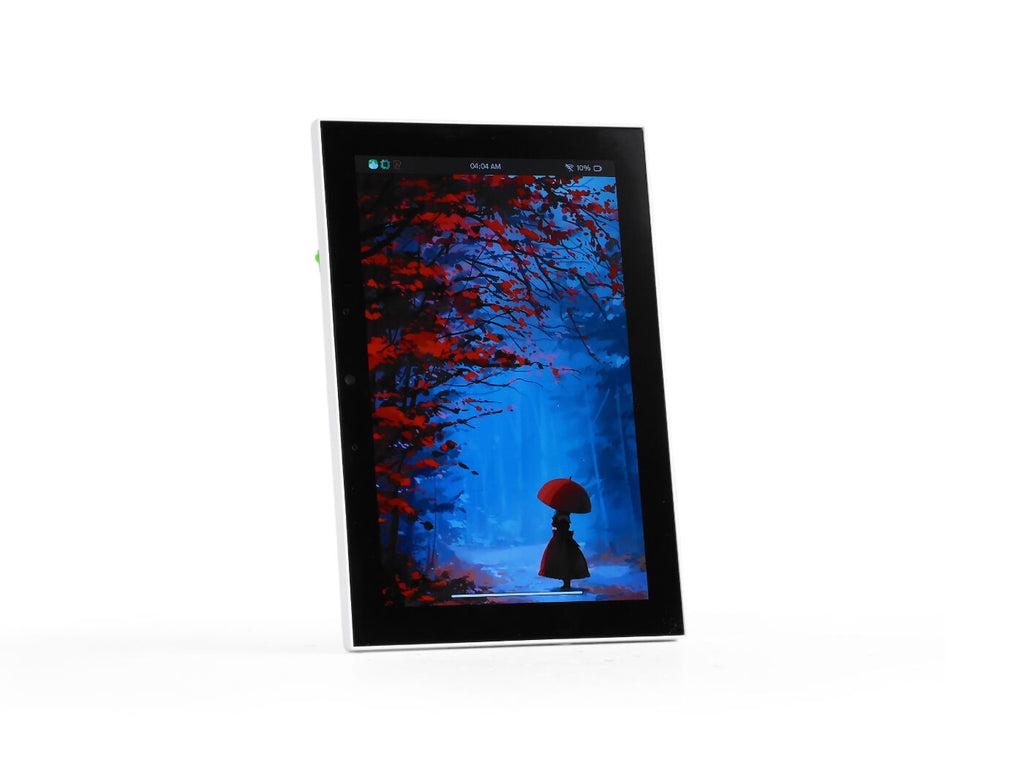

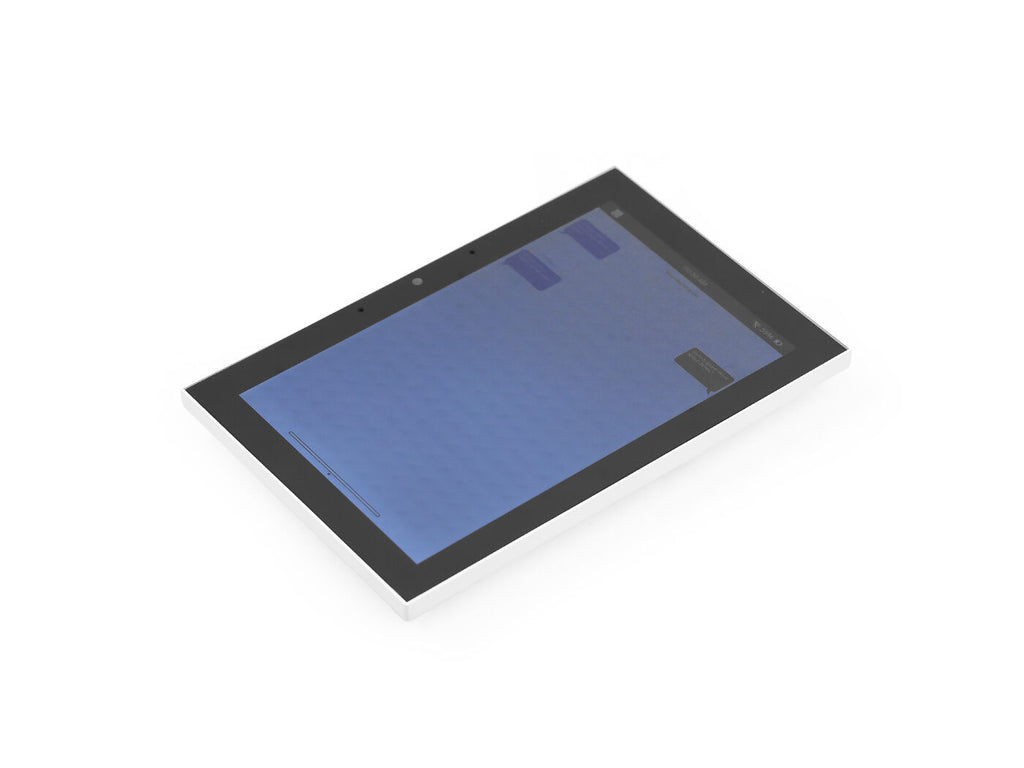

- 8-Inch Touch Display with Rich HMI Support: The 8-inch 800 × 1280 capacitive LCD display, driven over MIPI-DSI and supporting both portrait and landscape modes, gives you the space to build polished dashboards, smart control panels, and other UI-focused embedded devices.
- Camera Interface for Vision Development: With a MIPI-CSI camera based on the SC2356 sensor and support for up to 1600 × 1200 at 30 fps, the platform is ready for image capture, live preview, and embedded vision development right out of the box.
- Voice and Audio Capabilities: Dual microphones and a built-in speaker enable voice input, sound capture, and playback. With echo cancellation supported by the ES7210 audio ADC, the system helps deliver clearer voice capture for AI assistants and voice-enabled applications.
Parameter | Description | ||
Basic | |||
Processor | ESP32-P4NRW32 with 32MB PSRAM | ||
Wireless SoC | ESP32-C6 | ||
Storage | 32MB QSPI Flash, support Micro SD card | ||
Display | |||
Size | 8” | ||
Resolution | 800×1280 | ||
Luminance (cd/㎡) | 250 | ||
Optimum Viewing Angle (O’Clock) | ALL | ||
Interface | MIPI-DSI | ||
Driver IC | 9365DA-H3 | ||
Touch Type | Capacitive touch | ||
Touch IC | GSL3670 | ||
Orientation | Portrait/Landscape rotation supported | ||
Camera | |||
Sensor | SC2356 | ||
Active Array Size | 1608×1208 | ||
Max Frame Rate | (1600*1200)30fps 10bit | ||
Interface | MIPI-CSI | ||
Audio | |||
Microphone | Dual microphone | ||
Speaker | 2W@8Ω NS4150B | ||
Audio IC | Codec: ES8311 Audio ADC: ES7210 | ||
Wireless Communication | |||
Wi-Fi | Wi-Fi 6 (2.4GHz) | ||
BLE | Bluetooth 5 (LE) | ||

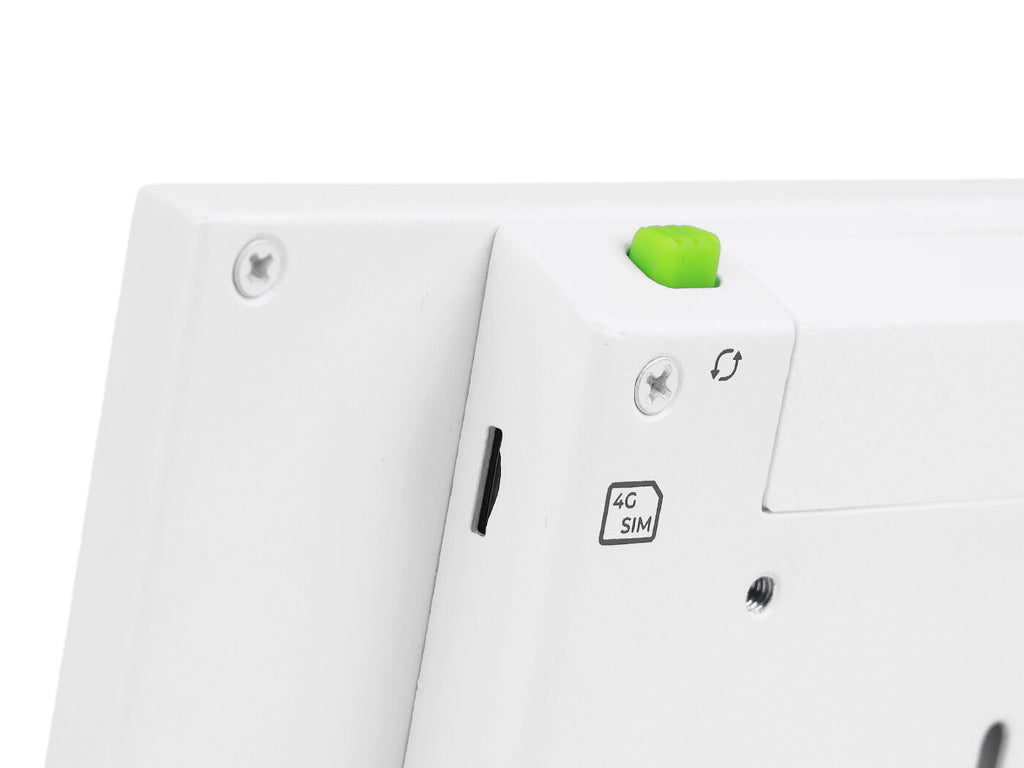

Cellular | Mini-PCIe for 4G (optional) | ||
Antenna | On-board antenna and external Antenna | ||
Power | |||
Battery | 2500mAh | ||

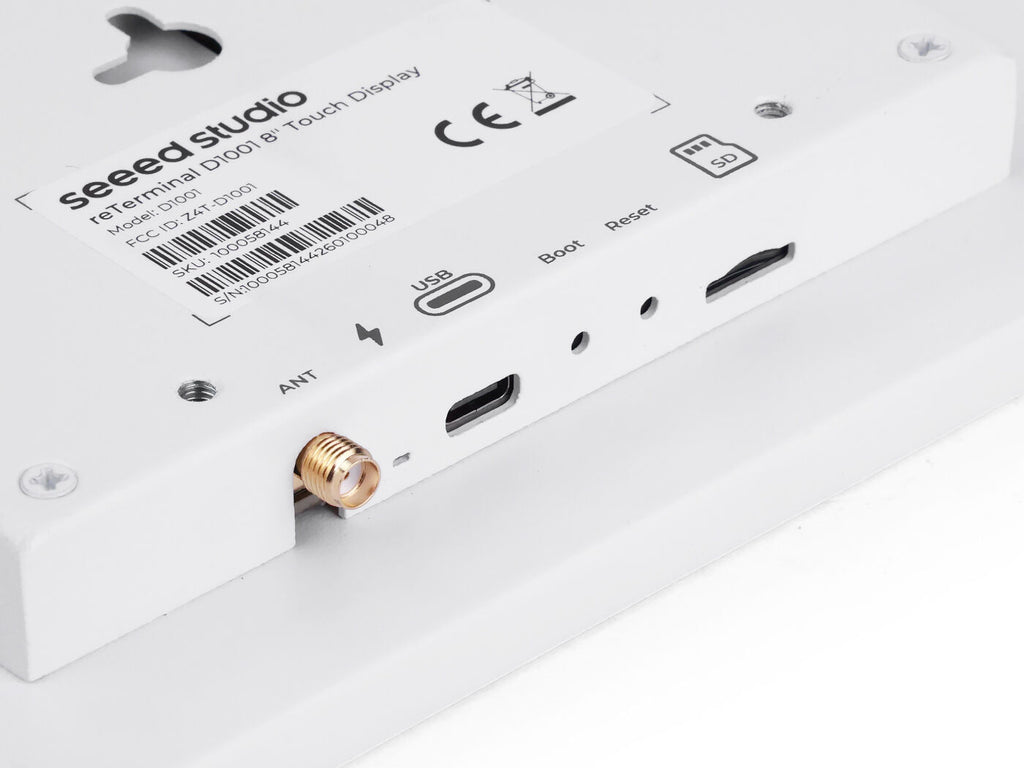

Power Input | USB Type-C 5V | ||
Other | |||
RTC | PCF8563T(supports timed interrupt wake-up) | ||
Motion Sensor | LSM6DS3TR Six-Axis | ||
- Smart Home Central Hub: An all-in-one HMI device for managing lighting, security, and home automation systems.
- Video Intercom Systems: Real-time visual communication for smart entry, doorbells, and security access.
- Interactive AI Assistants: Voice-enabled smart displays providing intuitive visual feedback and responsive control.
- Industrial Data Dashboards: Professional monitoring terminals for real-time equipment tracking and commercial data visualization.
- Edge Vision Terminals: Compact solutions for image capture, scanning, and interactive retail kiosks.
Wiki-reTerminal D1001 Resources

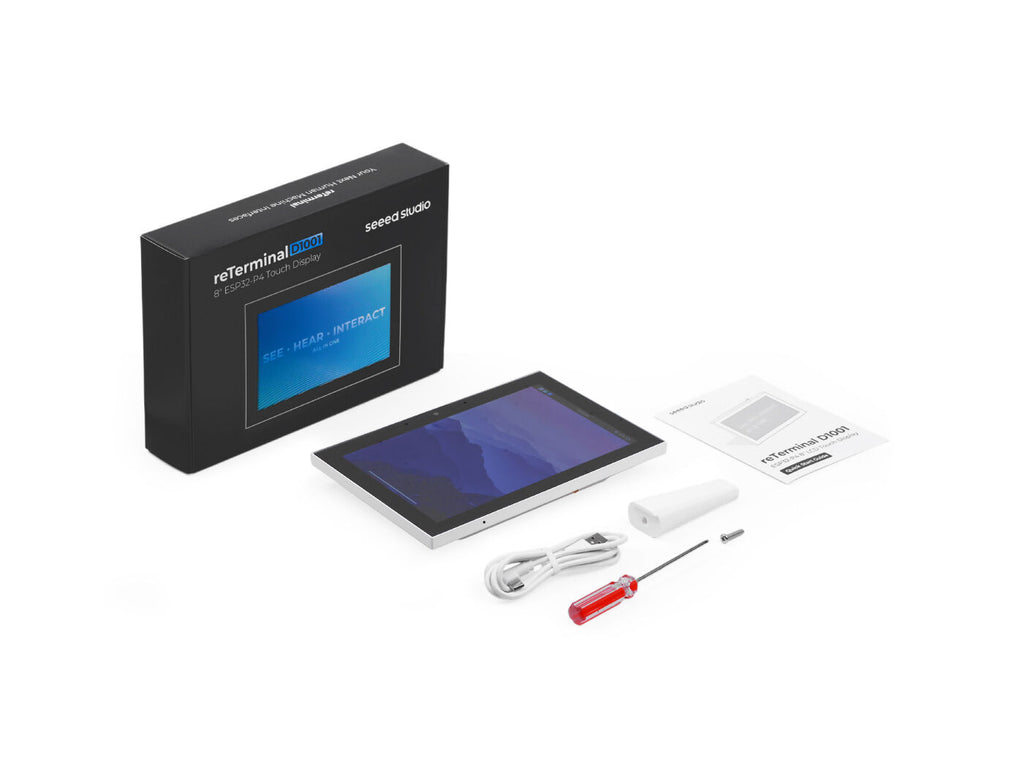

reTerminal D1001 LCD Display | ×1 |
USB Type-C Cable | ×1 |
Display Stand with Screw | ×1 |
Screw Driver | ×1 |
| HSCODE | 8543709990 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
