Replacement Motor Kit for Maqueen V5 STEM Robot

SKU: DF-DFR1224
Sale price A$10.56   Inc. GST
181 units ships in 7 to 10 days

The Maqueen V5 is a robust robot, but accidents can happen in the classroom or during intense project sessions. Contaminants like dust, hair, or particles can jam the gears, or rough handling might damage a motor.

But a broken motor doesn't mean the end of your robot! This official N20 motor accessory kit is designed for a quick and simple repair, allowing you to restore your Maqueen V5 to full functionality in minutes.

Please Note: This is a replacement part. The Maqueen V5 educational robot comes complete with the two motors required for operation. You do not need to purchase this kit when buying a new Maqueen V5. Each kit contains one motor and the necessary mounting hardware. If both motors on your robot are damaged, you will need to purchase two kits.

Features:

  • All-in-One Solution: Includes one motor, a mounting bracket, screws, and a pad—everything needed for a single motor replacement.
  • Quick & Easy Repair: The motor comes with pre-soldered pin headers, so no soldering is required. Simply swap the old motor out and plug the new one in.
  • Official Accessory: Guarantees perfect compatibility and performance, matching the original motor specifications of the Maqueen V5.

Specification:

  • Interface: 2P 2.54mm Pin Header (Straight Type)
  • Screw: M2×8 Cross-Recessed Pan Head Combination Screw

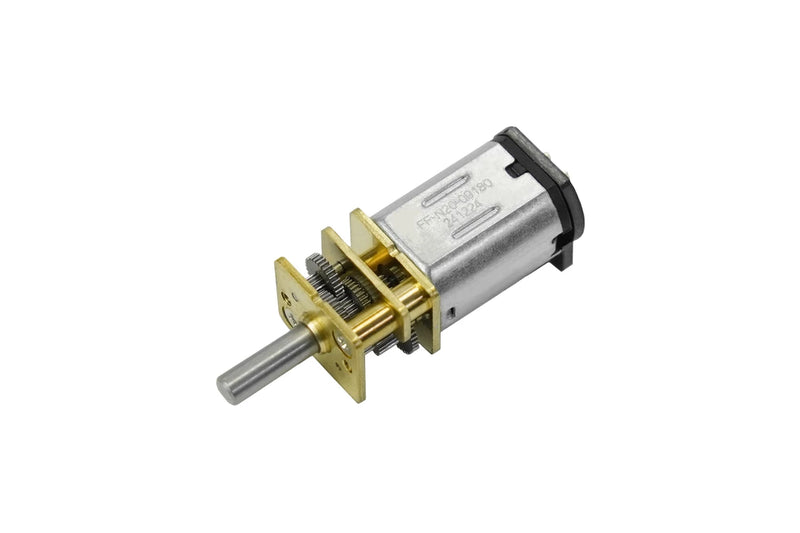

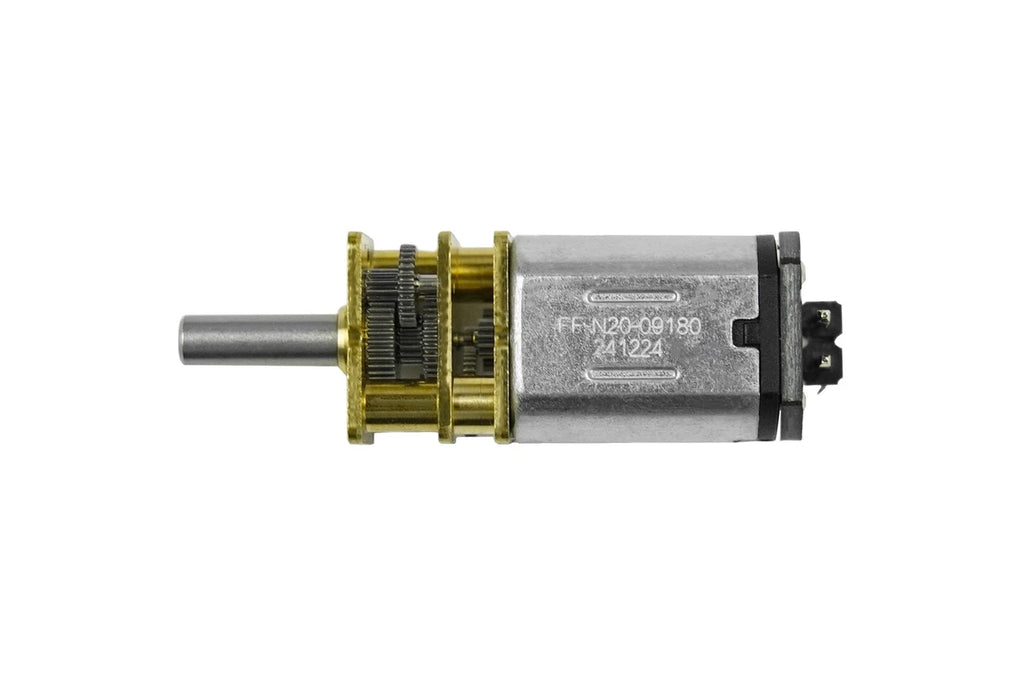

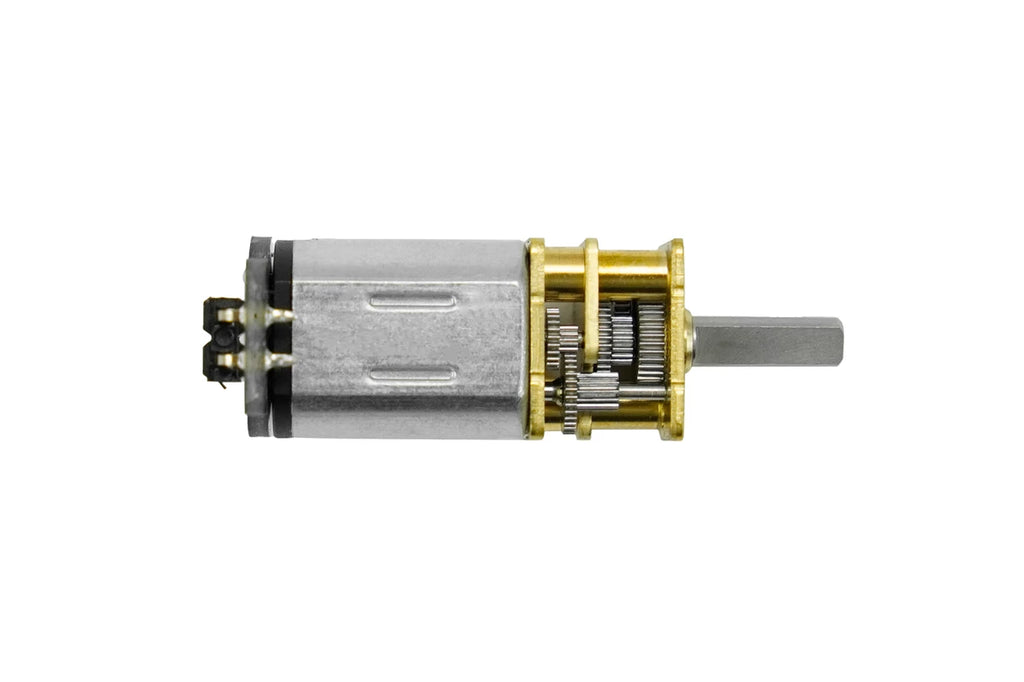

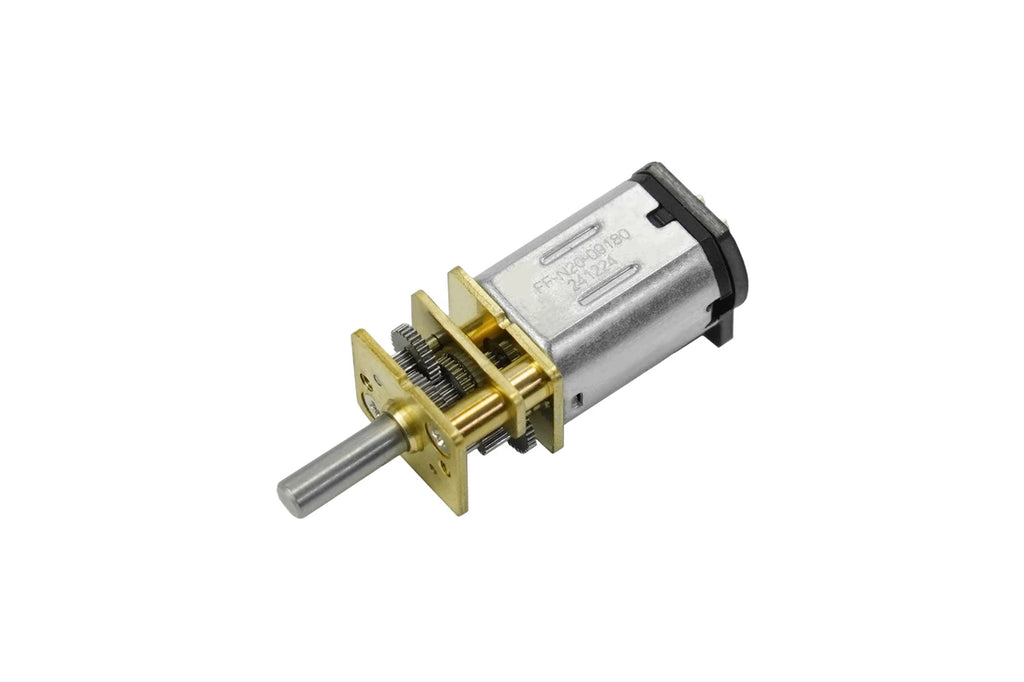

Motor Details:

  • Model: N20
  • Rated Voltage: 3V DC
  • No-Load Speed: 10,000 RPM (at Rated Voltage)

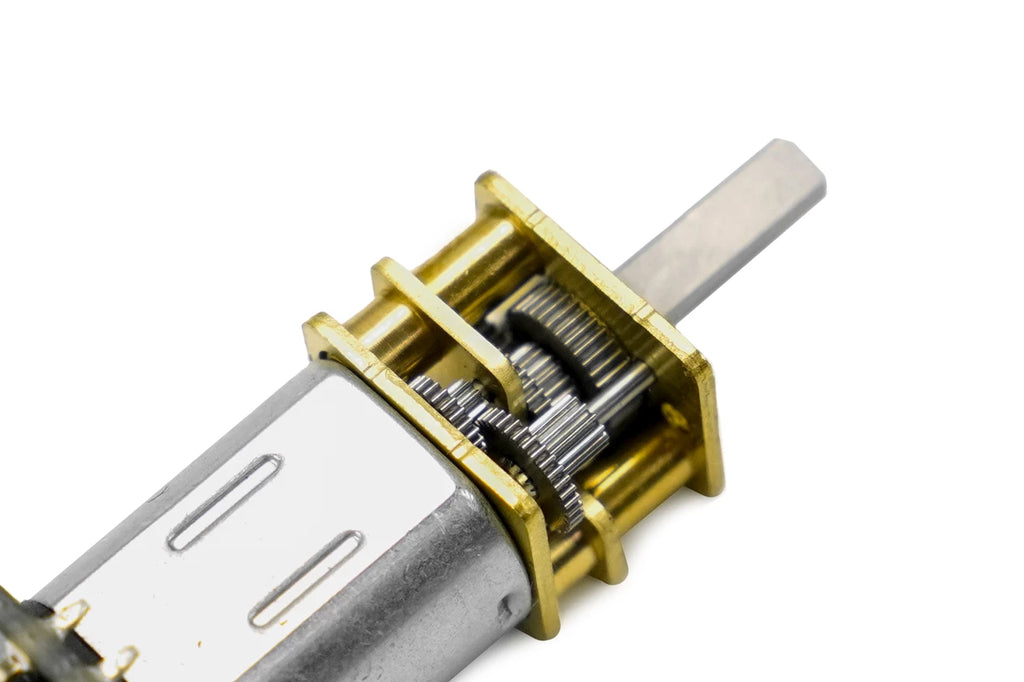

  • Gear Reduction Ratio: 1:110 (Mechanical Reduction)
  • Output Shaft Speed: 90 RPM (at Rated Voltage)
  • Rotation Direction: CCW (Counterclockwise, Viewed from Output Shaft End)



Component Materials:

  • Motor Mount: ABS (Acrylonitrile Butadiene Styrene)
  • Sponge Pad: Black Closed-Cell Polyurethane Foam Tape, Single-Sided Adhesive, 20mm×15mm×5mm



Documents:

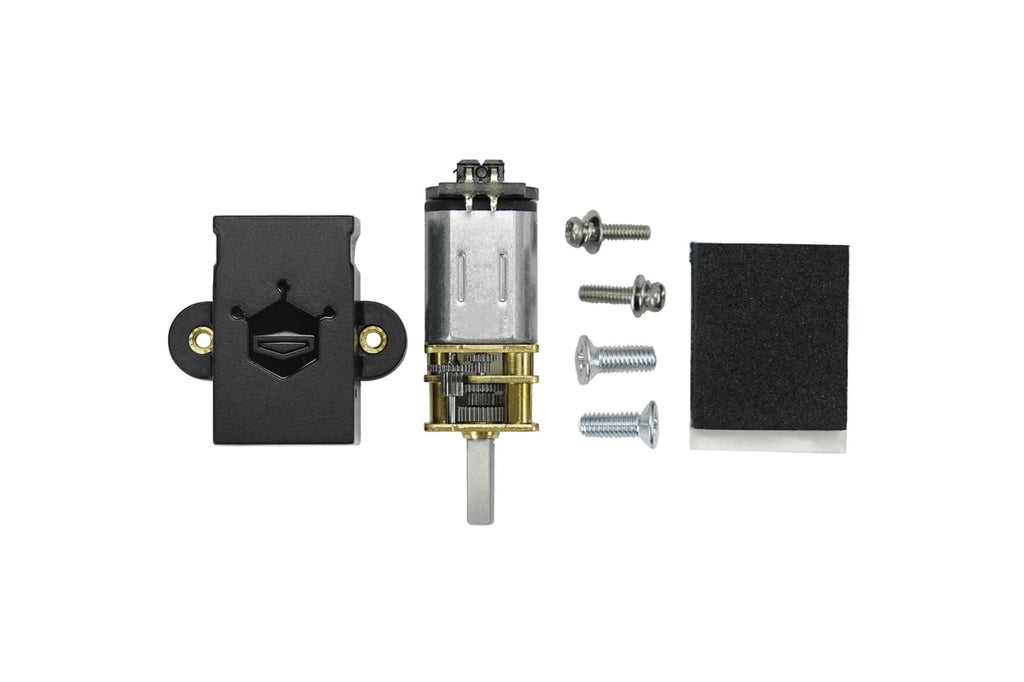

Product Includes:

  • N20 Metal Motor (with pre-soldered PCB and pin headers) x1
  • Motor Mounting Bracket x1
  • Mounting Screws x2
  • Sponge Pad (for battery box cushioning) x1
